stainless steel tank bottom valves

Drawings Details 1.Material Stainless Steel 304/316L 2. Port Size Dn25-100&1''-4'' 3. Certificate CE/ISO/3A 4. Port Ningbo Or Shanghai,China 5. Pressure 0-10bar 6. Connectio
Material:
304L/316L
Standard:
DIN,SMS,ISO,IDF,BSE,RJT
Working Temperature:
-20 to 150℃
Application:
milk,bear,water,oil,etc.
Size:
1''-4''
Type:
tank bottom valve
Connection Type:
clamp,welded,threaded
Sales Models:
wholesale or retail
Pressure Value:
8-30bar
MOQ:
1pcs
Seal Material:
PTFE, TFM 1600, UHMWPE
Transport Package:
cartons

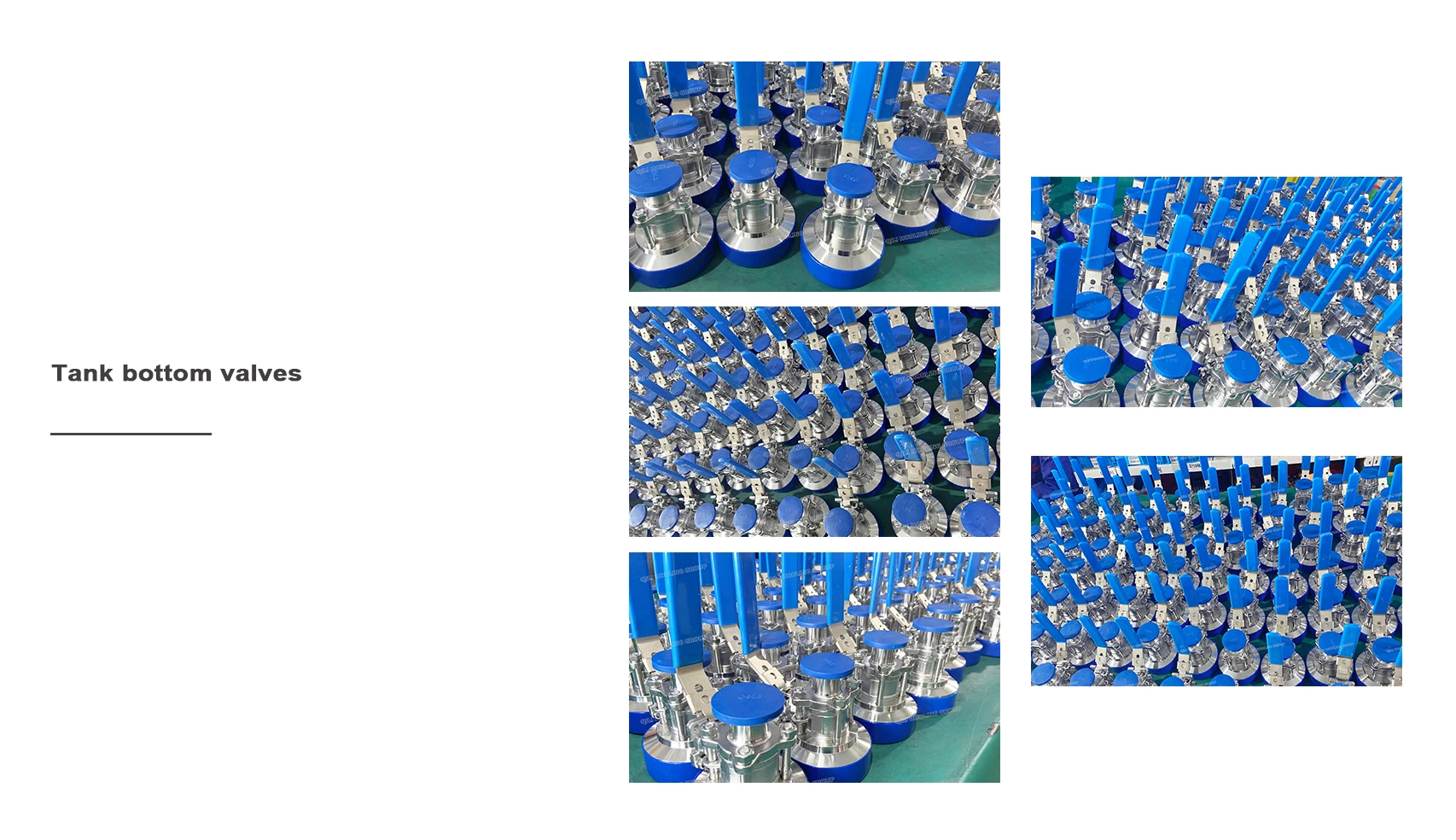

stainless steel tank bottom valves
stainless steel tank bottom valves stainless steel tank bottom valves stainless steel tank bottom valves stainless steel tank bottom valves stainless steel tank bottom valves stainless steel tank bottom valves

Drawings

Details

1.Material Stainless Steel 304/316L
2. Port Size 1''-4''
3. Certificate CE/ISO/3A
4. Port Ningbo Or Shanghai,China
5. Pressure 0-10bar
6. Connection Ends Quick-install
7. Working Temp.  -20 Degree Celsius to 120 Degree
8. Suitable Medium Milk,Bear,Water,Oil,Ect
9.Standard SMS,DIN,3A,IDF,ISO,RJT
10. Machine Processing The most advanced CNC machine from Japan for processing
11. Special Design We can produce according to your drawings

Application
Manual Tank Bottom Ball Valve With Flange Connection is mainly used in the wine brewing,dairy,beverage,and pharmaceutical industries.

Operating Principle
This ball valve with special tank bottom flange connection,be welded on the tank bottom.The design of contour and radius have effective gravity discharge function.Also smooth taper hole and the sphere closely to the bottom,which prevent the medium from staying at the entrance of valve.Make sure drain smoothly.

Design Features
Small fluid resistance,resistance equal to same length section of pipe
Simple structure,small volume,light weight
Easy to operate,open and close rapidly,from fully open to full closed only 90 degree rotation,convenient remote control.
Easy maintenance,simple structure,convenient to disassembly and replacement the seal ice seal,PTFE sealing,at fully open or fully closed,sphere and the sealing surface of valve seat are Isolate with medium.
When medium transiting ,these will not cause erosion of sealing surface.
Connection:clamp,weld,thred,flange
Size:1"-4" Standard:3A,DIN,SMS,IDF,RJT,BPE,ISO
