Sanitary Welded fittings

Sanitary Stainless Steel Special Welded Extension Elbow

Material:
Stainless Steel
Standard:
DIN, SMS, ISO, 3A
Working Temperature:
20-150℃
Application:
Beer, Dairy, Beverage, Pharmacy, Cosmetics
Delivery Time:
within15 days
Connection ways:
weld
Size:
Dn15-Dn300 & 1/2"-12"
Type:
Special Clamped Bend
Sales Models:
Wholesale and Retail
Surface Treatment:
0.4-0.6μm
Pressure Value:
10bar
Transport Package:
wooden case
Contact Now Download PDF

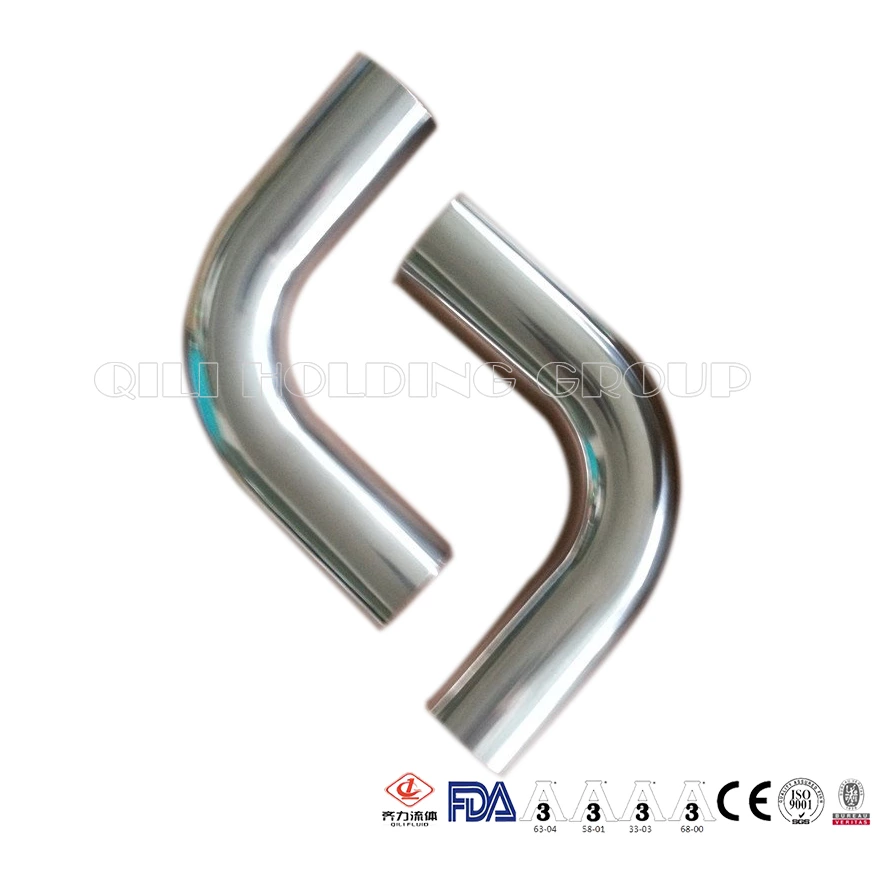

Sanitary Stainless Steel Special Welded Extension Elbow
Sanitary Stainless Steel Special Welded Extension Elbow Sanitary Stainless Steel Special Welded Extension Elbow

Drawings

Details

  • Sanitary Stainless Steel 45 Degree Elbow is applied to the stainless steel pipeline system,which is used for milk,food,juice,beer,phramcy,ect.
  • Specification: DN15-DN200 and 1/2 "-8"
  • Material: 304, 304 L, 316, 316 L, etc
  • Standard: ISO, DIN, IDF, 3 A, IDF, GB, etc
  • Connection: welding type, screw type, clamp type, etc
  • Available Polishing:180 Grit ,240 Grit, 320 Grit ,420 Grit,Unpolished
