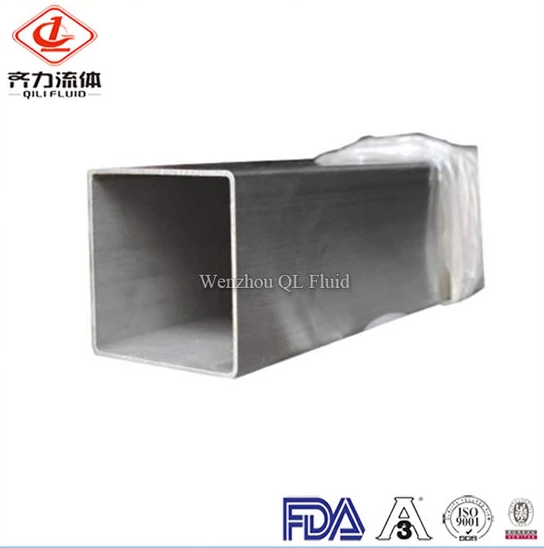

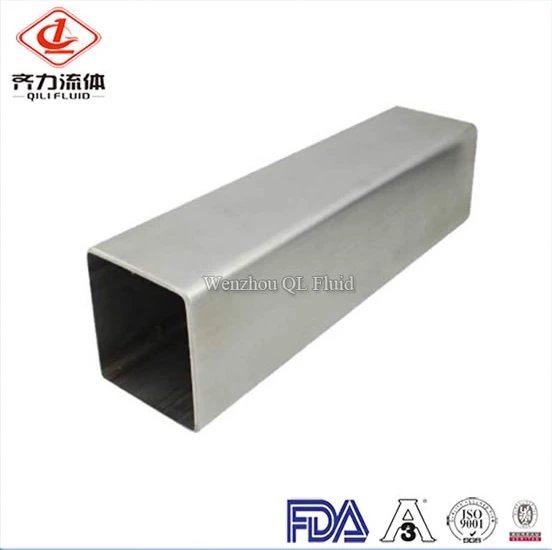

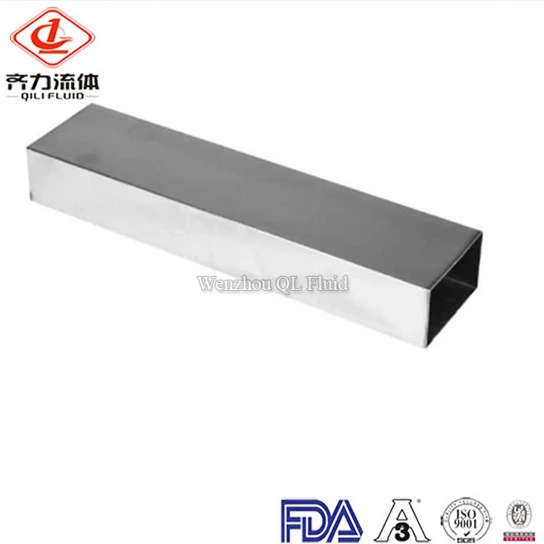

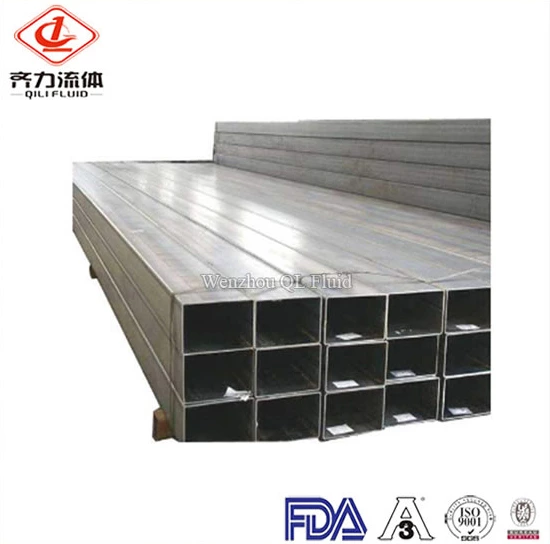

Sanitary Stainless Steel Seamless Square Pipe

Model:
QL-TB03
Contact Now
Sanitary Stainless Steel Seamless Square Pipe
stainless steel tubing
stainless steel square pipe
sanitary tubing
sanitary tube fittings
sanitary stainless steel tubing
Sanitary Stainless Steel Seamless Square Pipe

PRODUCT DESCRIPTION

Description Sanitary  Stainless Steel Seamless  Square Pipe
Connection Welding
Size O. D: 1/8 - 24 inch, W. T: SCH10S, SCH40S, SCH80S,
SCH160S etc. Or Non-regular sizes as requested.
Testing A. Visual and Dimension Check, Chemical Testing,
Physical Testing, Eddy Current Test or Hydrostatic
Test in accordance to specification A999/A999 M.
B. Ultrasonic test can be done by customer's request.
C. Mechanical Property test of Tensile Strength,
Yielding Point, Elongation and Flattening test by
Mechanical Test Machine and Hardness by Rockwell test.
Tolerance Outer diameter:±0.2mm
Thickness:±0.05mm
Length:±5mm
Material of stainless steel 304(0cr18ni9,ocr17ni8)
201(1cr17mn6ni5n,1cr13mn9ni1n)
Customer’s requests available
Manufacture process Cold draw or Cold roll, Annealed&Pickled
Standard ASTM/ASME A312/A376 ASTM A213 ASTM A269 GOST
9941-80/81
Grace 304, 304L, 304H, 316 316L, 316/316L, 316Ti, 321, 309S,
310S, 317L, 904L, S31803, 2205, 12X18H9, 08X18H10,
03X18H11, 03X17H14M2, 08X17H13M2T, 08X18H10T,
08X18H12B, duplex grade and other stainless steel material.
Surface Treatment Annealed, and pickled.
Length To be Specificed or Random.
Marking As per specification A999/A999 M.
Application Construction, upholstery, industrial instrument
Packaging Carton packaging. Wooden case packaging.
Shipment Air shipment, Ocean shipment, DHL/UPS available.
Up to requirement.
Export Markets North America, South America, Europe,MID East, Eastern
Asia, Western Europe.
Payment T/T, L/C, West Union, Paypal
More information Sanitary Stainless Steel Seamless Pipe Tube is featured
products in Qili products, and Qili Fluid Equipment Co.,
Limited is a China manufacturer, a excellent supplier and
exporter specialize in fittings and valves for sanitary stainless
piping system. All of our sanitary valves, fittings and pumps
are made from high quality forging by CNC process center,
we do strict quality control since raw material testing. And our
management and system are very formal.
