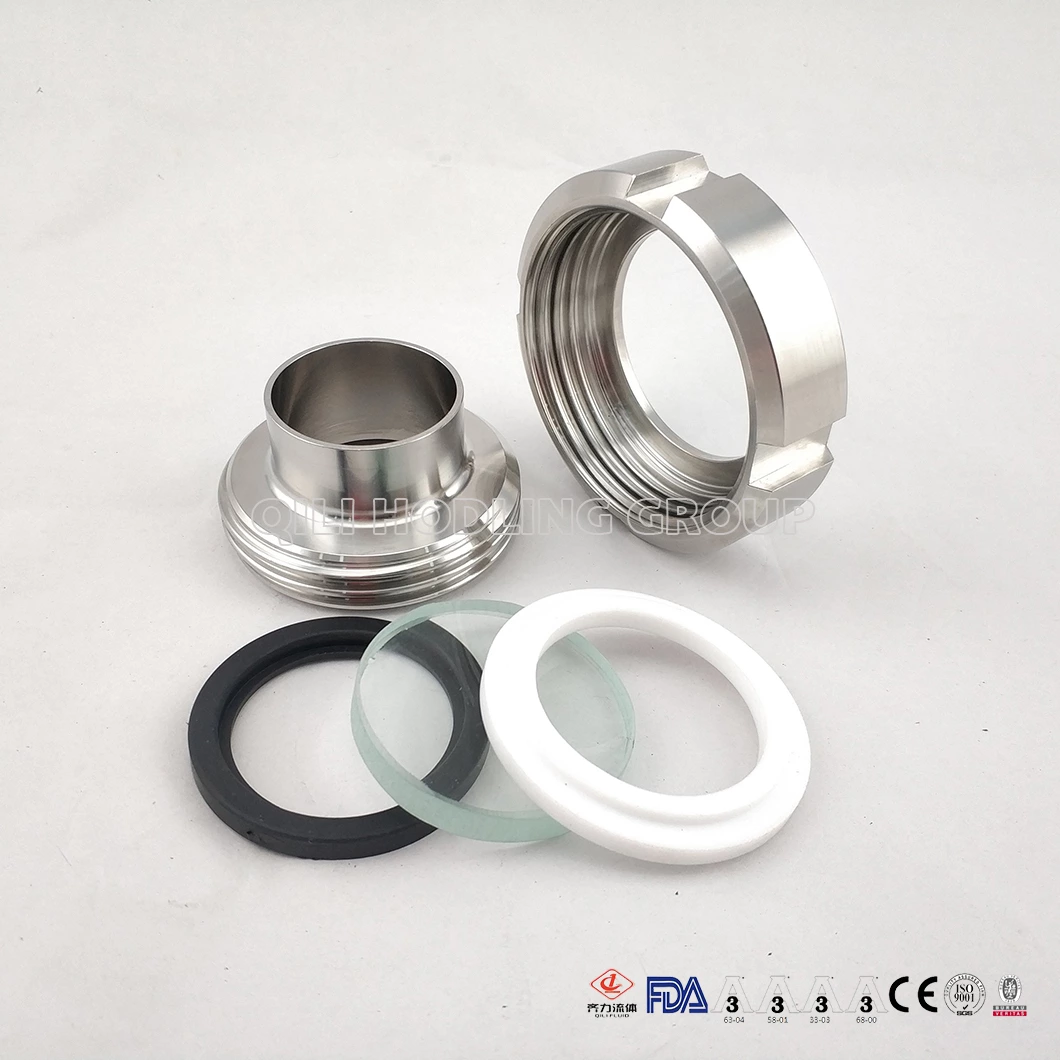

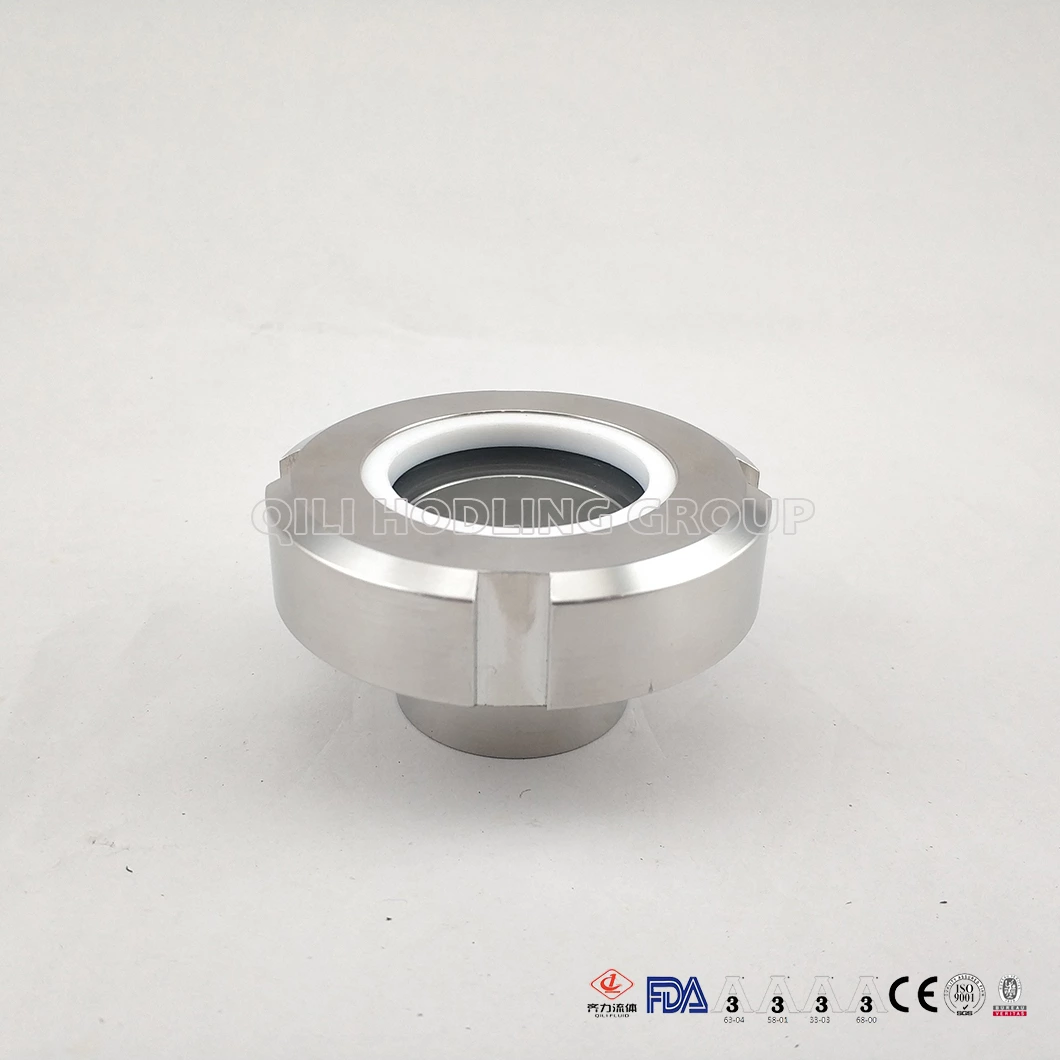

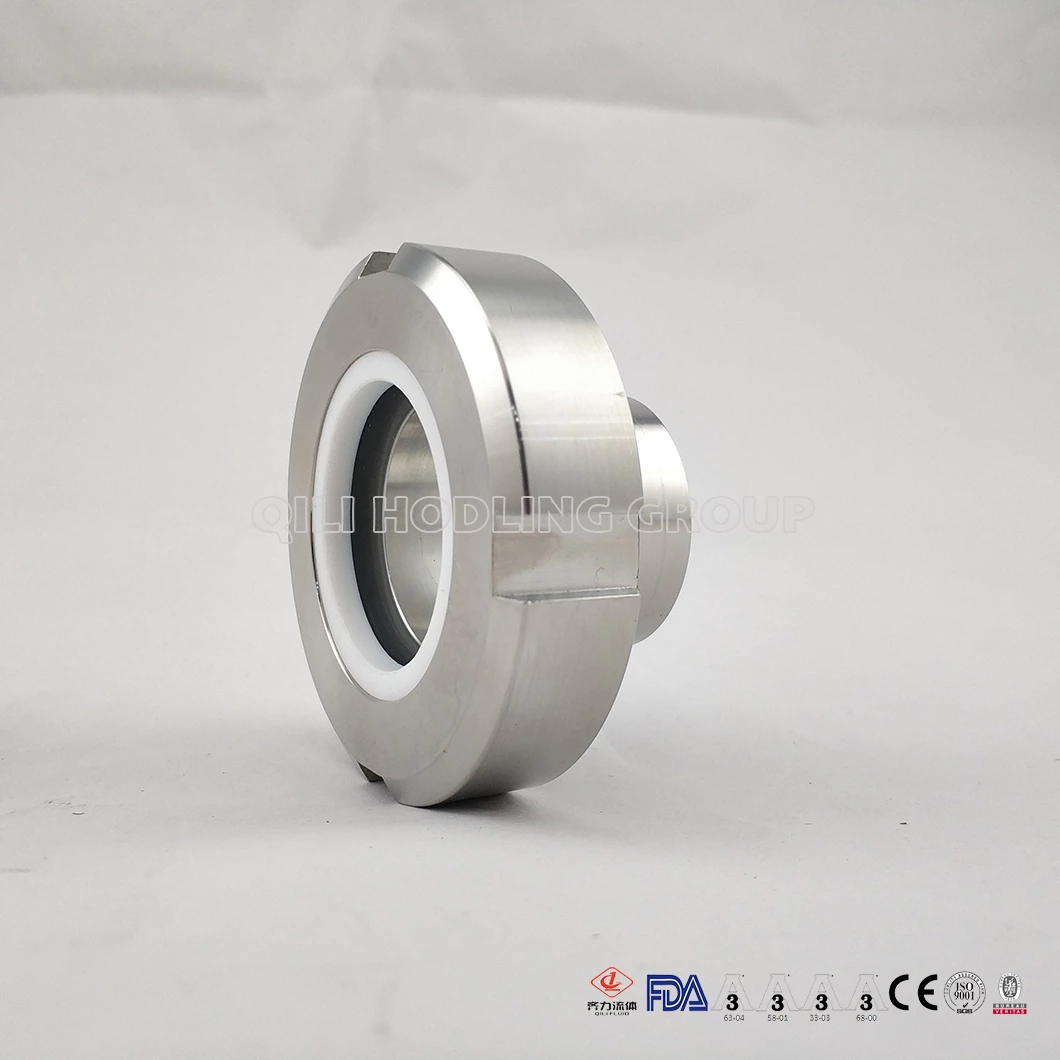

Stainless Steel Tank Fittings Weld Inline Sight Glass Union Type EPDM or FKM Gasket Inside
Standard
DIN, SMS, ISO, IDF, RJT
Flux domination of pipeline
DN15-150&1"-6", larger size can be customize
Processing
CNC Machine
Gaskets
EPDM, Silicone, Viton.
Medium
Beer, Da
- Material:
- SS304 and SS316L
- Standard:
- 3A,SMS,DIN,ISO
- Specification:
- Sight Glass Union Type
- Working Temperature:
- max 120℃
- Application:
- Pharmacy, beer, food, petroleum, dairy beverage, cosmetics
- Connection ways:
- weld
- Size:
- DN25-DN150
- Sales Models:
- Wholesale and Retail
- Pressure Value:
- 6bar (higher pressure is possible if needed) Vacuum
- MOQ:
- 1 pc
- Seal Material:
- Viton, NBR, PTFE, Slilicon
- Transport Package:
- cartons
Specification
- Nut material: AISI 1.4301(304)
- The parts contact with liquid: AISI 1.4301(304); 1.4404(316L)
- Seals: Viton, NBR, PTFE, Slilicon
- standard:DIN, SMS
- Connection:Welded, quick-installed, threaded
- Temperature:max 120℃
- Pressure: 6bar (higher pressure is possible if needed) Vacuum
- Application:Pharmacy, beer, food, petroleum, dairy beverage, cosmetics

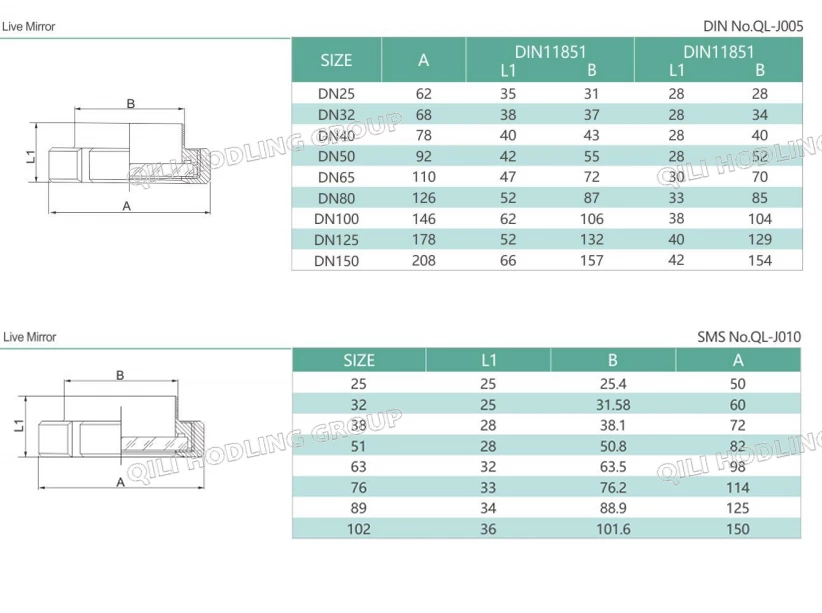

Drawings
Application
Union-type-sight-glass DIN11851/SMS (standard for dairy products), with transparent circular glass. Threaded nozzle with the welded neck.Welded sight glass with male. It is used viewing the biologic reactor, blender in laboratory, fitter, processing container,pipeline and other closed container. Especially apply in pharmacy,food and beverage processing, such as the brewery, dairy.
