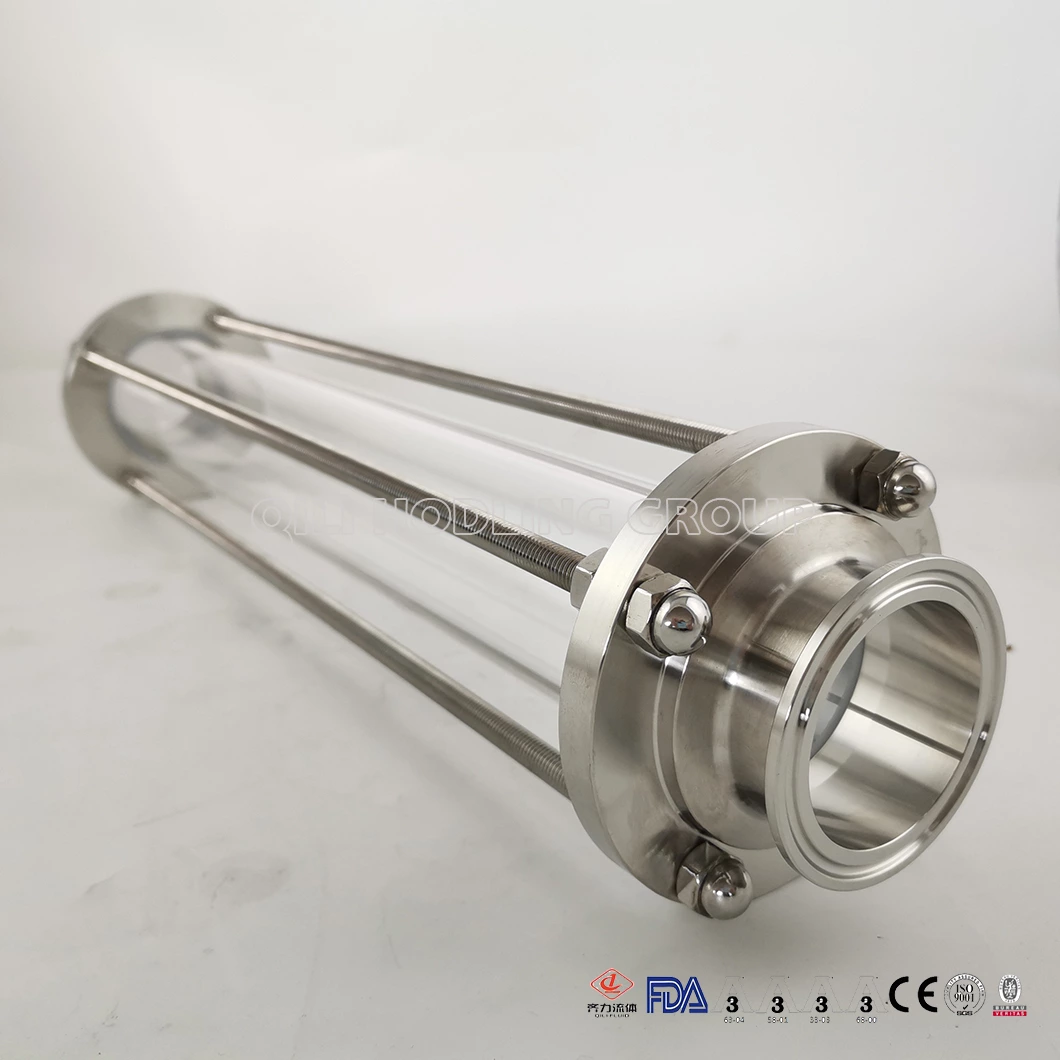

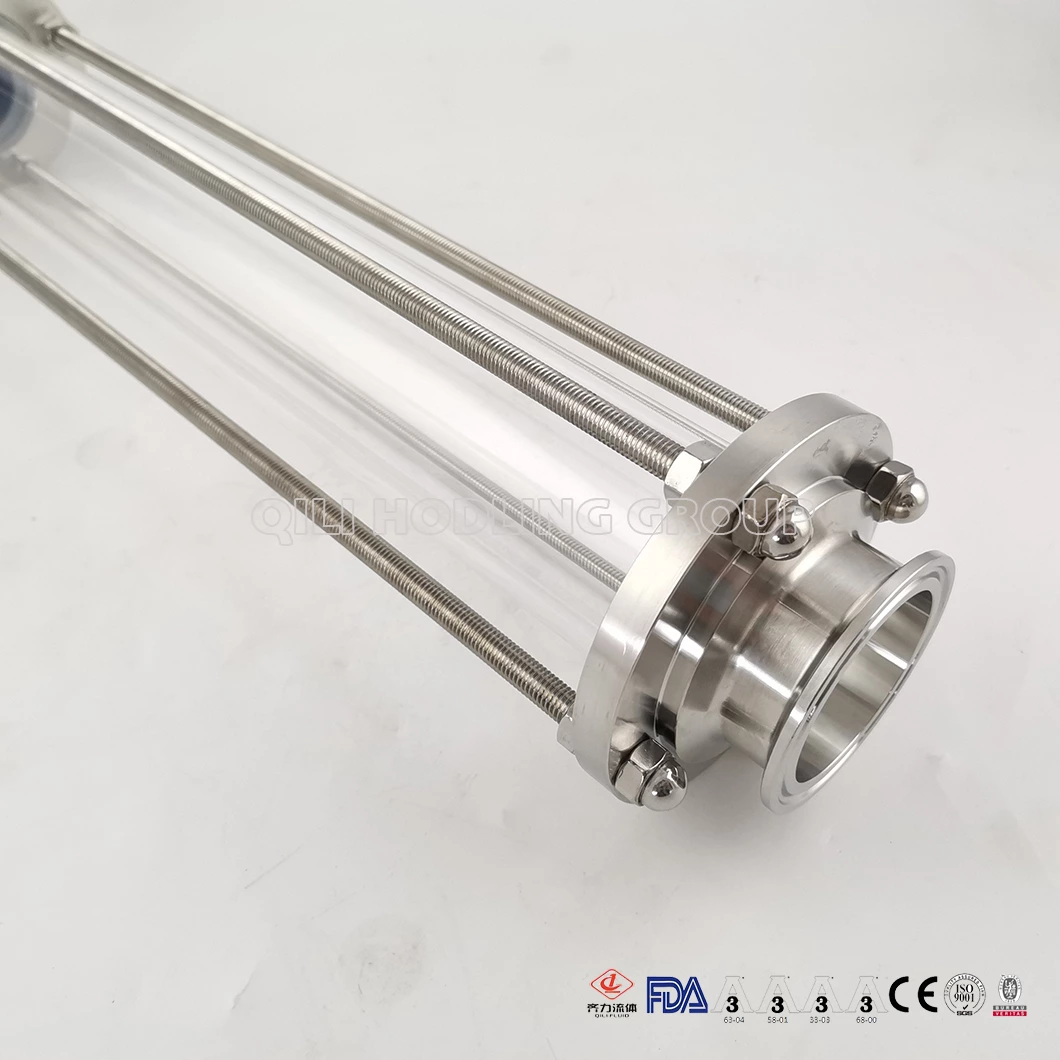

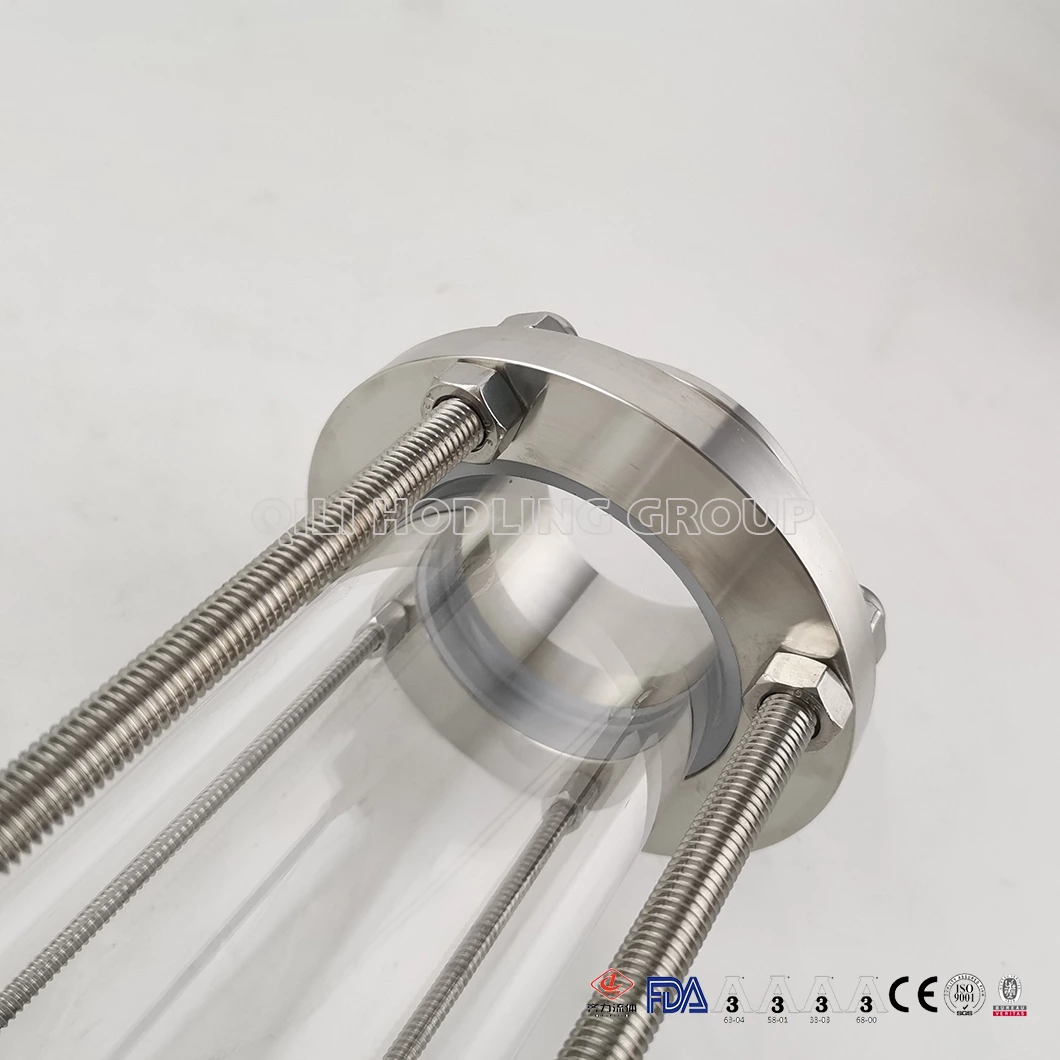

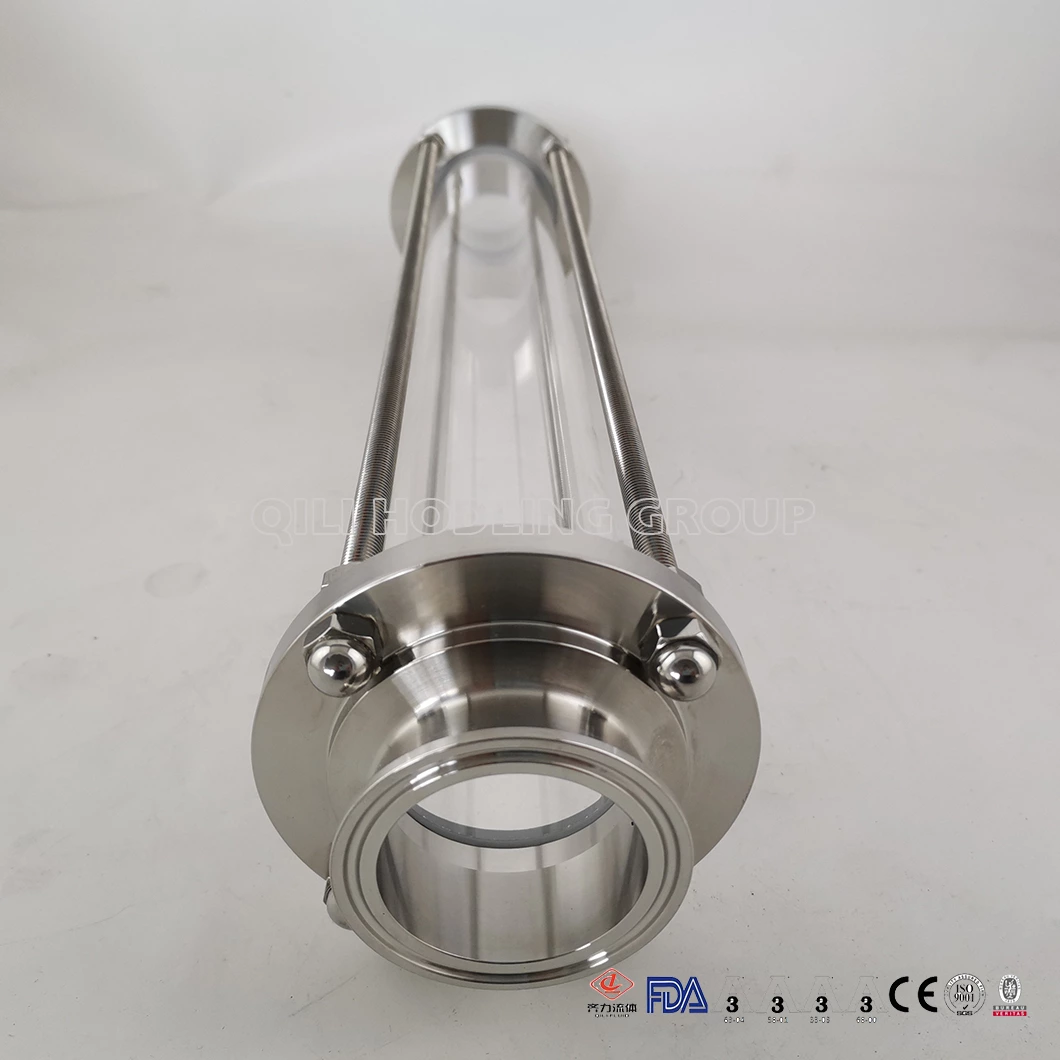

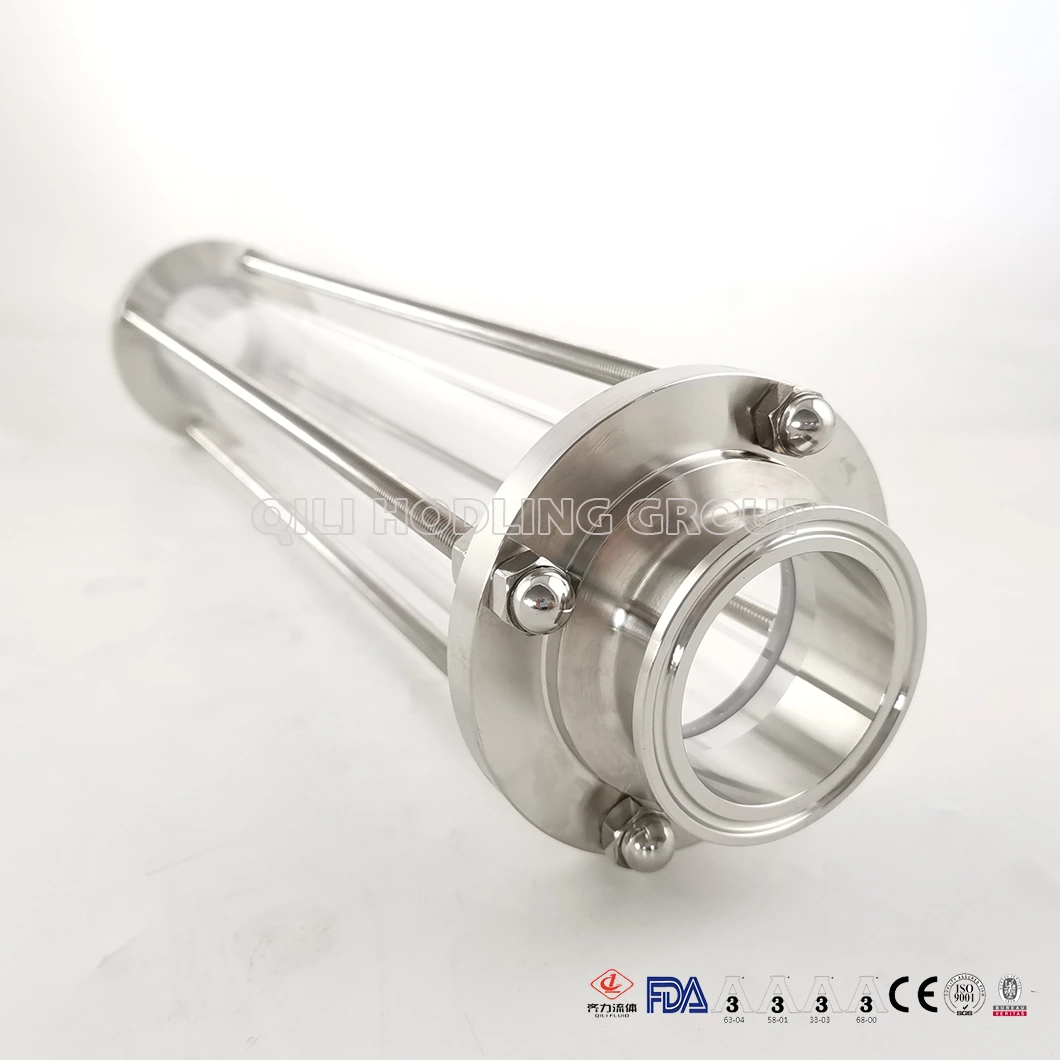

SS304/SS316L Sanitary Stainless Steel Long Sight Glass
The sight glass is widely used in food,wine-producing,beverage,and pharmacy industries etc.For Sight Glass is convenient to view the condition of equipment running state and system work state.The straight sight glass can be installed in horizontal or vertical.It also can 360 degree view through the glass defence.It is suitable for on-line view of the pipeline.Sight glass with lamp is a type of sight glass with union.It can work under the dark light according the lamp and disassembling easy. So it is suitable to the view of tank equipment.
- Material:
- SS304,SS316L
- Standard:
- ISO, DIN, SMS, 3A, RJT,IDF etc
- Working Temperature:
- 120℃
- Application:
- biologic reactor, blender in laboratory, fitter, processing container,pipeline
- Connection ways:
- clamped，welded，threaded
- Size:
- 1-4"
- Connection Type:
- Clamped,Welded,Threaded
- Sales Models:
- Wholesale and Retail
- Pressure Value:
- 10bar
- MOQ:
- 1 pc
- Transport Package:
- cartons
Application
It is used viewing the biologic reactor, blender in laboratory, fitter, processing container,pipeline and other closed container. Especially apply in pharmacy,food and beverage processing, such as the brewery, dairy.
Specification
- Size: 1"-4" DN25-100,the length can be customized according to your demand
- Standard: ISO, DIN, SMS, 3A, RJT,IDF etc
- Grade: SS304 or SS316L
- Max. Pressure: 10bar
Details
- Glass lens can be chosen with boro-silicate or polycarbonate or tempering glass as per the requirement
- Full-viewing windows
- Easy to assemble and easy to clean
- See-through windows
- Compact static design
- Safety work with tempering glass and polycarbonate glass
Advantages
For all of the sight glass products, 100% material inspection before shipment.
Inner surface finish Ra0.4 to meet the requirements from food industries.The length can be customized according to your request.
