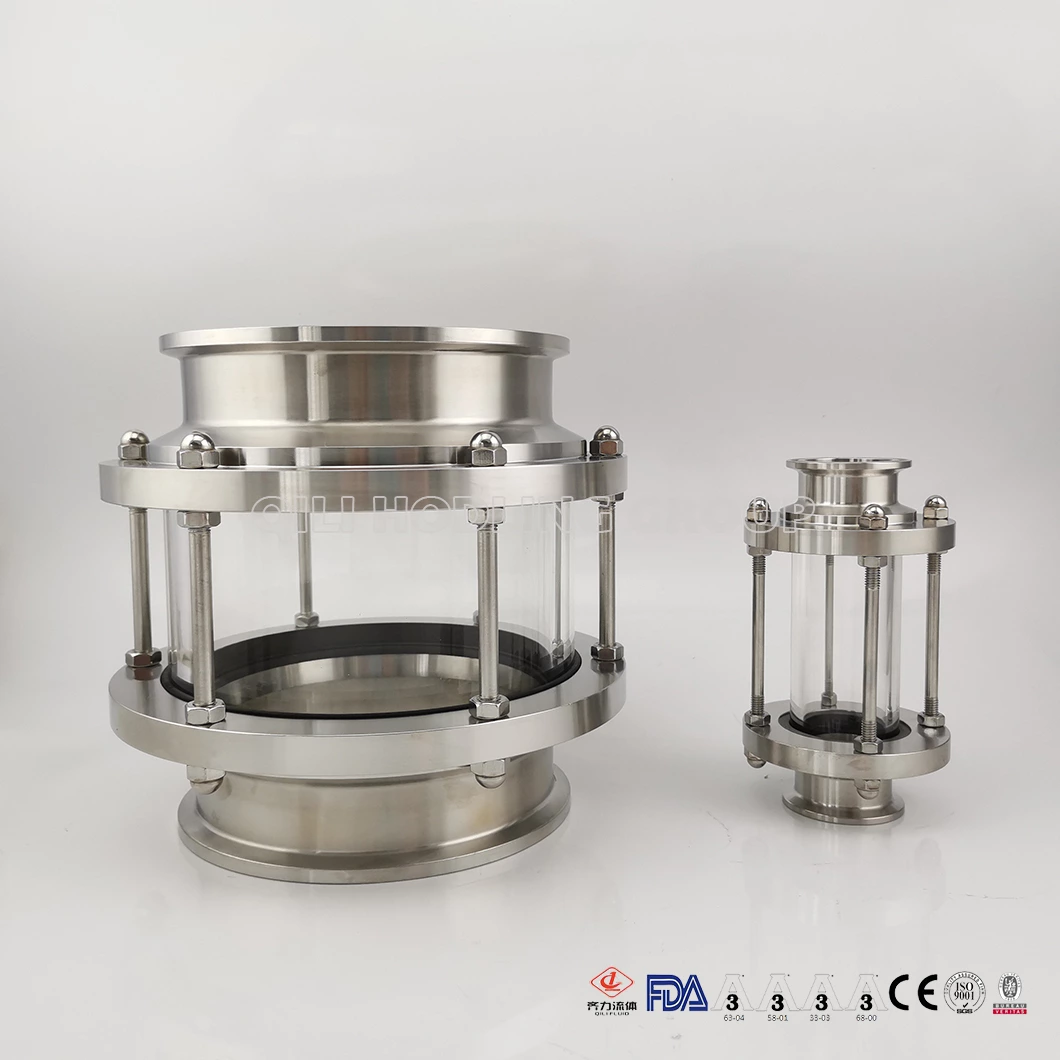

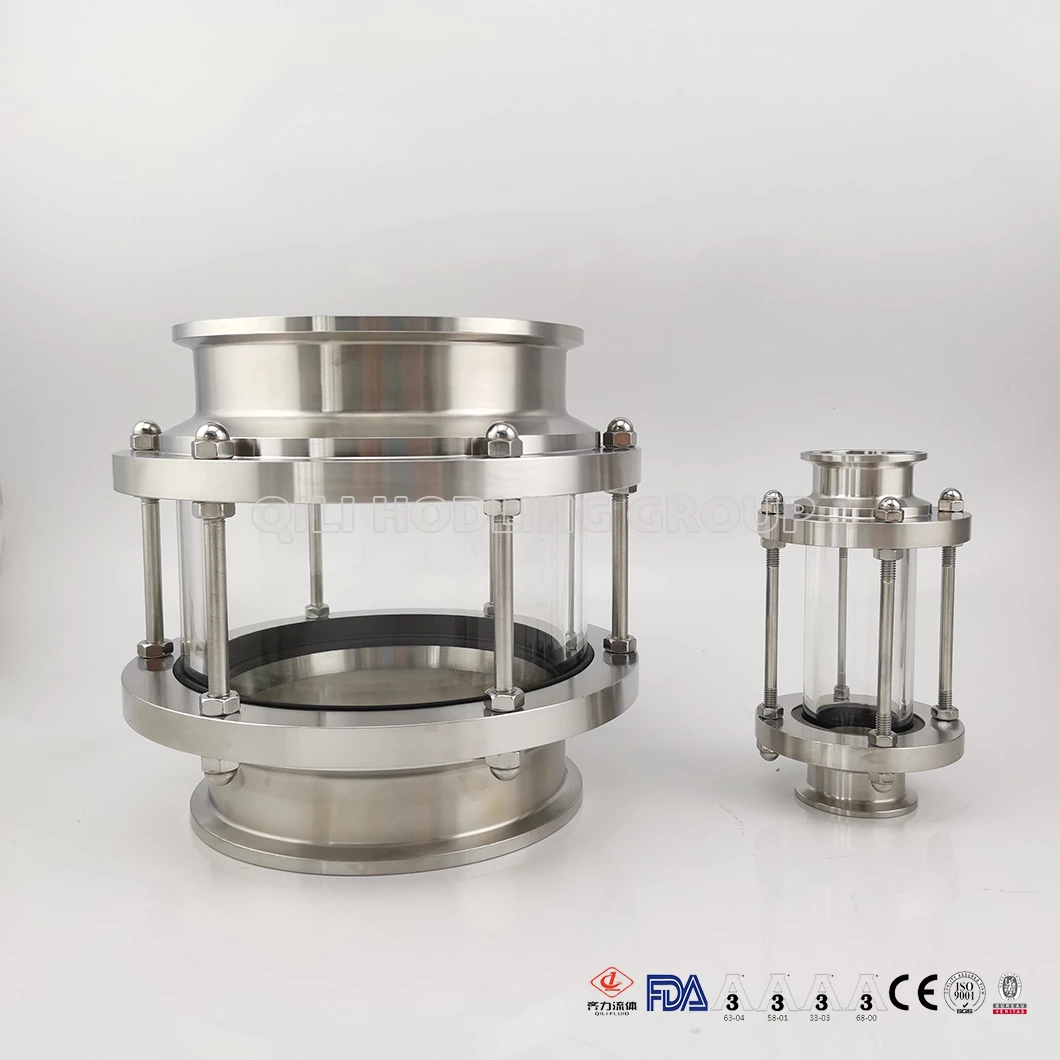

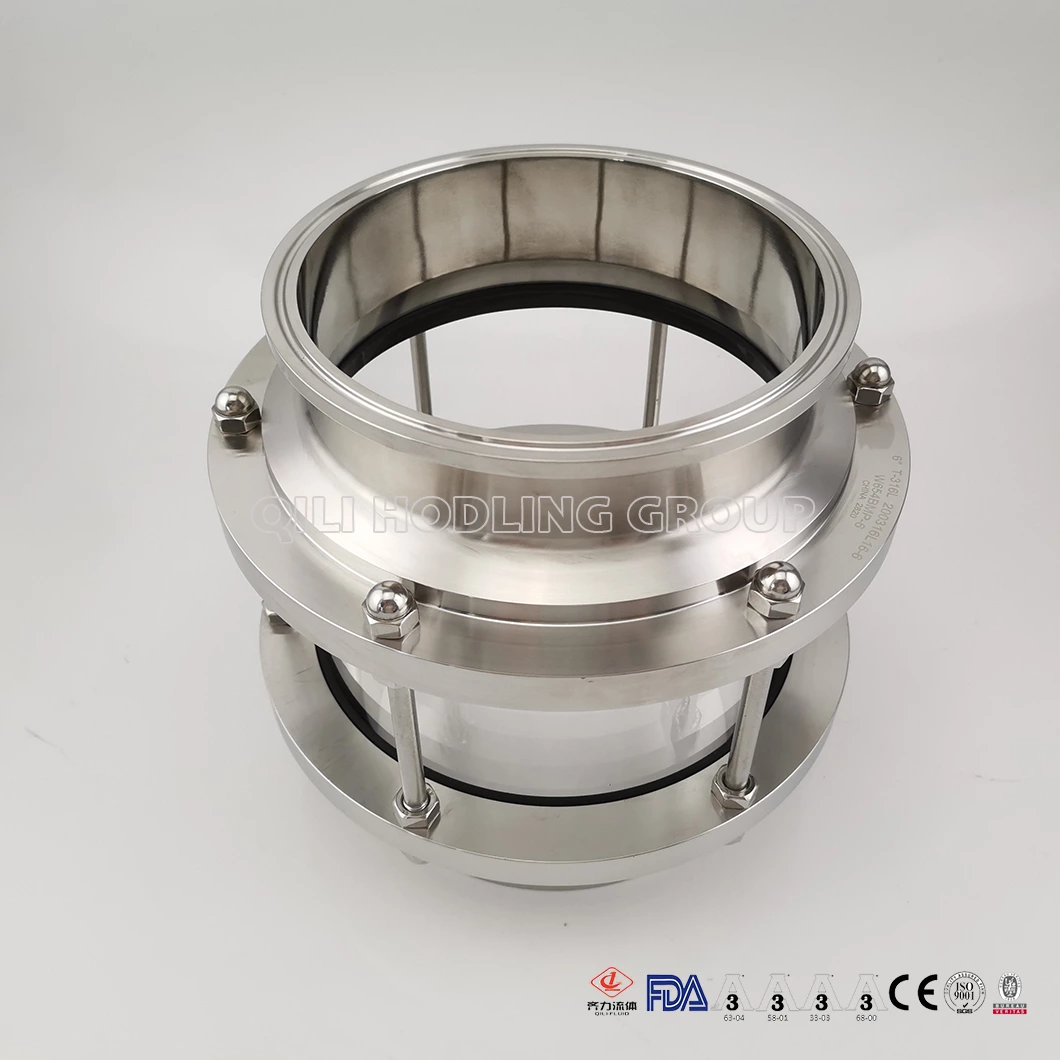

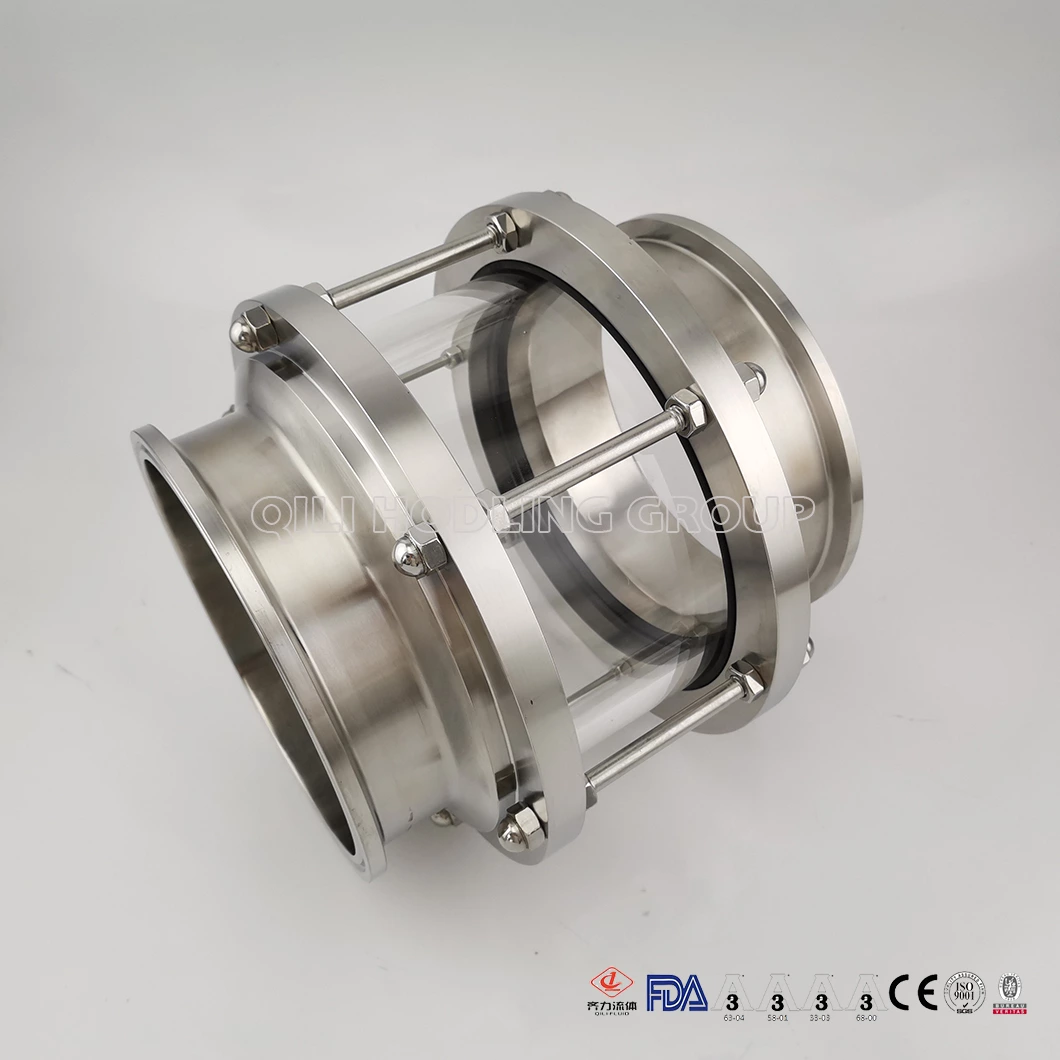

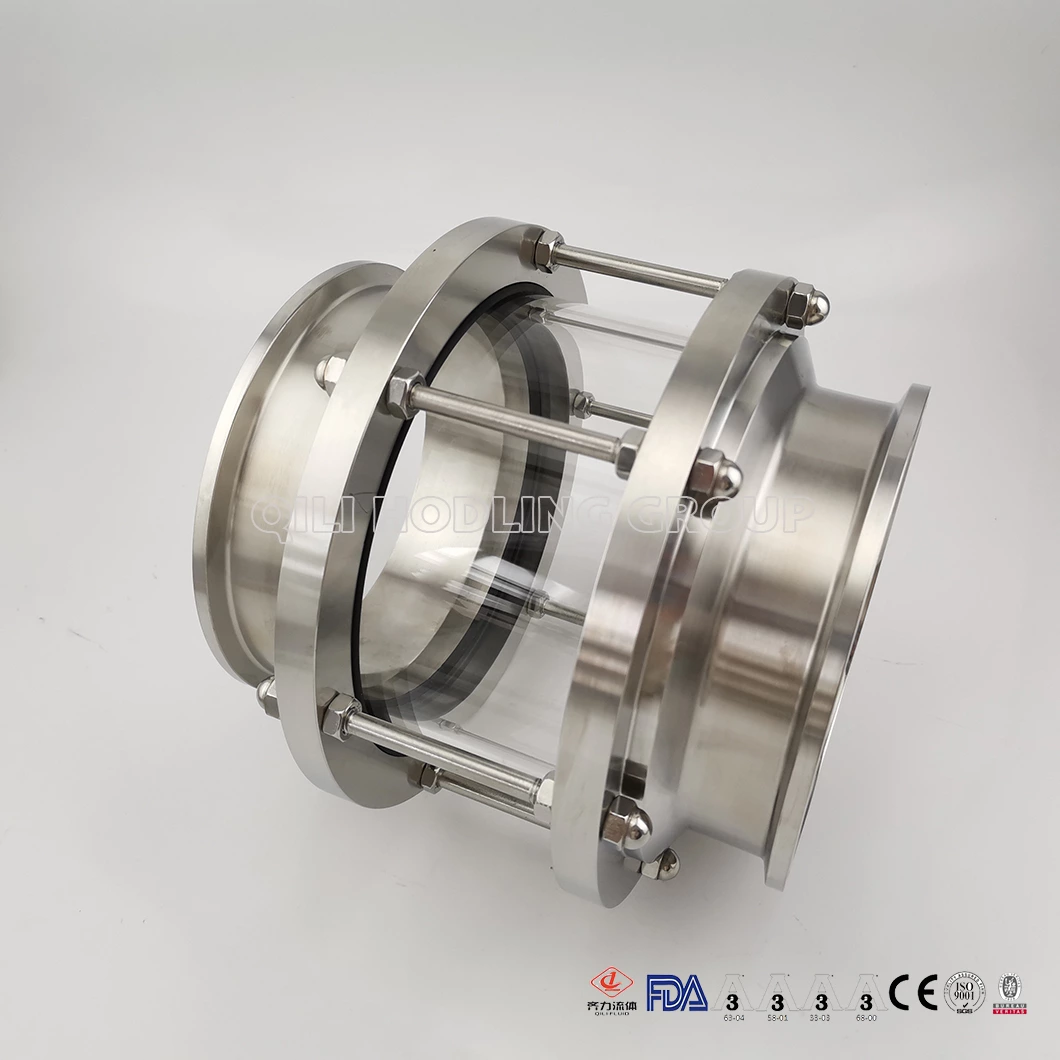

Ss304 Ss316L Hygienic Tri Clover Sight Glass
sanitary sight glass is suitable for use in food, beverage, and other hygienic applications. controlling flow, and changing the direction of piping in many different industries.
- Material:
- SS304 and SS316L
- Standard:
- 3A, ISO, SMS, DIN etc all meet FDA test
- Specification:
- we have standards drawings and can customize as your needs
- Connection ways:
- Tri clamp and weld
- Size:
- DN25-DN100
- Sales Models:
- Wholesale and Retail
- Valve Seal:
- Silicone
- Surface Treatment:
- Food grade Polished
- Pressure Value:
- 10bar to 12bar
- Seal Material:
- Viton, NBR, PTFE, Slilicon
- Transport Package:
- cartons
Details
- Ss304 Ss316L Hygienic Tri Clover Sight Glass Observe Sanitary Fluid
- Size:Dn25-DN100
- Connection way:Tri clamp,weld
- Medium:Beer, Dairy, Beverage, Pharmacy, Cosmetics
- Standards: SMS DIN ISO 3A
- Surface finish:180 Grit ID/ 150 Grit OD
- We can customize it to your size
- Provide OEM service
Advantage
- All products enjoy one year free exchange service
- Factory price advantage
- We can use your company logo

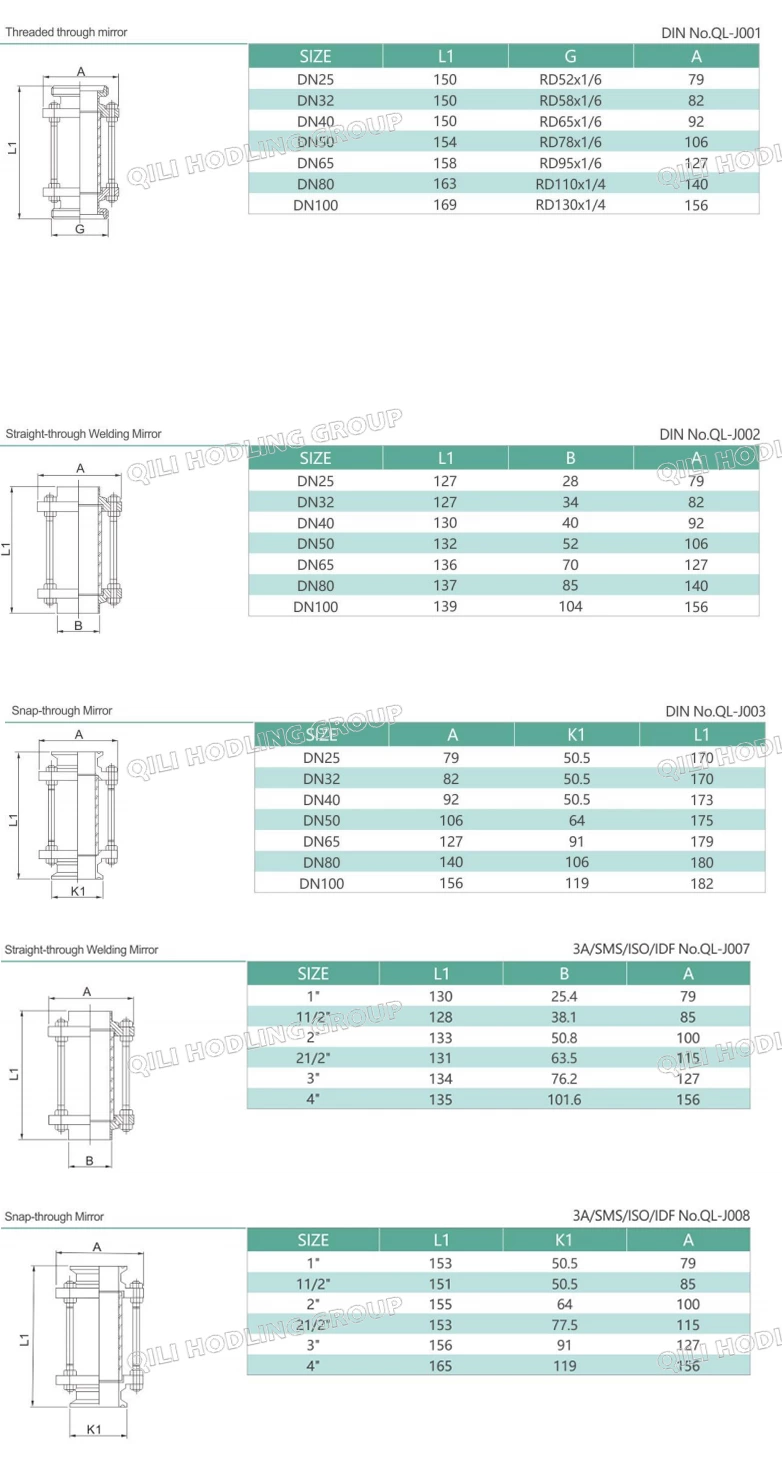

Drawings
