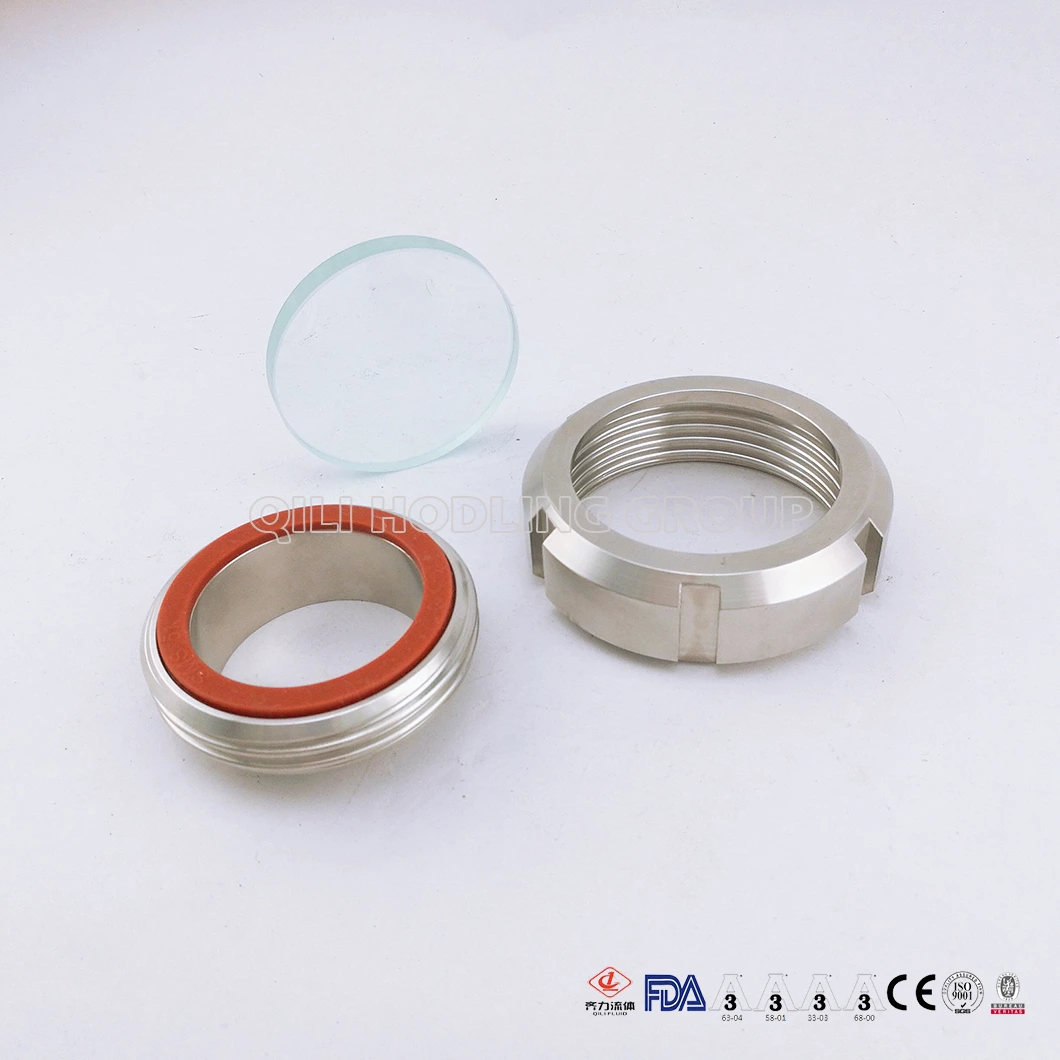

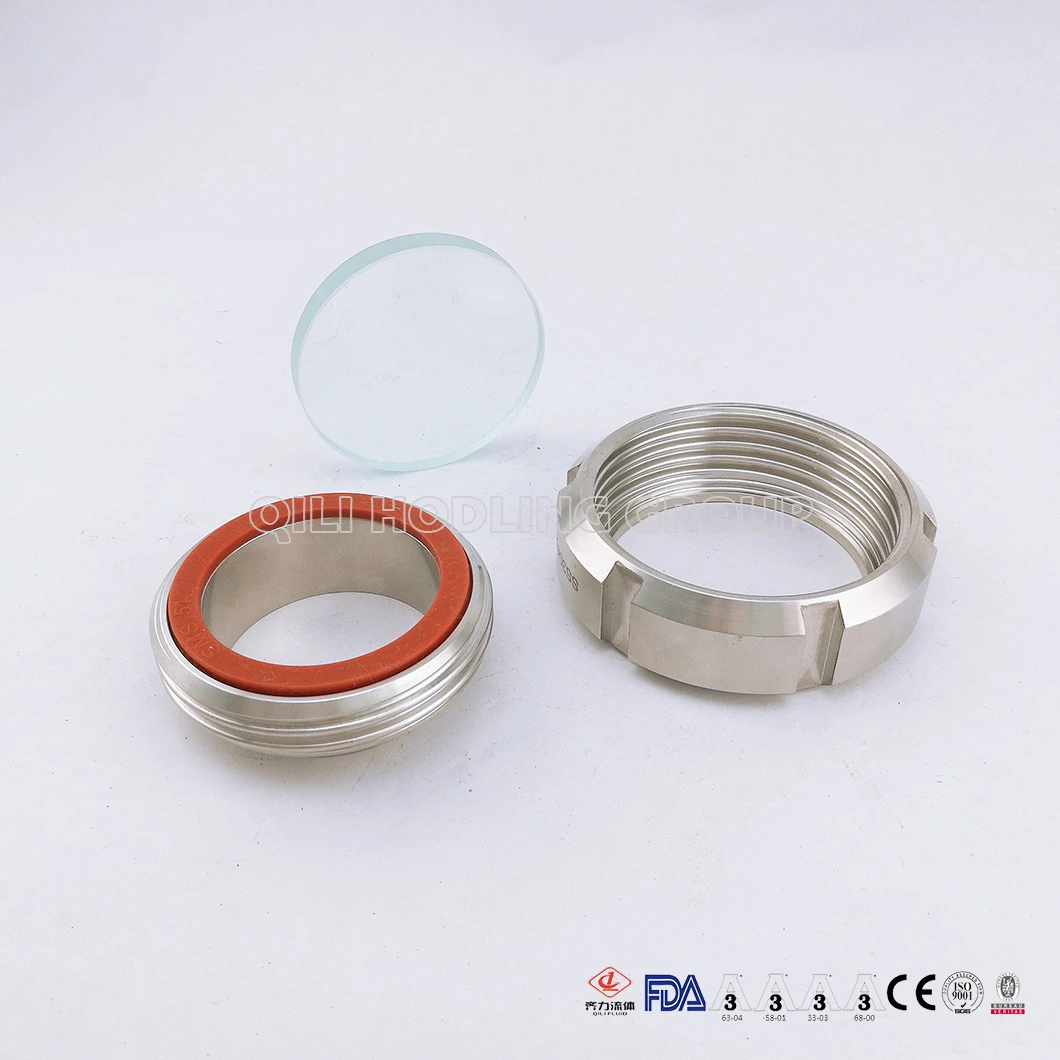

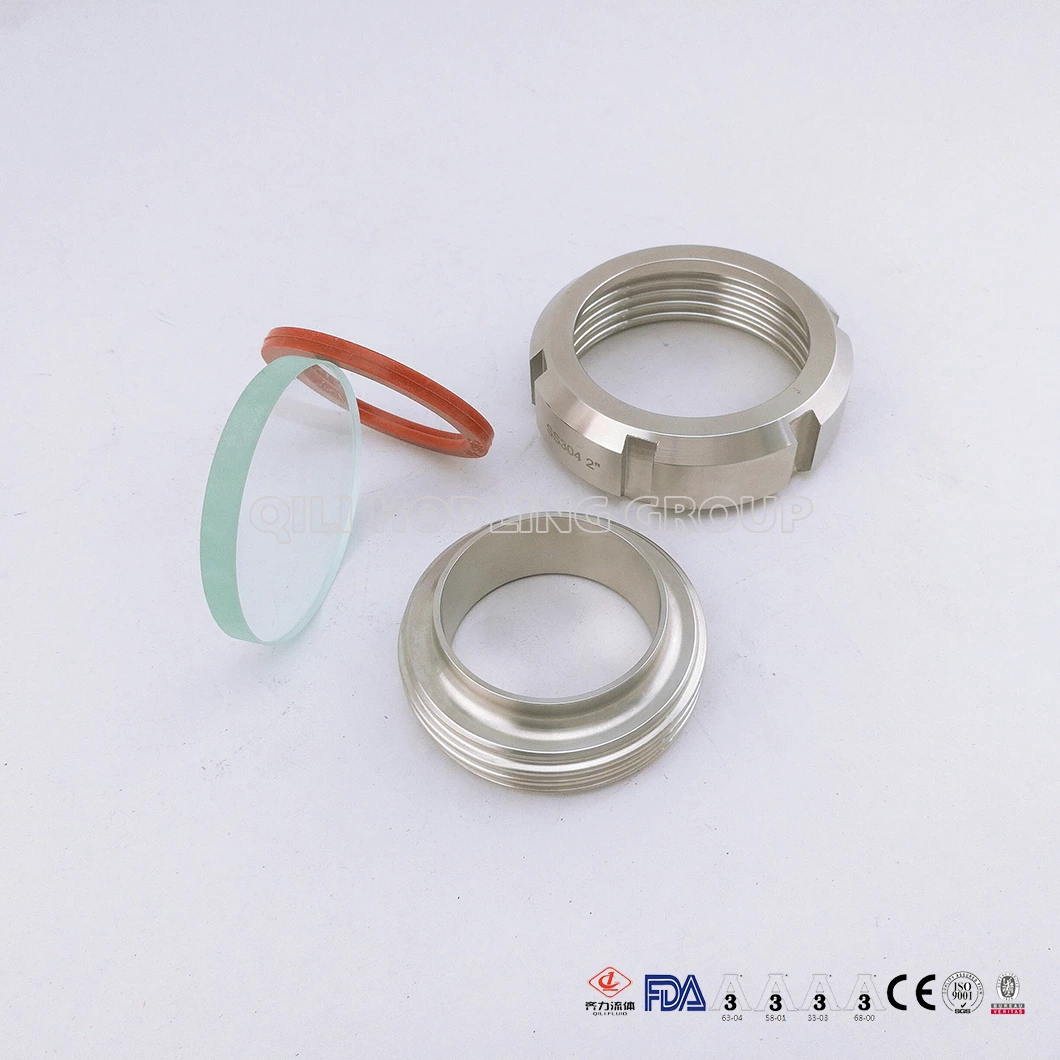

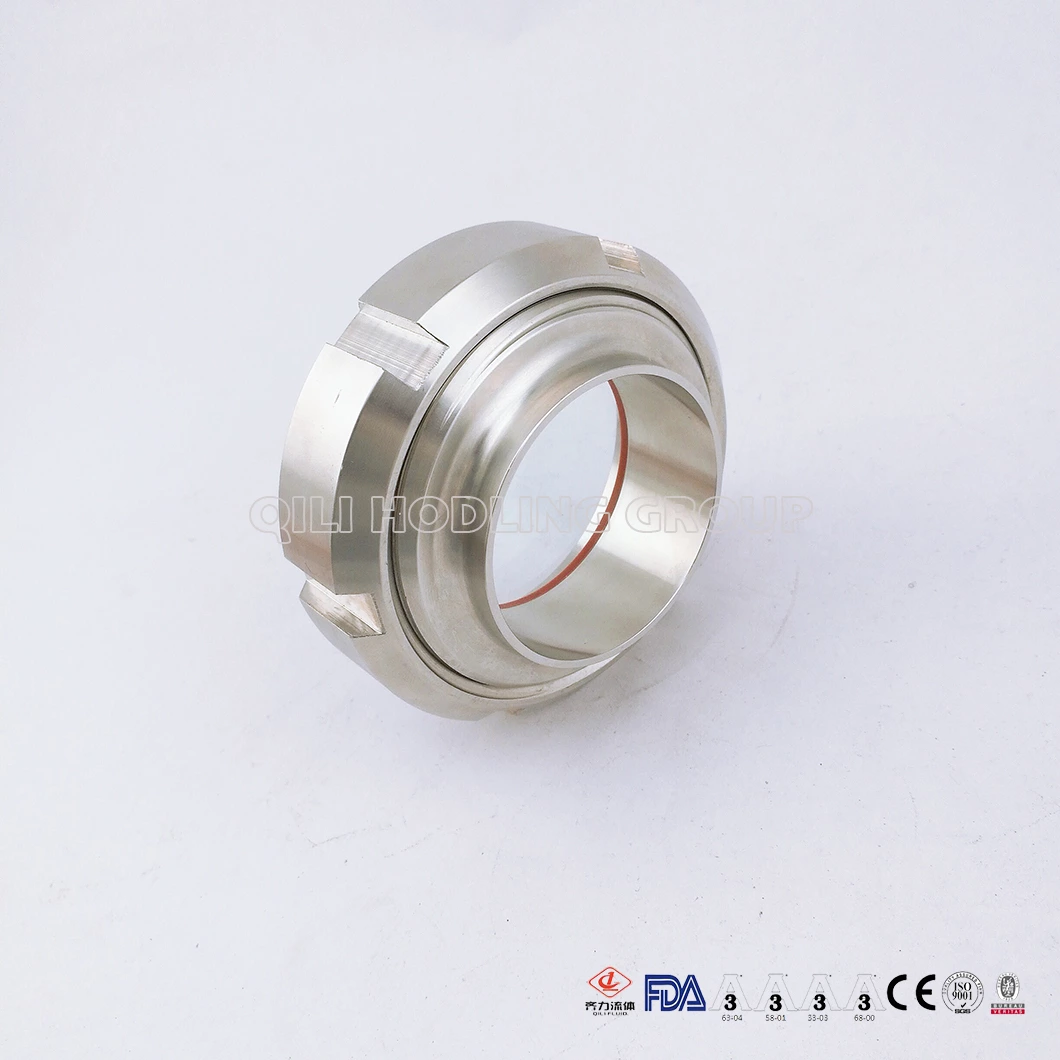

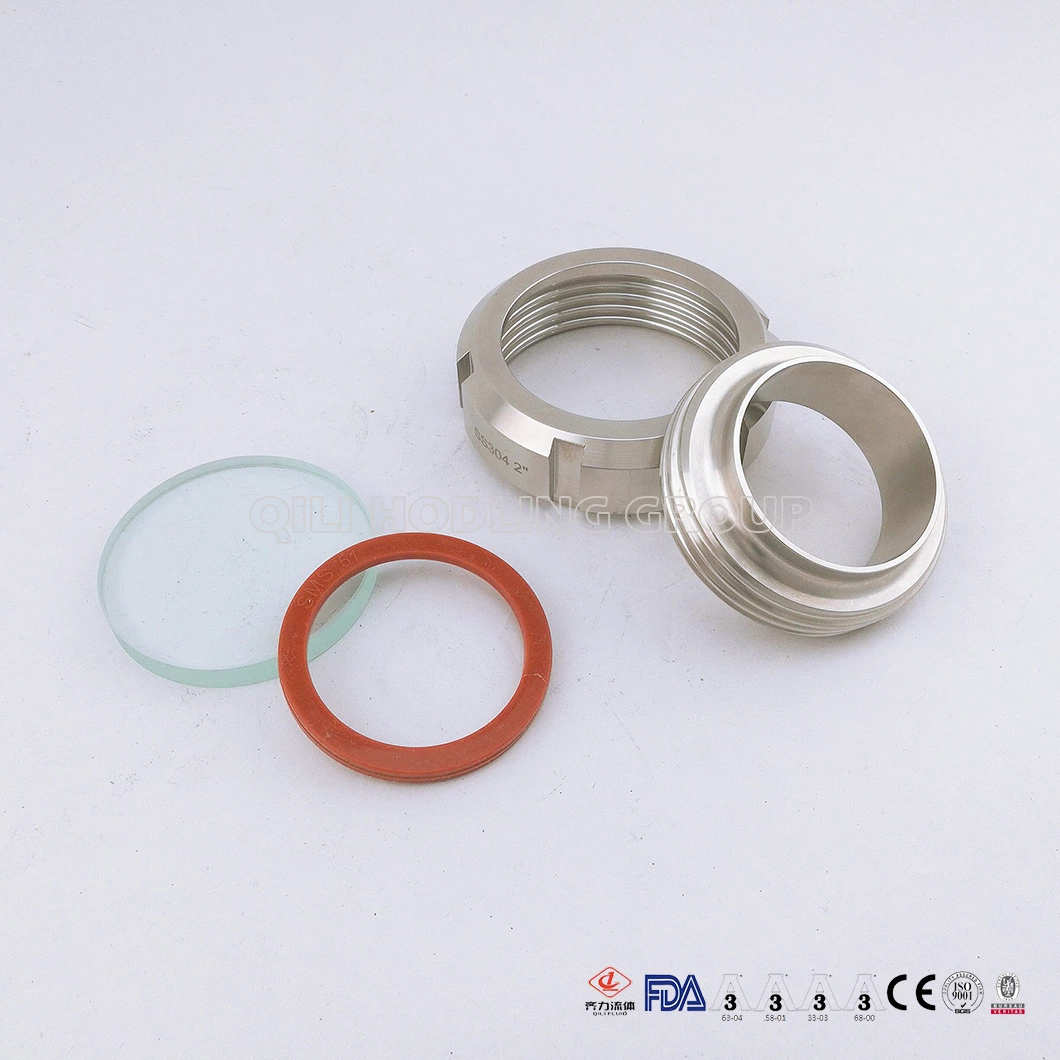

Sanitary Stainless Steel Union Style Sight Glass

Specification Nut material: AISI 1.4301(304) The parts contact with liquid: AISI 1.4301(304); 1.4404(316L) Seals: Viton, NBR, PTFE, Slilicon standard:DIN, SMS Connection:Welded, quick-installed, threaded Temperature:max 120℃ Pressure: 6bar (higher pressure is possible if needed) Vacuum Application:Pharmacy, beer, food, petroleum, dairy beverage, cosmetics
Material:
AISI 1.4301(304); 1.4404(316L)
Standard:
DIN, SMS
Specification:
Union Style Sight Glass
Working Temperature:
120℃
Application:
Pharmacy, beer, food, petroleum, dairy beverage, cosmetics
Size:
DN25-DN150
Connection Type:
Welded, quick-installed, threaded
Sales Models:
Wholesale and Retail
Pressure Value:
6bar
MOQ:
1pc
Seal Material:
Viton, NBR, PTFE, Slilicon
Transport Package:
carton
Sanitary Stainless Steel Union Style Sight Glass
Sanitary Stainless Steel Union Style Sight Glass Sanitary Stainless Steel Union Style Sight Glass Sanitary Stainless Steel Union Style Sight Glass Sanitary Stainless Steel Union Style Sight Glass Sanitary Stainless Steel Union Style Sight Glass Sanitary Stainless Steel Union Style Sight Glass

Application

Union-type-sight-glass DIN11851/SMS (standard for dairy products), with transparent circular glass. Threaded nozzle with the welded neck.Welded sight glass with male. It is used viewing the biologic reactor, blender in laboratory, fitter, processing container,pipeline and other closed container. Especially apply in pharmacy,food and beverage processing, such as the brewery, dairy.

Specification

  • Nut material: AISI 1.4301(304)
  • The parts contact with liquid: AISI 1.4301(304); 1.4404(316L)
  • Seals: Viton, NBR, PTFE, Slilicon
  • standard:DIN, SMS
  • Connection:Welded, quick-installed, threaded
  • Temperature:max 120℃
  • Pressure: 6bar (higher pressure is possible if needed) Vacuum
  • Application:Pharmacy, beer, food, petroleum, dairy beverage, cosmetics

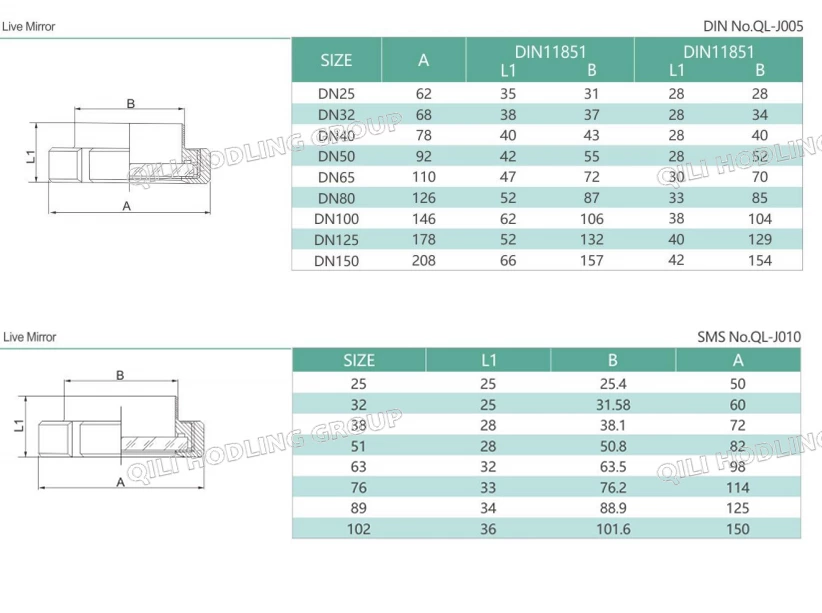

Drawings
