Sanitary Stainless Steel Union Sight Glass
- Model:
- QL-SG04
- Standard:
- DIN, SMS
- Specification:
- Union-type-sight-glass
- Working Temperature:
- 120℃
- Connection ways:
- Welded, quick-installed, threaded
- Size:
- DN25-DN150
- Sales Models:
- Wholesale and Retail
- Valve Seal:
- Viton, NBR, PTFE, Slilicon
- Pressure Value:
- 6bar
- MOQ:
- 1pc
- Transport Package:
- carton
Application
Union-type-sight-glass DIN11851/SMS (standard for dairy products), with transparent circular glass. Threaded nozzle with the welded neck.Welded sight glass with male. It is used viewing the biologic reactor, blender in laboratory, fitter, processing container,pipeline and other closed container. Especially apply in pharmacy,food and beverage processing, such as the brewery, dairy.
Specification
- Nut material: AISI 1.4301(304)
- The parts contact with liquid: AISI 1.4301(304); 1.4404(316L)
- Seals: Viton, NBR, PTFE, Slilicon
- standard:DIN, SMS
- Connection:Welded, quick-installed, threaded
- Temperature:max 120℃
- Pressure: 6bar (higher pressure is possible if needed) Vacuum
- Application:Pharmacy, beer, food, petroleum, dairy beverage, cosmetics

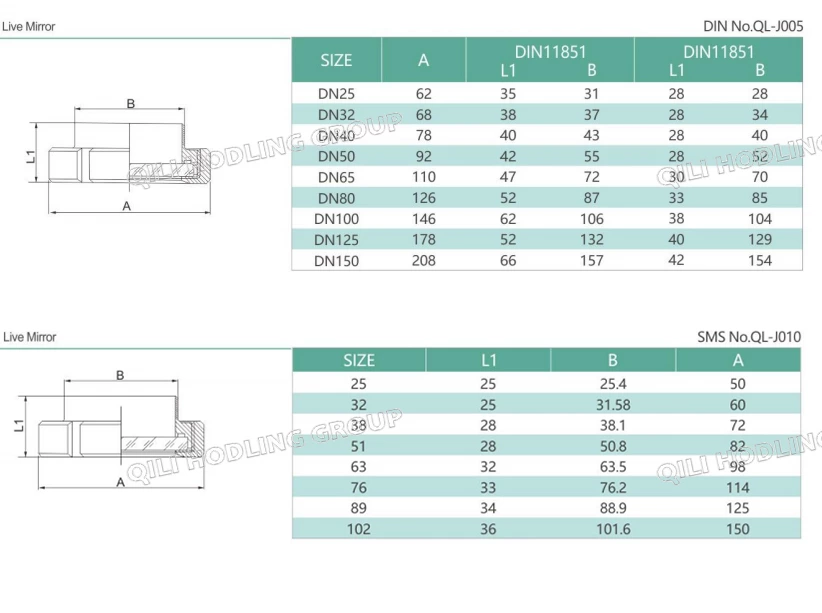

Drawings
