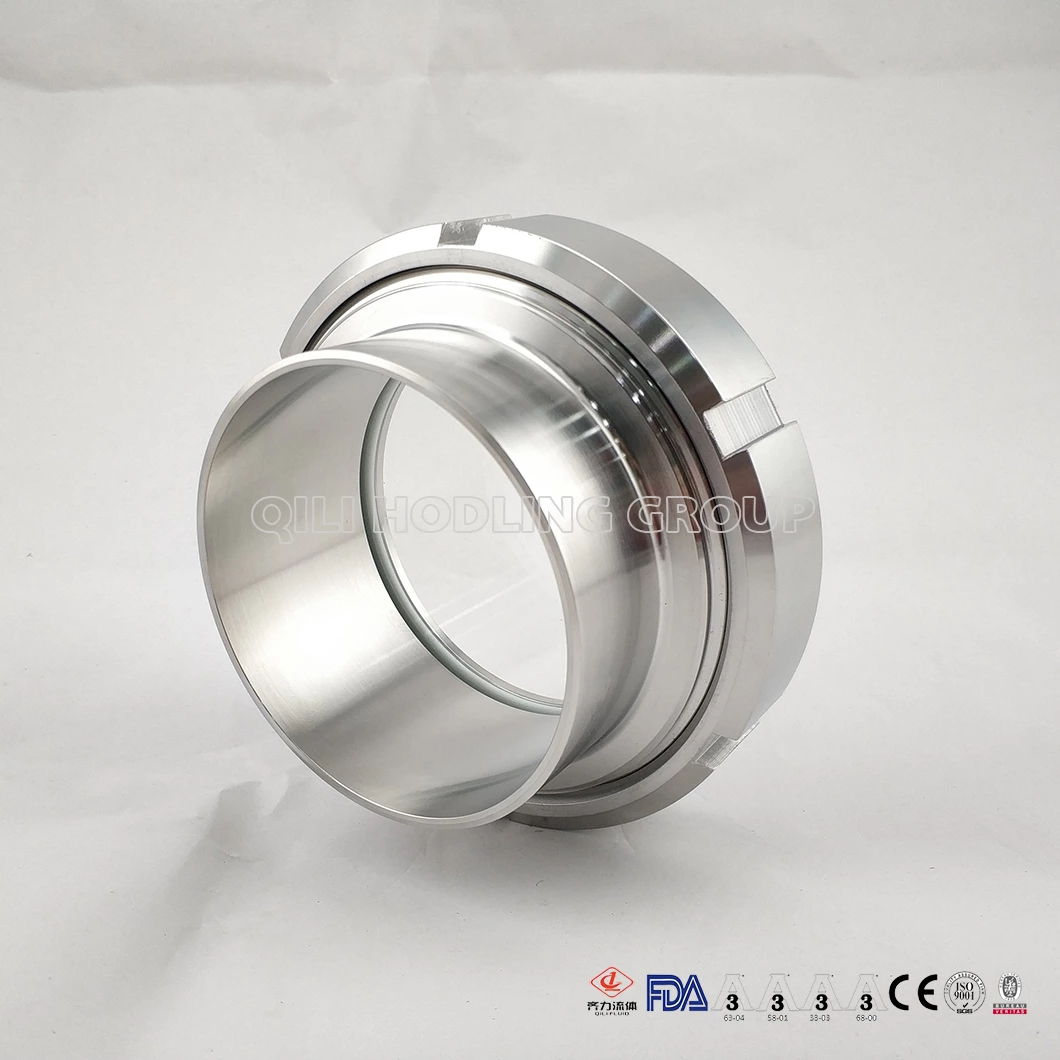

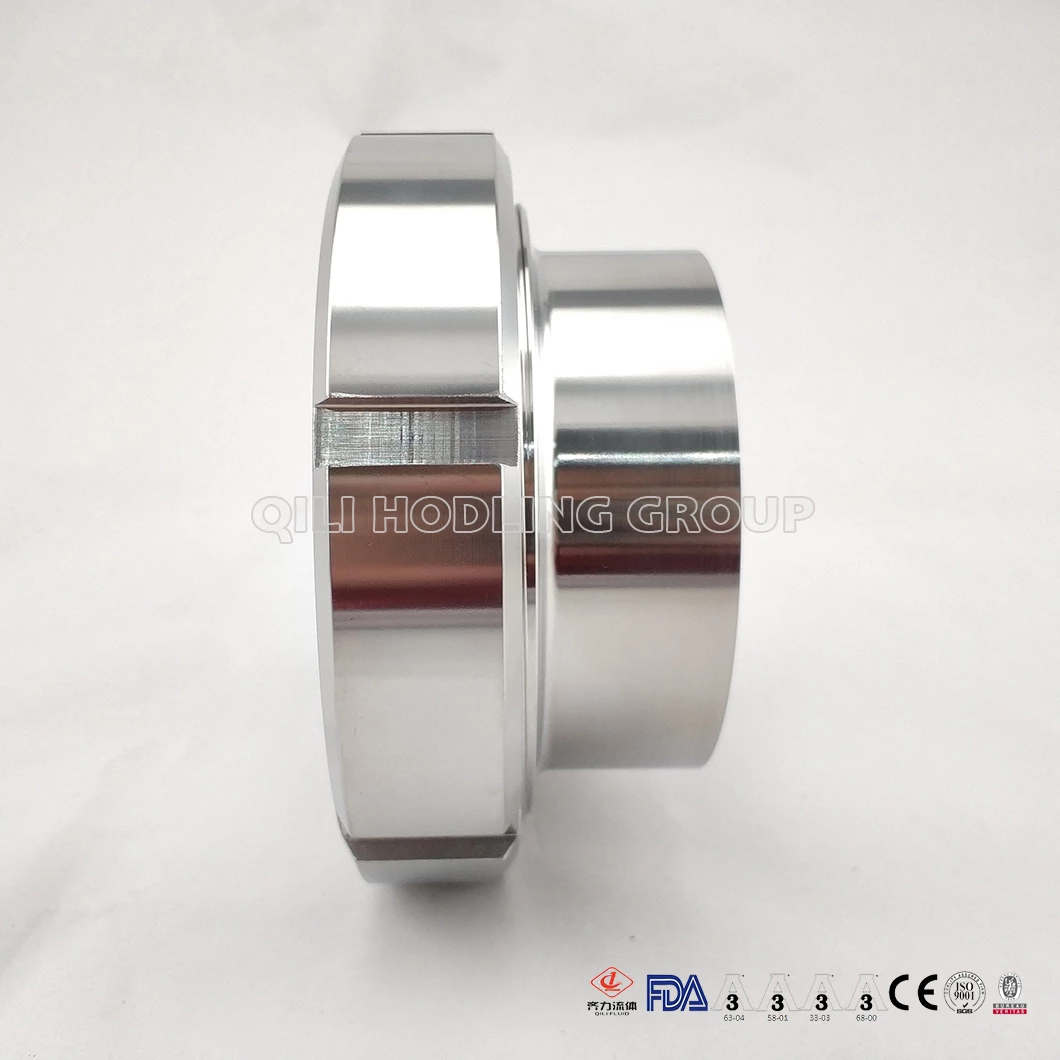

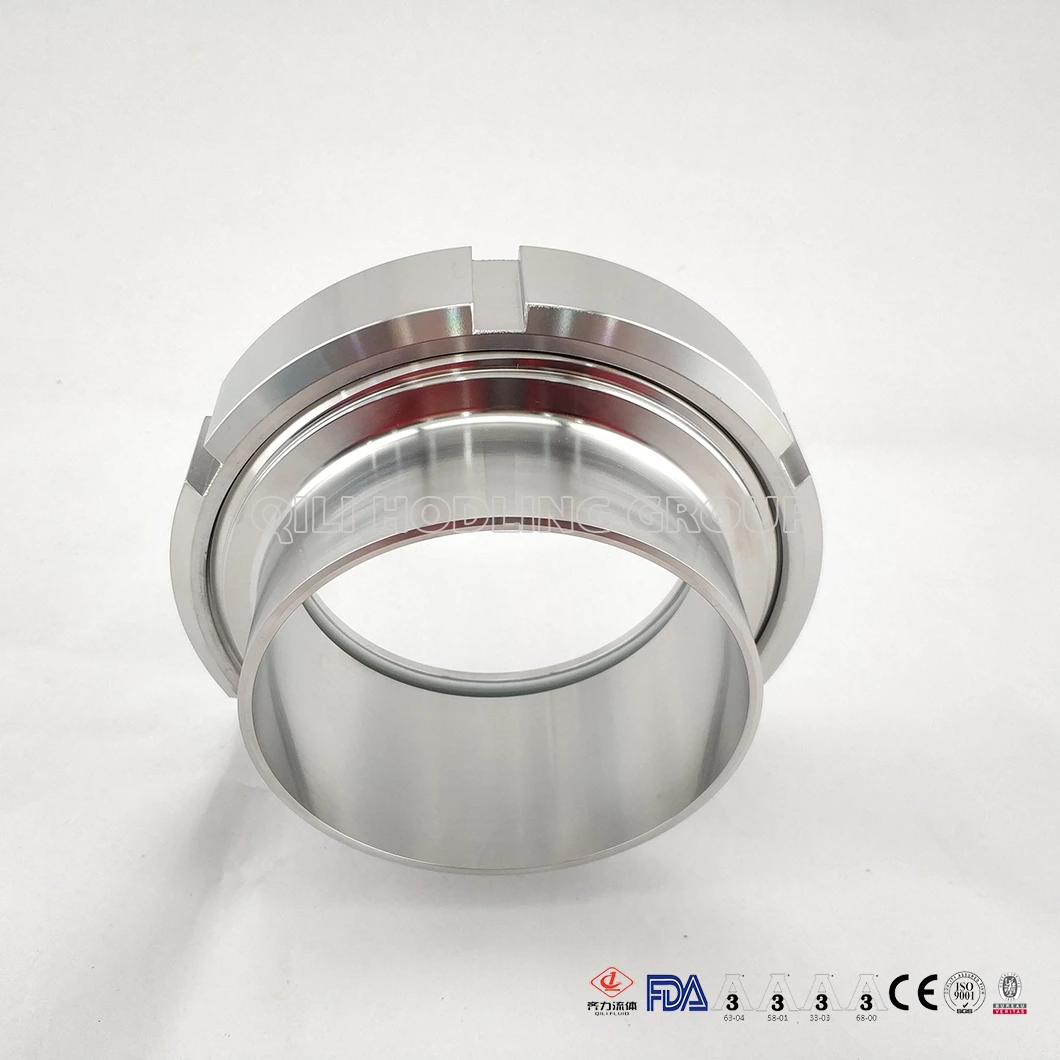

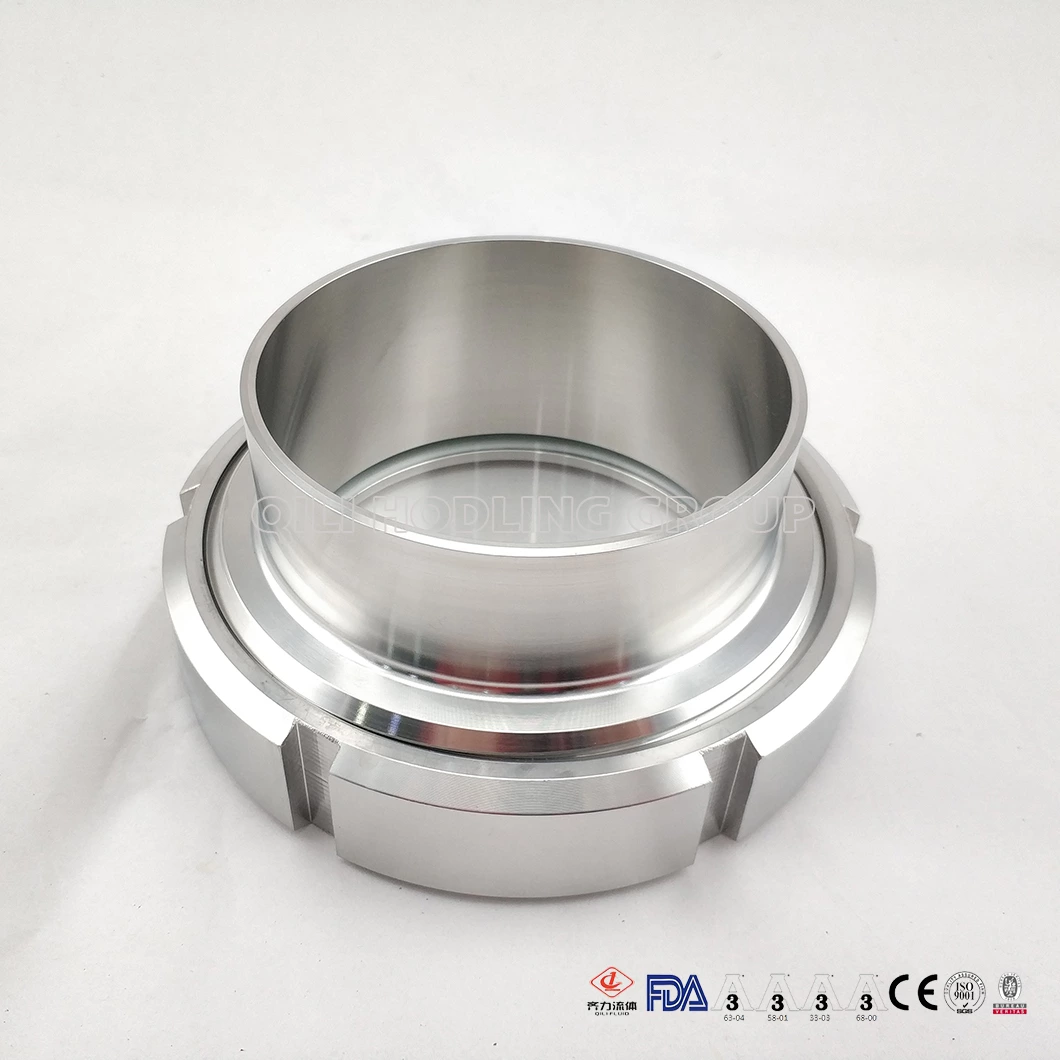

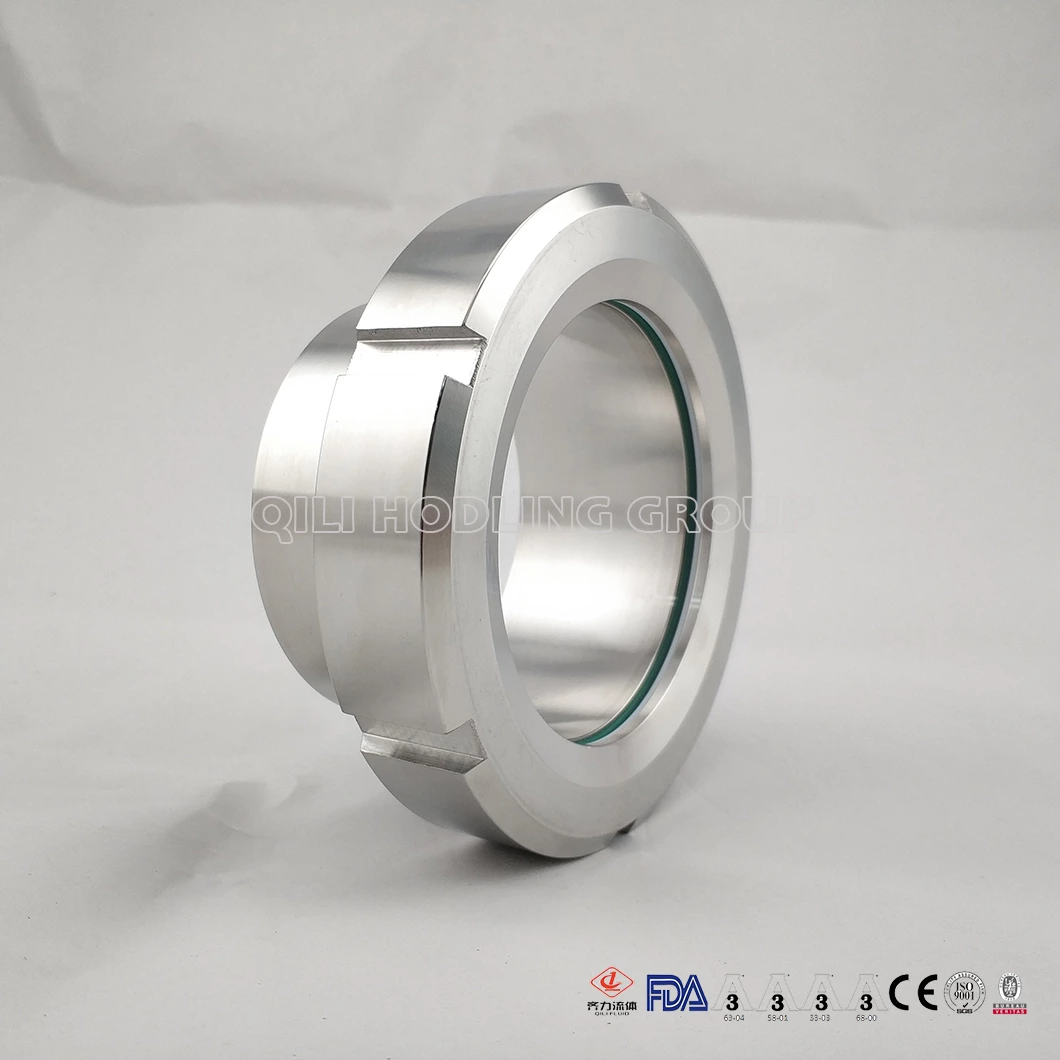

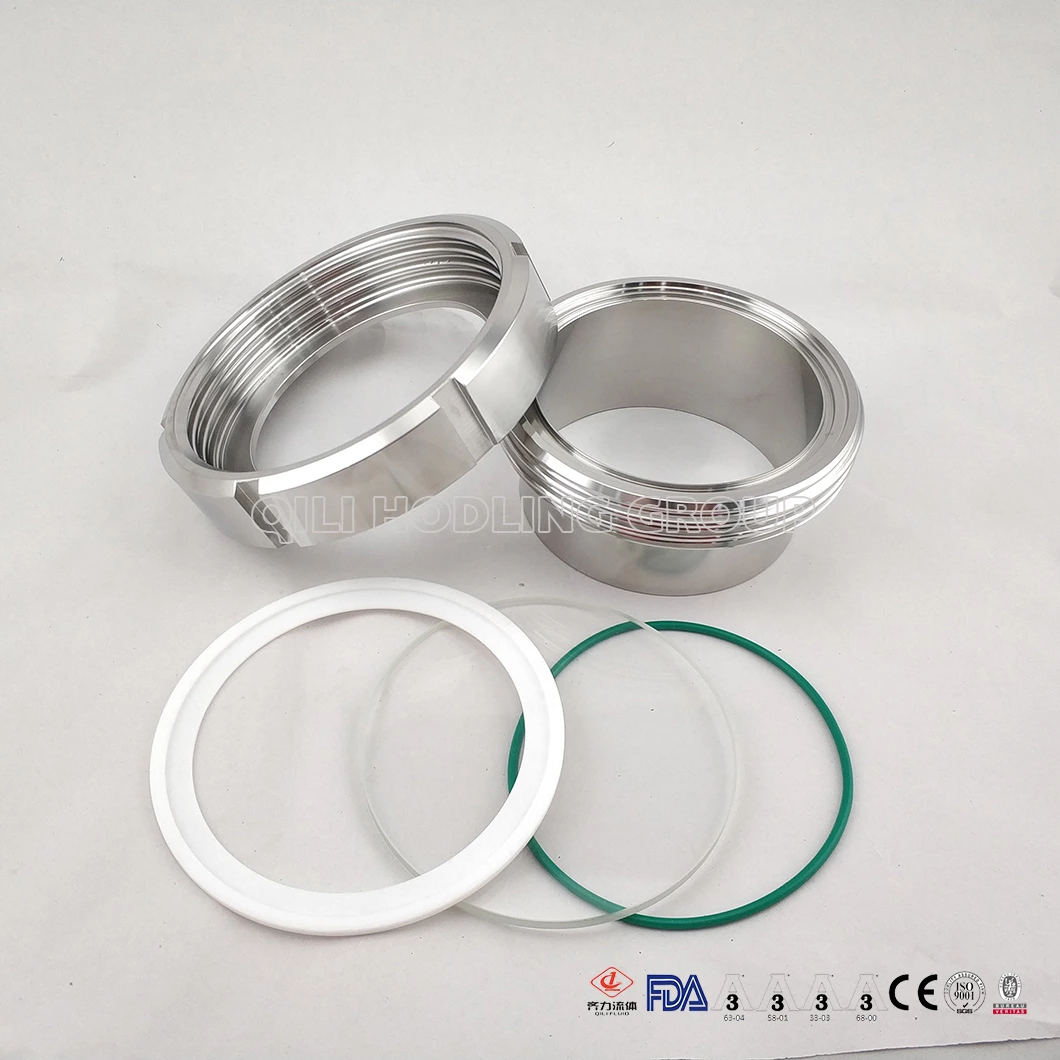

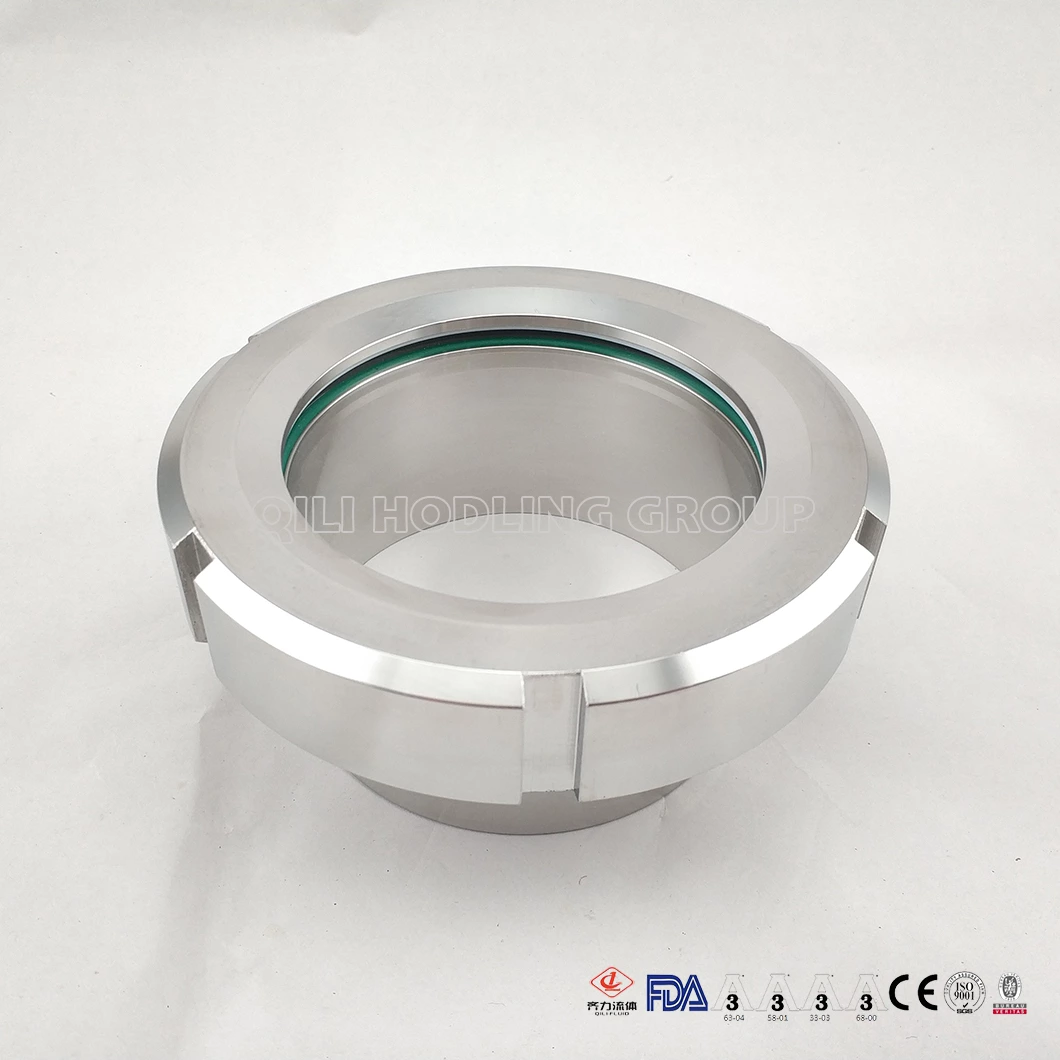

Sanitary Stainless Steel New Weld Union Sight Glass

Material:
AISI 1.4301(304); 1.4404(316L)
Standard:
DIN, SMS
Working Temperature:
Union Style Sight Glass
Application:
Pharmacy, beer, food, petroleum, dairy beverage, cosmetics
Connection ways:
weld
Size:
DN25-DN150
Sales Models:
Wholesale and Retail
MOQ:
6bar
Seal Material:
Viton, NBR, PTFE, Slilicon
Transport Package:
cartons

Application

Union-type-sight-glass DIN11851/SMS (standard for dairy products), with transparent circular glass. Threaded nozzle with the welded neck.Welded sight glass with male. It is used viewing the biologic reactor, blender in laboratory, fitter, processing container,pipeline and other closed container. Especially apply in pharmacy,food and beverage processing, such as the brewery, dairy.

Specification

  • Nut material: AISI 1.4301(304)
  • The parts contact with liquid: AISI 1.4301(304); 1.4404(316L)
  • Seals: Viton, NBR, PTFE, Slilicon
  • standard:DIN, SMS
  • Connection:Welded, quick-installed, threaded
  • Temperature:max 120℃
  • Pressure: 6bar (higher pressure is possible if needed) Vacuum
  • Application:Pharmacy, beer, food, petroleum, dairy beverage, cosmetics

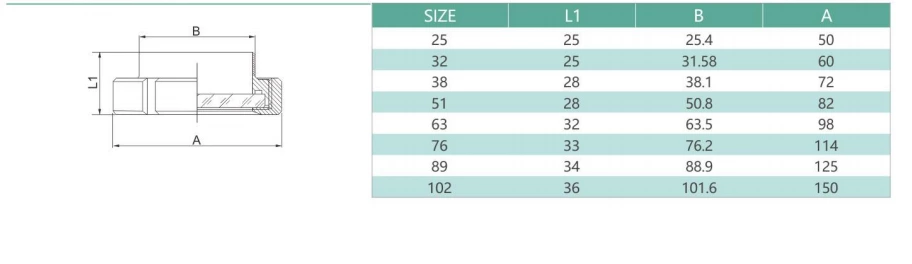

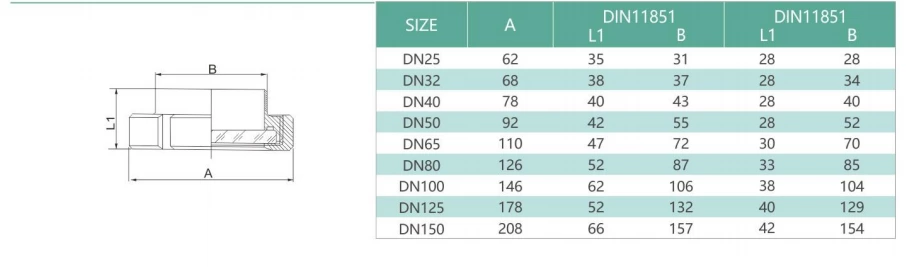

Drawings



  • DIN

Sanitary Stainless Steel New Weld Union Sight Glass

  • SMS

Sanitary Stainless Steel New Weld Union Sight Glass

Sanitary Stainless Steel New Weld Union Sight Glass



Sanitary Stainless Steel New Weld Union Sight Glass



Sanitary Stainless Steel New Weld Union Sight Glass



Sanitary Stainless Steel New Weld Union Sight Glass





Sanitary Stainless Steel New Weld Union Sight Glass

Sanitary Stainless Steel New Weld Union Sight Glass

Sanitary Stainless Steel New Weld Union Sight Glass
