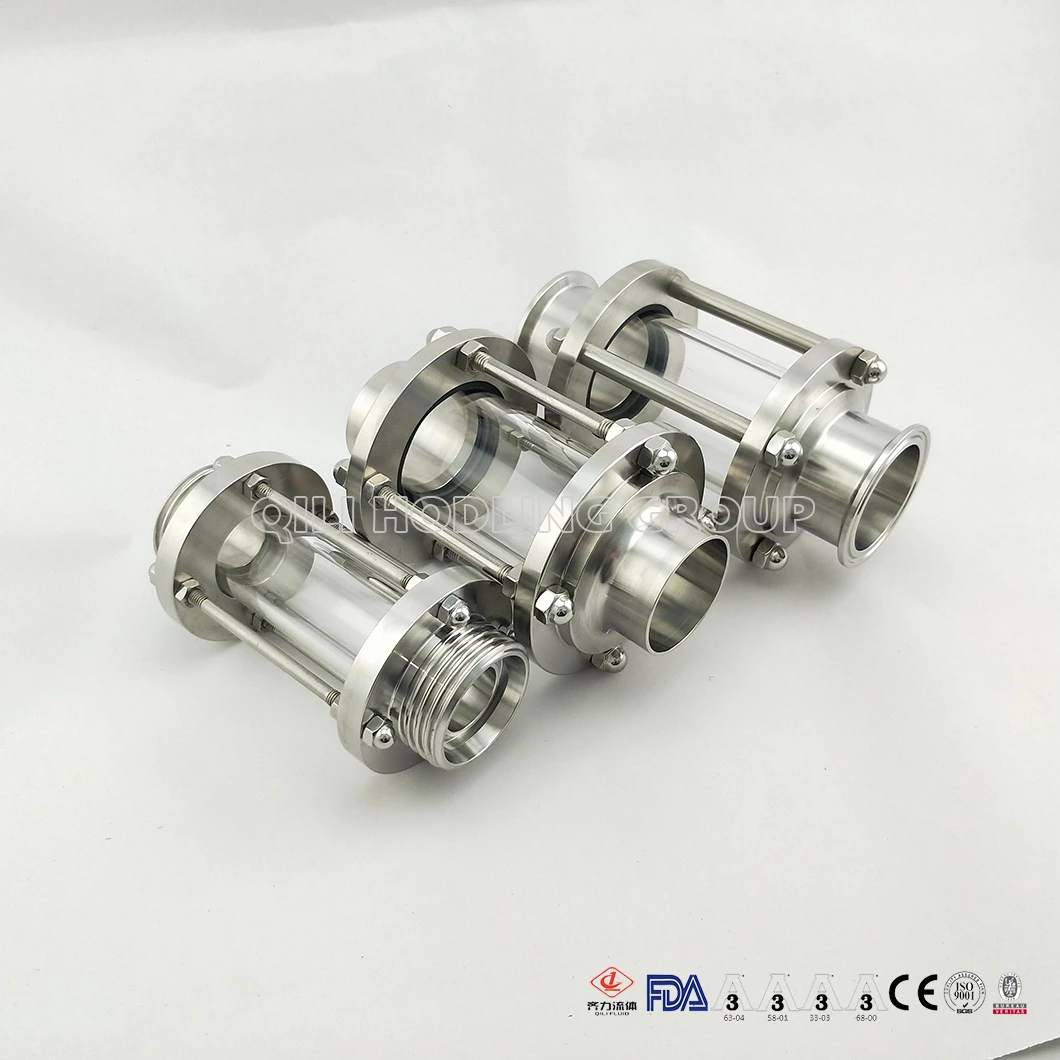

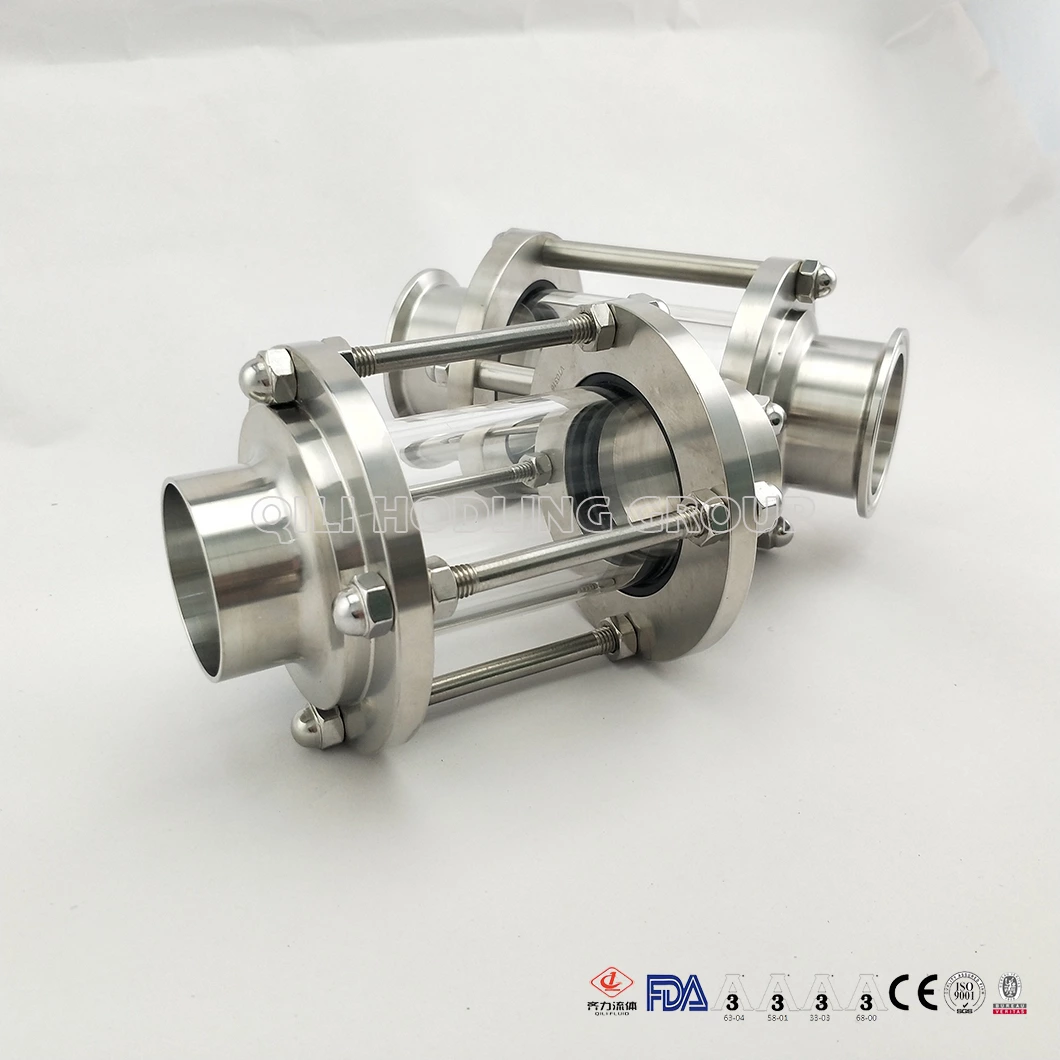

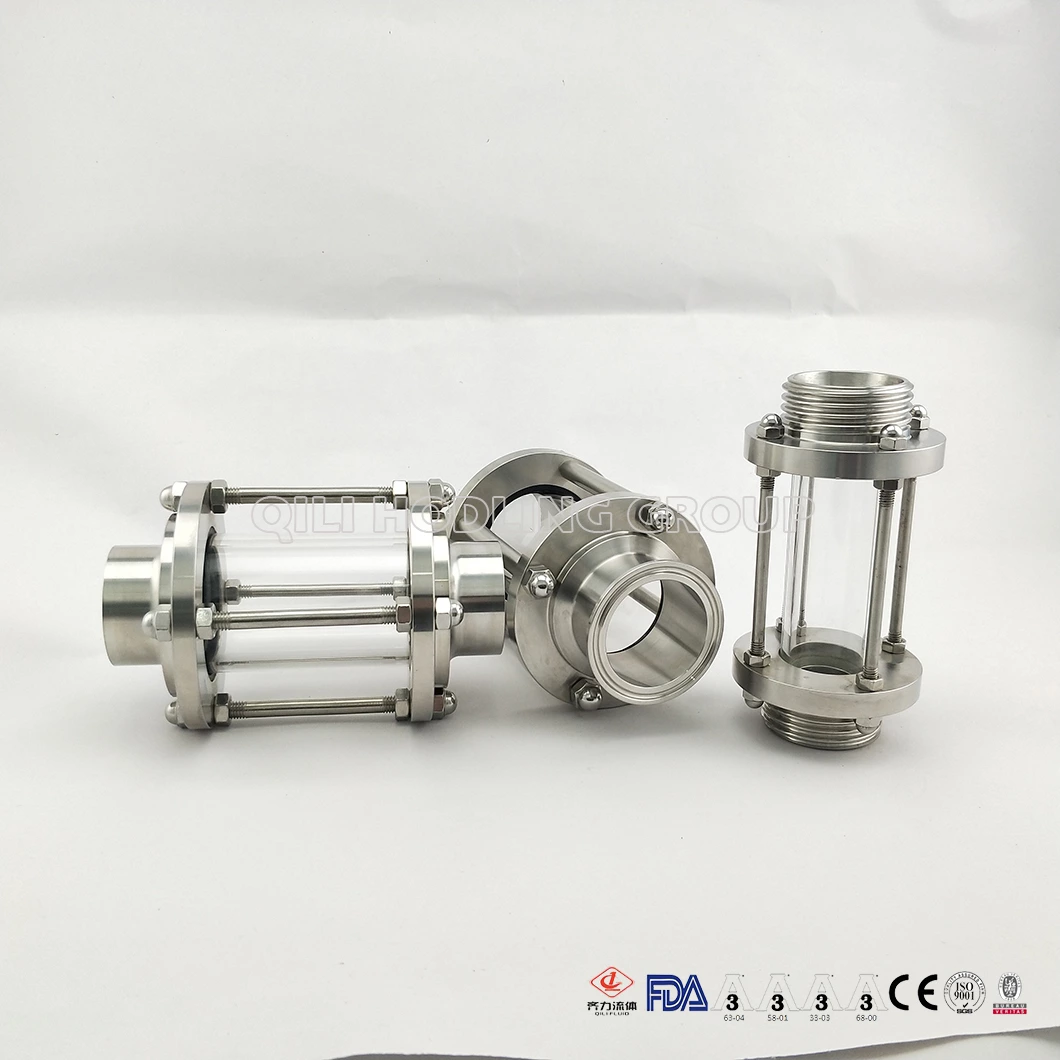

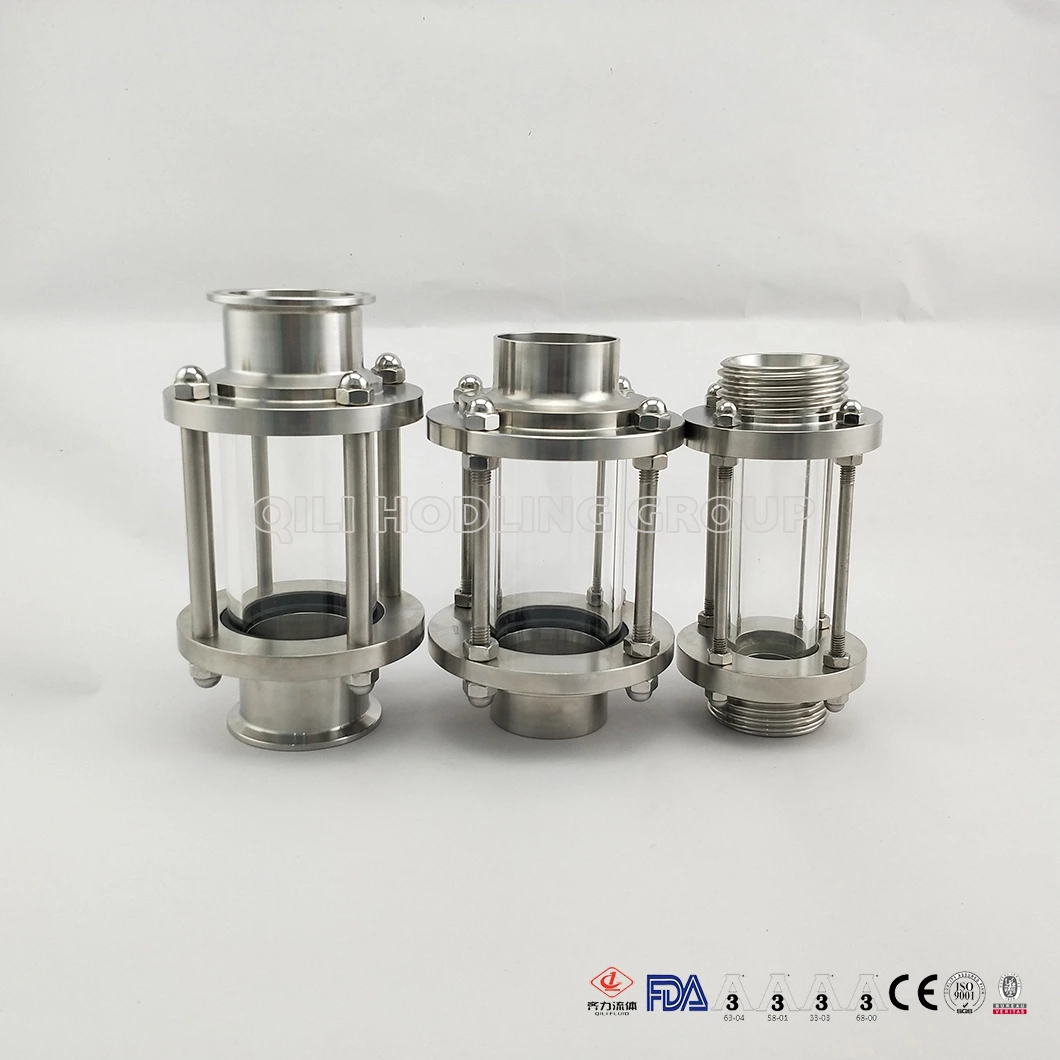

Sanitary Stainless Steel liquid Inline Sight Glass
- Model:
- QL-SG06
- Standard:
- DIN,3A,SMS,ISO,IDF
- Working Temperature:
- -10 to 150℃
- Application:
- Pharmacy, beer, food, petroleum, dairy beverage, cosmetics
- Size:
- DN25-DN100,1-4"
- Connection Type:
- clamped,welded,threaded end
- Sales Models:
- Wholesale and Retail
- Pressure Value:
- 10 bar
- MOQ:
- 1pcs
- Seal Material:
- EPDM,Silicone,PTFE
- Transport Package:
- cartons

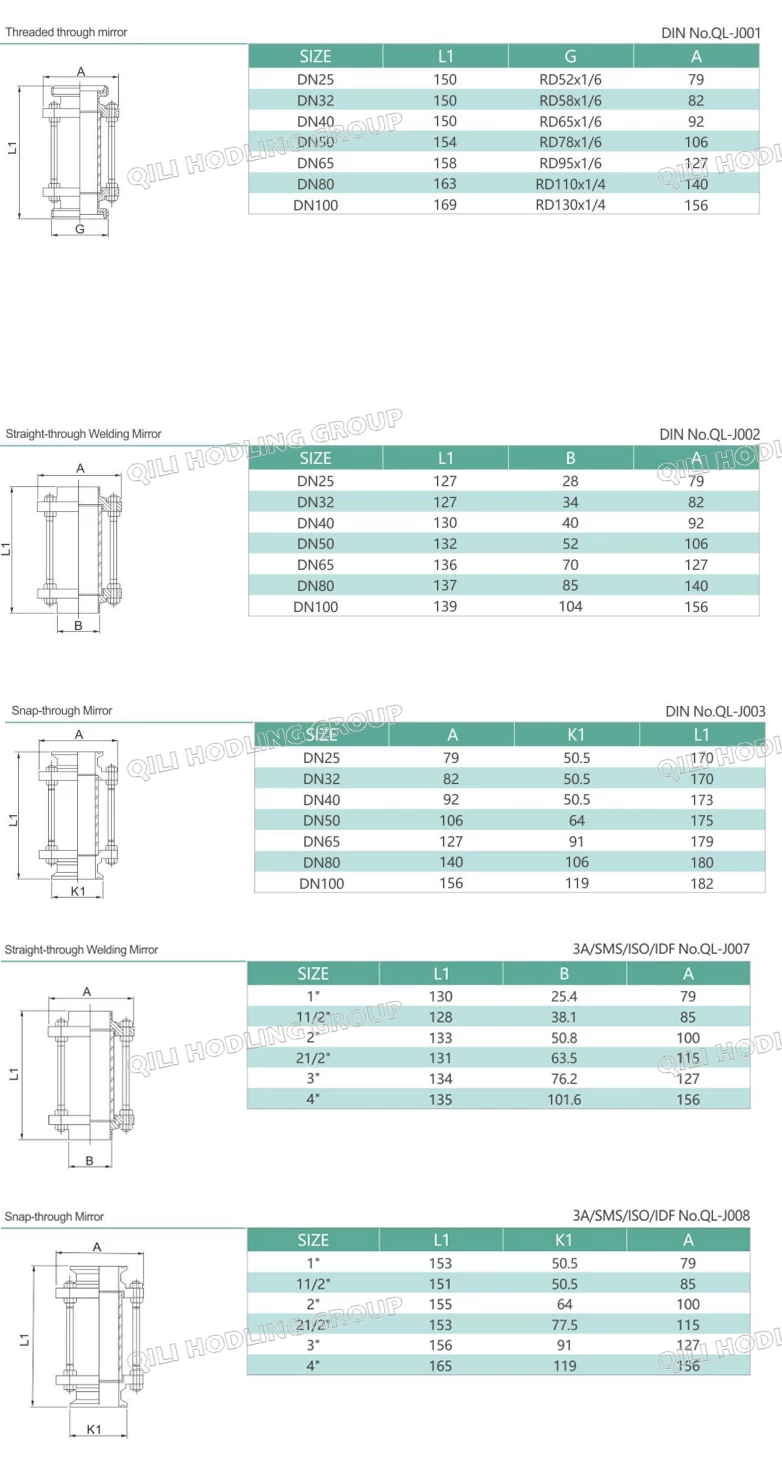

Drawings
Product Description
| Products | Stainless steel tank sight glass |
| Model Number | Mibond series |
| Glass Material: | Pyrex glass/ Toughened high-borosilicate glass |
| Seal Material: | EPDM,Silicone,PTFE |
| Connection: | clamped,welded,threaded end |
| Size: | DN25-DN100, 1"-4" or as required |
| Standards: | DIN,3A,SMS,ISO,IDF |
| Max pressure: | 10 Bar |
| Working temp: | -10°C to +150°C |
| Applications: | Pharmacy, beer, food, dairy, brewing, beverage, water treatment and chemical industry,etc |
| Terms | EX-WORK, FOB |
| Place of Origin | China |
