Sanitary Stainless Steel CNC Machine Custom Union Sight Glass
Product Description
Specification: DN25-100 & 1"-4"
Standard: DIN, SMS, ISO, 3A, BPE, CMP, IDF
Material: Stainless steel 304, 316L
Connection: Welded, quick-installed, threaded
Applicati
- Material:
- AISI 1.4301(304); 1.4404(316L)
- Standard:
- DIN, SMS
- Specification:
- Union Style Sight Glass
- Application:
- Pharmacy, beer, food, petroleum, dairy beverage, cosmetics
- Connection ways:
- weld
- Size:
- DN25-100 & 1"-4"
- Sales Models:
- Wholesale and Retail
- Seal Material:
- Viton, NBR, PTFE, Slilicon
- Transport Package:
- cartons
Details
- Specification: DN25-100 & 1"-4"
- Standard: DIN, SMS, ISO, 3A, BPE, CMP, IDF
- Material: Stainless steel 304, 316L
- Connection: Welded, quick-installed, threaded
- Applications: Pharmacy, beer, food, petroleum, dairy beverage, cosmeticsApplications

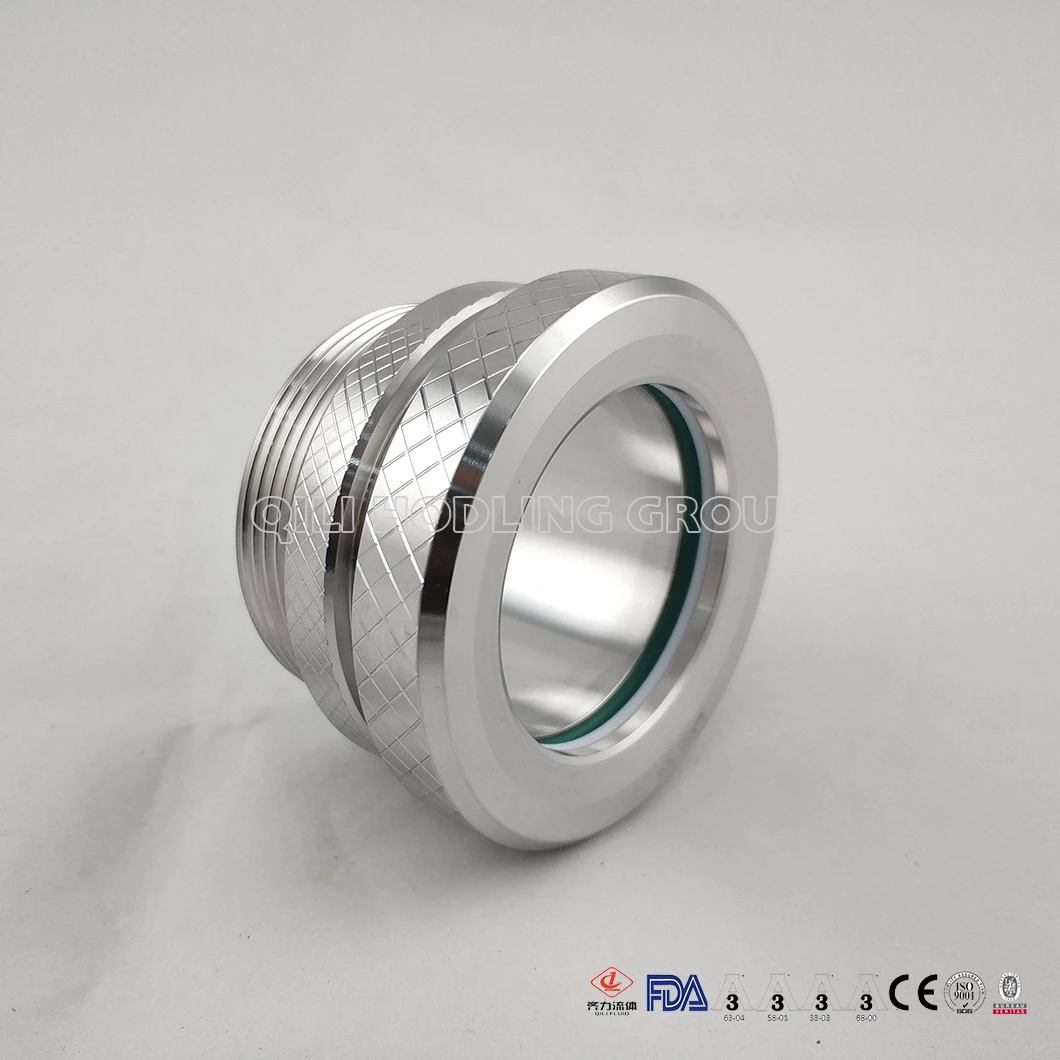

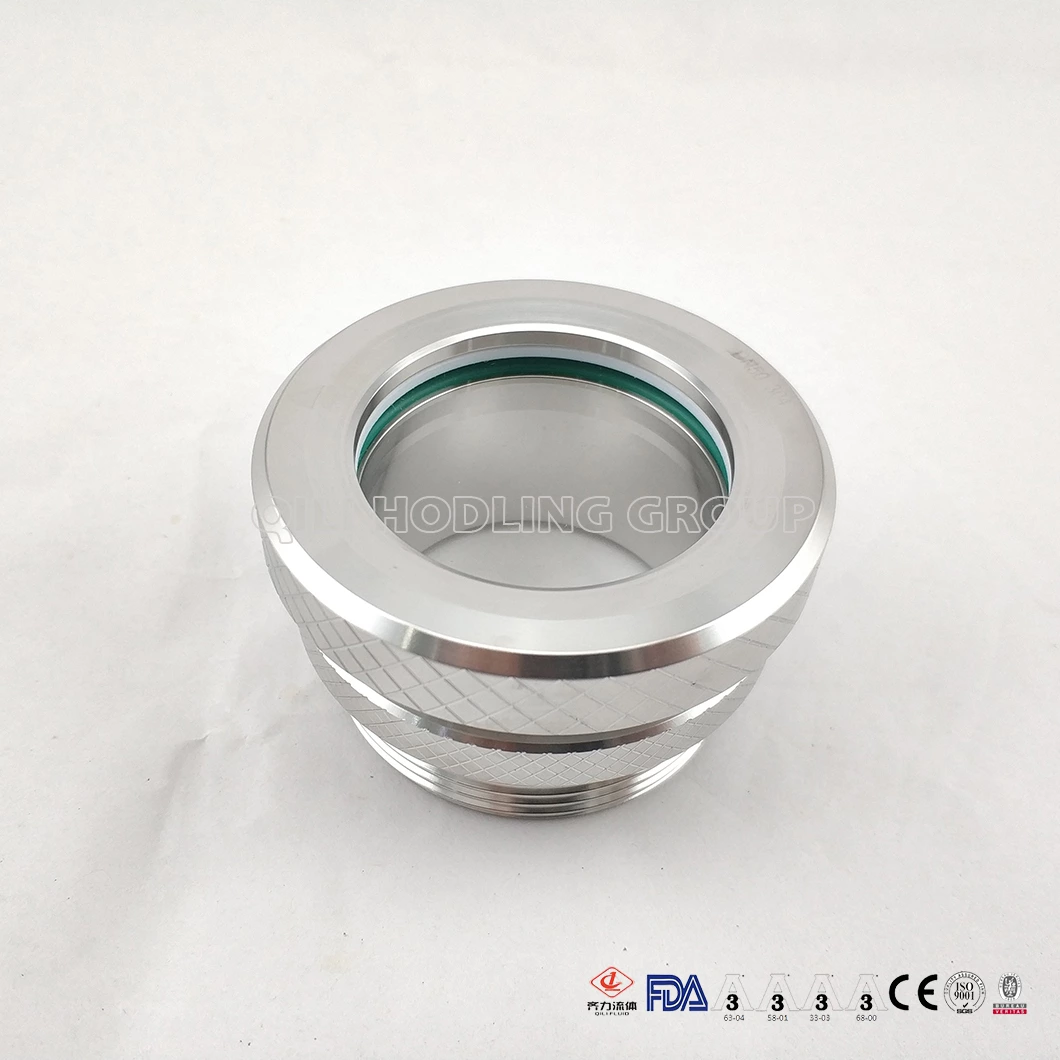

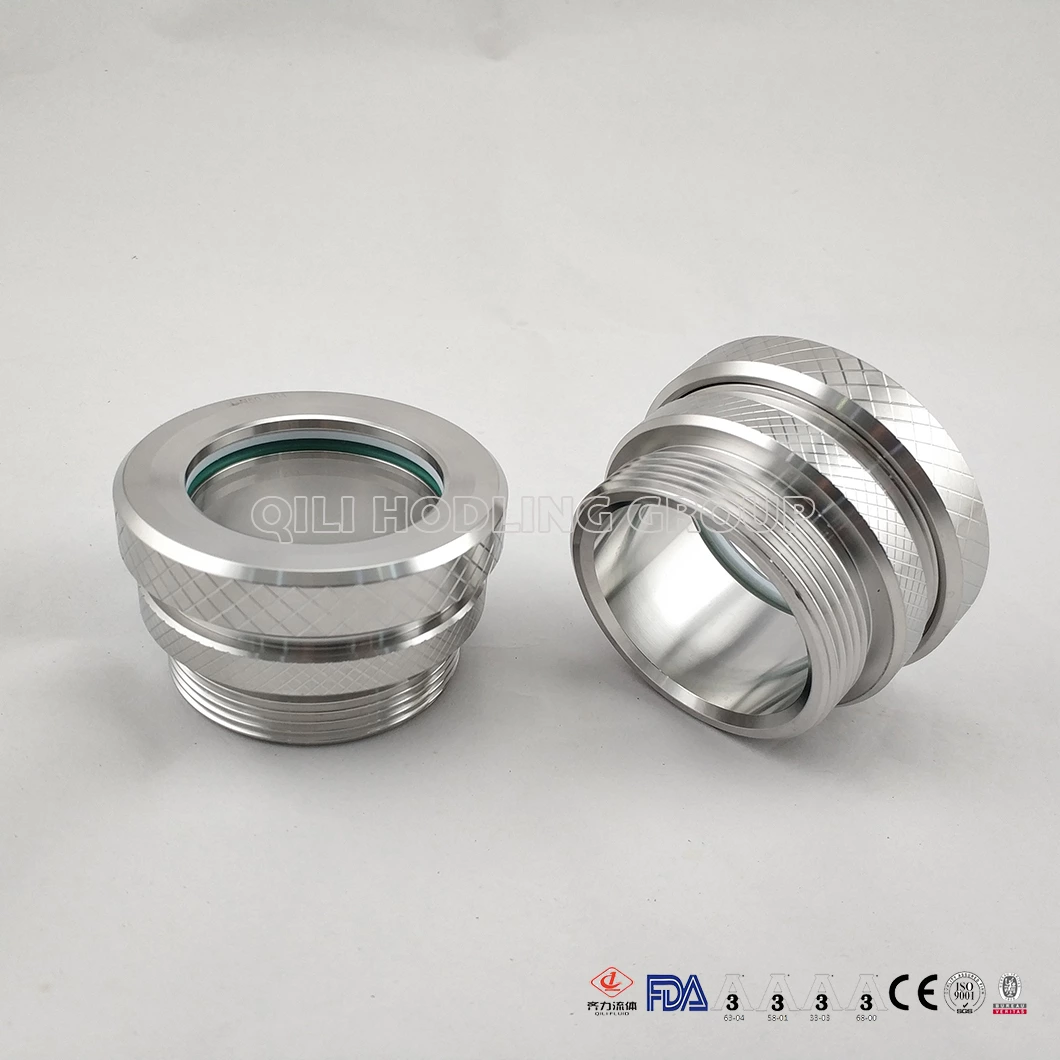

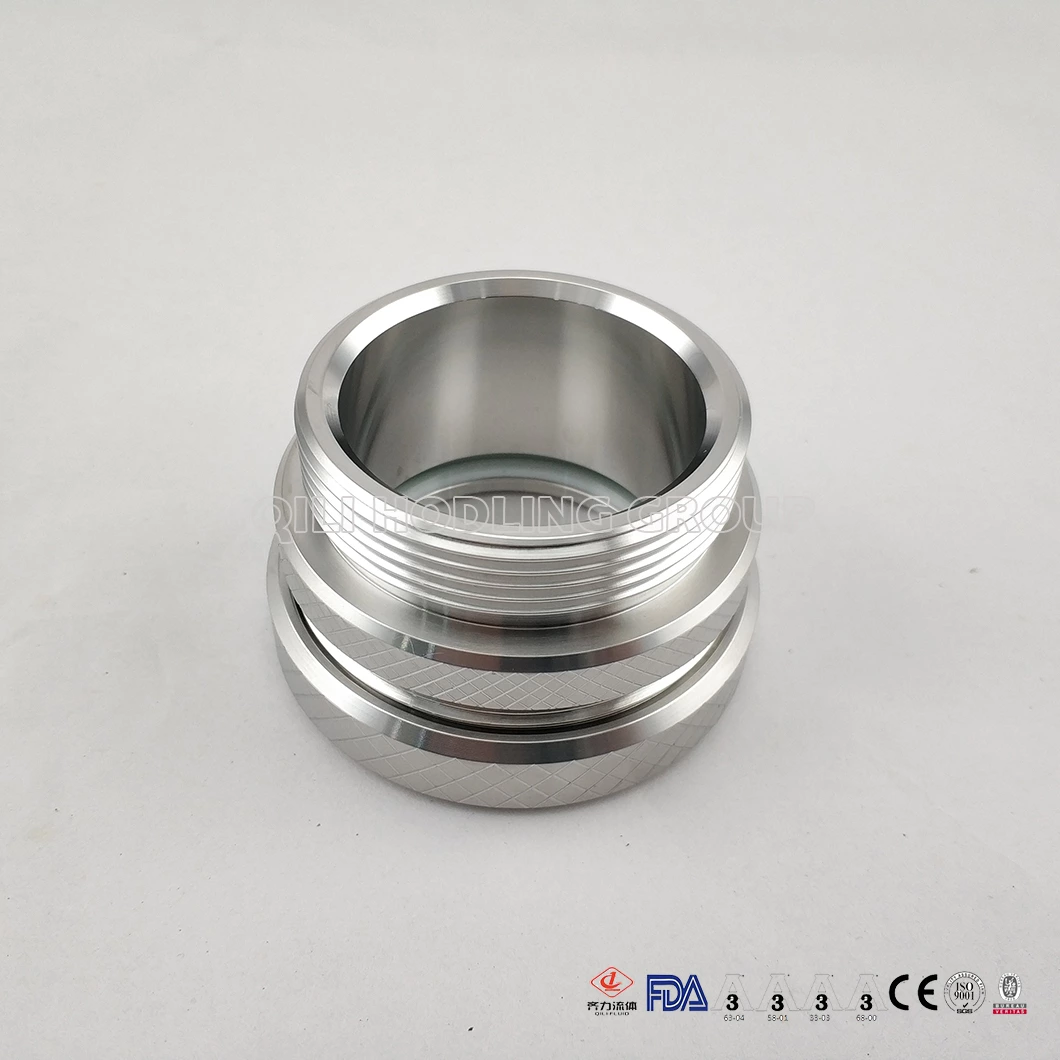

- Union-type-sight-glass DIN11851/SMS (standard for dairy products), with transparent circular glass. Threaded nozzle with the welded neck.
- Welded sight glass with male. It is used viewing the biologic reactor, blender in laboratory, fitter, processing container,pipeline and other closed container. Especially apply in pharmacy,food and beverage processing, such as the brewery, dairy.

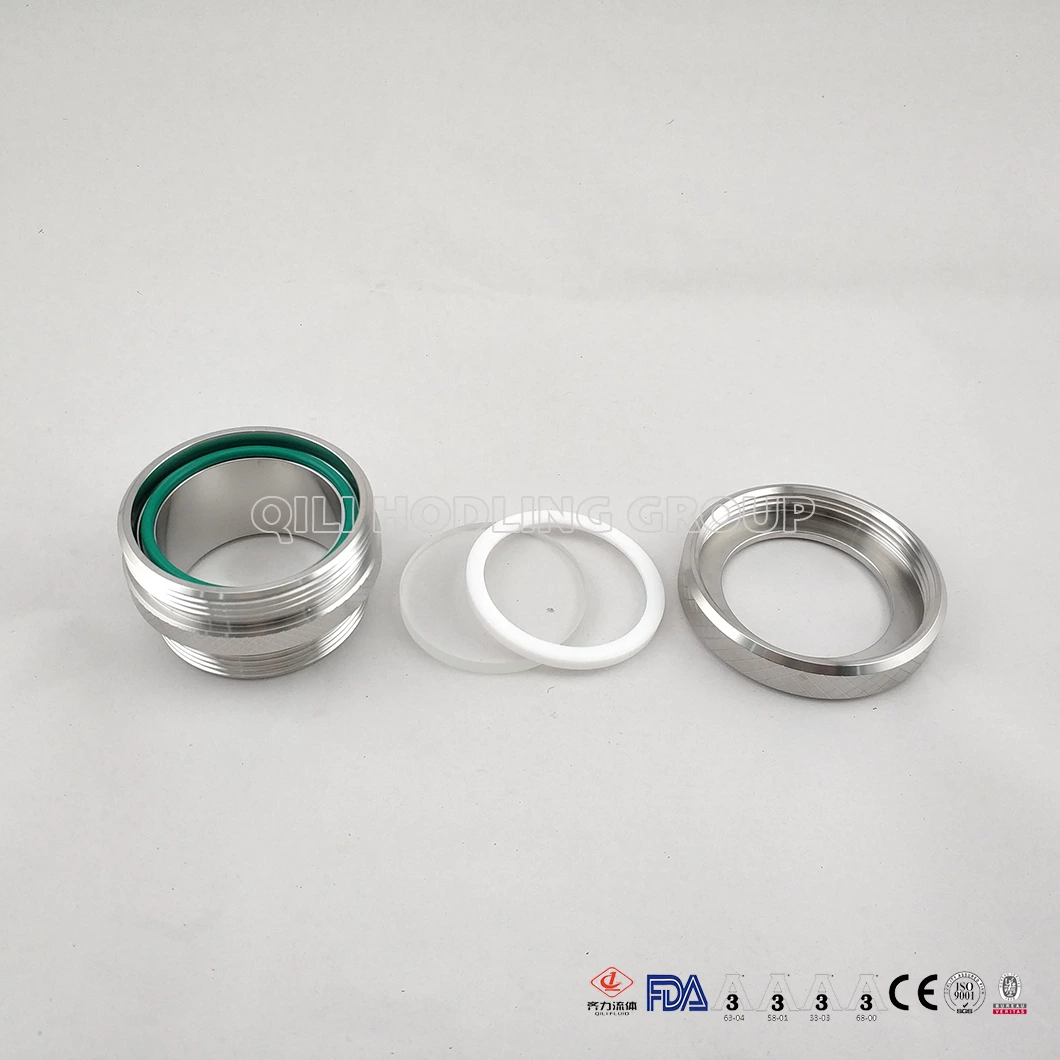

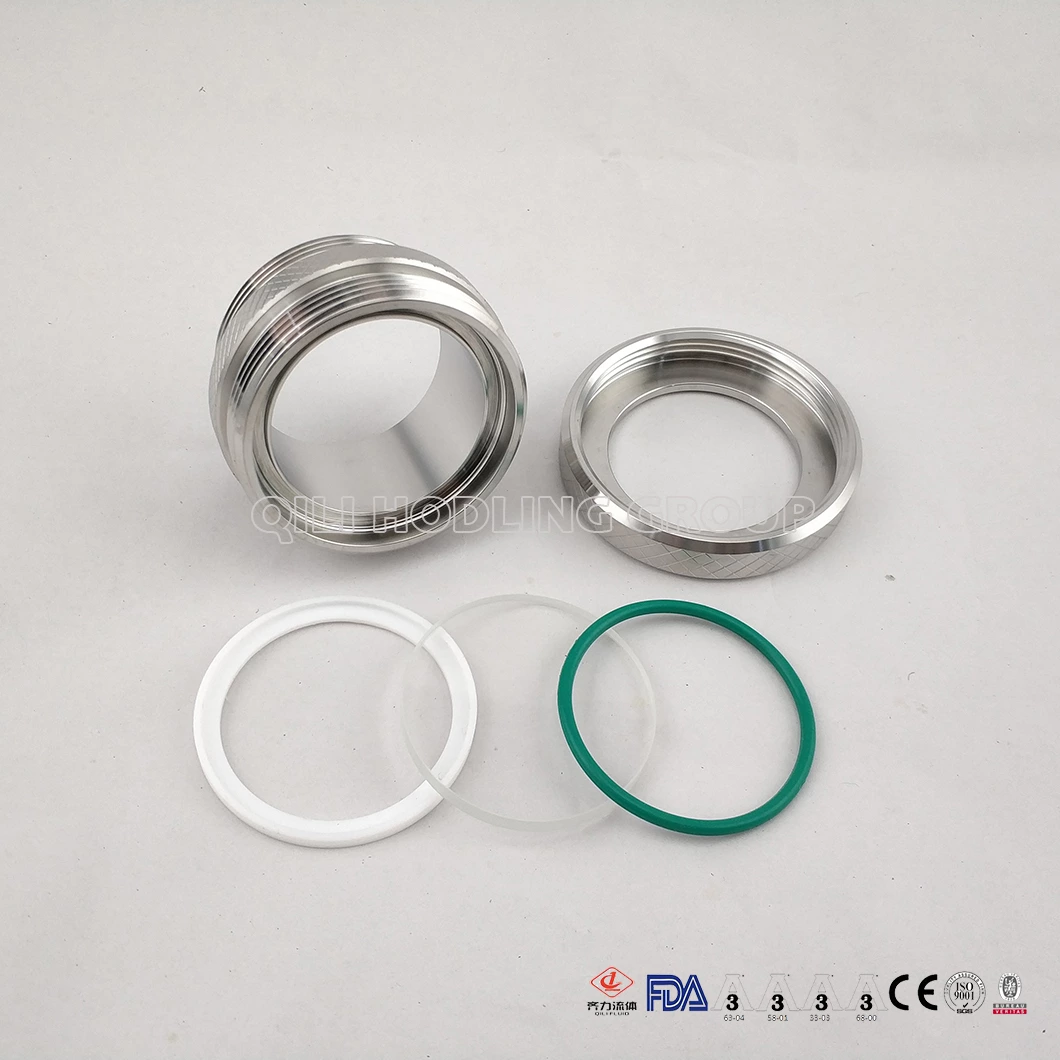

Materials
- Nut AISI 1.4301(304)
- Flat gasket: PTFE
- Sight glass: tempered glass(max. Temperature 120-)
- Seal (max. Temperature 180-): Viton, NBR, PTFE, Slilicon
- The parts contact with liquid: stainless steel 1.4301(304); 1.4404(316L)
- Pressure: 6bar (higher pressure is possible if needed) Vacuum
- Temperature: Max. 180- (temperature chart) using proper gasket
