304/316L Sanitary Stainless Steel Clamp Custom Tank Sight Glass

Product Description Products Stainless steel sight glass Model Number Mibond series Glass Material: Pyrex glass/ Toughened high-borosilicate glass Seal Material: EPDM,Silicone,PTFE C
Material:
304/304L/316/316L
Standard:
3A,SMS,DIN,ISO,RJT
Working Temperature:
120℃
Application:
Pharmacy, beer, food, petroleum, dairy beverage, cosmetics
Connection ways:
clamped
Size:
DN25-DN150,1-6"
Sales Models:
Wholesale and Retail
Pressure Value:
10bar
Seal Material:
EPDM,Silicone,PTFE
Transport Package:
cartons

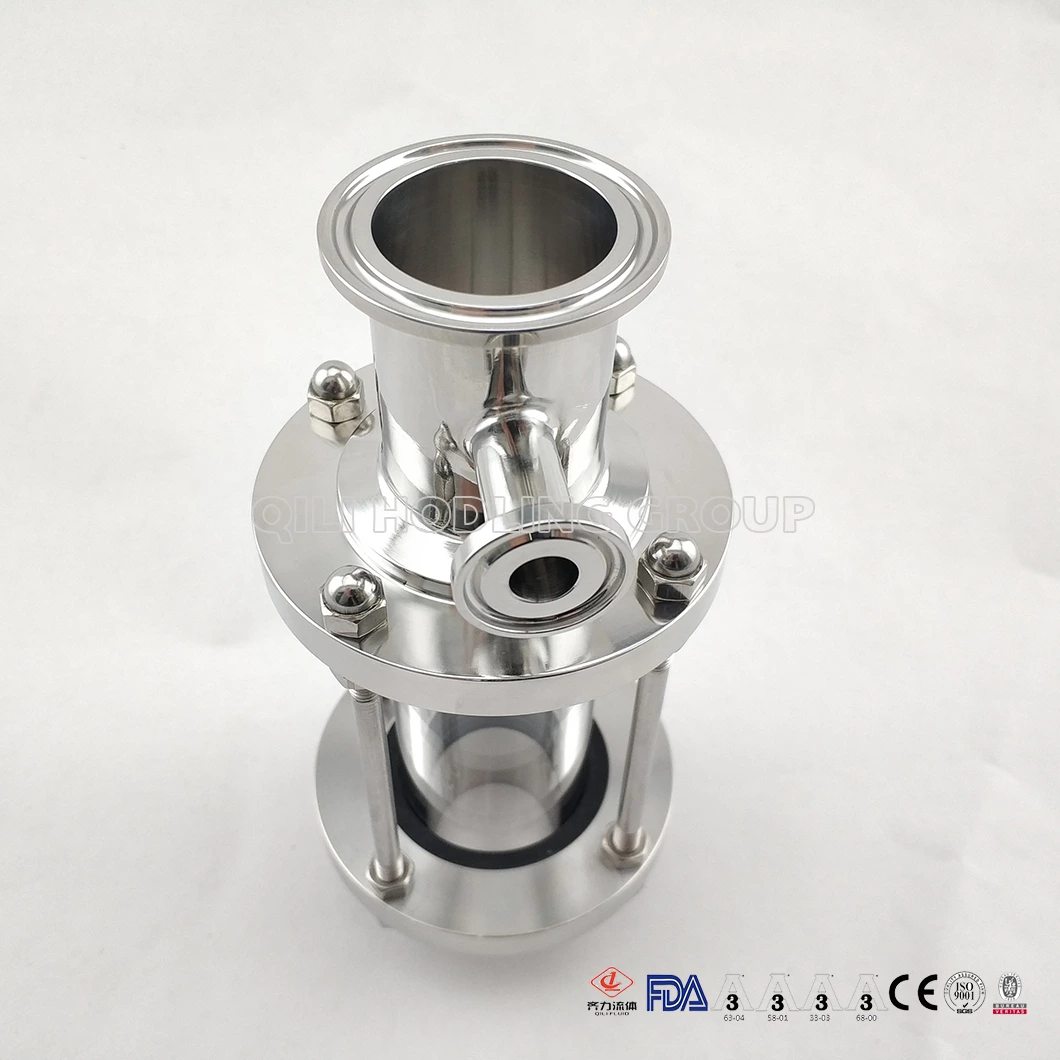

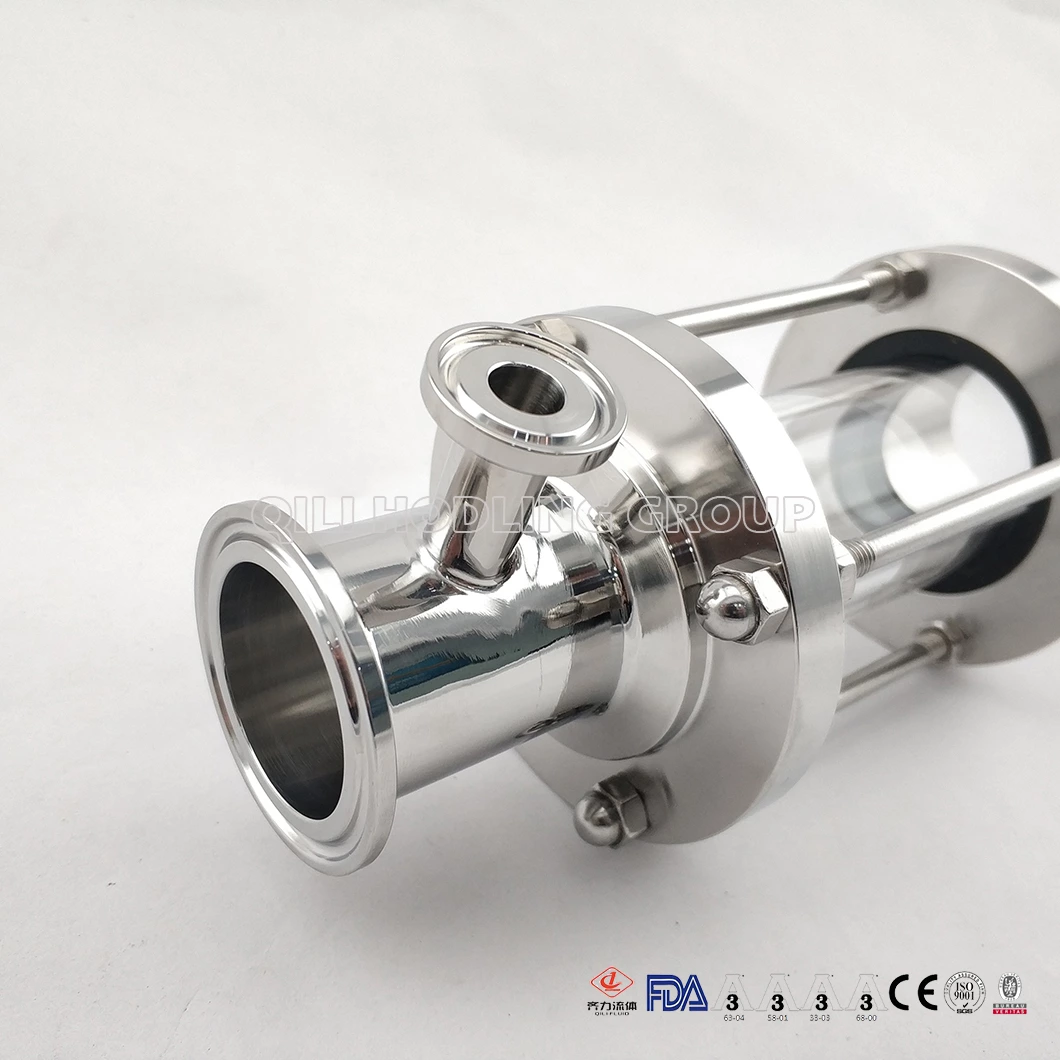

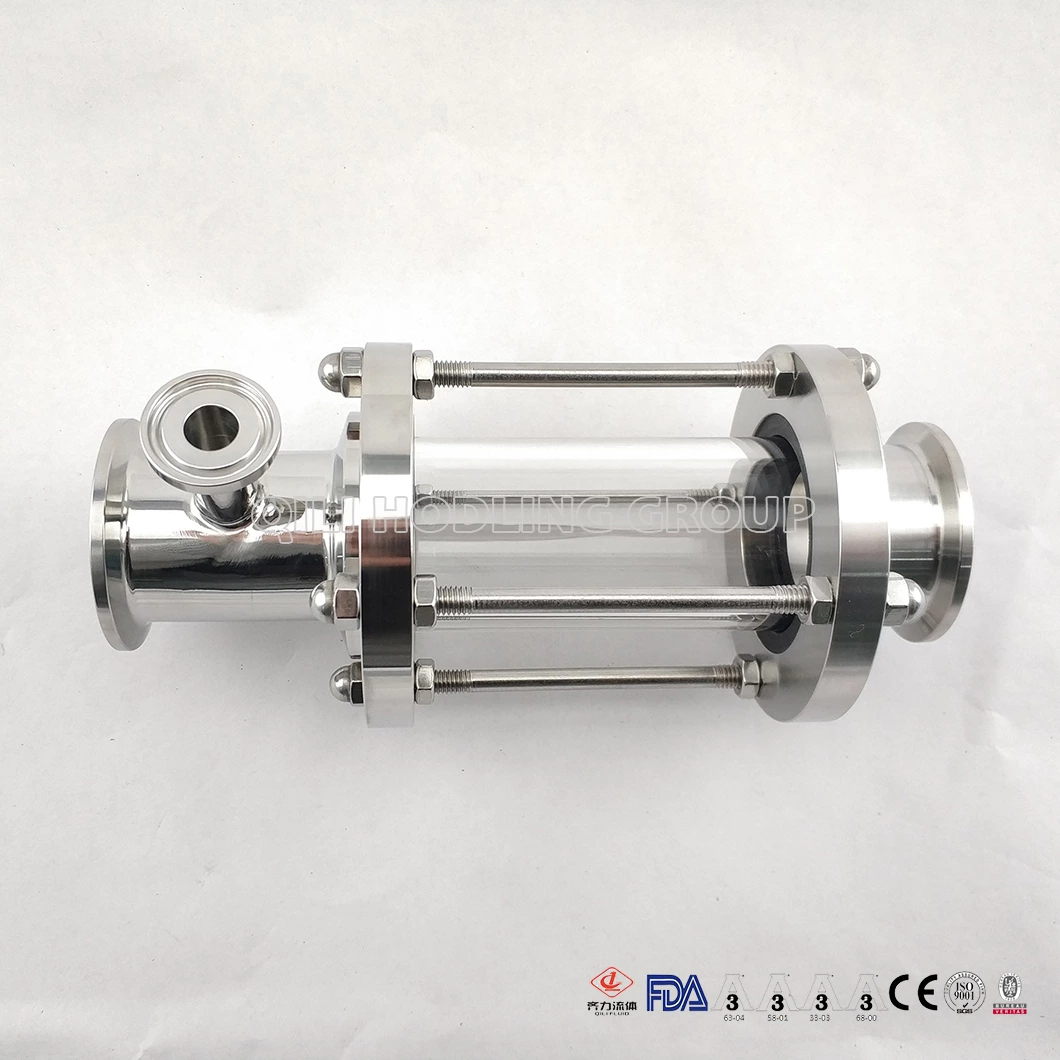

304/316L Sanitary Stainless Steel Clamp Custom Tank Sight Glass
304/316L Sanitary Stainless Steel Clamp Custom Tank Sight Glass 304/316L Sanitary Stainless Steel Clamp Custom Tank Sight Glass 304/316L Sanitary Stainless Steel Clamp Custom Tank Sight Glass 304/316L Sanitary Stainless Steel Clamp Custom Tank Sight Glass 304/316L Sanitary Stainless Steel Clamp Custom Tank Sight Glass

Application

Sight glasses enable the visibility of the process in a pipeline or tank. The visibility of the process is important- you can verify the addition of chemicals, agitation and changes via looking in through the sight glasses.A sight flow indicator works on the principle that the flow is disturbed as it goes through the sight glass, which will create an effect that can be seen.

Specification

Products Stainless steel sight glass
Model Number Mibond series
Glass Material: Pyrex glass/ Toughened high-borosilicate glass
Seal Material: EPDM,Silicone,PTFE
Connection: clamped
Size: DN25-DN150, 1"-6" or as required
Standards: DIN,3A,SMS,ISO,IDF
Max pressure: 10 Bar
Working temp: -10°C to +150°C
Applications: Pharmacy, beer, food, dairy, brewing, beverage, water treatment and  chemical industry,etc
