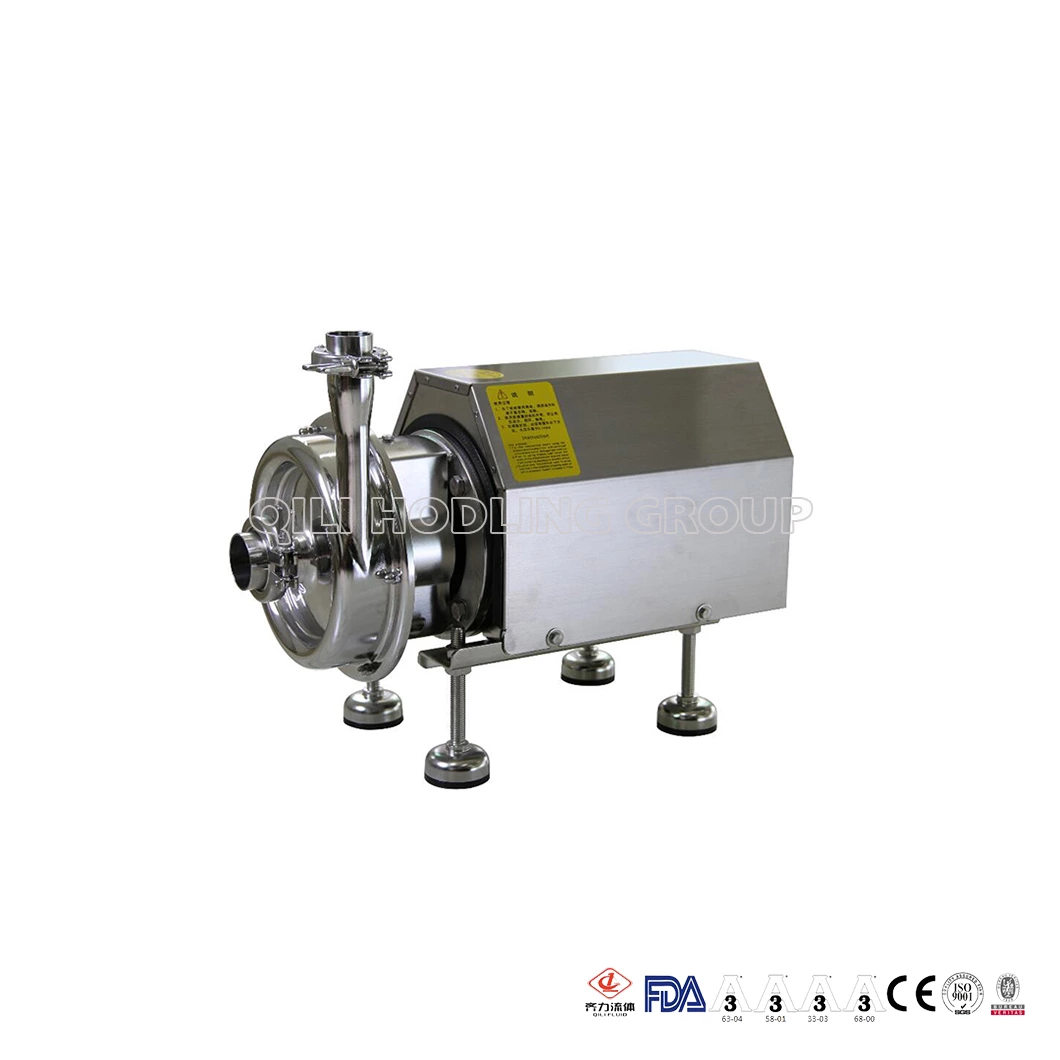

Stainless Steel Sanitary Grade Open Type Centrifugal Pump

Model:
Pump
Contact Now
Stainless Steel Sanitary Grade Open Type Centrifugal Pump
pressure pump
water pump
sanitary pump
centrifugal pump
sanitary valve

Product Description

Type: Self-priming pump with inner recirculation
Air Engine Type: Fitted motor
Theory: Gas-hydraulic hybrid type
Transmission: Direct connection transmission
Structure: The slide
Material: AISI304, AISI316L.
Size: Amb-167s, 192s, 203s
Seal Material: NBR sillicone  EPDM  FPM PTFE
Max. Inlet Pressure: 4 Bar
Temperature Range: -20~+135 degree
Motor: Standard foot-flanged mootr according to the IEC metric standard, 4 poles=1500 rpm at 50HZ, IP 55
Motor Sizes: 50Hz       4KW(AMB-167S)  4.6KW(167S)   5.5KW(AMB-192S)   6.3KW(192S)    7.5KW(AMB-203S)    8.6KW(203S)     volumetric flow AMB-175S  192S  203S

Application

The SCP series sanitary centrifugal pump is widely used for conveying various liquid materials in such fields as dairy,beer,beverage,medicine,biological engineering fine chemical industry etc.It can be used to convery ordinary solutions of low and medium viscosity. And solutions containing suspension or corrosive solutions.

The form of sanitary centrifugal pump is single stage,single suction and open-type impeller.

Standard design

The SCP series santiary centrifugal pump is composed of motor,pump shaft,mechanical clamping jacket,sanitary mechanicl seal,connection support,rear plate,impeller,pump shell etc.

The SCP series sanitary centrifugal pump has large internal round chamfer and cleaning type seal.The SCP series sanitary centrifugal pump specially designed for CIP has the staineless steel protection cover used for protecting the motor and the equipment is supported by four adjustable feet.

Shaft seal

The SCP series sanitary centrifugal pump is provided with a set of extemally mounted single end mechanical seal or water injection mechanical seal.The static ring of the mechanicl seal is made of stainless steel.silicon carbide or tungsten alloy.The dynamic ring is made of stainless steel.carbon,graphite or tungsten alloy.The seal ring of  the water injection type seal is a durable lip seal.The series of pump products can also equipped with the double end mechanial seal.

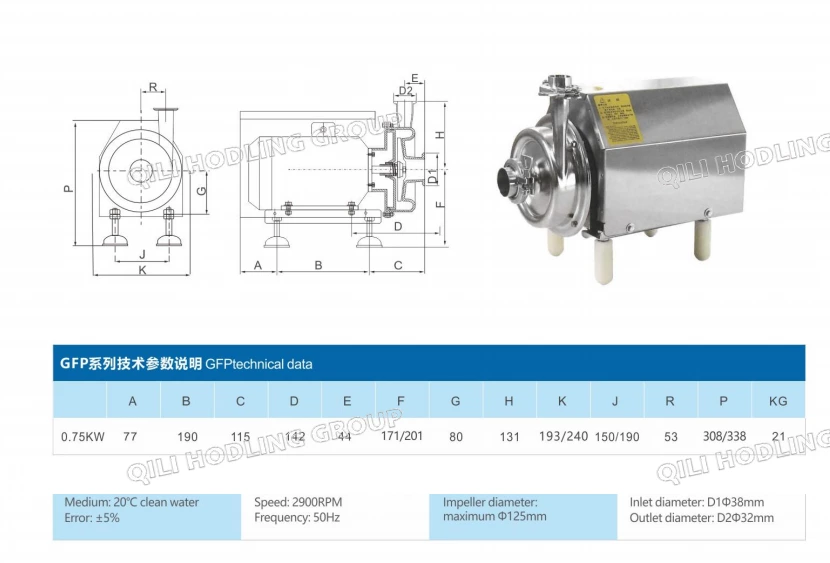

Technical Parameters

  • Maximum inlet pressure:0.5Mpa
  • Temperature range:-10 0C +140 0C(EPDM)
  • Noise level(at 1m): 60-85dB(A)
  • Washable seal
  • Hydraulic pressure :maximum 0.1Mpa
  • Water volume:0.25-0.5L/min

Double end seal

  • Hydraulic pressure :maximum 0.1Mpa
  • Water volume:0.25-0.5L/min

Materials

  • Materials of liquid passing parts:AISI316L.AISI316 or AISI304 stainless steel
  • Material of other parts: AISI304 stainless steel

Outer surface:sand blast

  • Inner surface:mirror polishing 0.4 or sand blast
  • Liquid passing rubber seal materials:EPDM/ Q/ FRM/ NBR
  • Mix flow:150m3 /H
  • Max.speed:3600min-1
  • Max.head:70H(m)
  • Max.working pressure:7bar/99PSI
  • Motor power:0.75/1.1/1.5/2.2/......37kw
  • Voltage:110v,220v,380v,440v
  • Motor choice:ABB/SIEMENS/DOMESTIC
  • Motor Frequency:50Hz.60Hz
