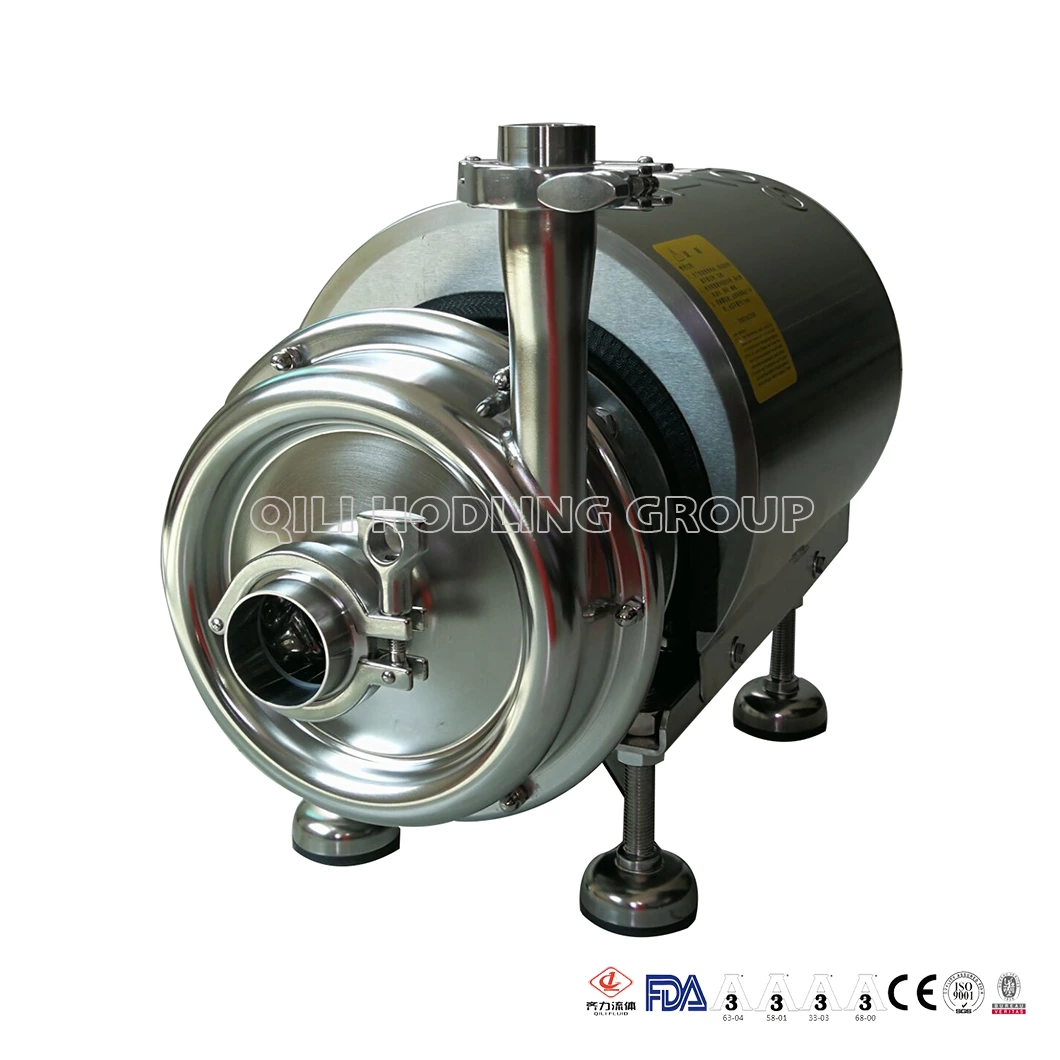

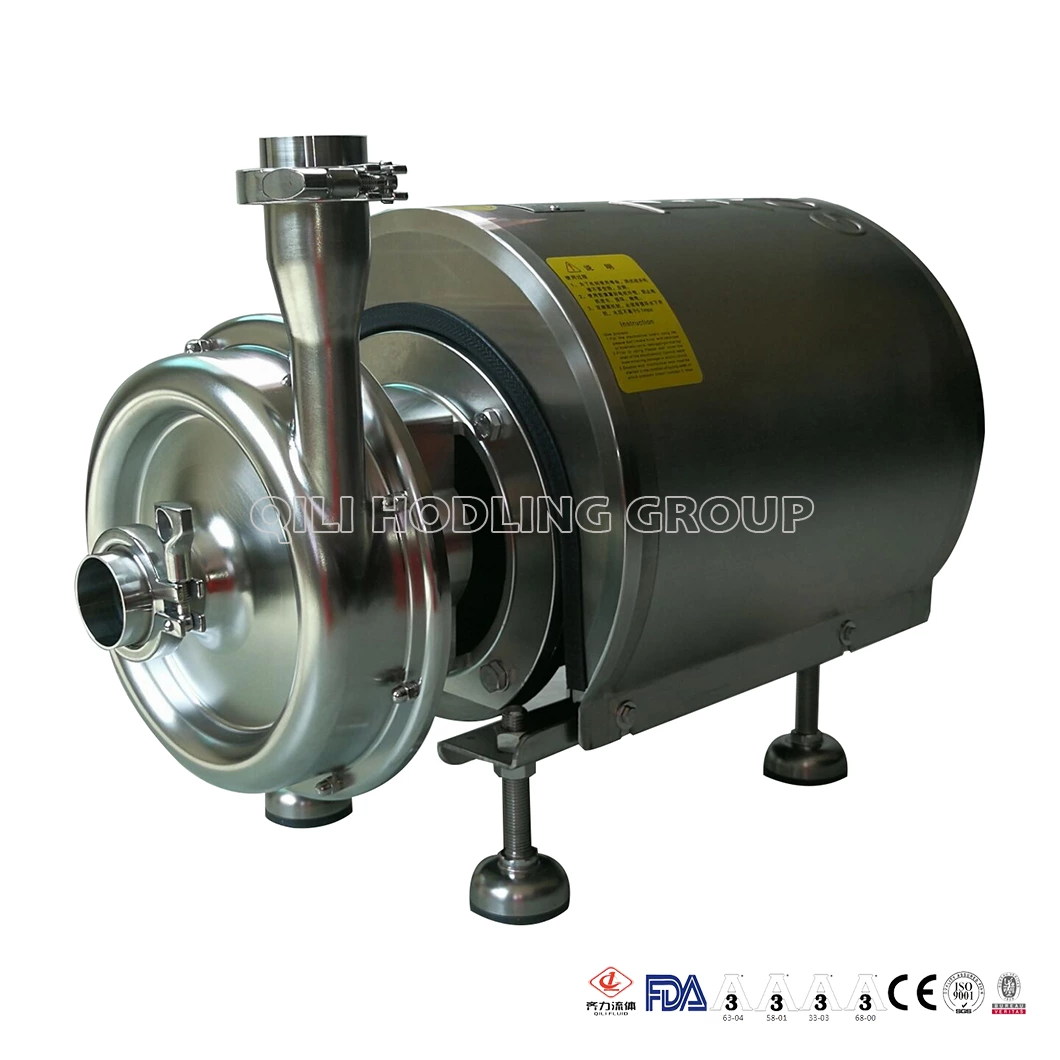

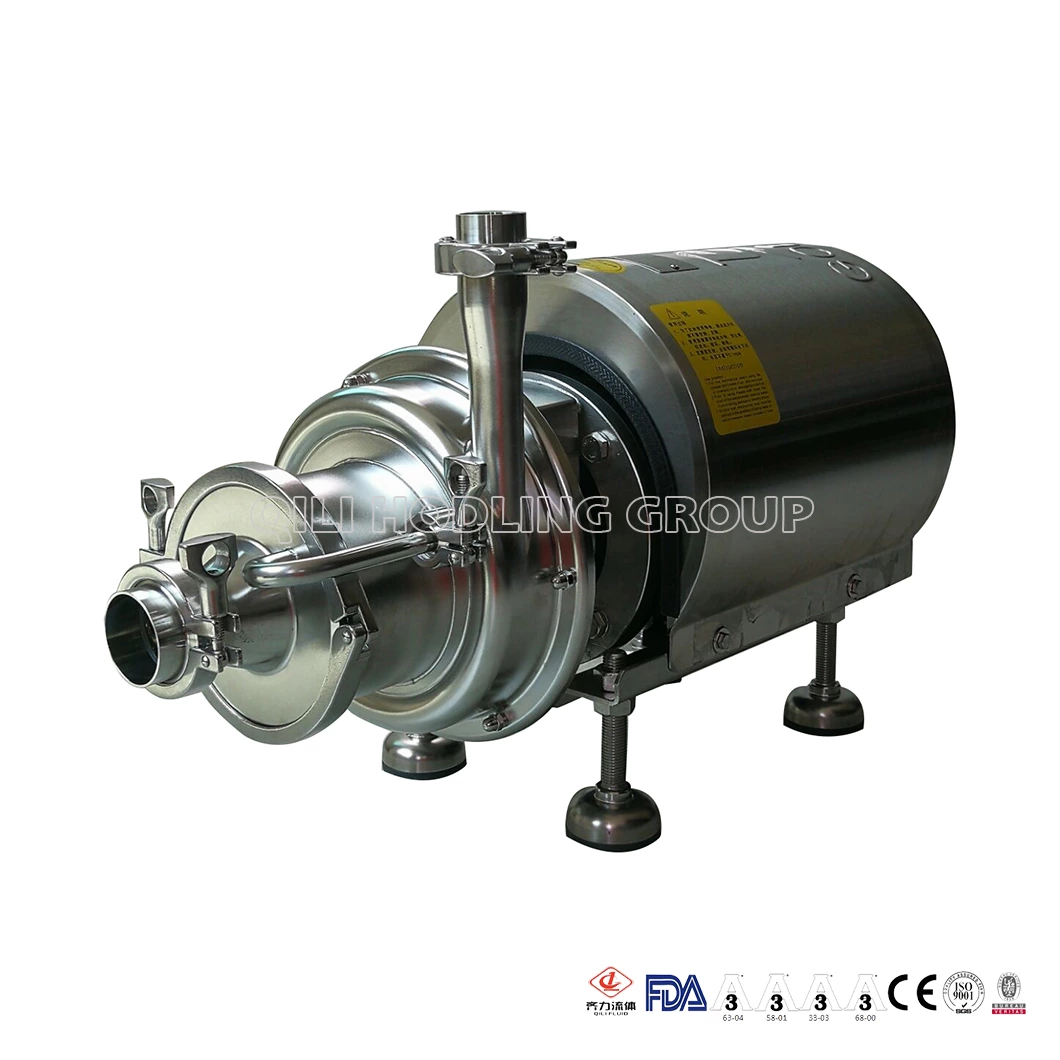

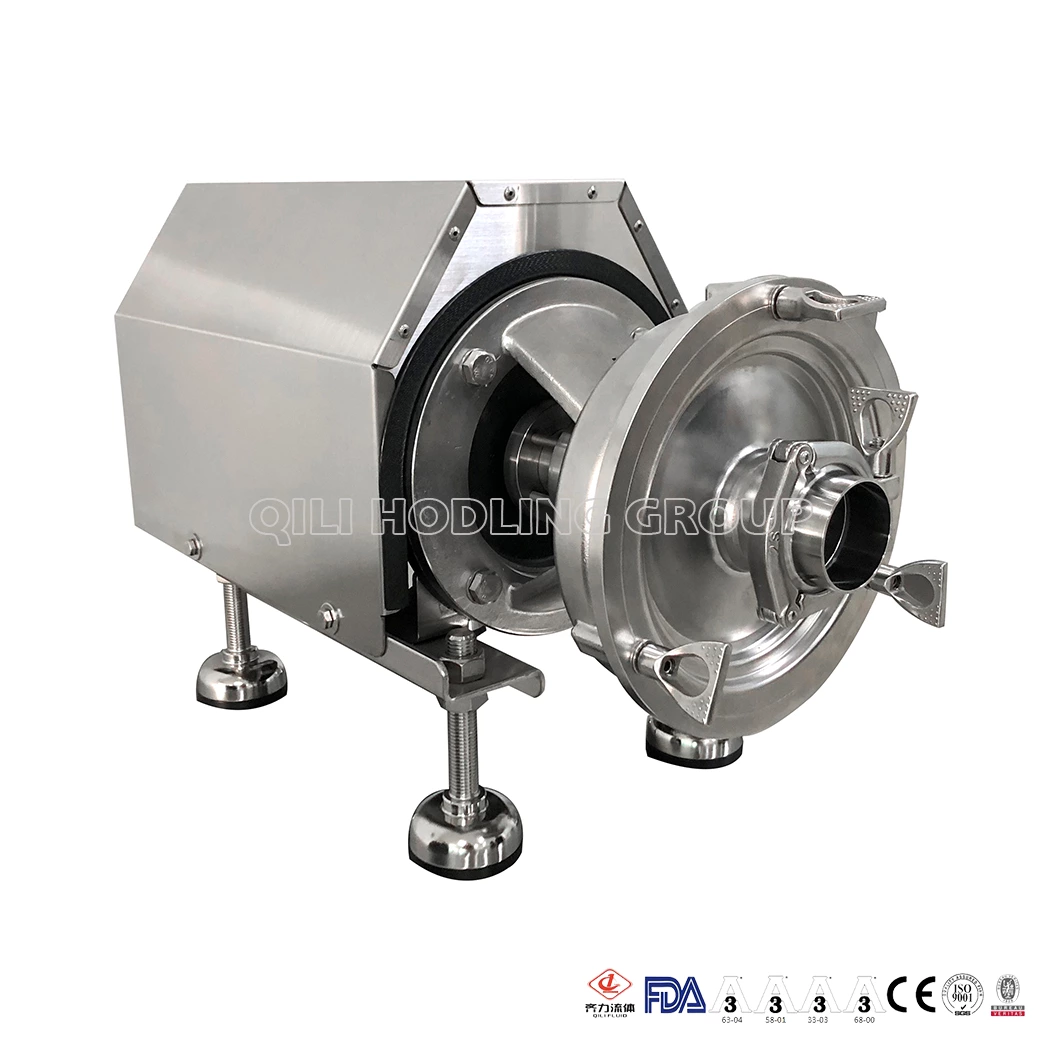

Stainless Steel Sanitary Dairy Food Grade Transfer Centrifugal Pump
The SCP series sanitary centrifugal pump is widely used for conveying various liquid materials in such fields as dairy,beer,beverage,medicine,biological engineering fine chemical industry etc.It can be used to convery ordinary solutions of low and medium viscosity. And solutions containing suspension or corrosive solutions. The form of sanitary centrifugal pump is single stage,single suction and open-type impeller.
- Stainless steel 304, 316L
- 3A, ISO, DIN, IDF
- Working Temperature:
- -10 °C to +140 °C(EPDM)
- Dairy, water, food, beer, beverage, phramaceutical, cosmetic, chemical industry.
- Delivery Time:
- 15-20 days
- 1/4”-4”. Larger size can be customized.
- Sales Models:
- wholesale or retail
- Pressure Value:
- Transport Package:
- Carton packaging. Wooden case packaging.
|Material||Stainless steel 304, 316L|
|Impeller Number||Single-Stage Pump|
|Working Pressure||Middle Pressure Pump|
|Influent Type of Impeller||Single Suction Pump|
|Position of Pump Shaft||Horizontal Pump|
|Pump Casing Combined||Verticaljoint Surface Pump|
|Size||1/4”-4”. Larger size can be customized.|
|Maximum inlet pressure||0.5Mpa|
|Temperature range||-10 °C +140 °C(EPDM)|
|Noise level(at 1m)||60-85dB(A)|
|Standard||3A, ISO, DIN, IDF|
|Application||Dairy, water, food, beer, beverage, phramaceutical, cosmetic, chemical industry.|
