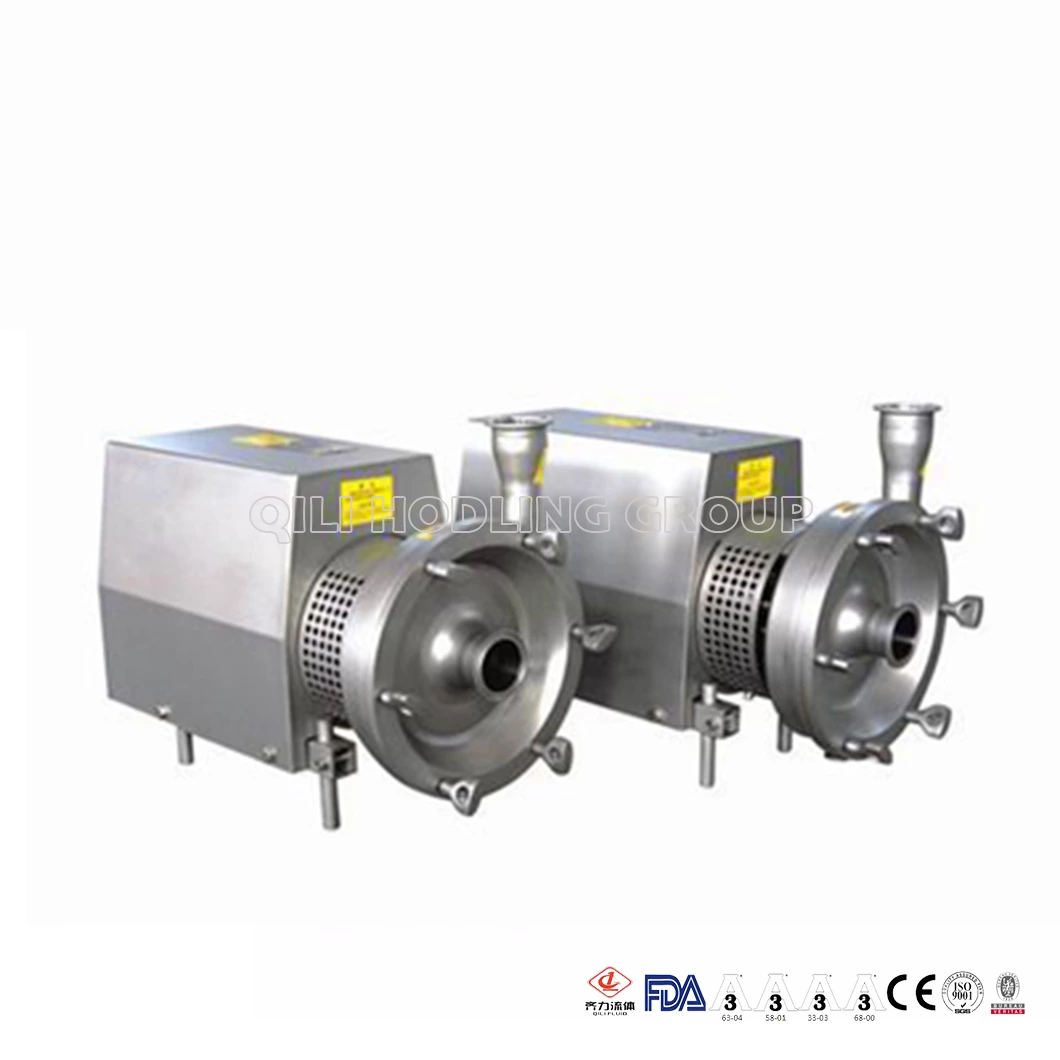

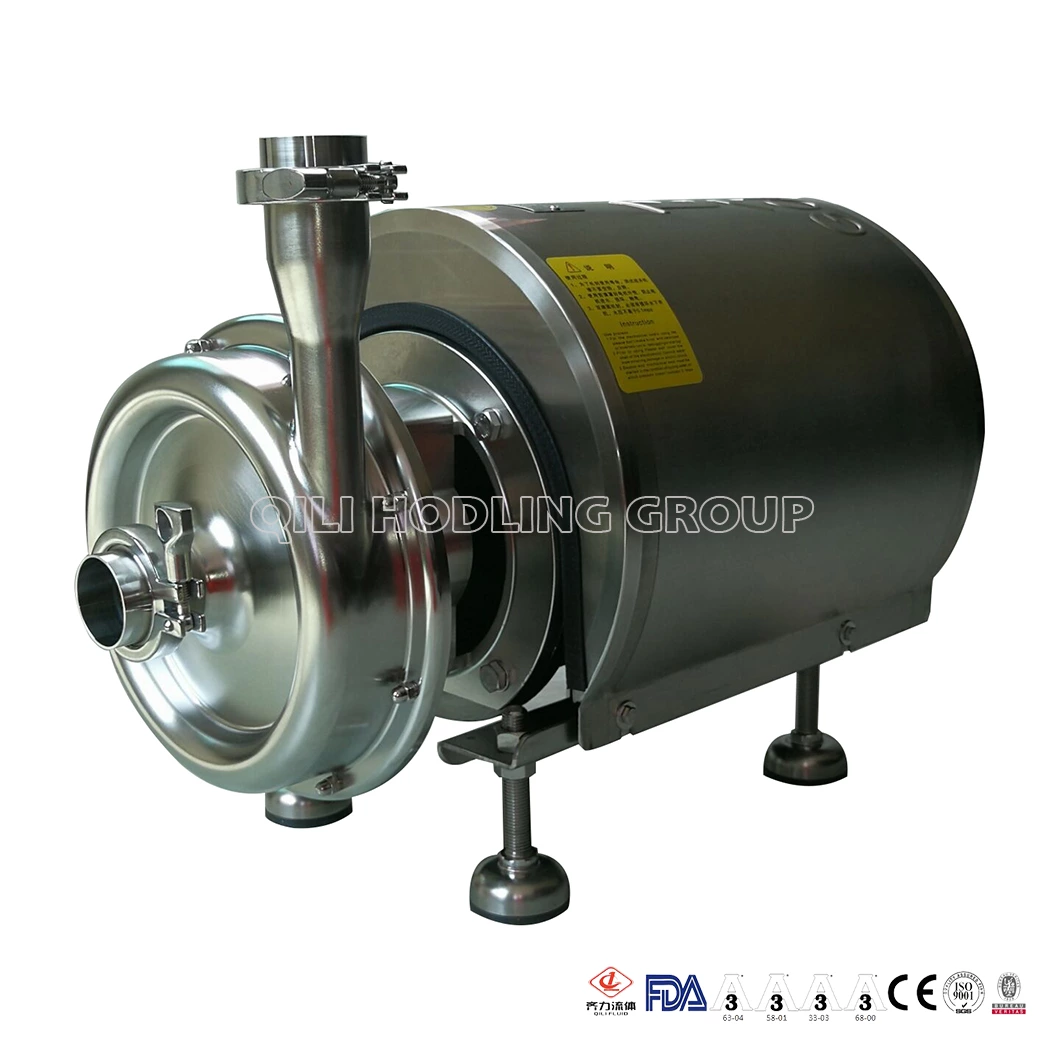

Stainless Steel Sanitary Dairy Food Grade Transfer Centrifugal Pump

Model:
QL--Sanitary Pump
Contact Now
Stainless Steel Sanitary Dairy Food Grade Transfer Centrifugal Pump
food grade pump
centrifugal water pump
sanitary pump
high pressure pump
fluid transfer pump
Stainless Steel Sanitary Dairy Food Grade Transfer Centrifugal Pump

Product Description:

Description Stainless Steel Sanitary Grade Open Type Centrifugal Pump
Material Stainless steel 304, 316L
Impeller Number Single-Stage Pump
Working Pressure Middle Pressure Pump
Influent Type of Impeller Single Suction Pump
Position of Pump Shaft Horizontal Pump
Pump Casing Combined Verticaljoint Surface Pump
Impeller Open
Usage Pump
Size 1/4”-4”. Larger size can be customized.
Maximum inlet pressure 0.5Mpa
Temperature range -10 °C +140 °C(EPDM)
Noise level(at 1m) 60-85dB(A)
Standard 3A, ISO, DIN, IDF
Application Dairy, water, food, beer, beverage, phramaceutical, cosmetic, chemical industry.
Delivery detail Usually in 15-20 days after down payment confirmation.
Advantage Quotation, competitive price, punctual delivery and guaranteed quality.
Packaging Carton packaging. Wooden case packaging.
Shipment Air shipment, Ocean shipment, DHL/UPS available. Up to requirement.
Export Markets North America, South America, Europe,MID East, Eastern Asia, Western Europe
Payment T/T, L/C, West Union, Paypal
More information The SCP series sanitary centrifugal pump is widely used for conveying various
liquid materials in such fields as dairy,beer,beverage,medicine,biological
engineering fine chemical industry etc.It can be used to convery ordinary solutions
 of low and medium viscosity. And solutions containing suspension or corrosive
solutions.  The form of sanitary centrifugal pump is single stage,single suction and open-type
 impeller. The SCP series santiary centrifugal pump is composed of motor,pump shaft,
mechanical clamping jacket,sanitary mechanicl seal,connection support,rear plate,
impeller,pump shell etc. The SCP series sanitary centrifugal pump has large internal round chamfer and
cleaning type seal.The SCP series sanitary centrifugal pump specially designed for
CIP has the staineless steel protection cover used for protecting the motor and the
equipment is supported by four adjustable feet.
The SCP series sanitary centrifugal pump is provided with a set of extemally
mounted single end mechanical seal or water injection mechanical seal.The static
ring of the mechanicl seal is made of stainless steel.silicon carbide or tungsten alloy.
The dynamic ring is made of stainless steel.carbon,graphite or tungsten alloy.The
seal ring of  the water injection type seal is a durable lip seal.The series of pump
products can also equipped with the double end mechanial seal.

GKS technical data
