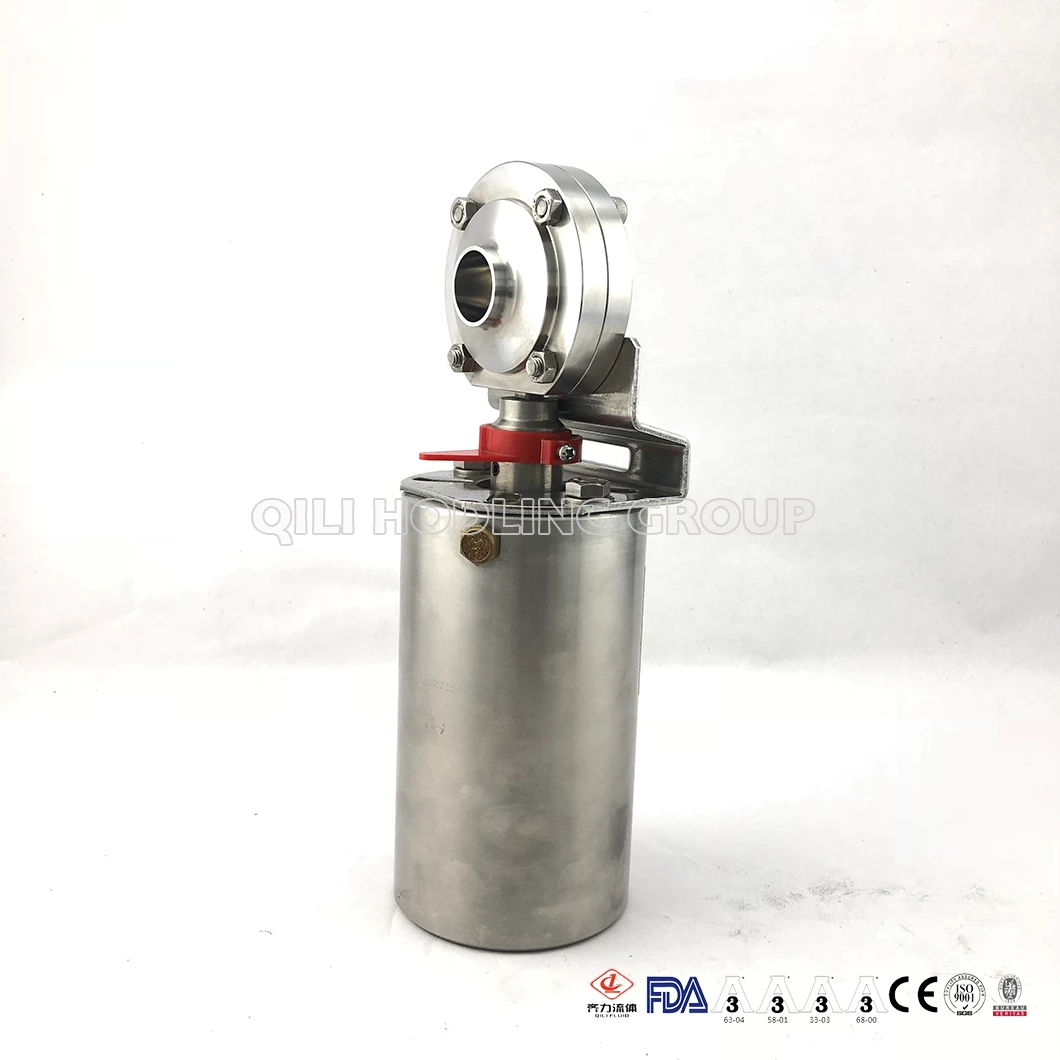

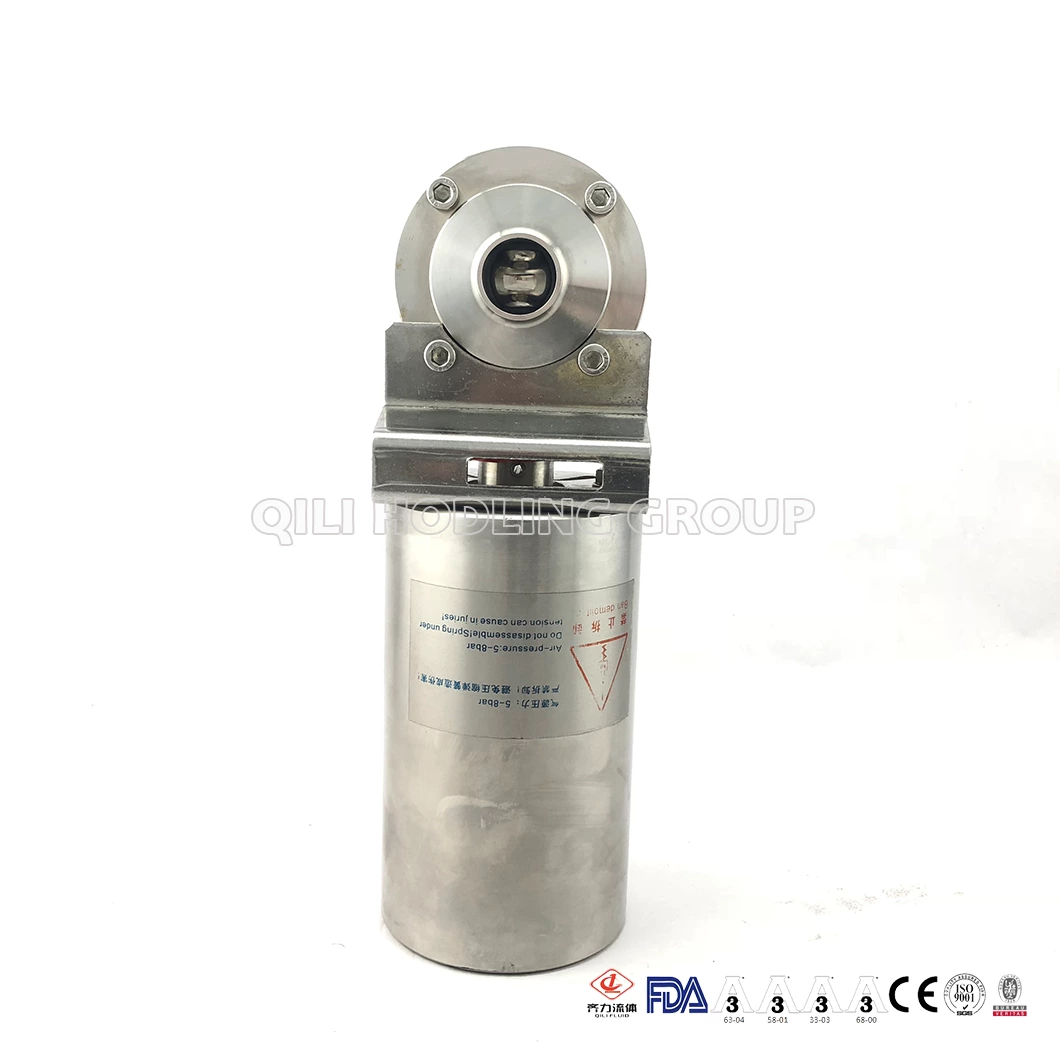

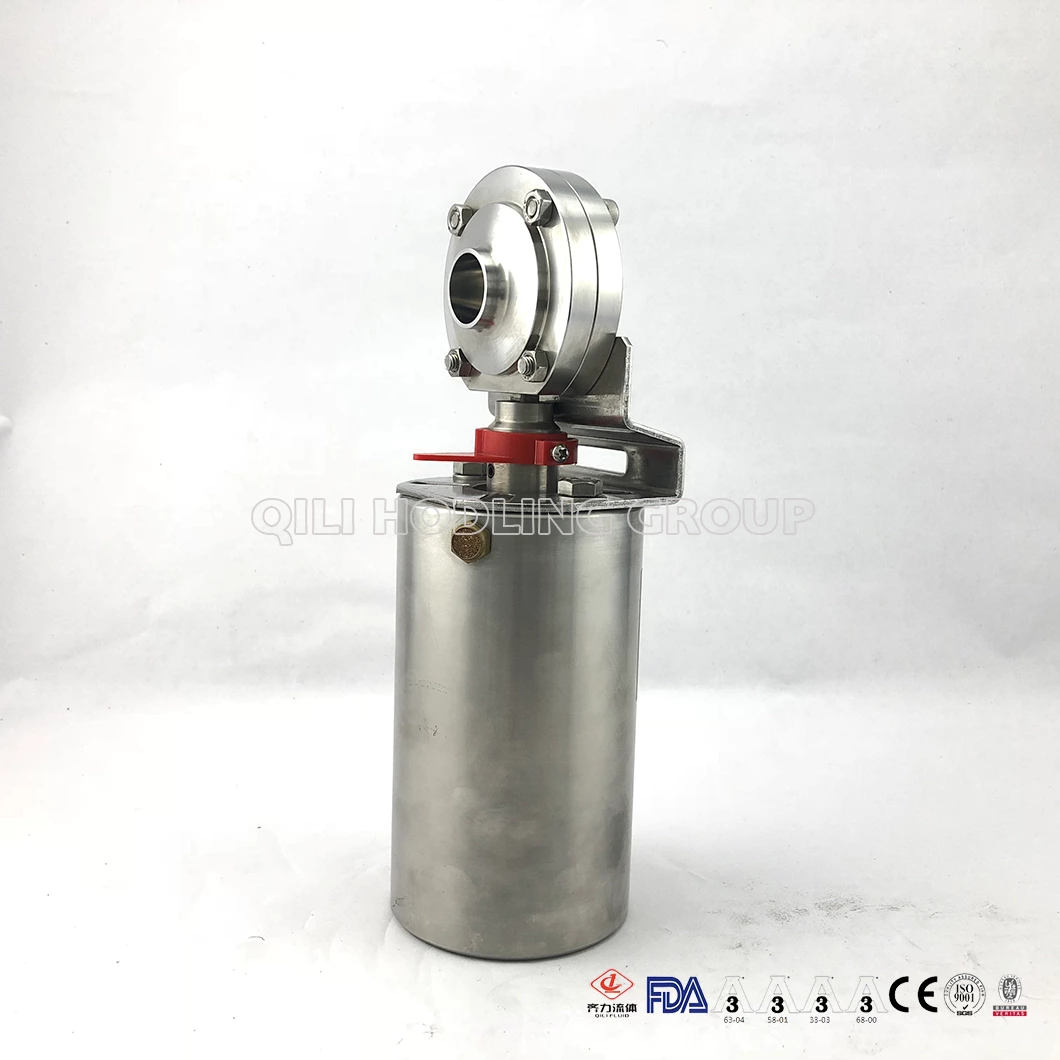

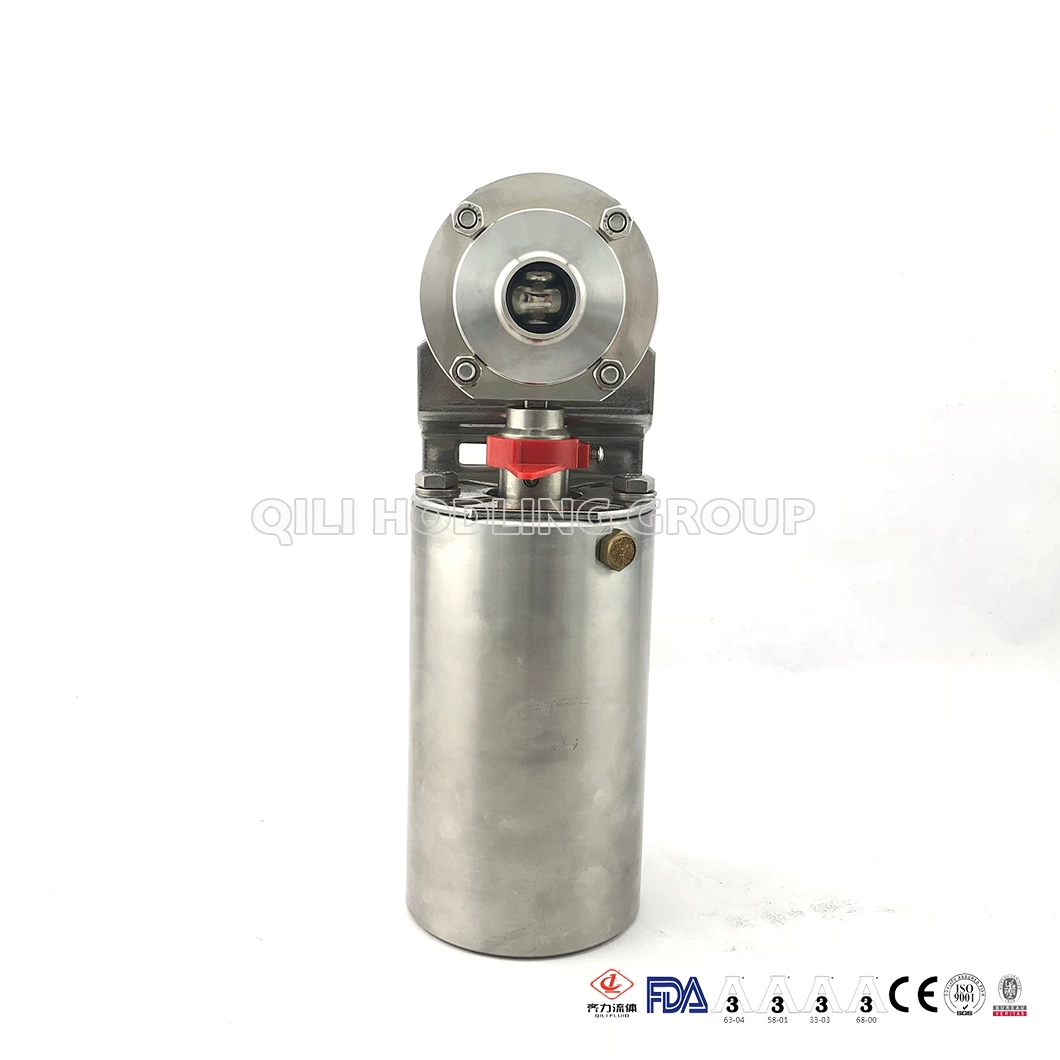

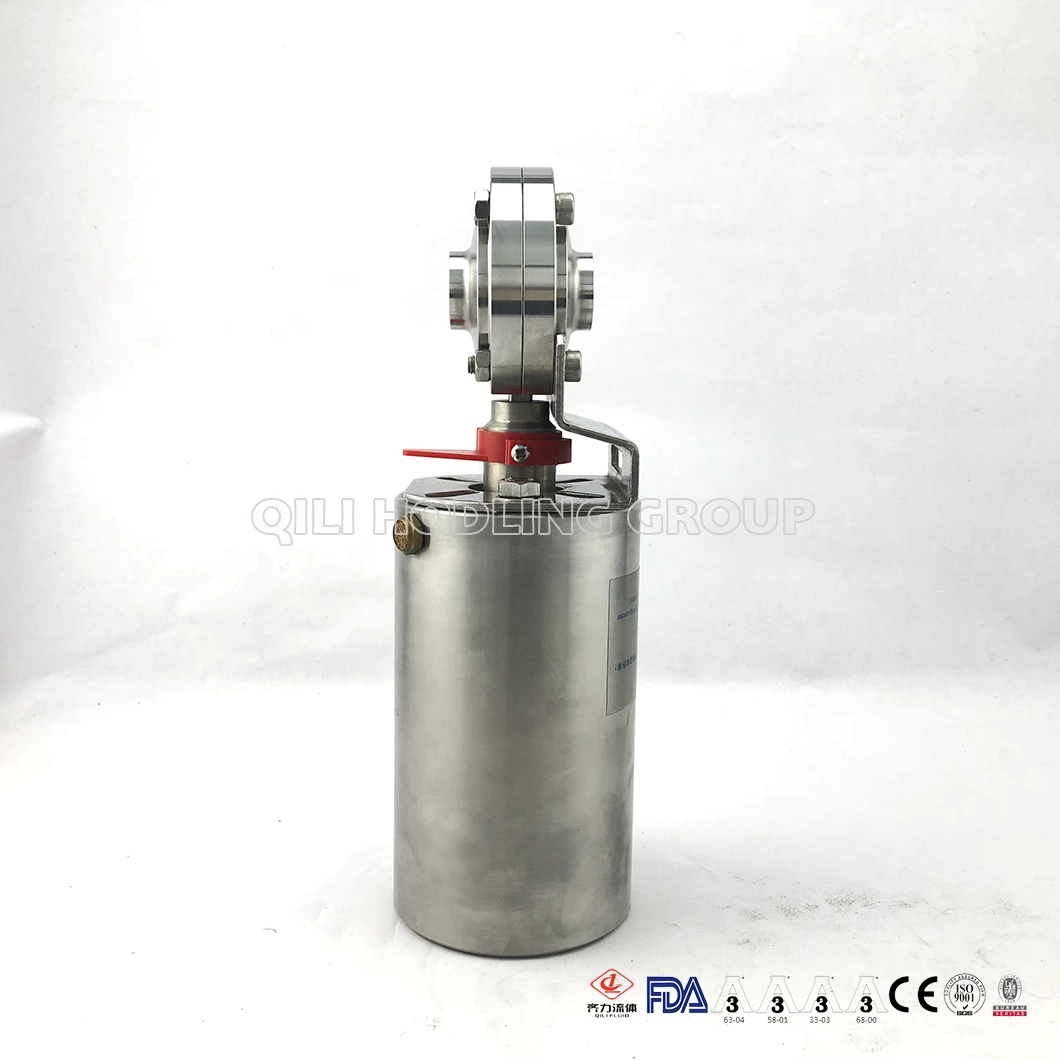

Sanitary Stainless Steel Pneumatically Actuated Welded Butterfly Valve
- Material:
- SS304,SS316L
- Standard:
- SMS/3A, ISO/IDF,DIN,BS,RJT,ASME/BPE
- Working Temperature:
- VMQ（-50 to 180℃） EPDM（-20 to 135℃） FPM（-30 to 230℃）
- Application:
- Beer, Dairy, Beverage, Pharmacy, Cosmetics,
- Connection ways:
- Weld, flange, thread/union, clamped
- Size:
- 1/2"-6"
- Color:
- Blue , black
- Sales Models:
- Wholesale and Retail
- Surface Treatment:
- inner（0.4-0.8µm） outer（0.8-1.6µm）
- Pressure Value:
- 0-10bar
- MOQ:
- 1pcs
- Seal Material:
- VMQ, EPDM，CMQ,FPM,silicone
- Transport Package:
- cartons
Drawings
Details
| Description | Sanitary Stainless Steel Pneumatically Actuated Welded Butterfly Valve |
| Material | Stainless steel 304, 316L |
| Connection form | Weld, flange, thread, clamp |
| Structure | Double-Eccentric Sealing |
| Driving Mode | Pneumatic |
| Nominal Pressure | Low Pressure (Pn<1.6mpa) |
| Work Temperature | Normal Temperature (-40°C<T<120°C) |
| Size | 1/2"-6" |
| Type | Butterfly-type with welded ends |
| Application | Pharmacy, beer, food, dairy, beverage, cosmetic, chemical industry. |
| Standard | DIN/SMS/3A/ISO/IDF |
| Packaging | Carton packaging. Wooden case packaging. |
