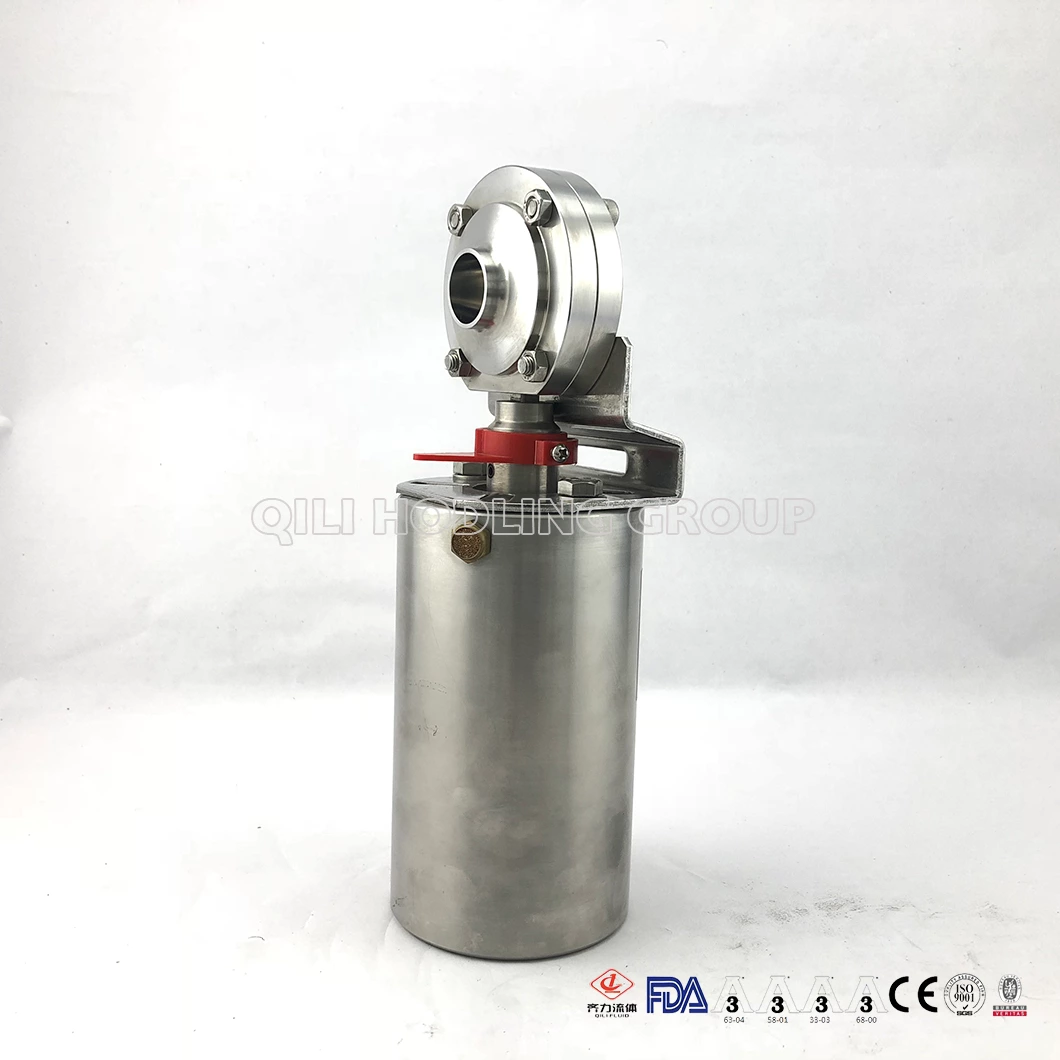

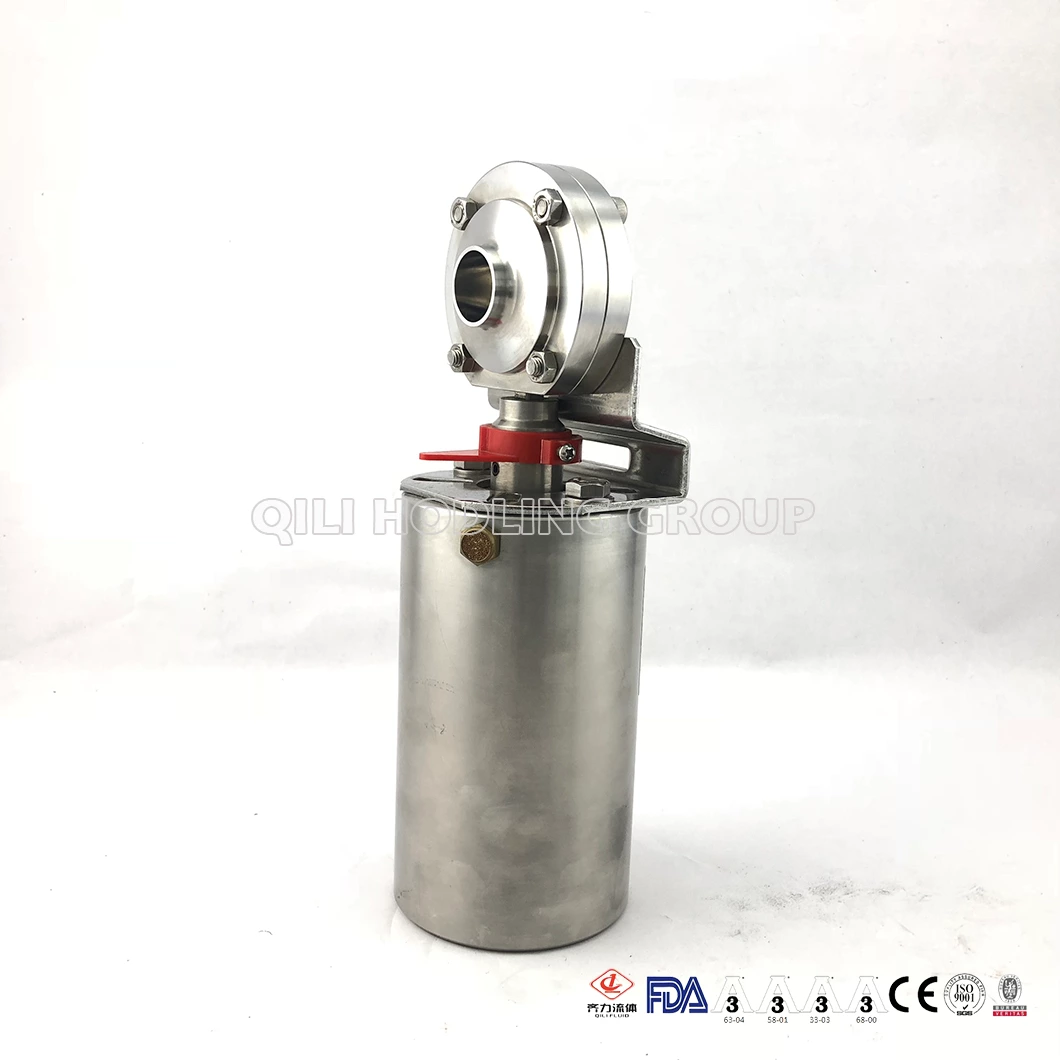

Sanitary Stainless Steel Pneumatic Clamp End Butterfly Valve
- SMS/3A, ISO/IDF,DIN,BS,RJT,ASME/BPE
- Working Temperature:
- VMQ（-50 to 180℃） EPDM（-20 to 135℃） FPM（-30 to 230℃）
- Beer, Dairy, Beverage, Pharmacy, Cosmetics,
- Connection ways:
- Weld, flange, thread/union, clamped
- Blue , black
- Sales Models:
- Wholesale and Retail
- Surface Treatment:
- inner（0.4-0.8µm） outer（0.8-1.6µm）
- Pressure Value:
- Seal Material:
- VMQ, EPDM，CMQ,FPM,silicone
- Transport Package:
- Material: Stainless steel 304, 316L
- Size: 1/2"-6"
- Connection: Welding\thread\clamp\flange
- Application: Pharmacy, beer, food, dairy, beverage, cosmetic, chemical industry.
Butterfly valves can be actuated either manually or pneumatically. There is a wide range of manual controls to meet the different system requirements. Pneumatic controls can be horizontal and vertical, single, double-effect, and modulating. They can be fitted with control tops and proximity It is widely applied to many fileds,such as beer,beverage,dairy food,fruit juice,pharmacy,biological etc.
QiLi can supply this butterfly valve with weld end, clamp end, thread end and flange end connection. Requiring more detail information or catalog pls don't hesitate to contact us. For all our products, QiLi can also produce according to ur drawing if ur Specification is out of our standard.
