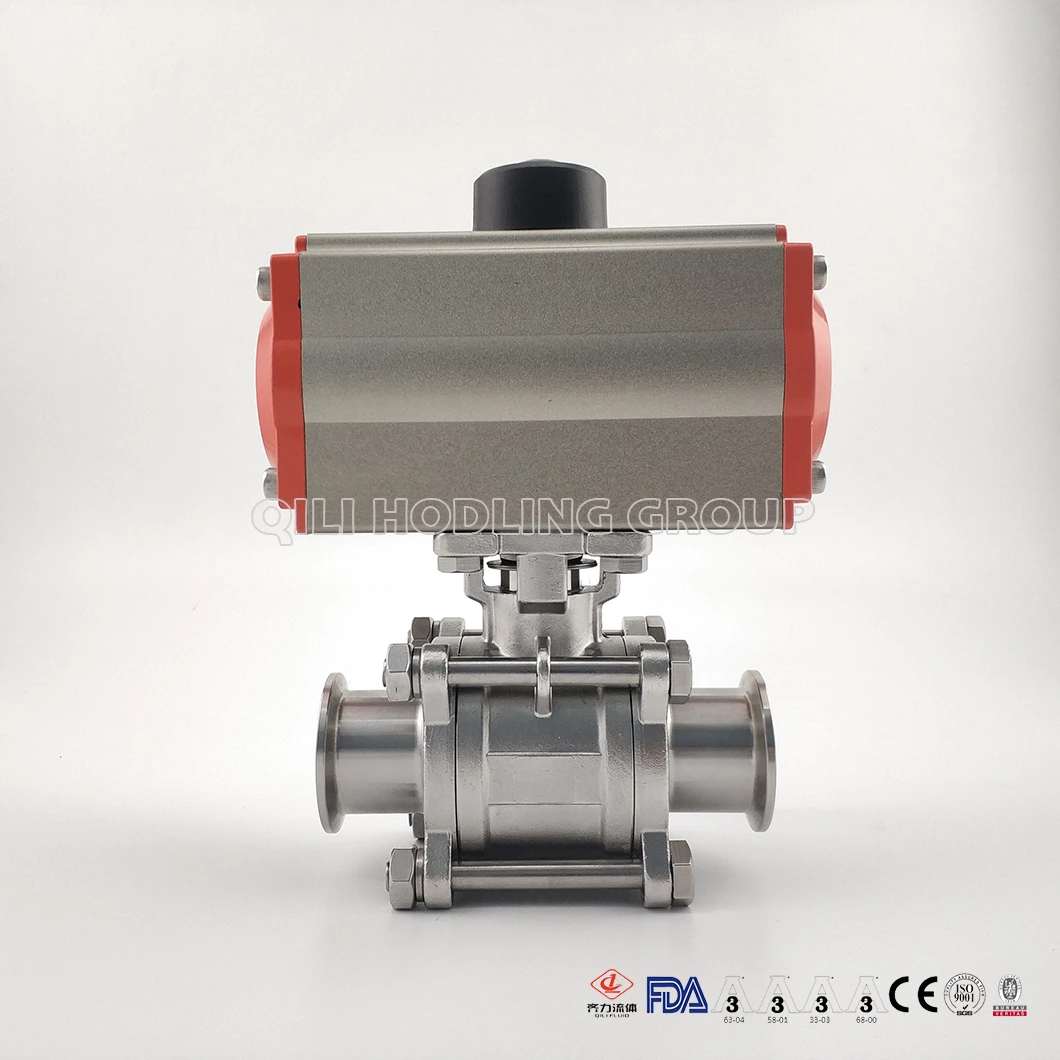

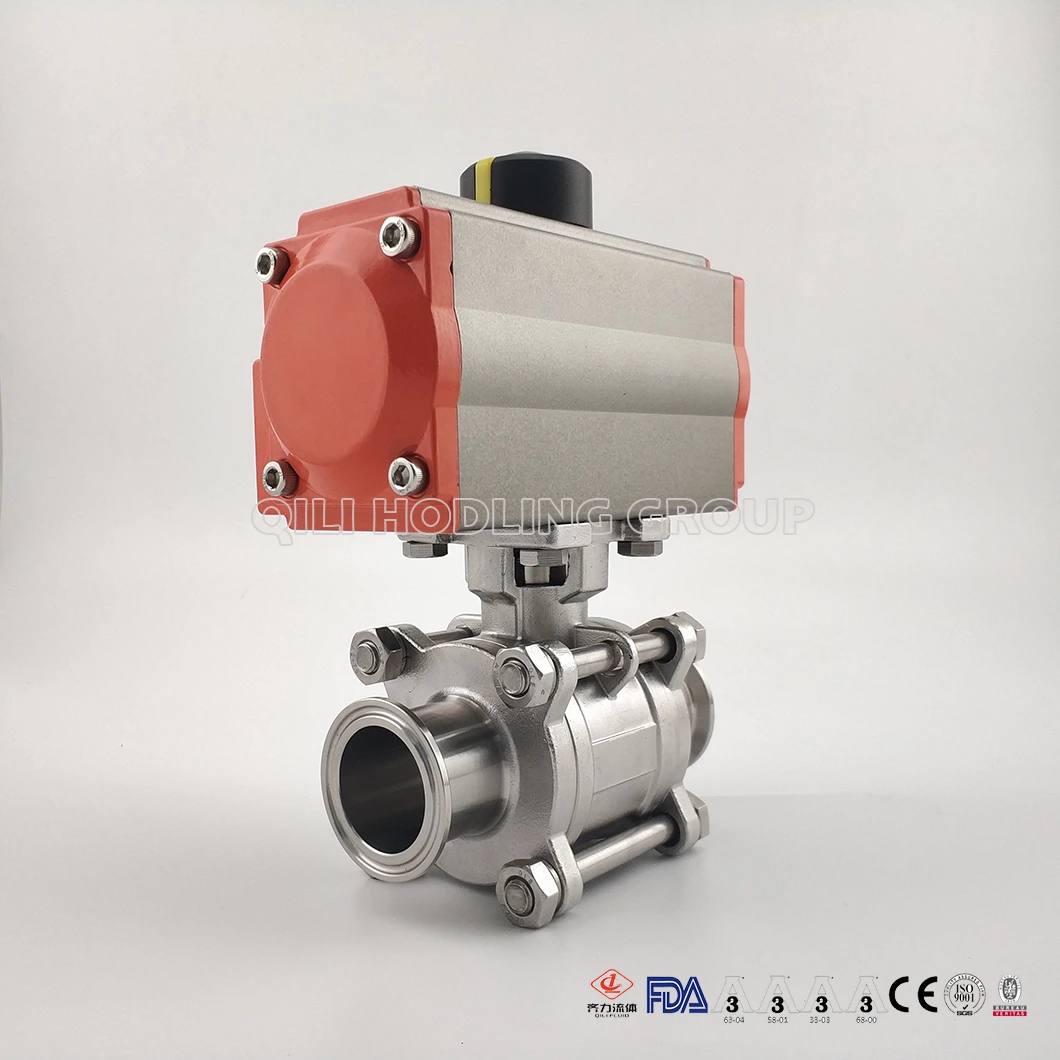

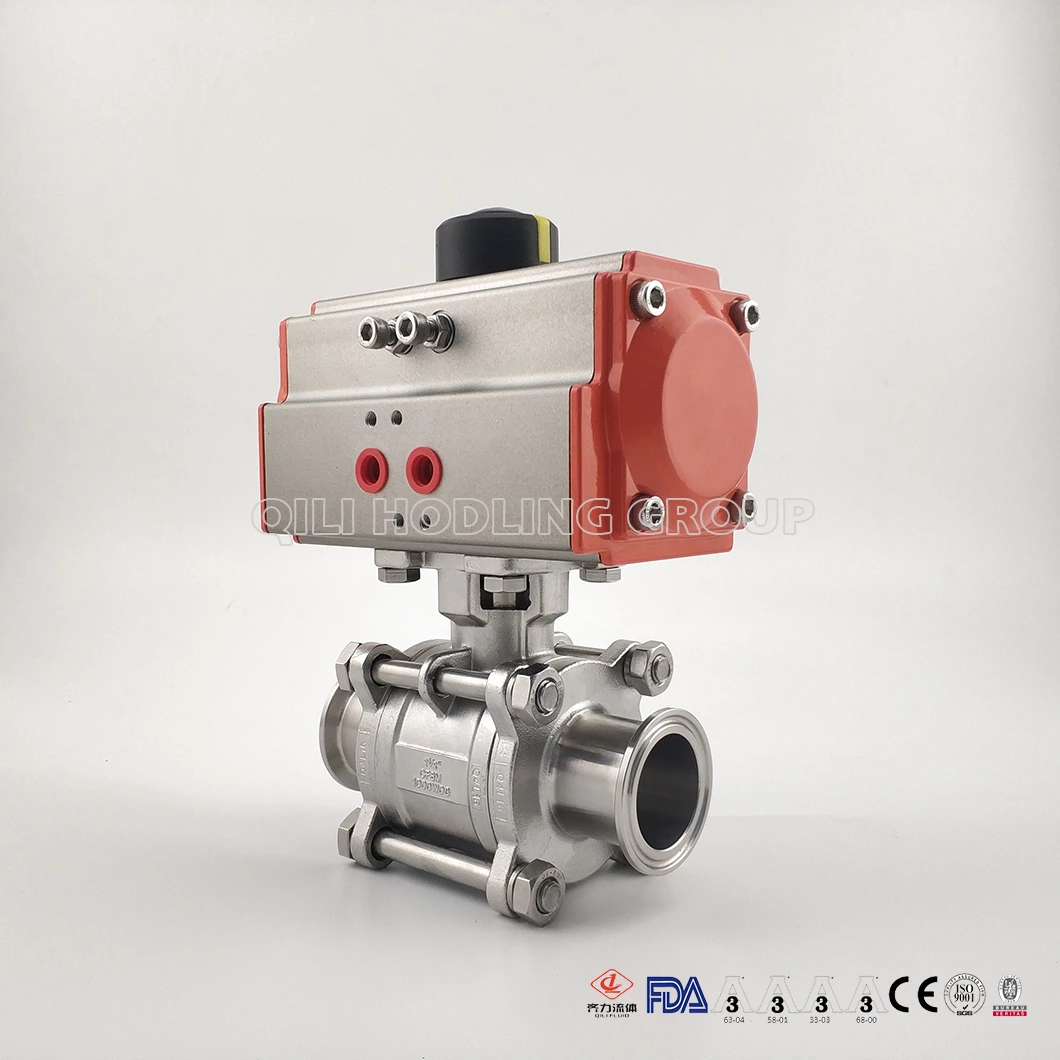

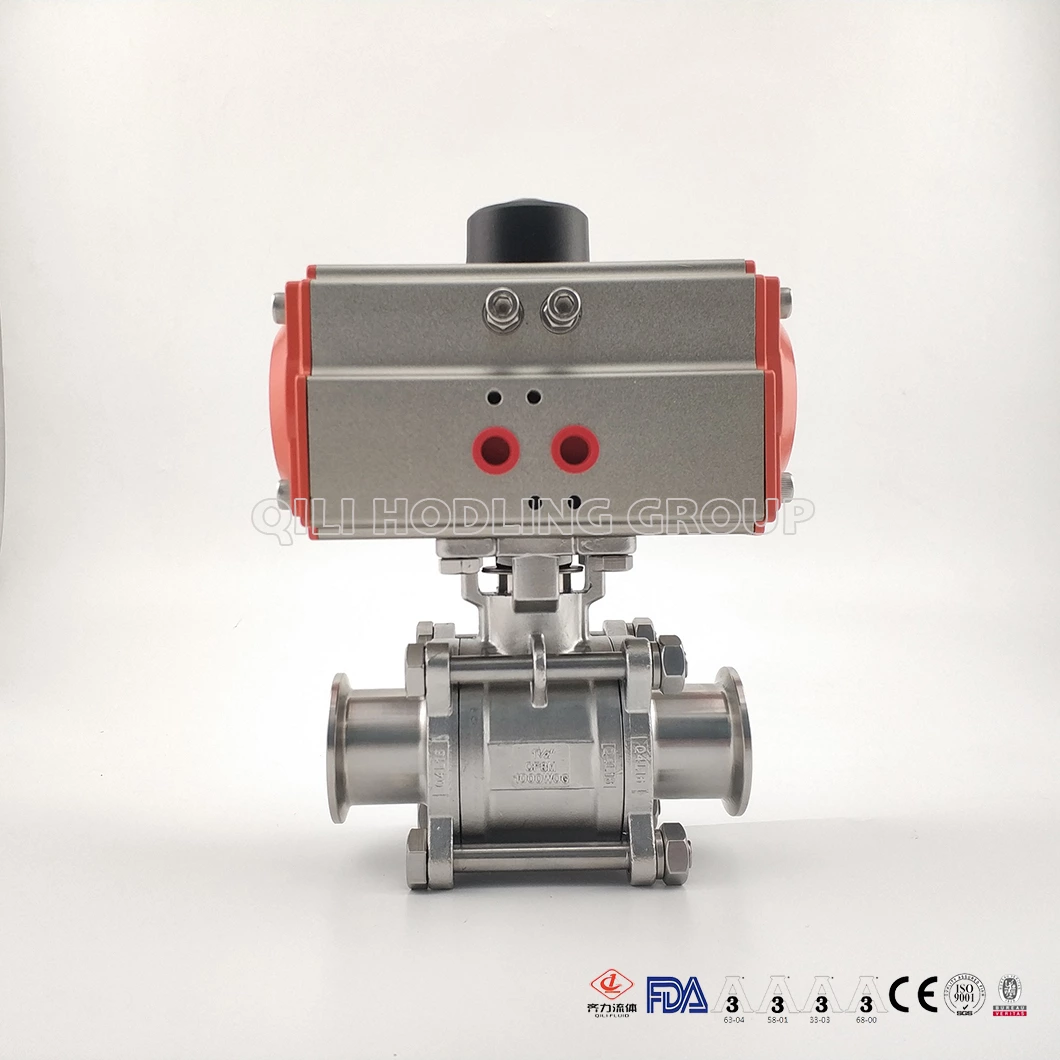

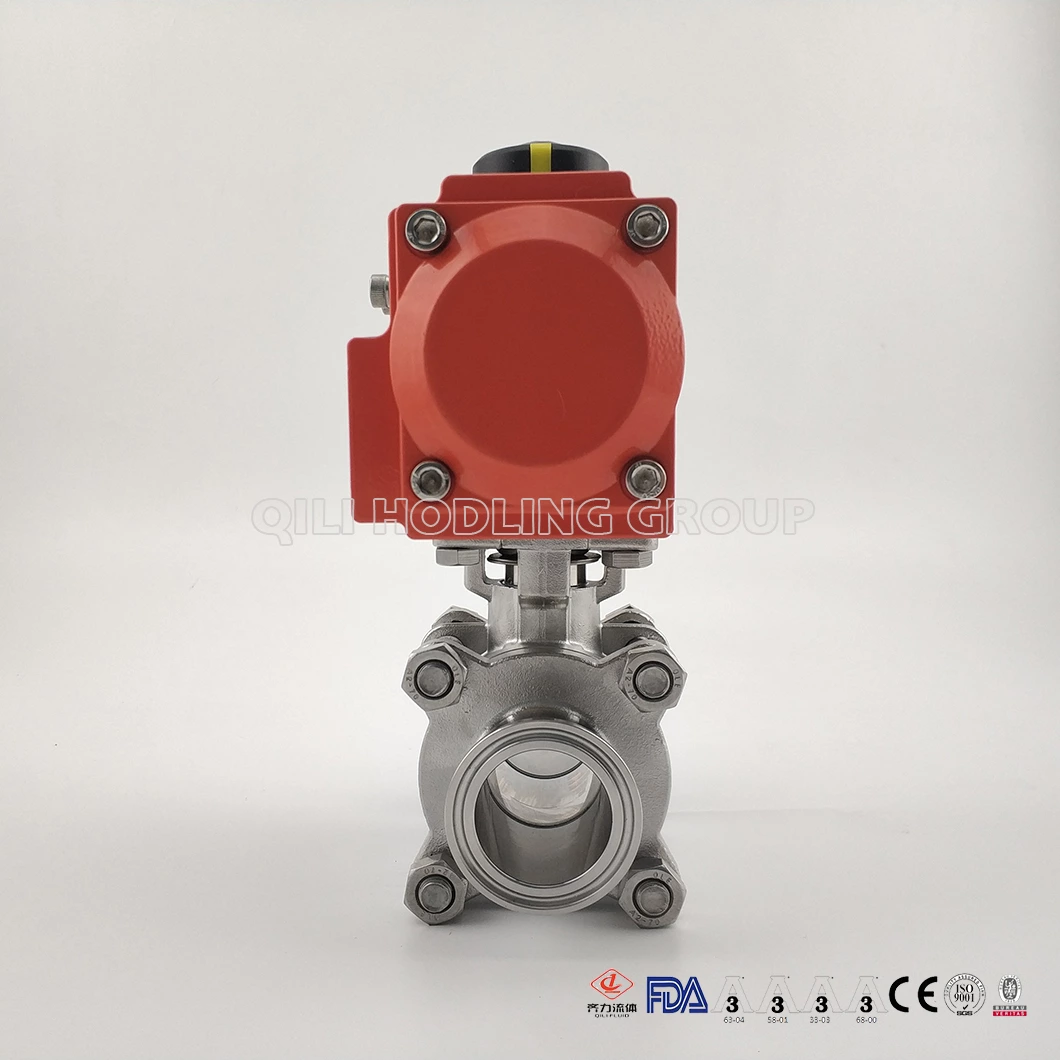

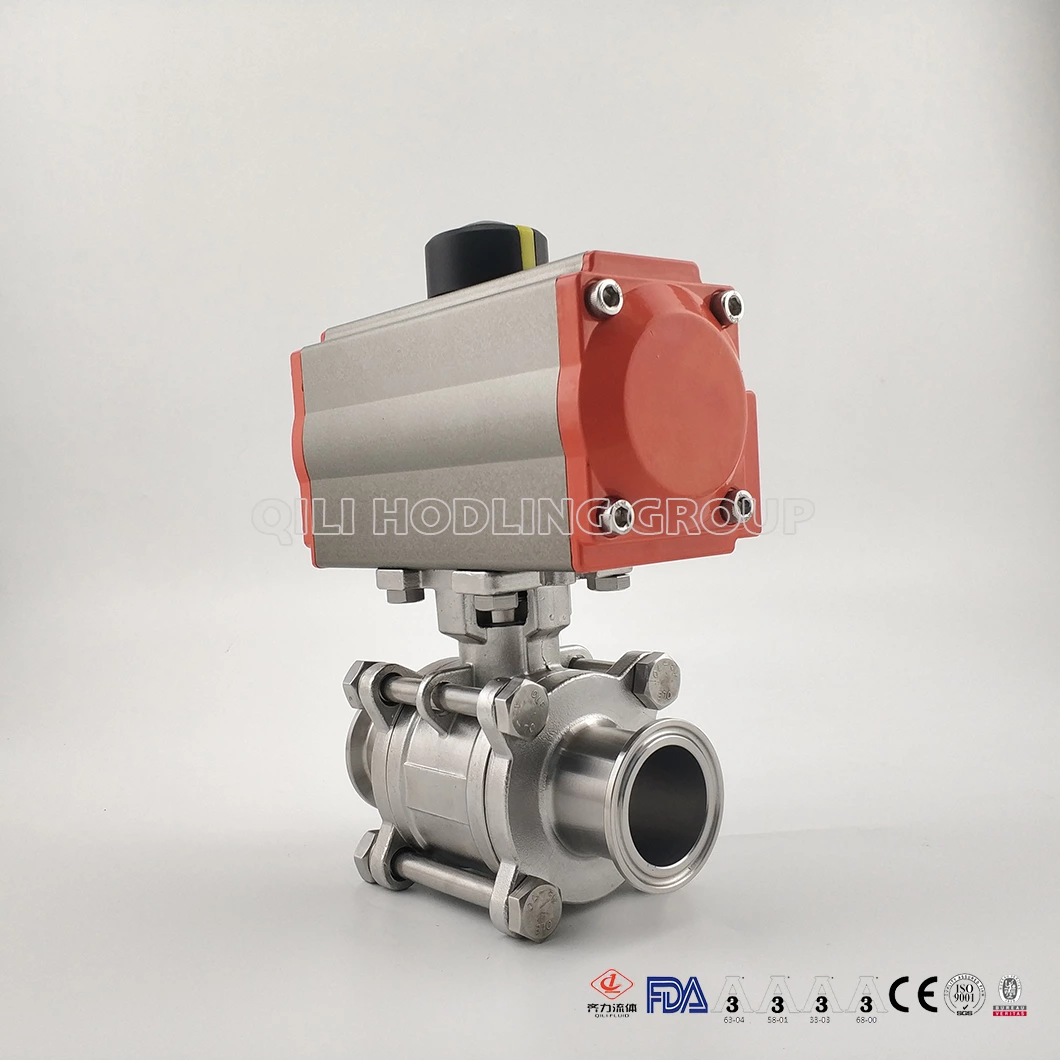

Sanitary Stainless Steel 3PC Pneumatic Ball Valve
The Sanitary Stainless Steel 3PC Pneumatic Ball Valve is our strong product. We produce it many years, and export them to many countries with high praises and repurchasing. - Wenzhou Qili Fluid Equipment Co.,ltd.
- Material:
- SS304 /SS316L
- Standard:
- 3A,SMS,ISO,RJT,DIN,IDF
- Working Temperature:
- -20 to 150℃
- Application:
- Food process, Milk process, Beer brewage, Bio-pharmacy, etc.
- Connection ways:
- welde,clamp, thread
- Size:
- 1/2"-4"
- Sales Models:
- wholesale or retail
- Valve Seal:
- encapsulated
- Surface Treatment:
- Ra 16~32µin (0.4 ~ 0.8µm) electropolish available
- Pressure Value:
- 10 bar(140psi) DN25~100; 8 bar(120psi)DN125~150
- Seal Material:
- EPDM,VMQ(Silicone),NBR(Nitrile),VITON,all meet FDA standard
- Transport Package:
- Carton packaging. Wooden case packaging.

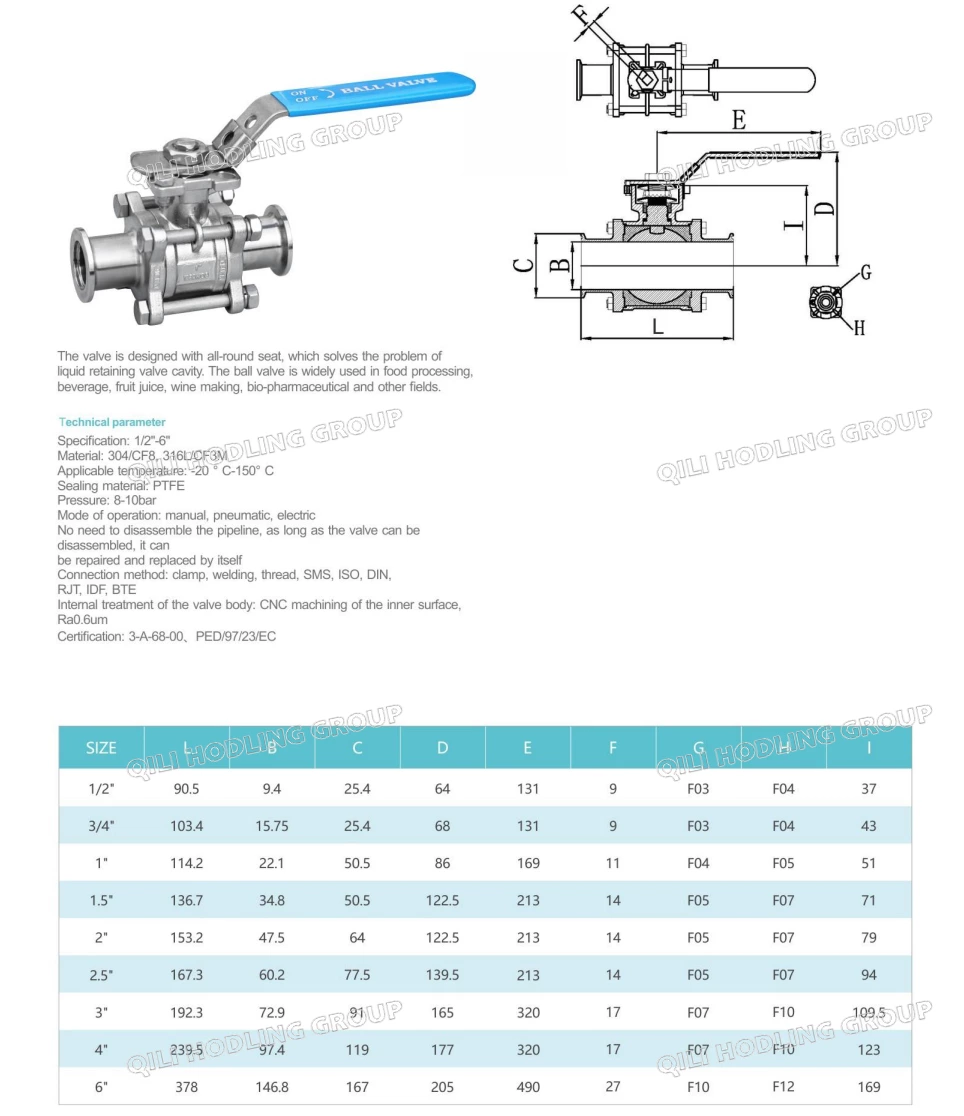

Drawings
Details
| Description | Sanitary Stainless Steel 3PC Pneumatic Ball Valve |
| Body Material | SS304; SS316L(Forged, 1.4301/1.4404) Customer’s requests available |
| Body Material | SS304 |
| Seal Material | EPDM,VMQ(Silicone),NBR(Nitrile),VITON,all meet FDA standard |
| Temperature Range | 15°F to 200°F(-9.4°C to 93°C) EPDM |
| Max. Pressure | 10 bar(140psi) DN25~100; 8 bar(120psi)DN125~150 |
| Finishing | Ra 16~32µin (0.4 ~ 0.8µm) electropolish available |
| Port Size | 1/2"-4" |
| Connection | Tri-clamp ferrule; Threaded; Welded |
| Connection Standard | 3A, SMS, ASME BPE, ISO, DIN, BS |
| Features | 100%hydraulic tested/100% inspected |
| Specifications | Can see our products catalogues |
| Application | Food process, Milk process, Beer brewage, Bio-pharmacy, etc. |
More information
The Sanitary Stainless Steel 3PC Pneumatic Ball Valve is our strong product. We produce it many years, and export them to many countries with high praises and repurchasing.
