Sanitary Ss Pneumatic Flow Control Butterfly Valve

Sanitary Ss Pneumatic Flow Control Butterfly Valve Product Description The series of this valve is a kind of sanitary pneumatic which are widely used in stainless steel pipeline system to control an
Material:
SS304,SS316L
Standard:
SMS/3A, ISO/IDF,DIN,BS,RJT,ASME/BPE
Working Temperature:
VMQ(-50 to 180℃) EPDM(-20 to 135℃) FPM(-30 to 230℃)
Application:
Beer, Dairy, Beverage, Pharmacy.
Connection ways:
Weld, flange, thread/union, clamped
Size:
DN15-150 and 1"-6"
Color:
Blue , black
Sales Models:
Wholesale and Retail
Surface Treatment:
inner(0.4-0.8µm) outer(0.8-1.6µm)
Pressure Value:
0-10bar
MOQ:
1pc
Seal Material:
VMQ, EPDM,CMQ,FPM,silicone
Transport Package:
cartons

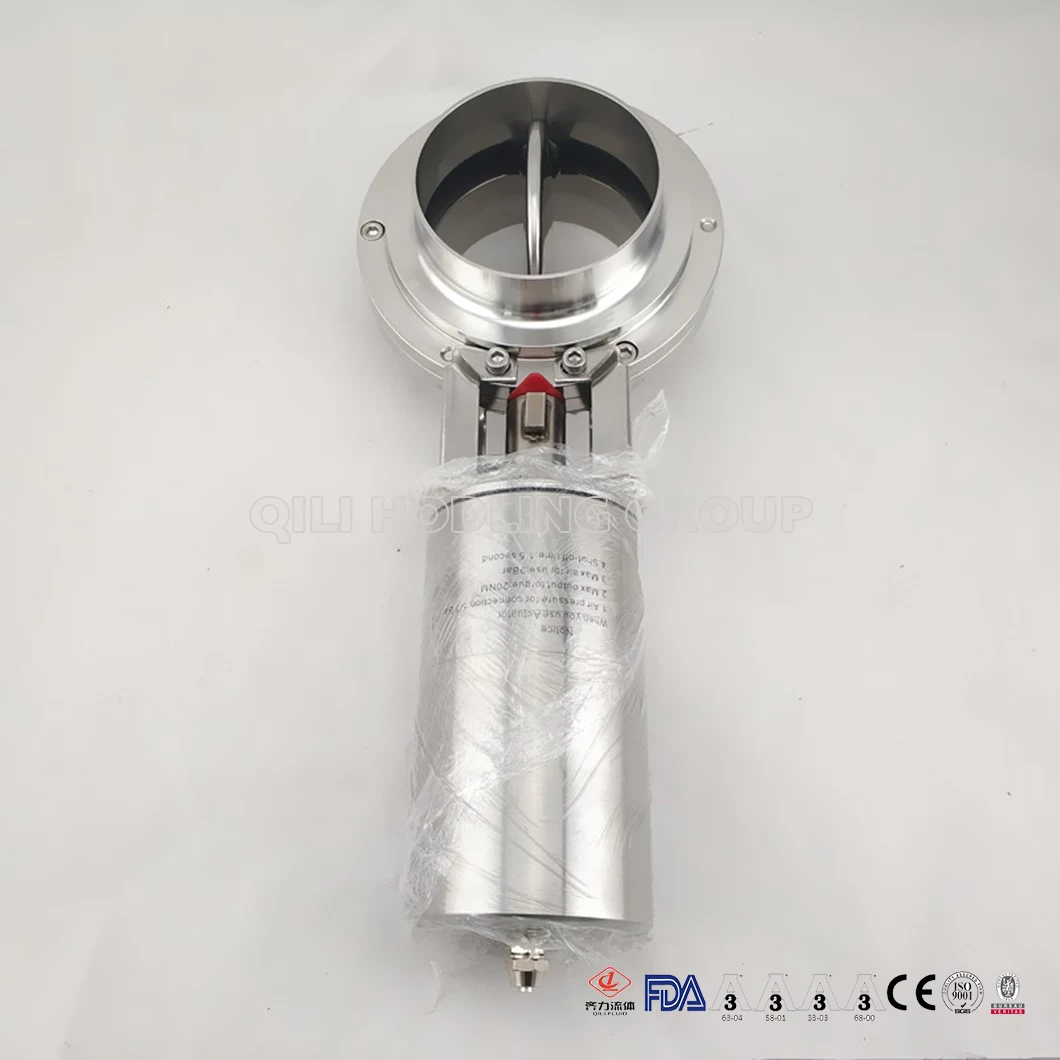

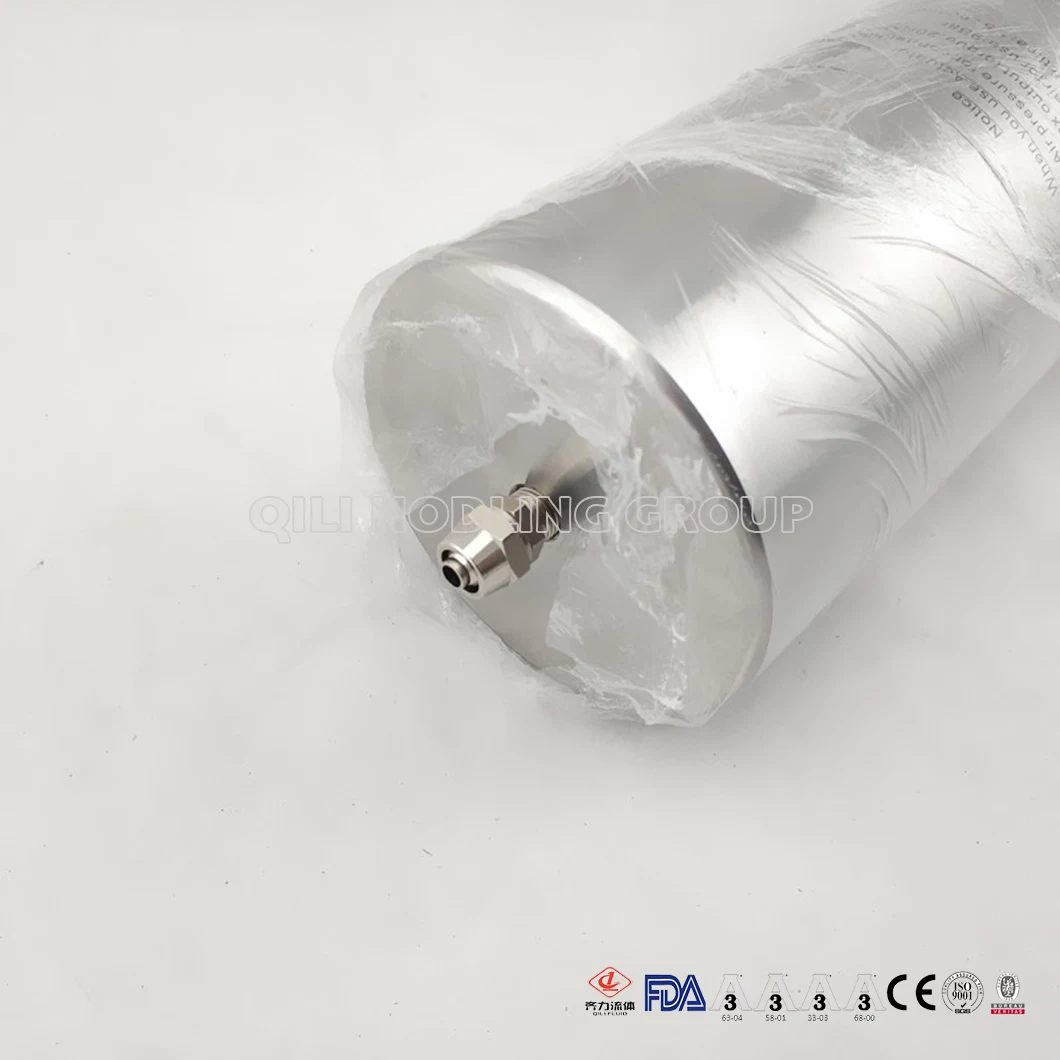

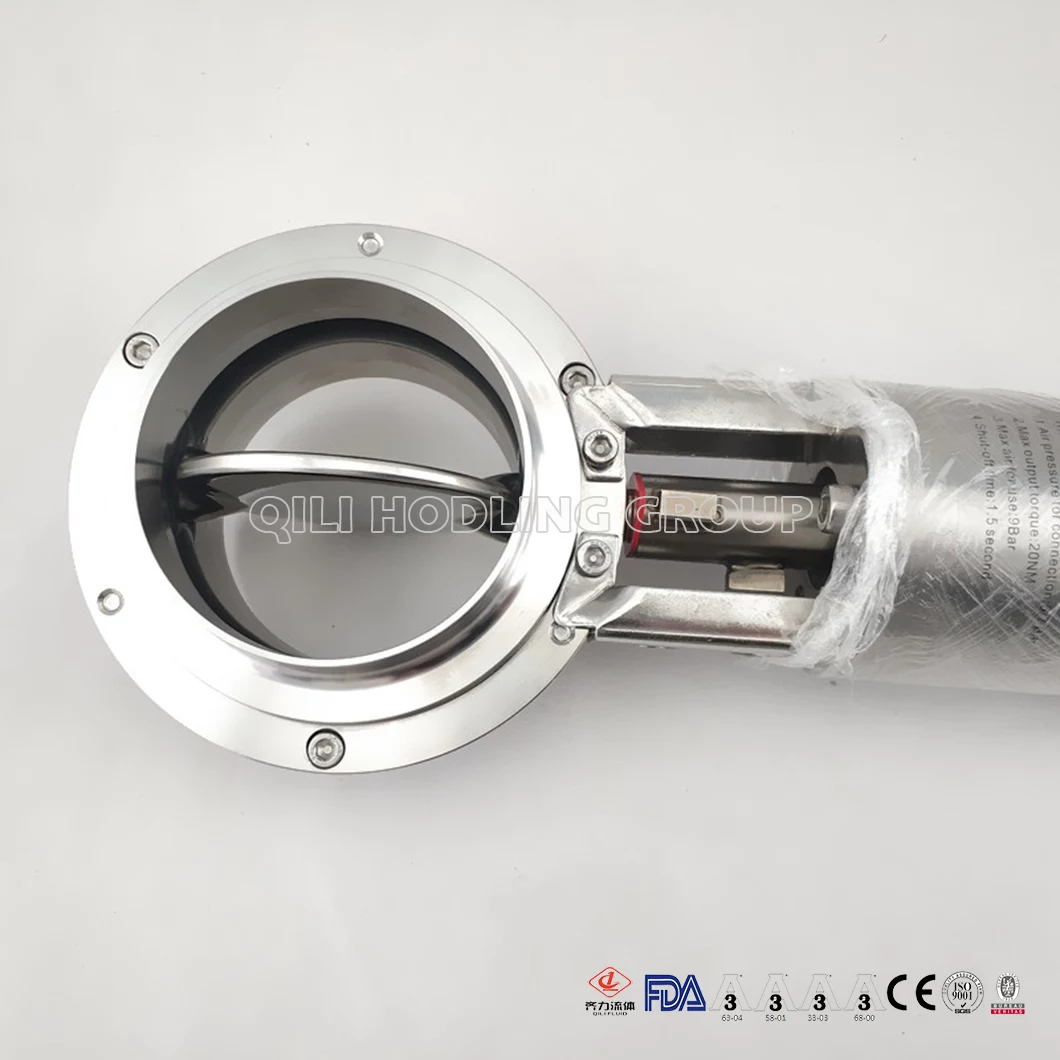

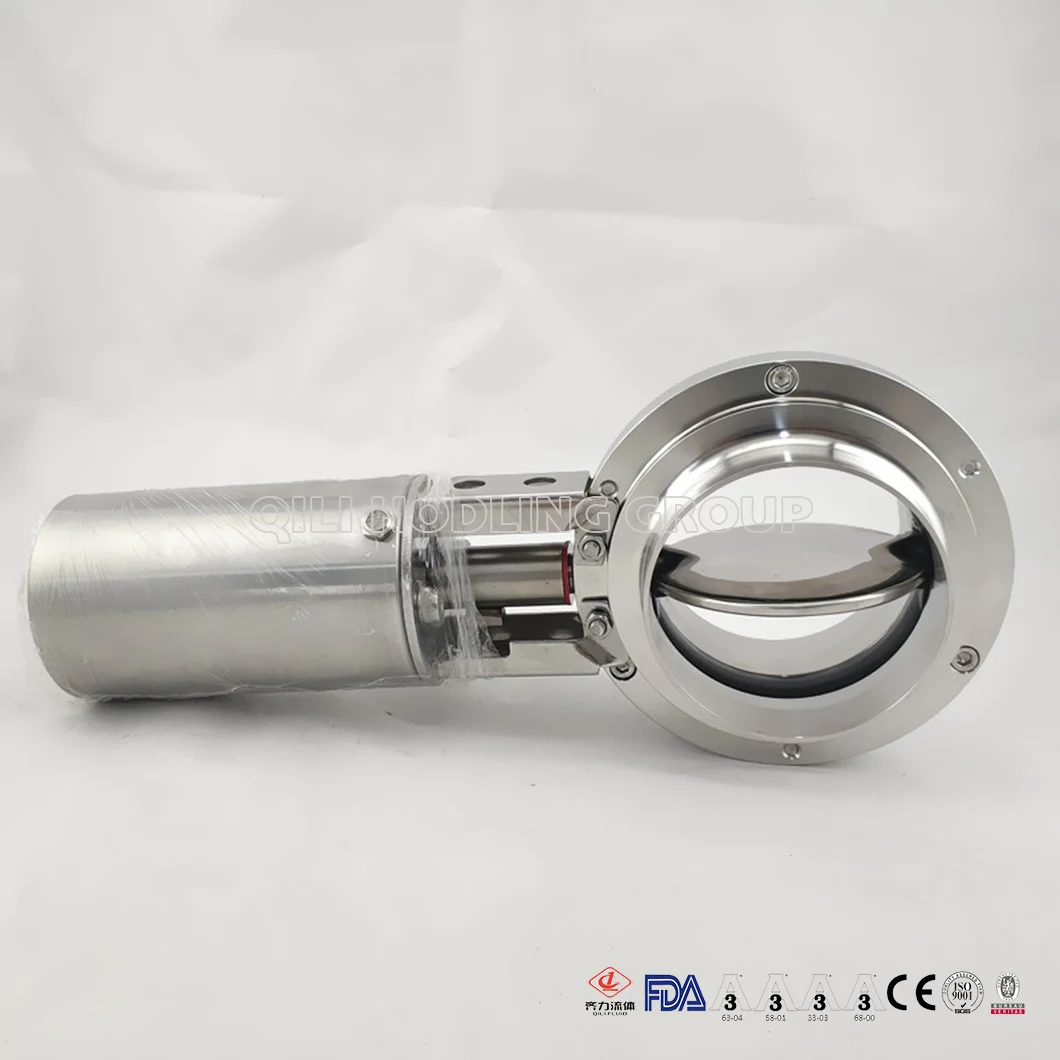

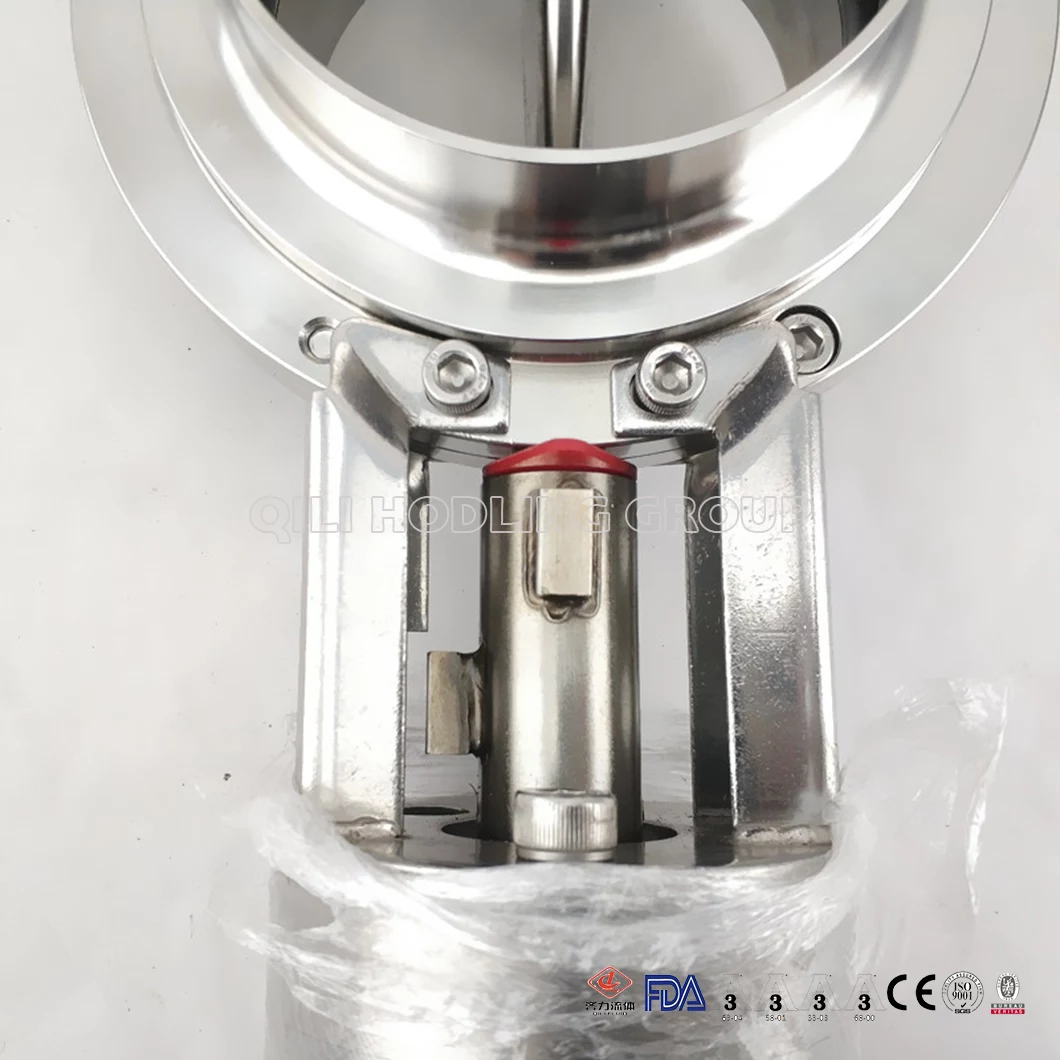

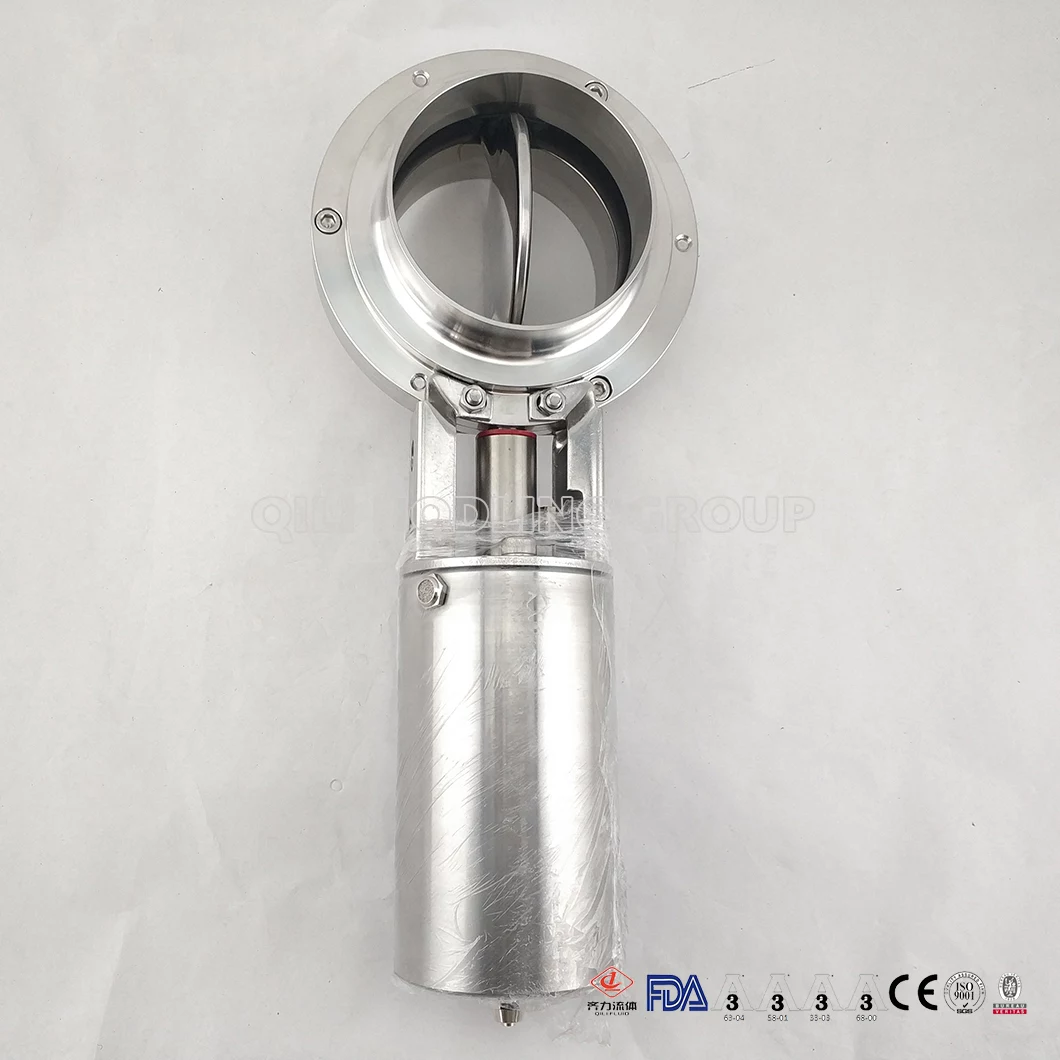

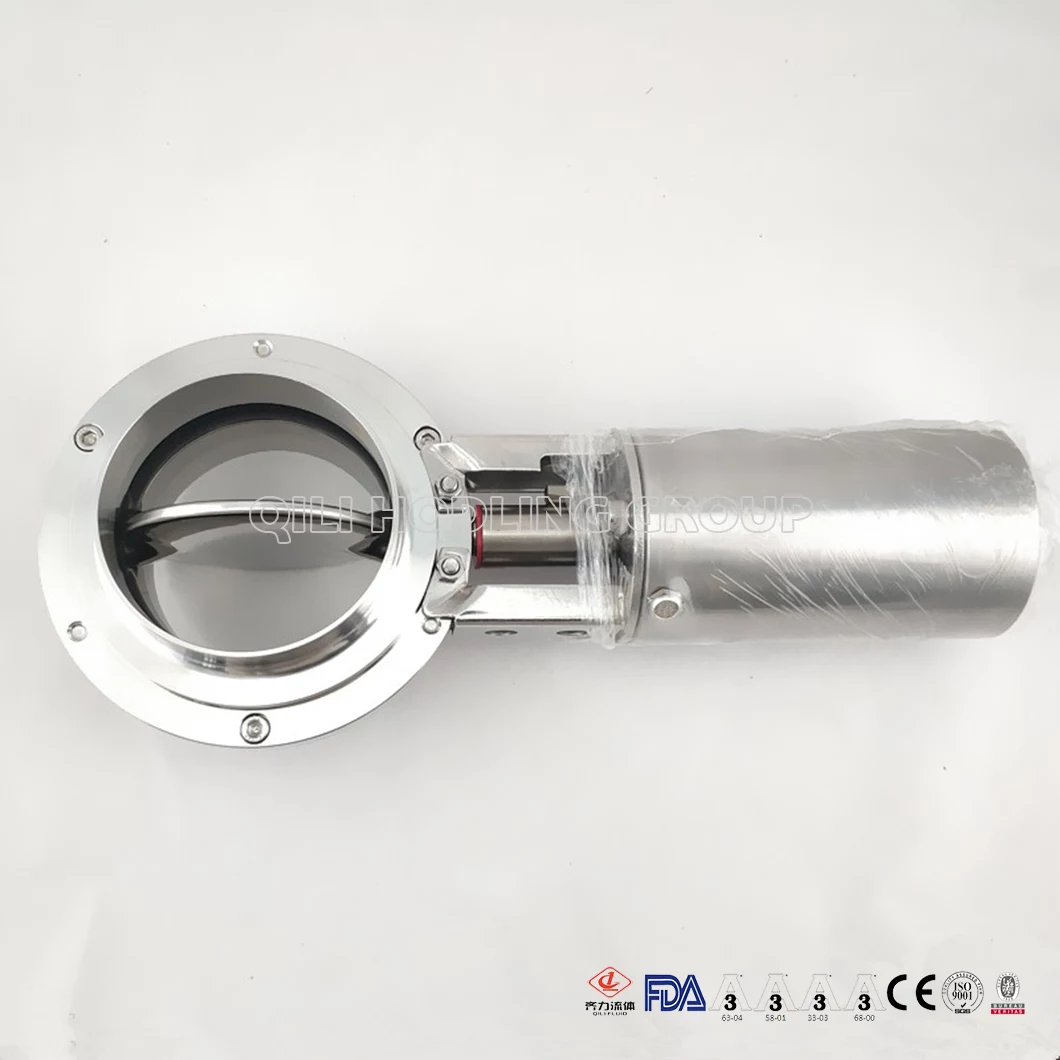

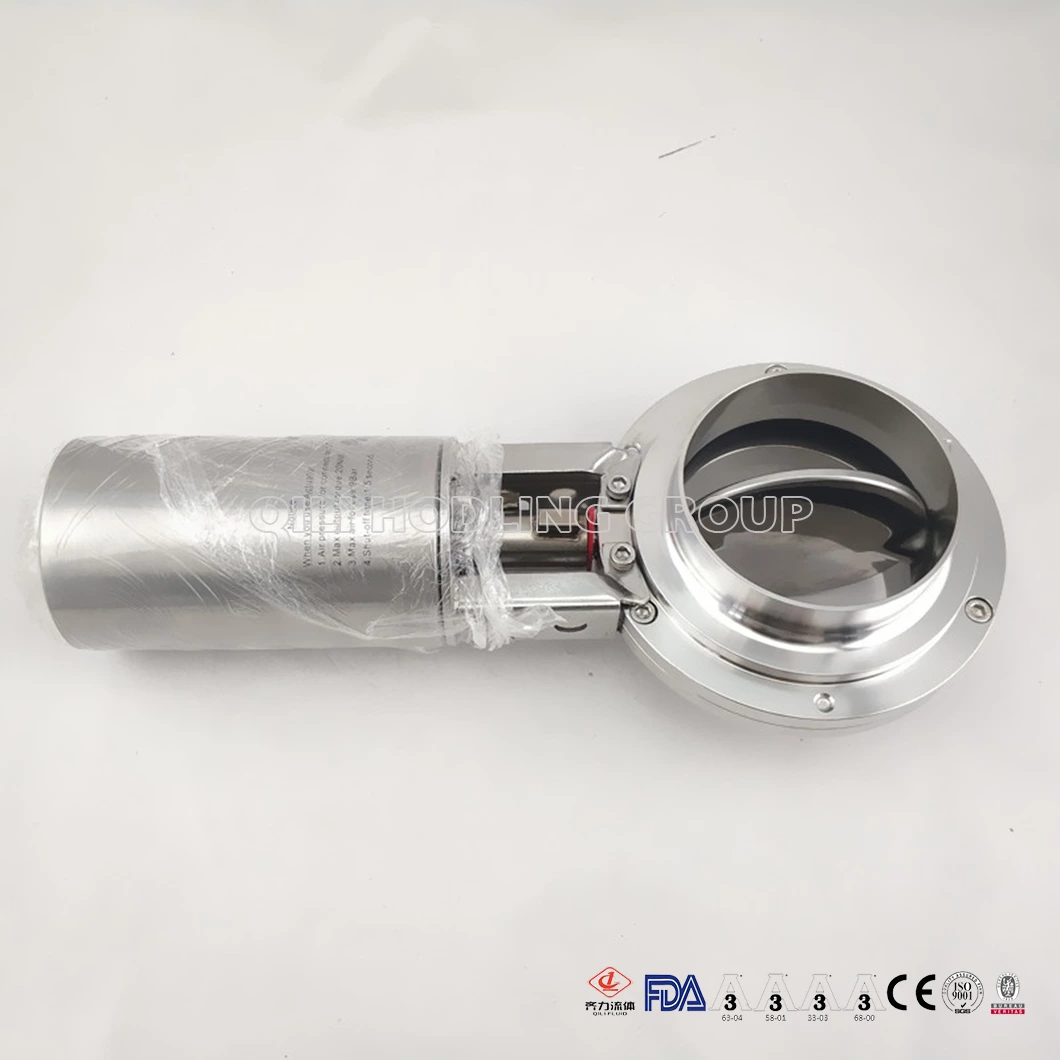

Sanitary Ss Pneumatic Flow Control Butterfly Valve
Sanitary Ss Pneumatic Flow Control Butterfly Valve Sanitary Ss Pneumatic Flow Control Butterfly Valve Sanitary Ss Pneumatic Flow Control Butterfly Valve Sanitary Ss Pneumatic Flow Control Butterfly Valve Sanitary Ss Pneumatic Flow Control Butterfly Valve Sanitary Ss Pneumatic Flow Control Butterfly Valve Sanitary Ss Pneumatic Flow Control Butterfly Valve Sanitary Ss Pneumatic Flow Control Butterfly Valve

Drawings

Details

  • Sanitary Pneumatic  flow control  Butterfly Valve
  • the series of this valve is a kind of sanitary pneumatic which are widely used in stainless steel pipeline system to control and regulate medium flow.
  • work principle:
  • this kind of valve can be handled both by manual or an electric actuator ,and also can be handled by a pneumatic actuator.
  • Electric actuator or pneumator or pneumatic actuator is to covert the axial movement of piston to be 90 degree rotation of valve shaft.So that the valve can be open or close to achieve the requirment of control and open /close for the pipeline system.They have three type of actator: normally open (NO),normally closed (NC),air/air(A/A)
  • Material:
  • Steel parts: stainless steel 304,stainless steel 316L
  • Seal:silicone(VMQ) ,Fluoroelastomer(FPM), EPDM
  • Stanard Design: Various standards of valves can be provide can be provided to clients
  • Standard of valve: DIN/SMS/3A/ISO/IDF
  • Size: DN25-150&1"-6",
  • Medium: Beer, Dairy, Beverage, Pharmacy.

Qili can supply this pneumatic butterfly valve with weld end, clamp end, thread end and flange end connection. Requiring more detail information or catalog pls don't hesitate to contact us. For all our products, Qili can also produce according to ur drawing if ur Specification is out of our standard.
