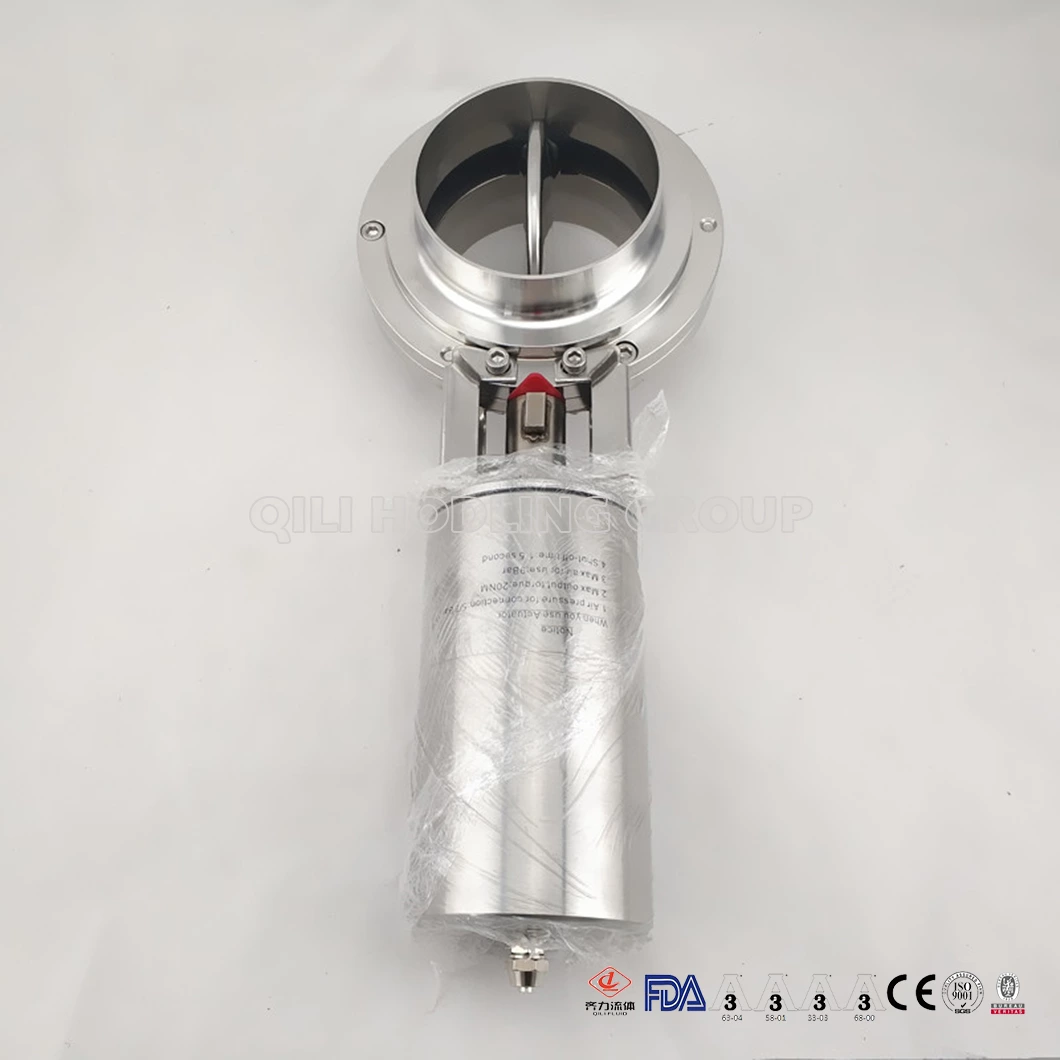

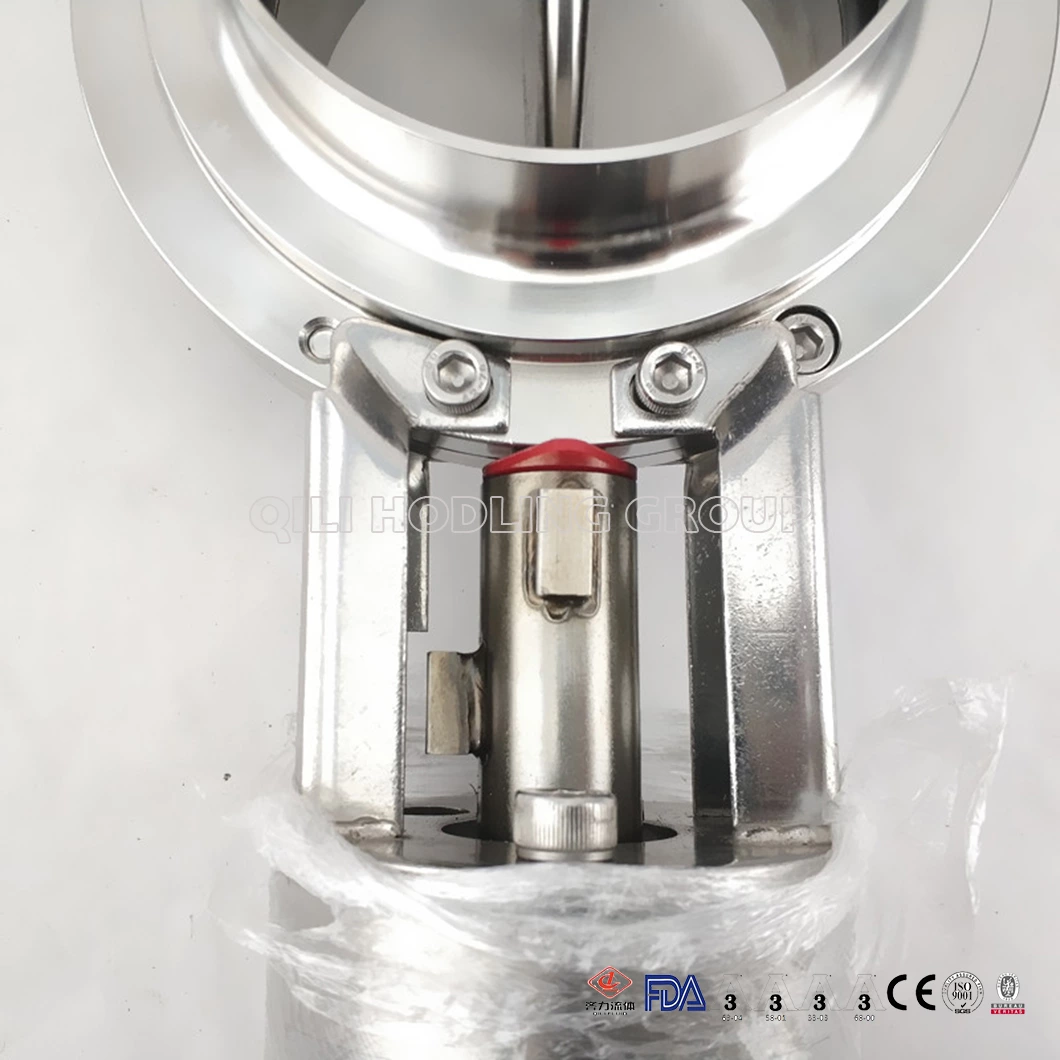

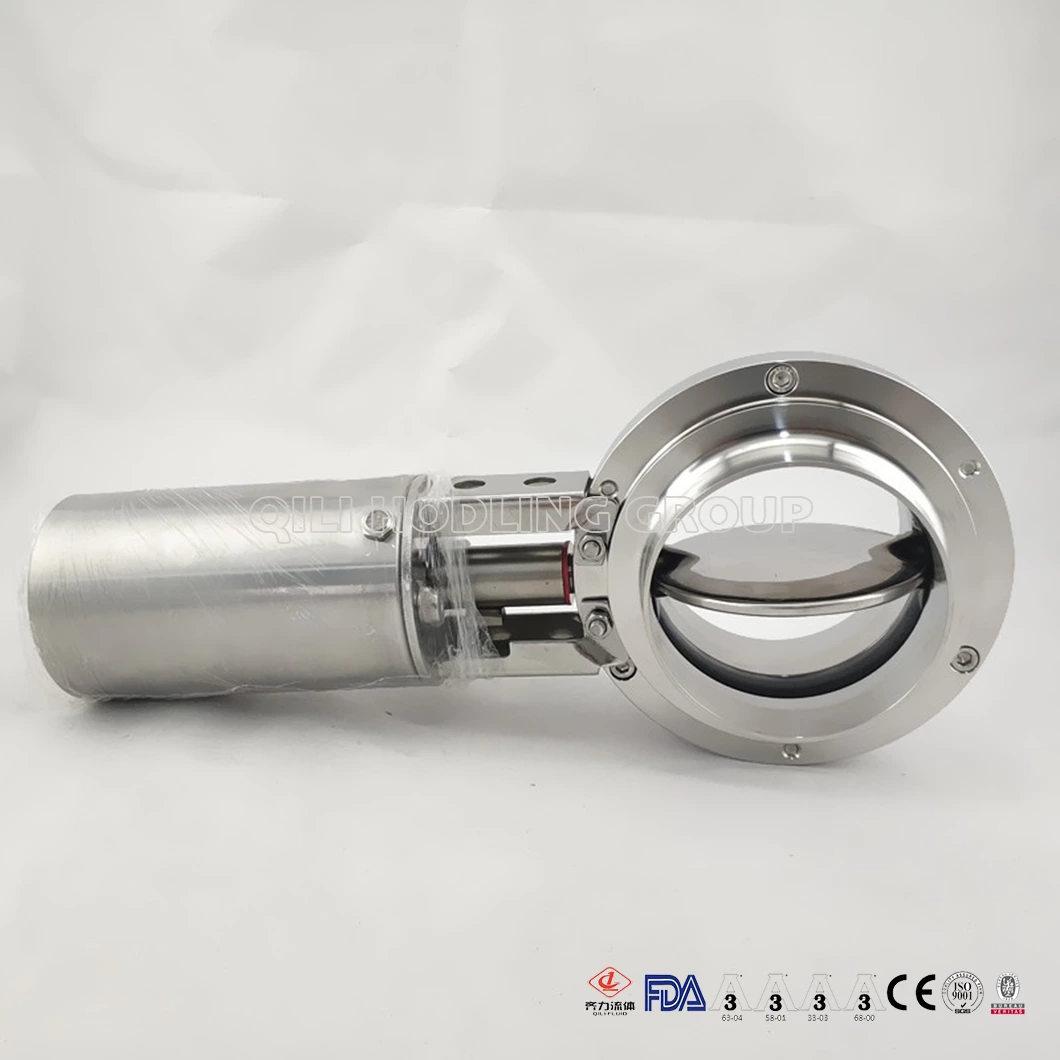

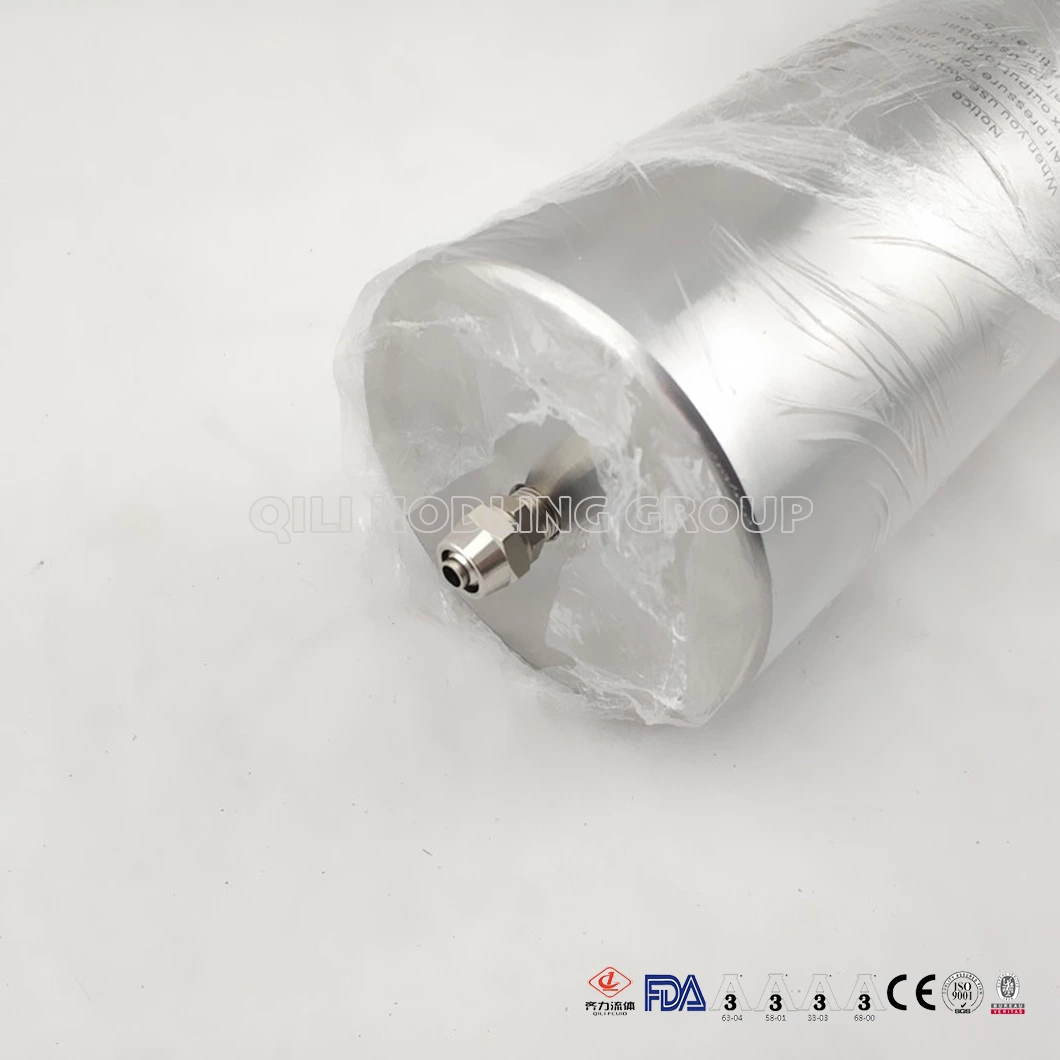

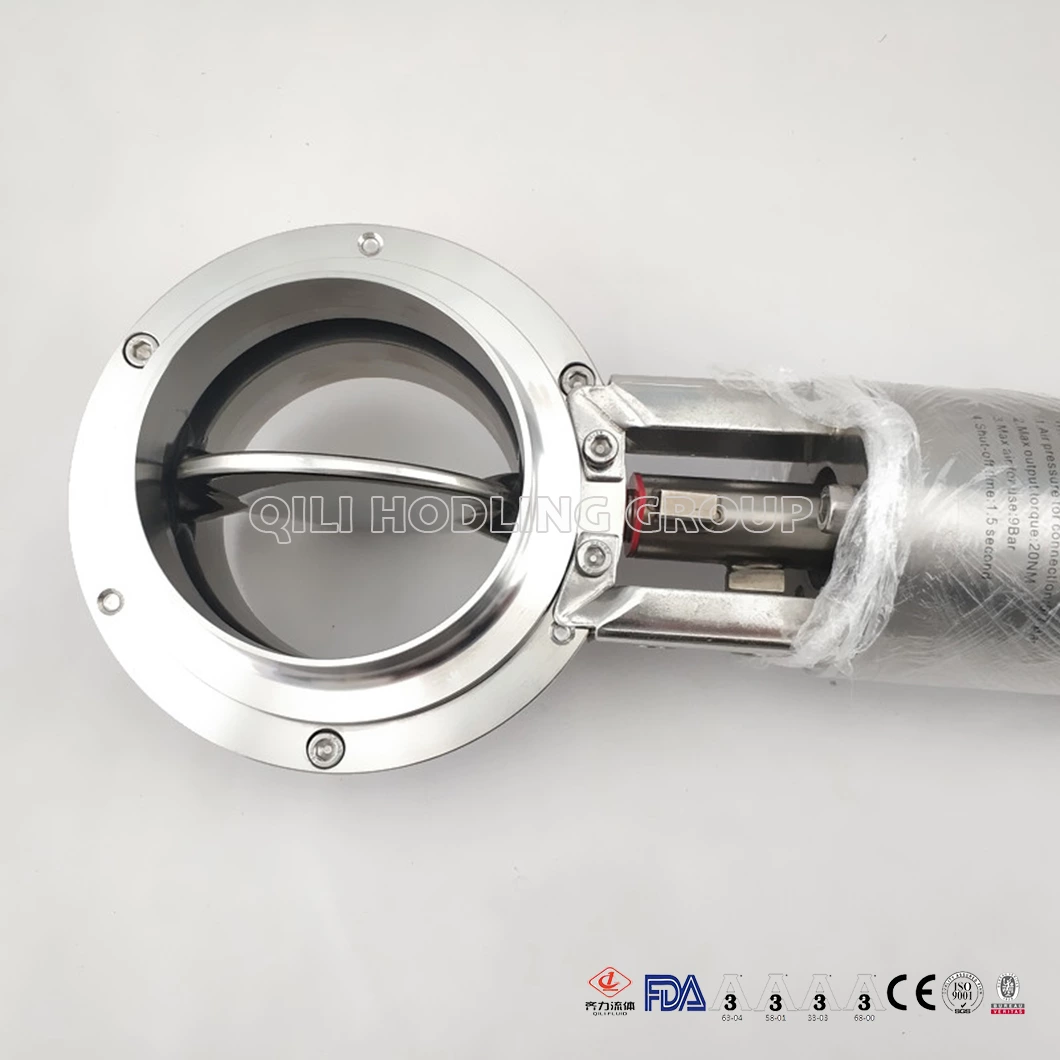

Sanitary Pneumatic Clamp End Butterfly Valve
Butterfly valves can be actuated either manually or pneumatically. There is a wide range of manual controls to meet the different system requirements. Pneumatic controls can be horizontal and vertical, single, double-effect, and modulating. They can be fitted with control tops and proximity It is widely applied to many fileds,such as beer,beverage,dairy food,fruit juice,pharmacy,biological etc.
- Material:
- SS304,SS316L
- Standard:
- SMS/3A, ISO/IDF,DIN,BS,RJT,ASME/BPE
- Working Temperature:
- VMQ（-50 to 180℃） EPDM（-20 to 135℃） FPM（-30 to 230℃）
- Application:
- Beer, Dairy, Beverage, Pharmacy, Cosmetics,
- Connection ways:
- Weld, flange, thread/union, clamped
- Size:
- 1/2"-6"
- Color:
- Blue , black
- Sales Models:
- Wholesale and Retail
- Surface Treatment:
- inner（0.4-0.8µm） outer（0.8-1.6µm）
- Pressure Value:
- 0-10bar
- MOQ:
- 1pc
- Seal Material:
- VMQ, EPDM，CMQ,FPM,silicone
- Transport Package:
- cartons
Details
- Material: Stainless steel 304, 316L
- Size: 1/2"-6"
- Connection: Welding\thread\clamp\flange
- Application: Pharmacy, beer, food, dairy, beverage, cosmetic, chemical industry.
Drawings
Application
Butterfly valves can be actuated either manually or pneumatically. There is a wide range of manual controls to meet the different system requirements. Pneumatic controls can be horizontal and vertical, single, double-effect, and modulating. They can be fitted with control tops and proximity It is widely applied to many fileds,such as beer,beverage,dairy food,fruit juice,pharmacy,biological etc.
More information
QiLi can supply this butterfly valve with weld end, clamp end, thread end and flange end connection. Requiring more detail information or catalog pls don't hesitate to contact us. For all our products, QiLi can also produce according to ur drawing if ur Specification is out of our standard.
