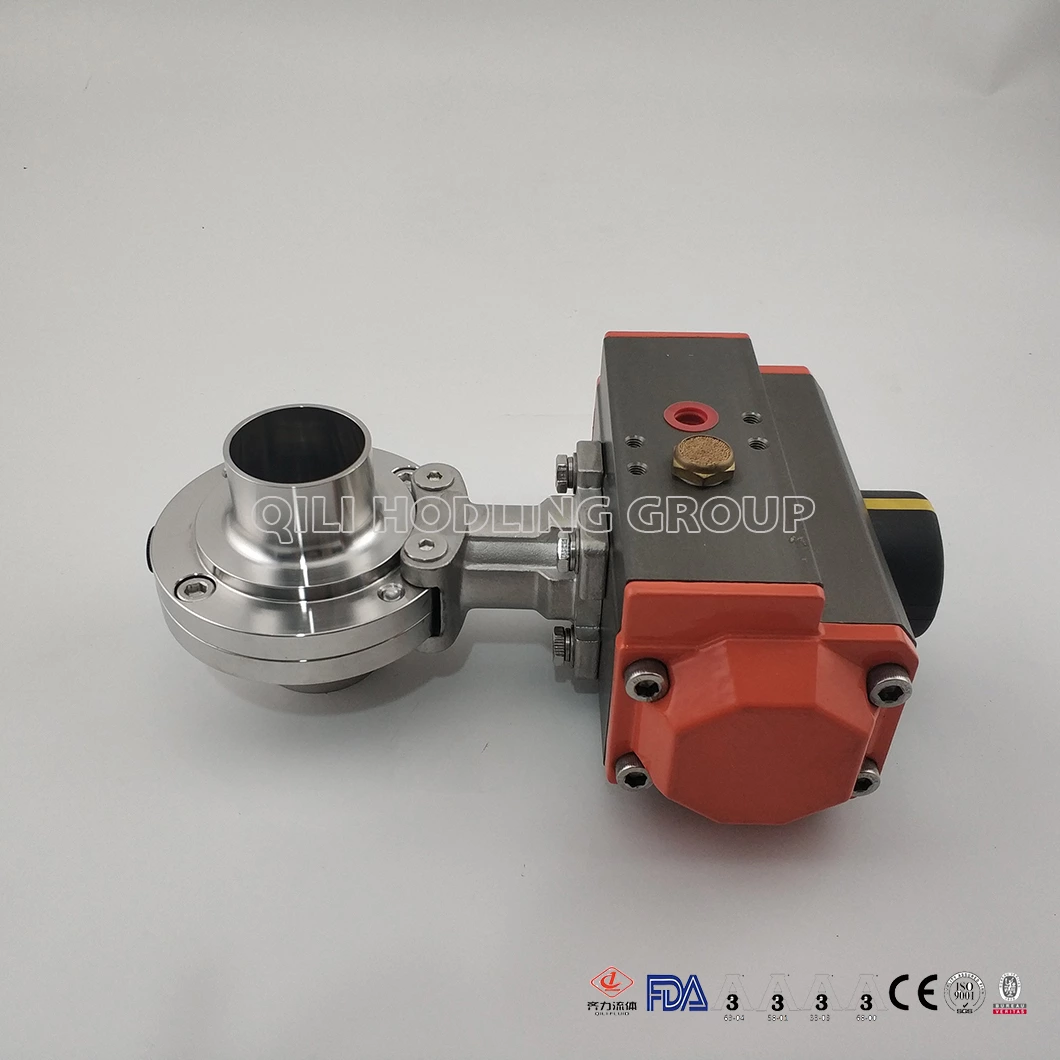

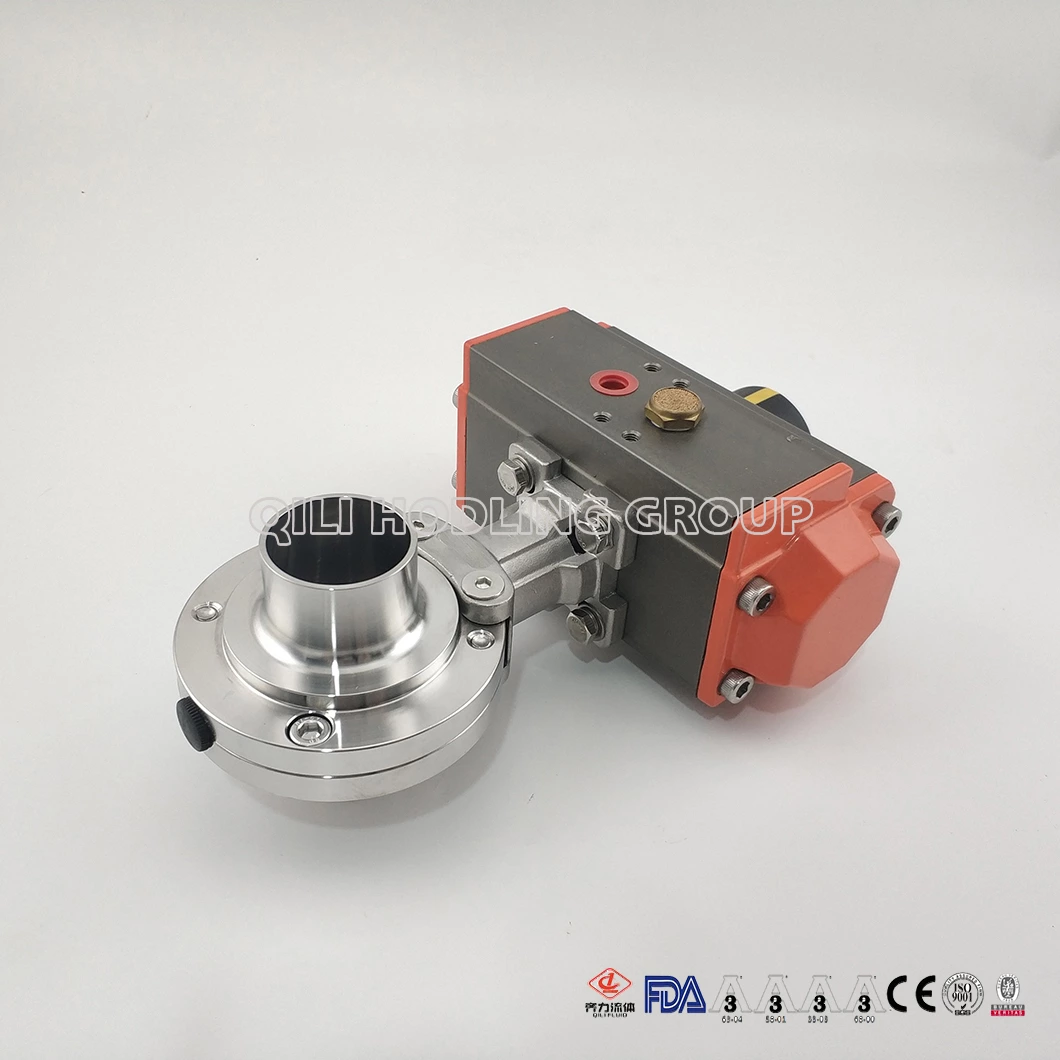

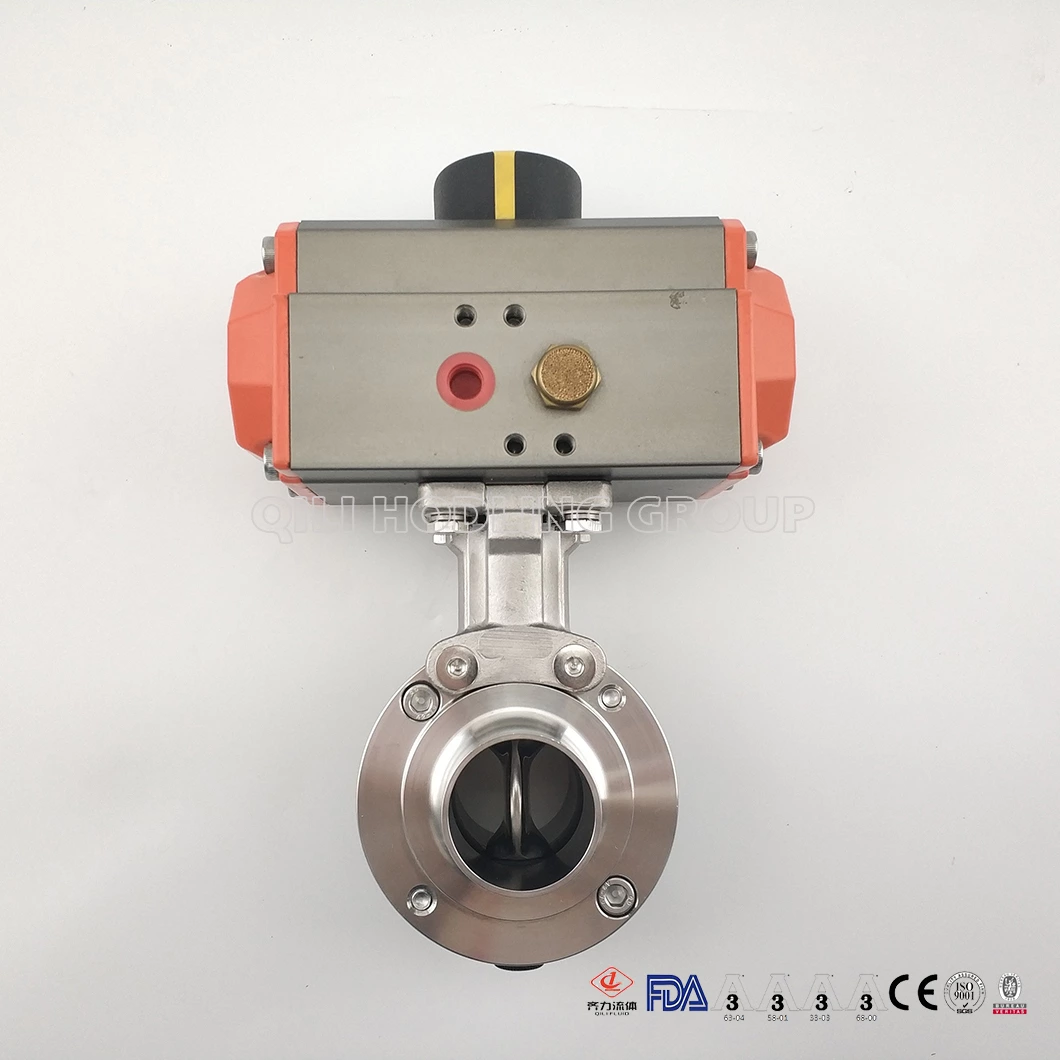

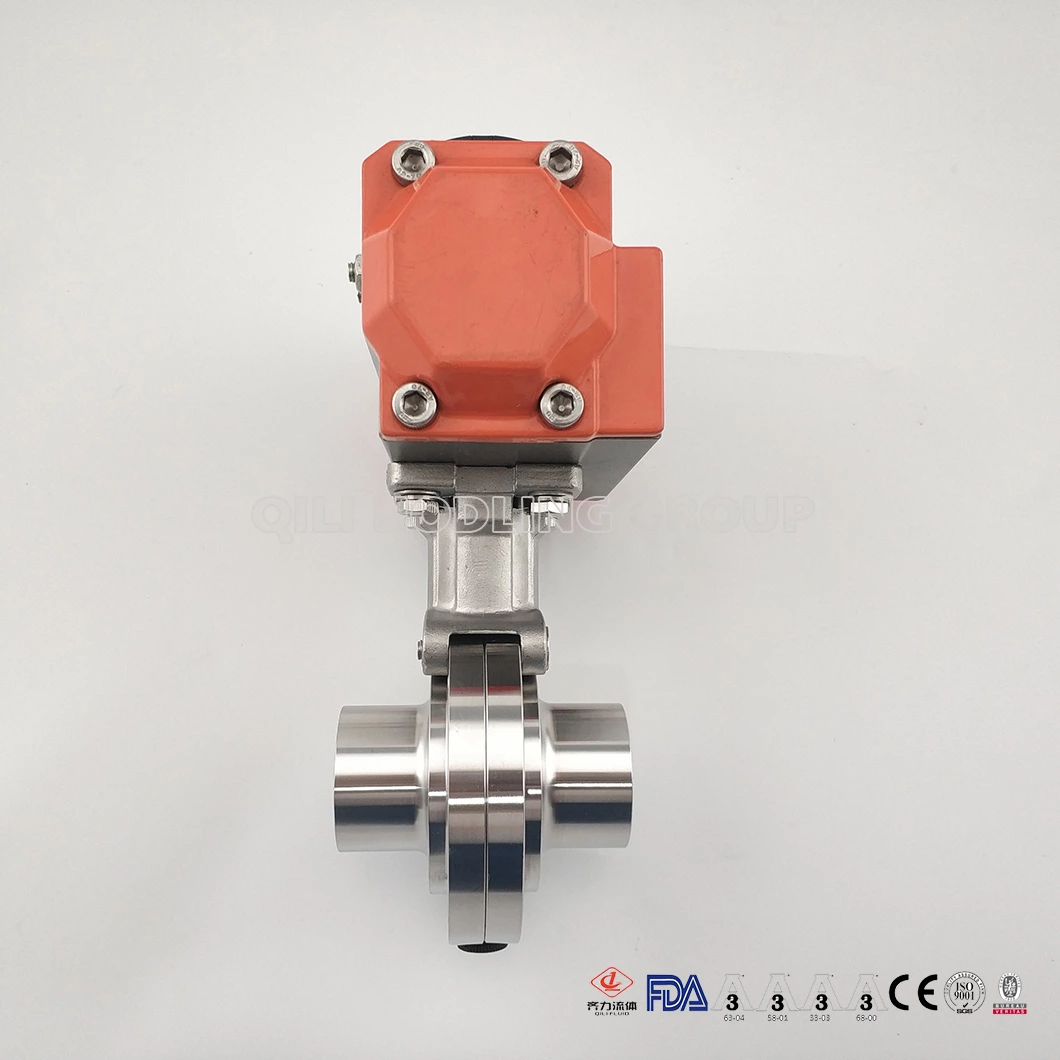

Sanitary Butterfly Valve with Pneumatic Actuator Double Acting

Butterfly valves can be actuated either manually or pneumatically. There is a wide range of manual controls to meet the different system requirements. Pneumatic controls can be horizontal and vertical, single, double-effect, and modulating. They can be fitted with control tops and proximity It is widely applied to many fileds,such as beer,beverage,dairy food,fruit juice,pharmacy,biological etc.
Material:
SS304,SS316L
Standard:
SMS/3A, ISO/IDF,DIN,BS,RJT,ASME/BPE
Working Temperature:
VMQ(-50 to 180℃) EPDM(-20 to 135℃) FPM(-30 to 230℃)
Application:
Beer, Dairy, Beverage, Pharmacy, Cosmetics,
Connection ways:
Weld, flange, thread/union, clamped
Size:
1/2"-6"
Color:
Blue , black
Sales Models:
Wholesale and Retail
Surface Treatment:
inner(0.4-0.8µm) outer(0.8-1.6µm)
Pressure Value:
0-10bar
MOQ:
1pc
Seal Material:
VMQ, EPDM,CMQ,FPM,silicone
Transport Package:
cartons
Sanitary Butterfly Valve with Pneumatic Actuator Double Acting
Sanitary Butterfly Valve with Pneumatic Actuator Double Acting Sanitary Butterfly Valve with Pneumatic Actuator Double Acting Sanitary Butterfly Valve with Pneumatic Actuator Double Acting Sanitary Butterfly Valve with Pneumatic Actuator Double Acting Sanitary Butterfly Valve with Pneumatic Actuator Double Acting Sanitary Butterfly Valve with Pneumatic Actuator Double Acting

Application

Butterfly valves can be actuated either manually or pneumatically. There is a wide range of manual controls to meet the different system requirements. Pneumatic controls can be horizontal and vertical, single, double-effect, and modulating. They can be fitted with control tops and proximity It is widely applied to many fileds,such as beer,beverage,dairy food,fruit juice,pharmacy,biological etc.

Details

  • Material: Stainless steel 304, 316L
  • Size: 1/2"-6"
  • Connection: Welding\thread\clamp\flange
  • Application: Pharmacy, beer, food, dairy, beverage, cosmetic, chemical industry.

Drawings

More information
QiLi can supply this butterfly valve with weld end, clamp end, thread end and flange end connection. Requiring more detail information or catalog pls don't hesitate to contact us. For all our products, QiLi can also produce according to ur drawing if ur Specification is out of our standard.
