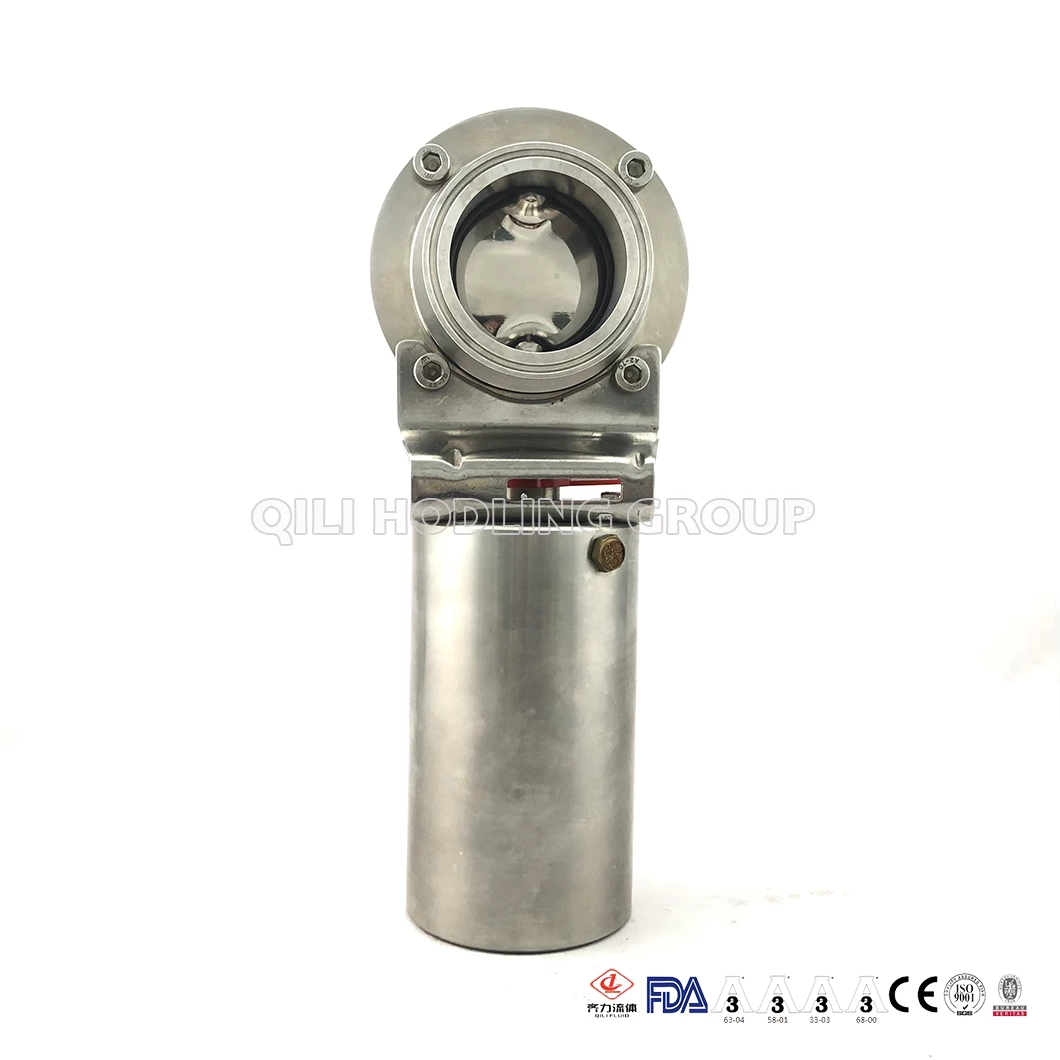

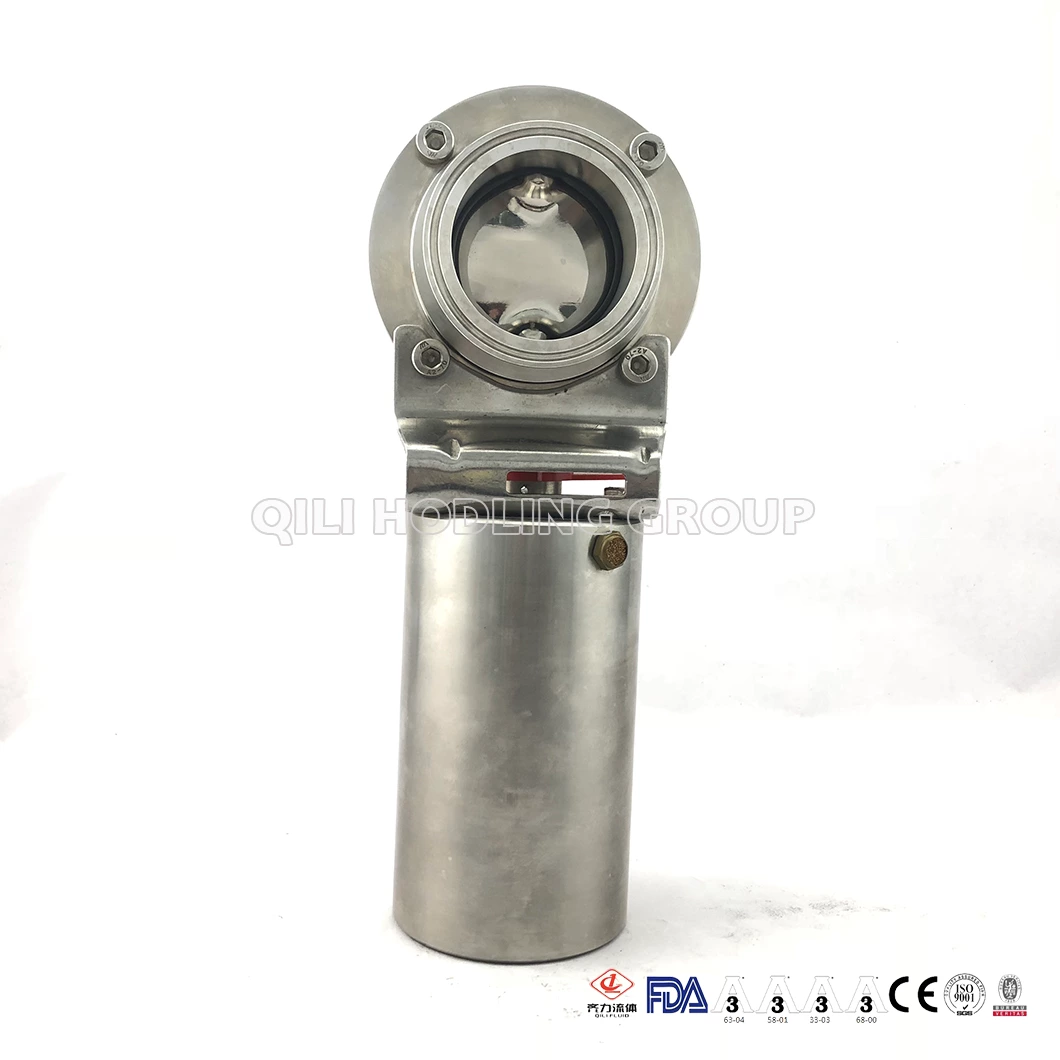

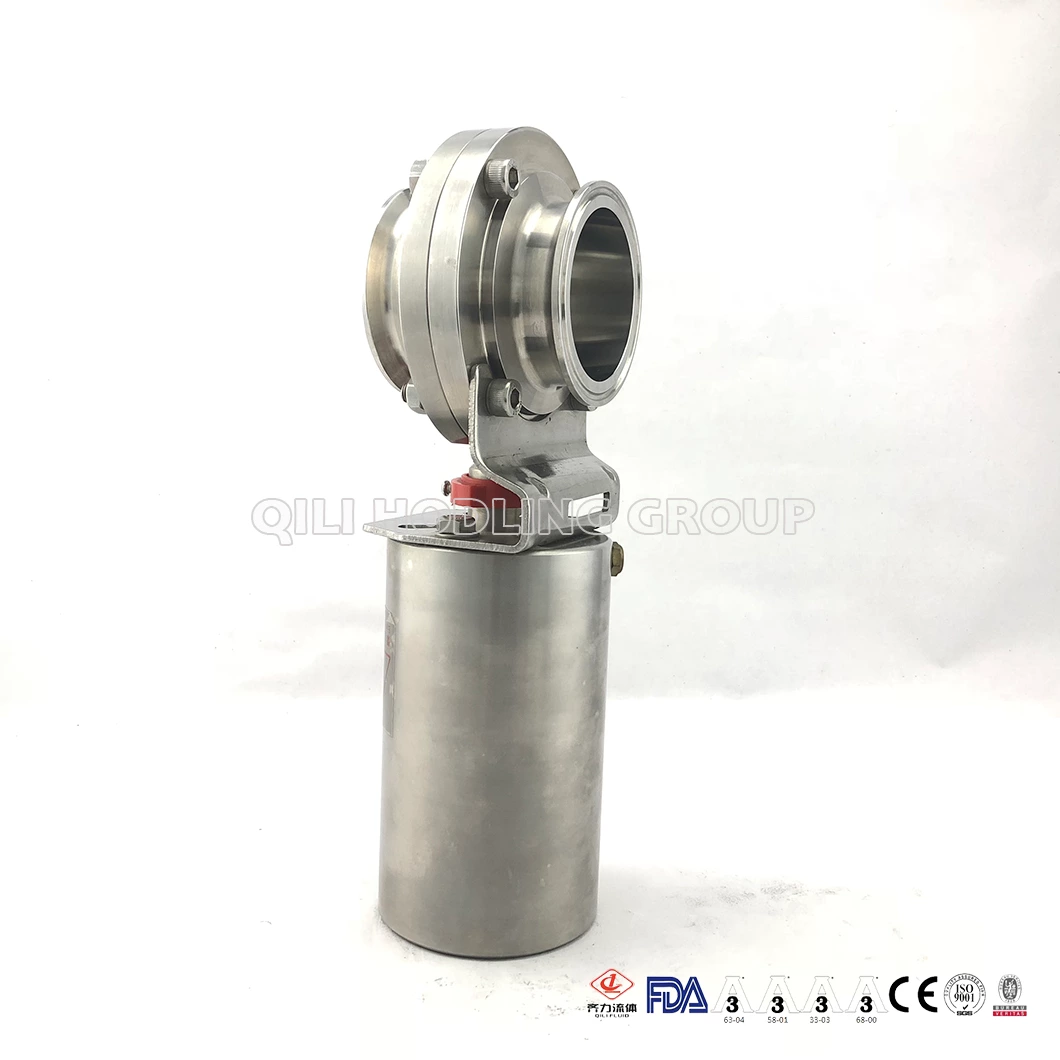

Pneumatically Actuated B5102 Series Butterfly Valve

Our butterfly valve with forged body,specially designed for using on food, berverage, dairy, brewing, pharmaceutical industries, etc. It is excellent for flow control as well as for open/close duties.
Material:
SS304,SS316L
Standard:
SMS/3A, ISO/IDF,DIN,BS,RJT,ASME/BPE
Working Temperature:
VMQ(-50 to 180℃) EPDM(-20 to 135℃) FPM(-30 to 230℃)
Application:
Beer, Dairy, Beverage, Pharmacy, Cosmetics,
Connection ways:
Weld, flange, thread/union, clamped
Size:
1/2"-6"
Color:
Blue , black
Sales Models:
Wholesale and Retail
Surface Treatment:
inner(0.4-0.8µm) outer(0.8-1.6µm)
Pressure Value:
0-10bar
MOQ:
1pc
Seal Material:
VMQ, EPDM,CMQ,FPM,silicone
Transport Package:
cartons
Pneumatically Actuated B5102 Series Butterfly Valve
Pneumatically Actuated B5102 Series Butterfly Valve Pneumatically Actuated B5102 Series Butterfly Valve Pneumatically Actuated B5102 Series Butterfly Valve Pneumatically Actuated B5102 Series Butterfly Valve

Drawings

Details

Description Sanitary Butterfly Valve (Pneumatically Actuated)
Body Material SS304, SS316L
Seal Material EPDM,VMQ(Silicone),NBR(Nitrile),VITON,all meet FDA standard
Size 1/2"-6"
Temperature Range 15°F to 200°F(- 9.4℃ to 93℃)
Pressure Range 10 bar(140psi) DN25 ~ 100 ;8bar(120psi)DN125 ~ 150
Surface Roughness 0.4 ~ 0.8μm
Connection Clamp end,weld end, Male end, female end are available
Body Made by forged material, fully precision machined by CNC machine
Standard 3A, ISO, DIN, SMS, RJT
Inspection All of the products have been 100% press tested before shipping.
Application Such as food ,dairy, beverage, meat processing, chemical, and many
other industries.
