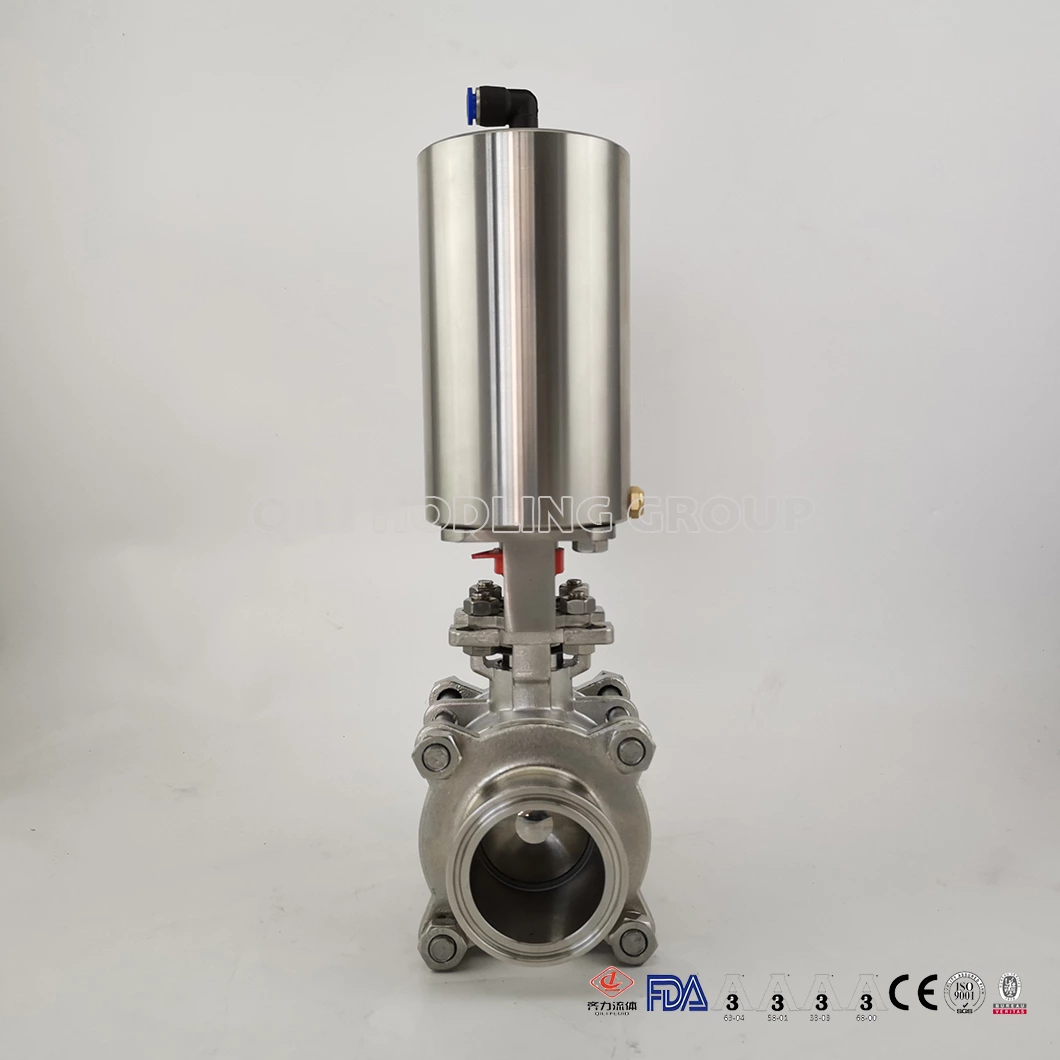

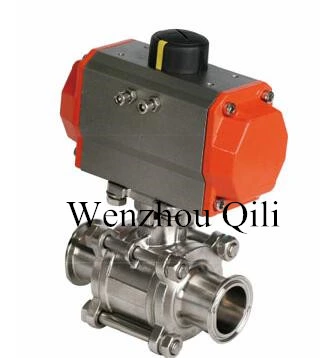

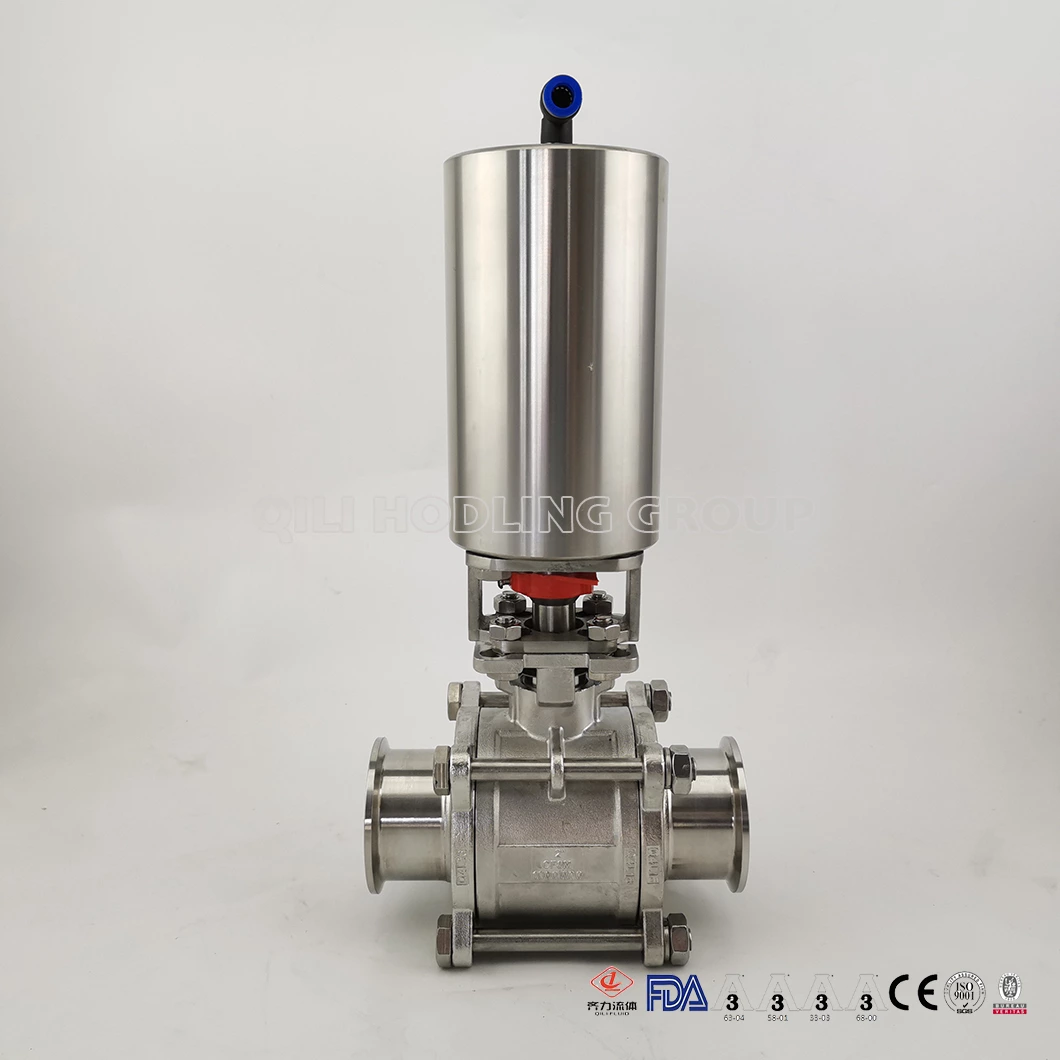

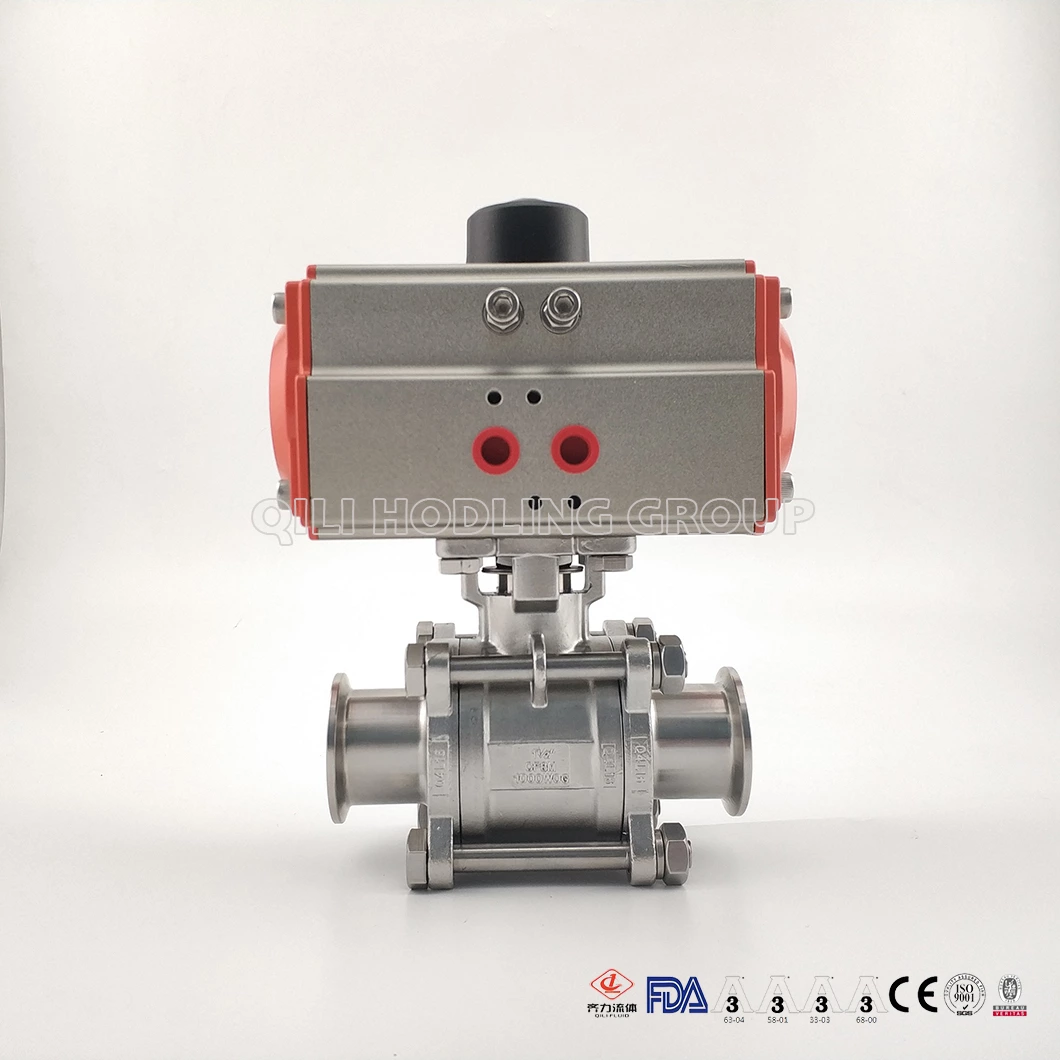

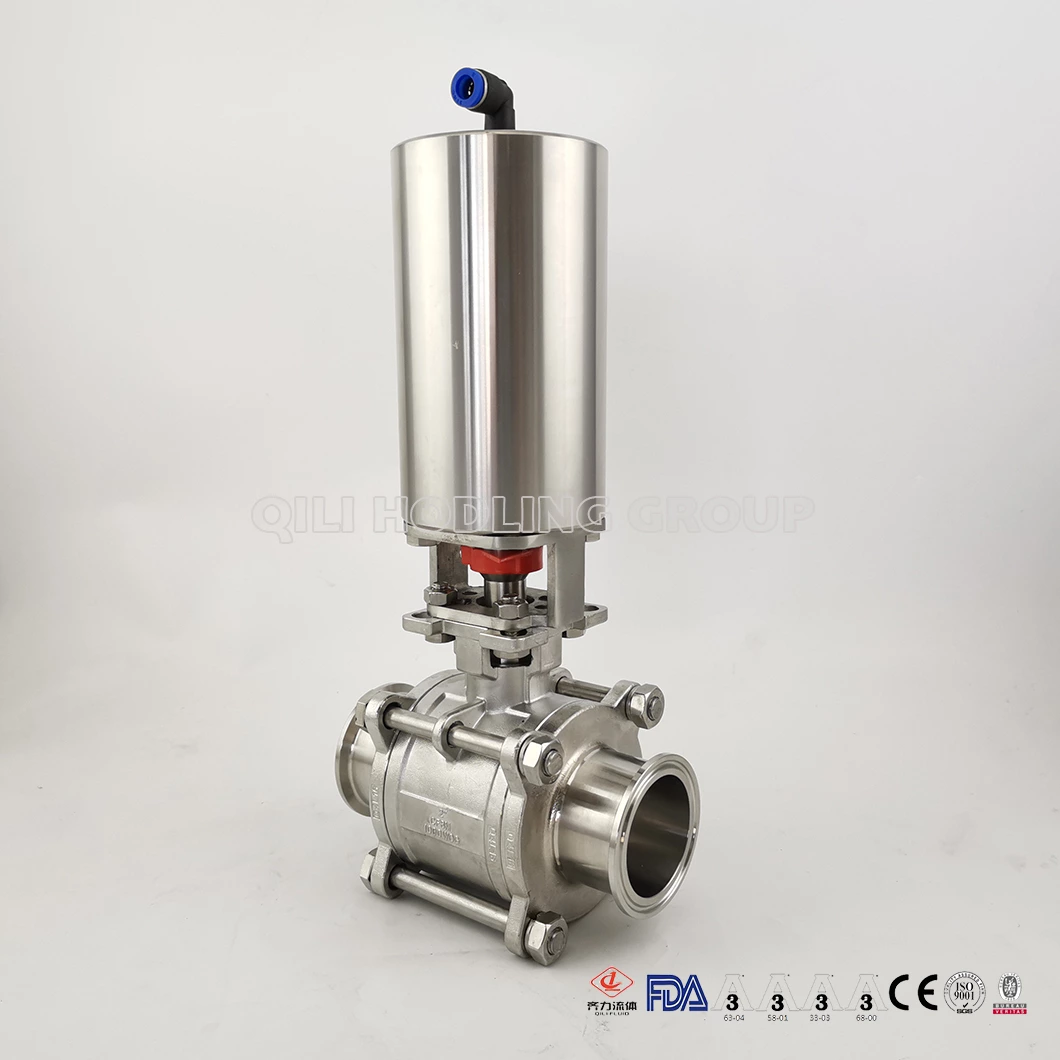

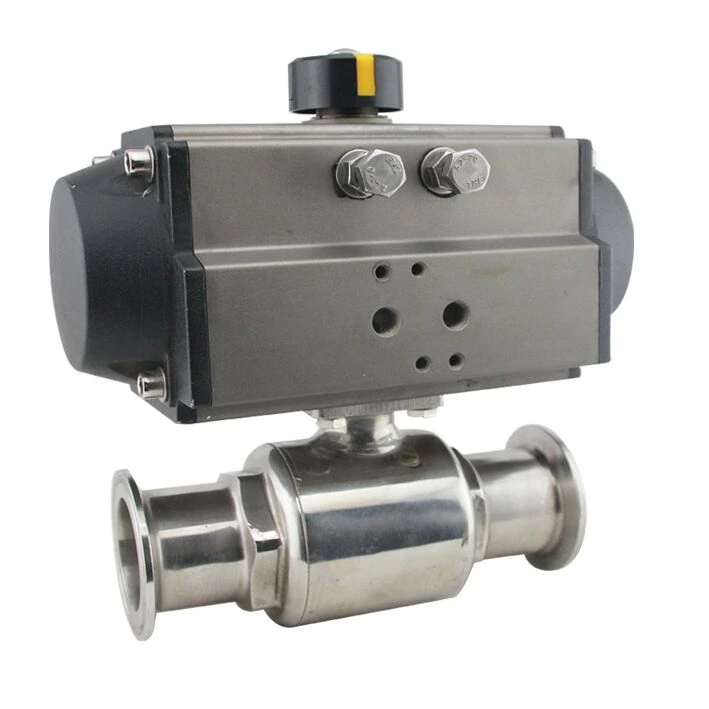

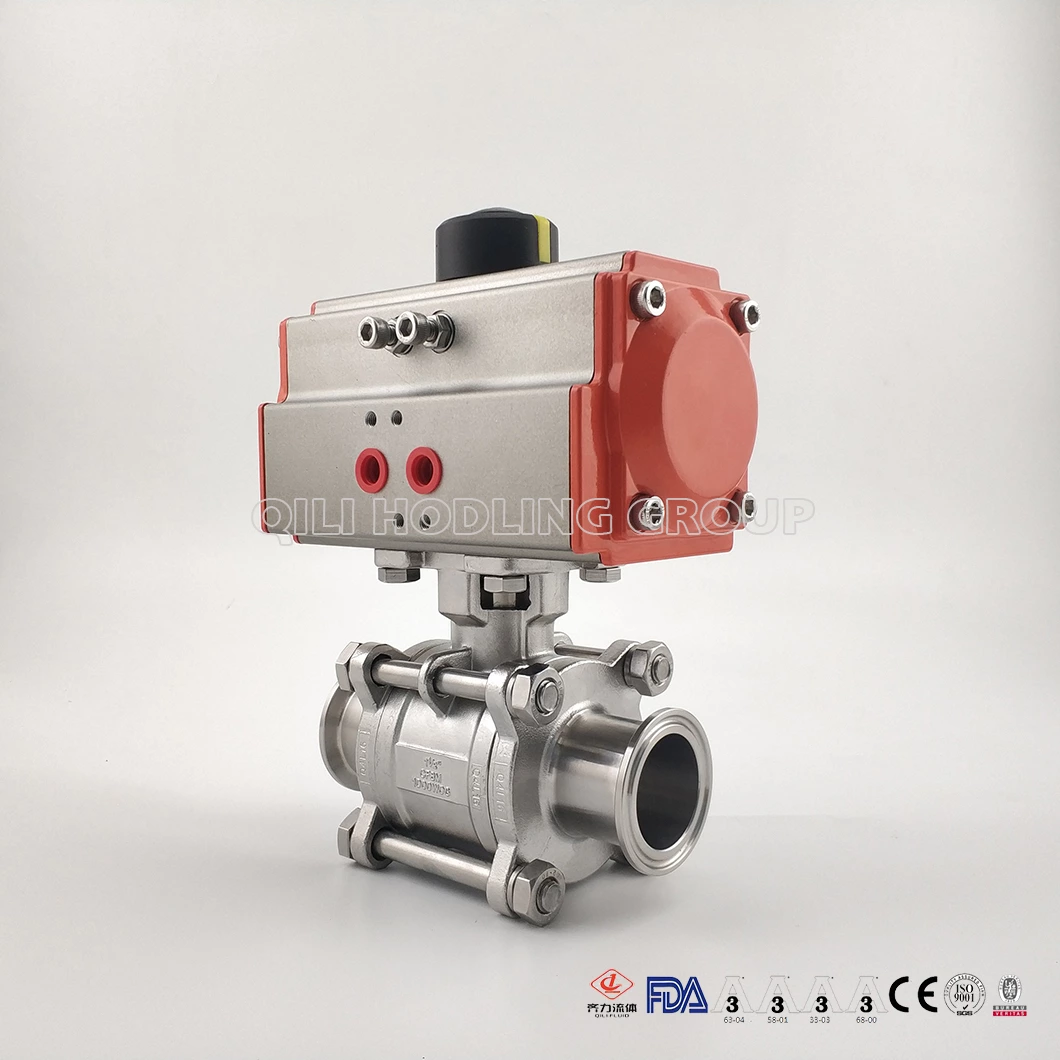

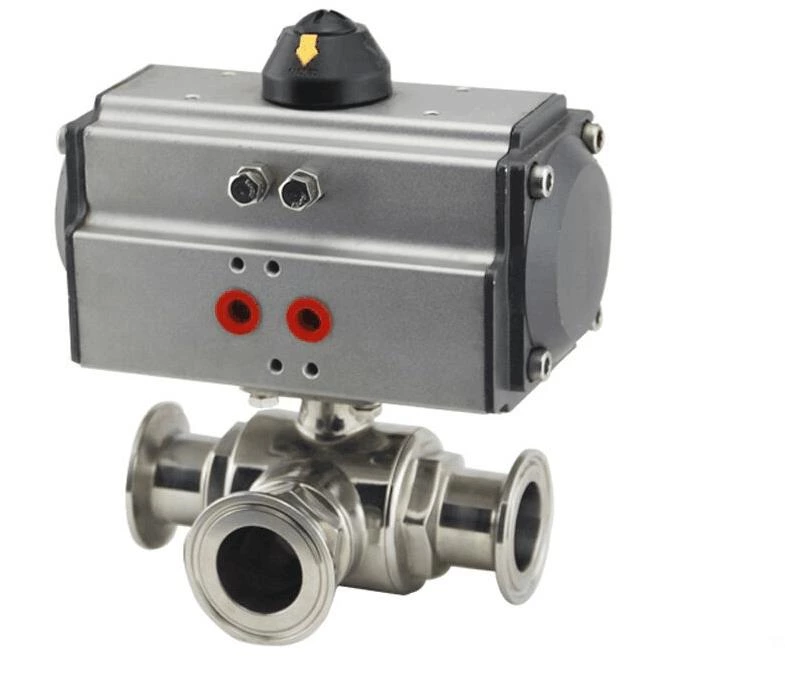

Hygienic Stainless Steel Tri Clamp Pneumatic Ball Valve
The Sanitary Stainless Steel 3PC Pneumatic Ball Valve is our strong product. We produce it many years, and export them to many countries with high praises and repurchasing. - Wenzhou Qili Fluid Equipment Co.,ltd.
- Model:
- QL-BV48
- Material:
- SS304; SS316L(Forged, 1.4301/1.4404)
- Standard:
- 3A, SMS, ASME BPE, ISO, DIN, BS
- Working Temperature:
- -10 to 90 ℃
- Application:
- Food process, Milk process, Beer brewage, Bio-pharmacy, etc.
- Connection ways:
- Tri-clamp ferrule; Threaded; Welded
- Size:
- 1/2”-6”, large size can be customize
- Sales Models:
- wholesale or retail
- Surface Treatment:
- Ra 16~32µin (0.4 to 0.8µm) electropolish available
- Pressure Value:
- 10 bar(140psi) DN25~100; 8 bar(120psi)DN125 to 150
- Seal Material:
- EPDM,VMQ(Silicone),NBR(Nitrile),VITON,all meet FDA standard
- Transport Package:
- Carton packaging. Wooden case packaging.
Details
| Description | Hygienic Stainless Steel Tri Clamp Pneumatic Ball Valve |
| Body Material | SS304; SS316L(Forged, 1.4301/1.4404) Customer’s requests available |
| Body Material | SS304 |
| Seal Material | EPDM,VMQ(Silicone),NBR(Nitrile),VITON,all meet FDA standard |
| Temperature Range | 15°F to 200°F(-9.4°C to 93°C) EPDM |
| Max. Pressure | 10 bar(140psi) DN25~100; 8 bar(120psi)DN125~150 |
| Finishing | Ra 16~32µin (0.4 ~ 0.8µm) electropolish available |
| Port Size | 1/2”-6”, large size can be customize |
| Connection | Tri-clamp ferrule; Threaded; Welded |
| Connection Standard | 3A, SMS, ASME BPE, ISO, DIN, BS |
| Features | 100%hydraulic tested/100% inspected |
| Specifications | Can see our products catalogues |
| Application | Food process, Milk process, Beer brewage, Bio-pharmacy, etc. |
| Packaging | Carton packaging. Wooden case packaging. |

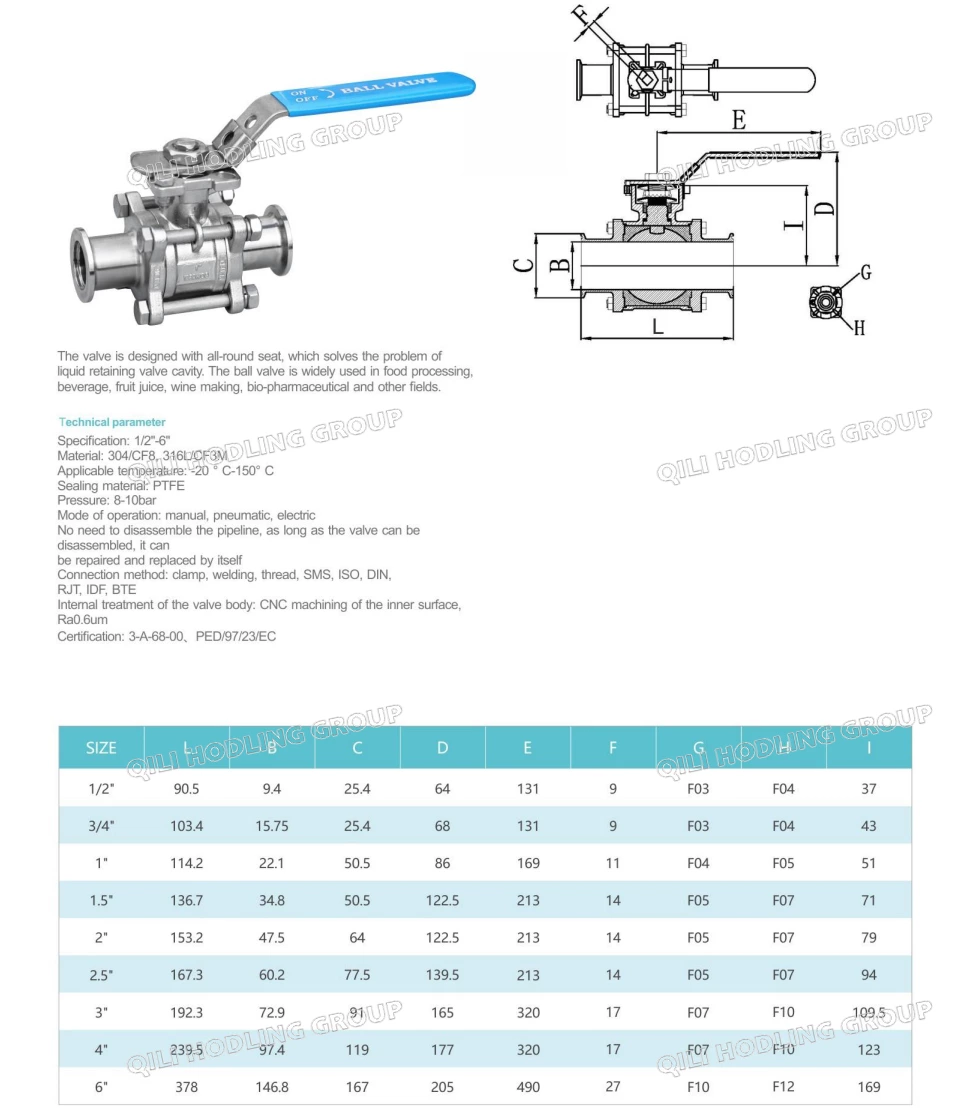

Drawings
