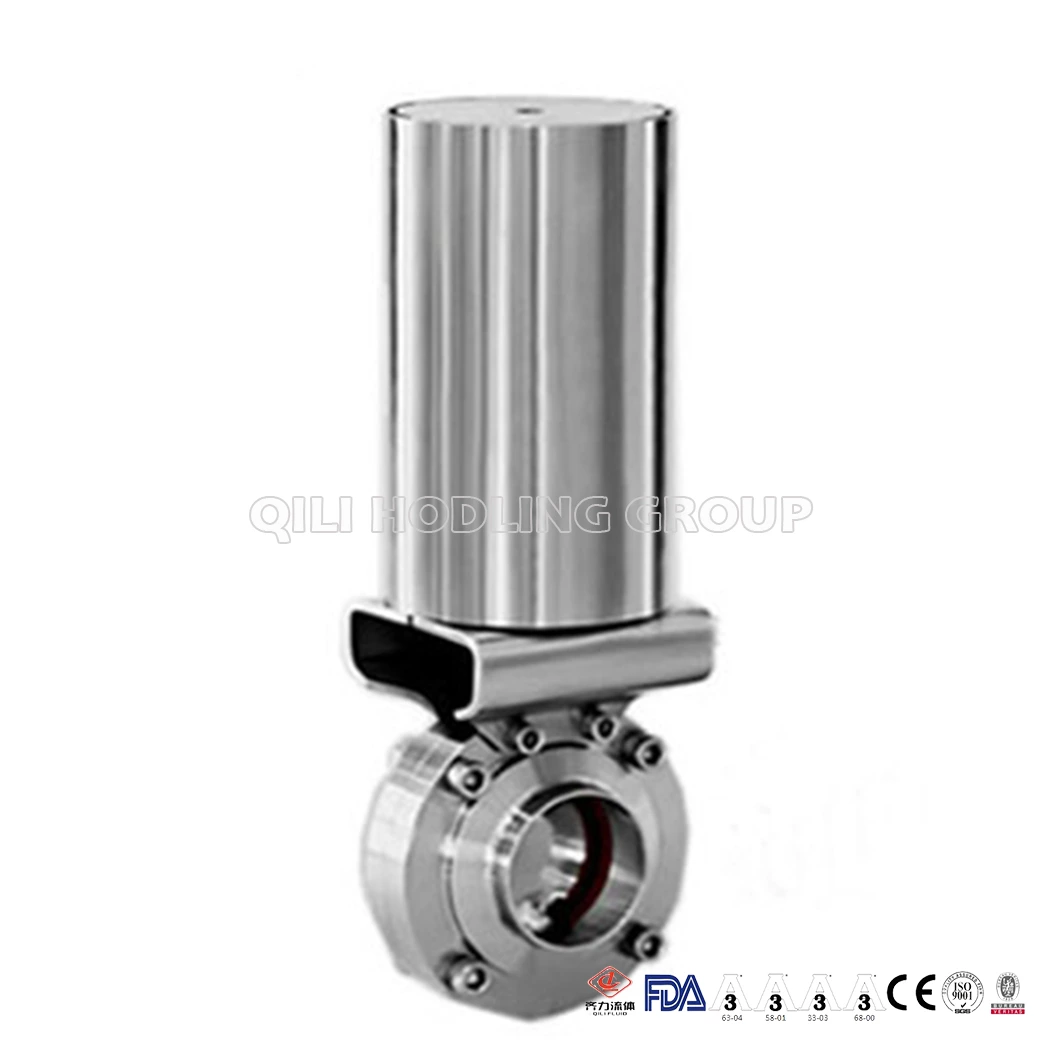

All Kinds of Sanitary 304/316L Stainless Steel Factory Price Pneumatic/Manual Lever Butterfly Valves Welding/Thread
- Material:
- SS304,SS316L
- Standard:
- SMS/3A, ISO/IDF,DIN,BS,RJT,ASME/BPE
- Working Temperature:
- VMQ（-50 to 180℃） EPDM（-20 to 135℃） FPM（-30 to 230℃）
- Application:
- Beer, Dairy, Beverage, Pharmacy, Cosmetics,
- Connection ways:
- Weld, flange, thread/union, clamped
- Size:
- 1/2"-6"
- Color:
- Blue , black
- Sales Models:
- Wholesale and Retail
- Surface Treatment:
- inner（0.4-0.8µm） outer（0.8-1.6µm）
- Pressure Value:
- 0-10bar
- MOQ:
- 1pcs
- Seal Material:
- VMQ, EPDM，CMQ,FPM
- Transport Package:
- cartons
Details
- Material:Steel parts: stainless steel 304,stainless steel 316L
- Seal:silicone(VMQ) ,Fluoroelastomer(FPM), EPDM
- Stanard Design: Various standards of valves can be provide can be provided to clients
- Standard of valve: DIN/SMS/3A/ISO/IDF
- Size: 1/2"-6"
- Medium: Beer, Dairy, Beverage, Pharmacy.
Drawings
Work principle
this kind of valve can be handled both by manual or an electric actuator ,and also can be handled by a pneumatic actuator.
Electric actuator or pneumator or pneumatic actuator is to covert the axial movement of piston to be 90 degree rotation of valve shaft.So that the valve can be open or close to achieve the requirment of control and open /close for the pipeline system.They have three type of actator: normally open (NO),normally closed (NC),air/air(A/A)
More information
Qili can supply this pneumatic butterfly valve with weld end, clamp end, thread end and flange end connection. Requiring more detail information or catalog pls don't hesitate to contact us. For all our products, Qili can also produce according to ur drawing if ur Specification is out of our standard.
