Sanitary Welded Straight Brewing PTFE Diaphragm Valve

Material:
SS304/316L
Standard:
DIN, SMS IDF ISO 3A BPE
Working Temperature:
-10 to 150℃
Application:
food, beverage, wine, cosmetic,etc.
Size:
DN8-DN125
Type:
diaphragm valves
Connection Type:
weld,clamp
Sales Models:
wholesale or retail
Pressure Value:
0-10bar
Seal Material:
EPDM,PTFE
Transport Package:
cartons

Details

  • Body material: SS304 OR SS 316L
  • Max pressure: 10bar
  • Working temperature: -10 ~+120 degree(EPDM)-14~+248degree)
  • Standard: DIN, SMS IDF ISO 3A BPE
  • Connection: Clamped, welded, THREAD
  • Body construction: STRAIGHT ,Three ways, U type
  • Size: DN8-DN125
  • Internal surface finish bright,Ra<= 0.5. Extenrnal surface finish satin/bright.

As a manufacturer, we can produce according to customer's requirement. Please feel free to contact us if you want e-catalogue and drawing. We are at your service any time. Don't hesitate to contact us if you need more details. For all products we can produce according to your requirement if your specification is out of our standard.

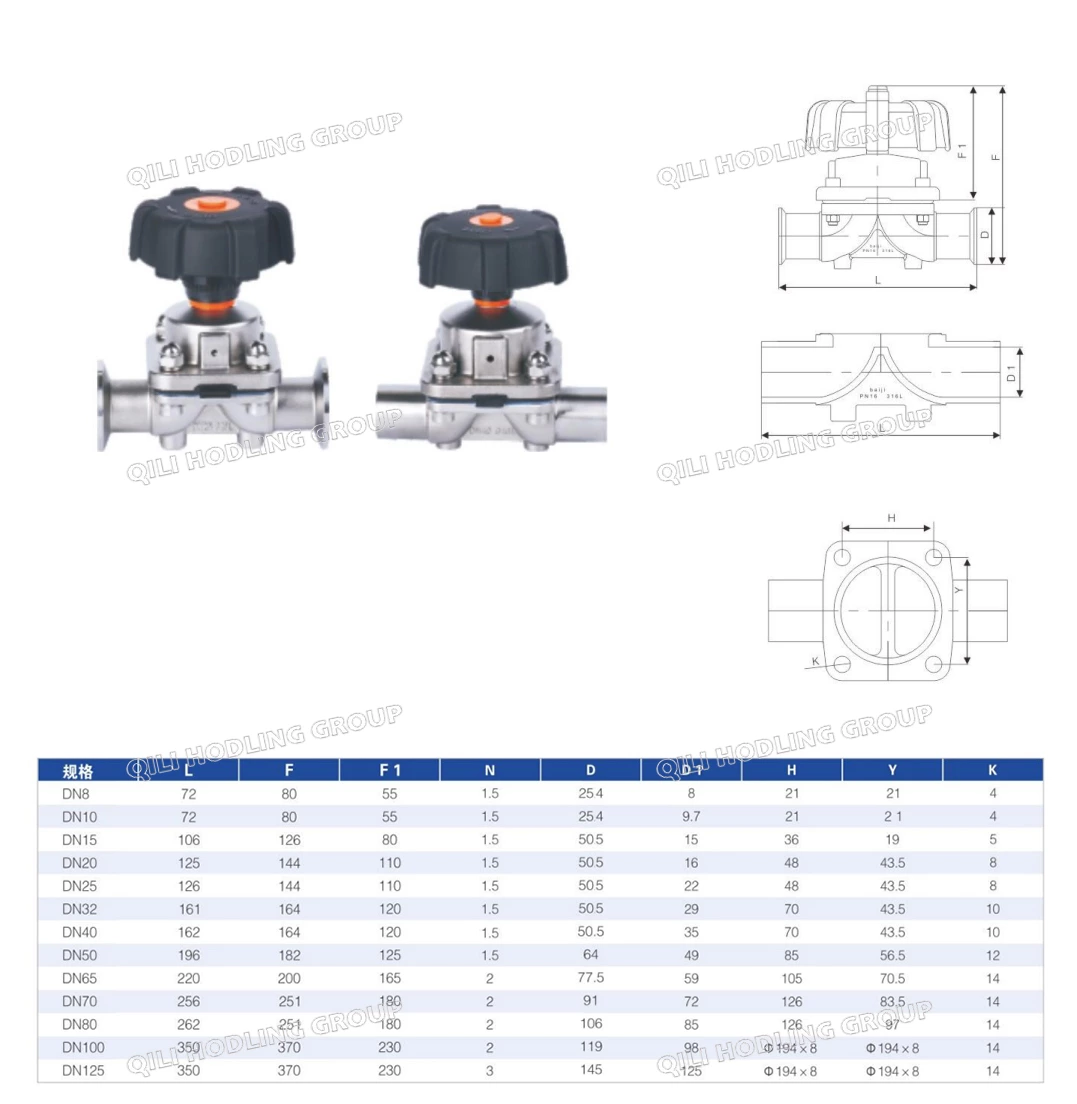

Drawings
