Sanitary Stainless Steel Diaphragm Valve

Stainless Steel Sanitary Diaphragm Valve is manual or air actuated,and are specially designed for hygienic and asepsis processes in pharmacy industry.This valve is excellent for controlling as well as on/off fluid.
Material:
SS304/316L
Standard:
DIN, SMS IDF ISO 3A BPE
Working Temperature:
-10 to 150℃
Application:
food, beverage, wine, cosmetic,etc.
Size:
1/2"-4", DN10-DN100
Type:
diaphragm valves
Connection Type:
weld,clamp
Sales Models:
wholesale or retail
Pressure Value:
0-10bar
Seal Material:
EPDM,PTFE
Transport Package:
cartons
Sanitary Stainless Steel Diaphragm Valve
Sanitary Stainless Steel Diaphragm Valve Sanitary Stainless Steel Diaphragm Valve Sanitary Stainless Steel Diaphragm Valve Sanitary Stainless Steel Diaphragm Valve


Details


  • Valve Body Material:SS316L,SS304
  • Availably standard:3A/BPE/DIN/ISO/IDF/SMS
  • Availably  size:1"-3",DN20-DN65
  • Seal Material:PTFE + EPDM (double layer) / EPDM / SILICON / FPM (VITON)
  • Availably connection:Clamp/weld/thread/special connection
  • Operated:Manual,Pneumatic
  • Max. Working Pressure:10Bar
  • Availably structure:Straight, tee, U-type, tank bottom
  • Max. Working Temperature:120 degree C

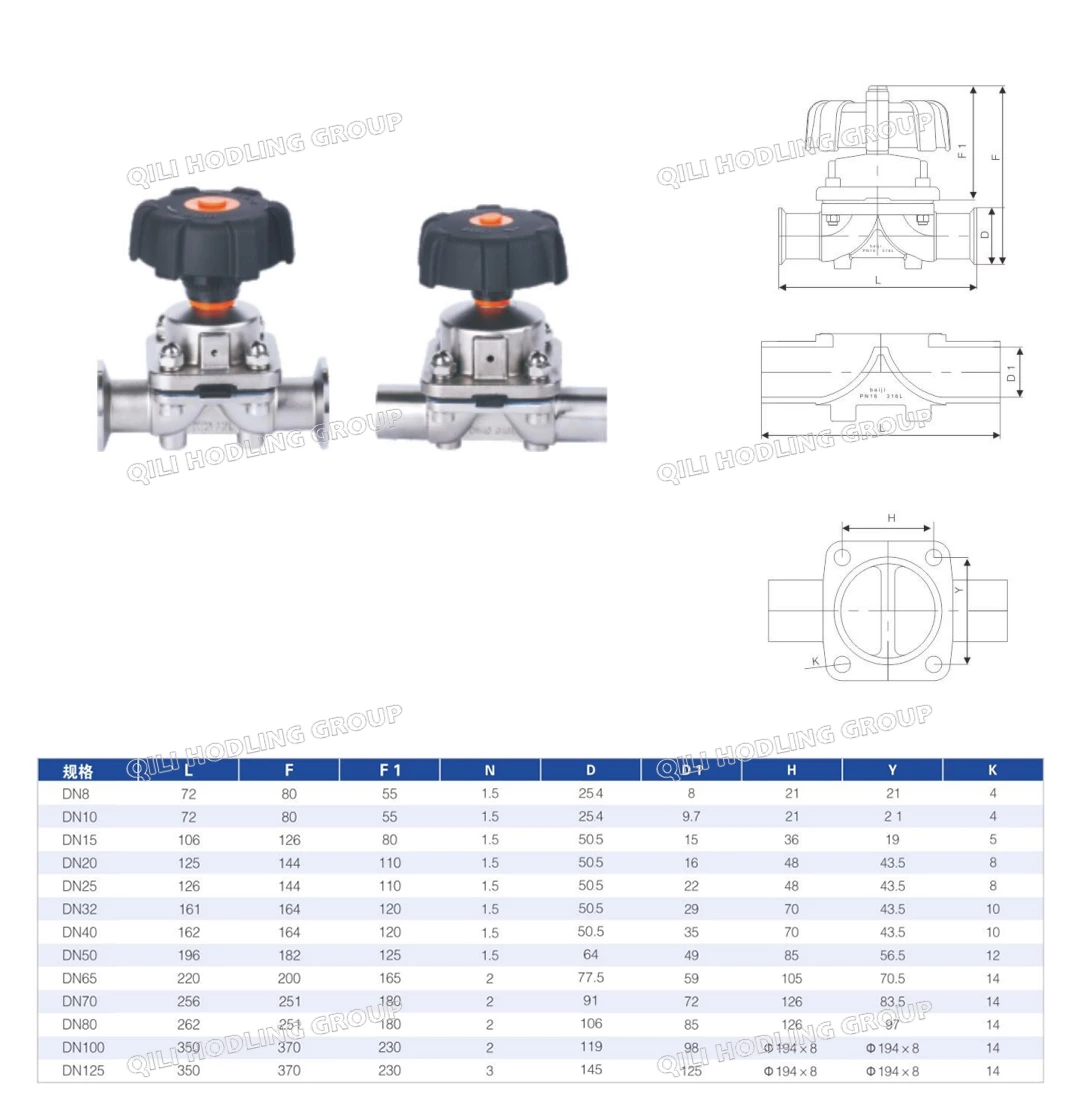

Drawings

More information

Diaphragm seals the valve body and seat.The is no way to contact the environment.So this Stainless Steel Sanitary Diaphragm Valve is suitable for asepsis process.When the Diaphragm Valve is off.The pressure seal that holding up diaphragm moves towards to the sealing face of valve body.When the pressure plate moves,the diaphragm bending.forced towards to seat area of body center.So that to shut off the flow path to valve body.The relevant of valve body and pressure plate prevents the diaphragm pressing.The valve can be manual and air actuated,also can be operated by control top and soleniod valve.
