Sanitary 316L Reducing 3 Three Way U Type Hydraulic Clamped Diaphragm Valve

1. Materials of Reducing 3 Three way U Type Hydraulic Diaphragm Valve: 316L 2. Size of Reducing 3 Three way U Type Hydraulic Diaphragm Valve: DN6-DN65 3. Standard: GJB, DIN, BPE, GB, JIS, ISO, FB 4
Material:
SS304 OR SS 316L
Standard:
DIN, SMS IDF ISO 3A BPE
Working Temperature:
-10 to 150℃
Application:
food, beverage, wine, cosmetic,etc.
Size:
12.7mm-63.5mm
Type:
diaphragm valves
Connection Type:
weld,clamp
Sales Models:
wholesale or retail
Pressure Value:
0-10bar
Seal Material:
EPDM,PTFE
Transport Package:
cartons

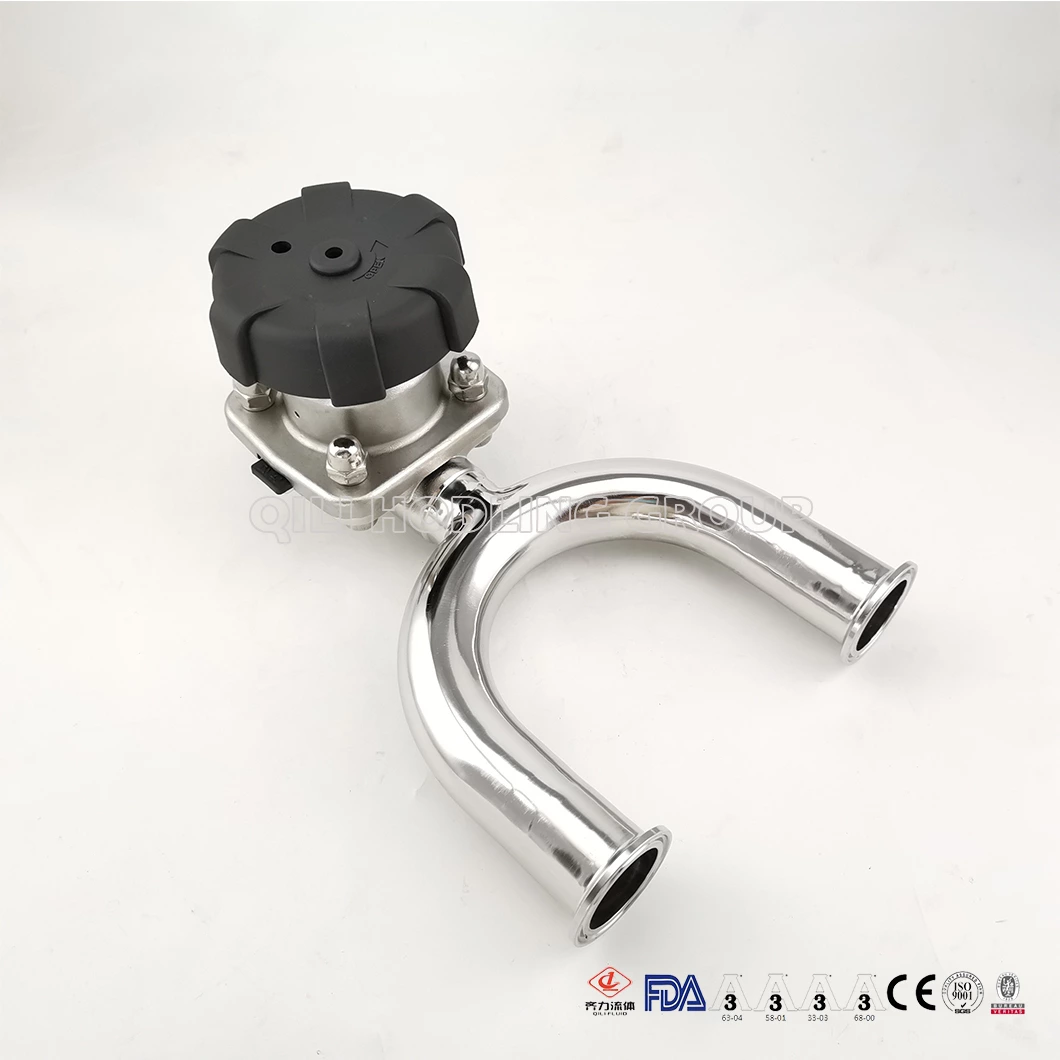

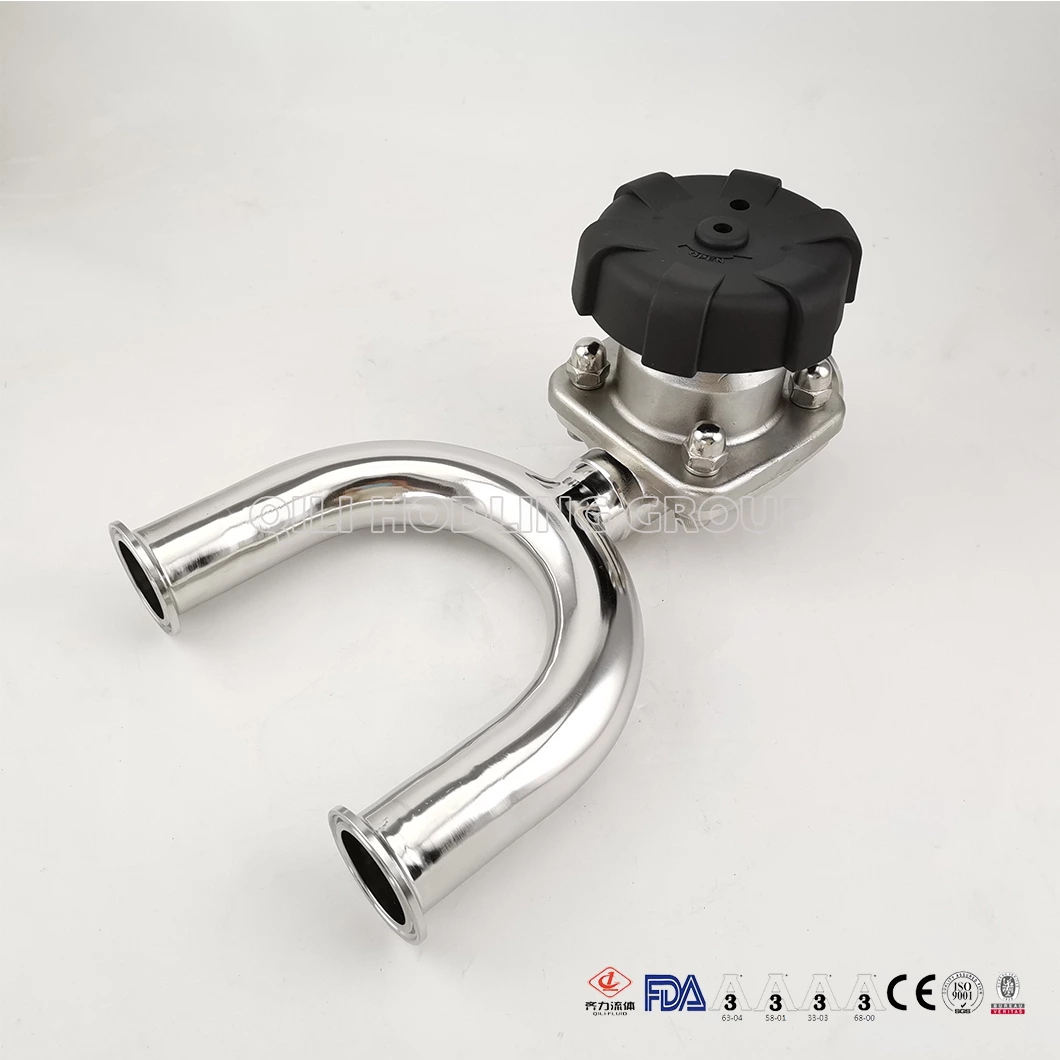

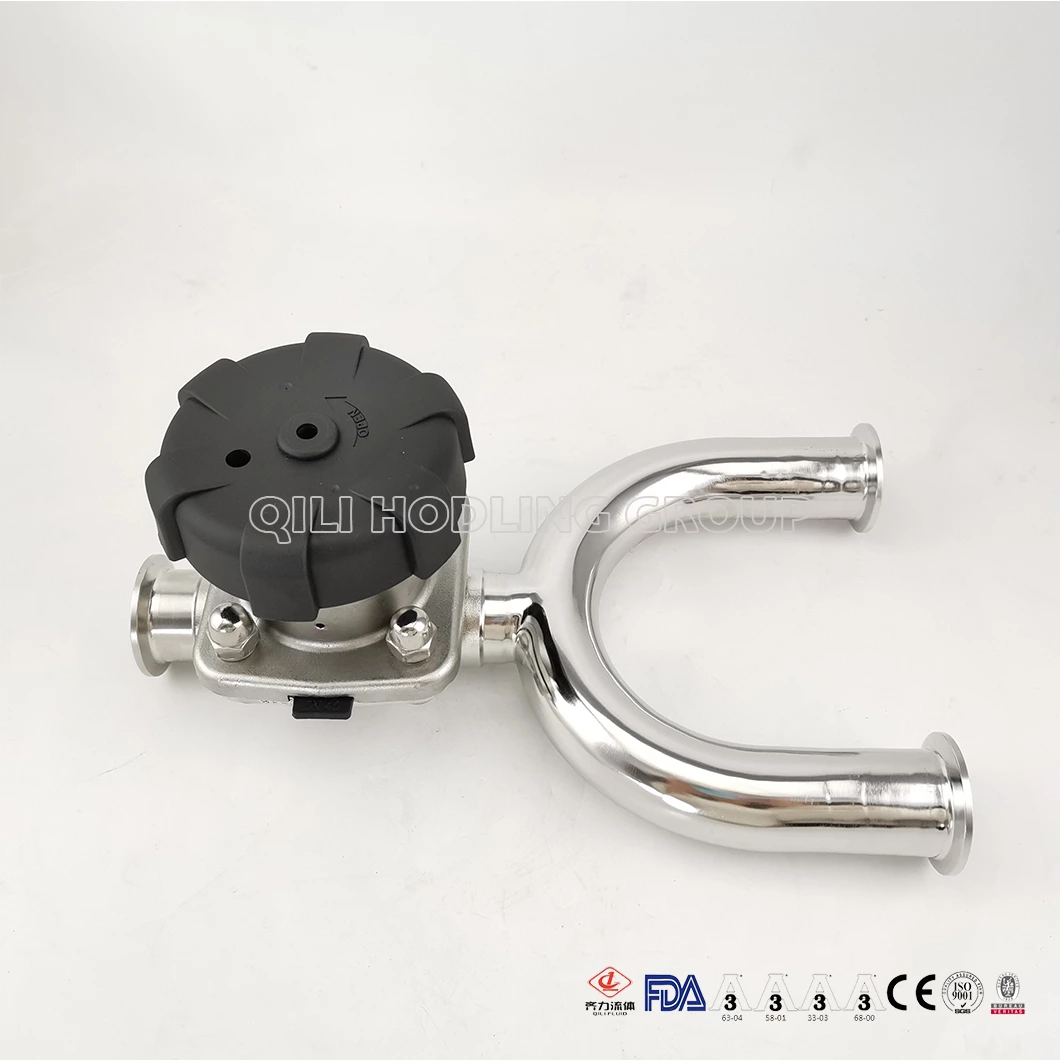

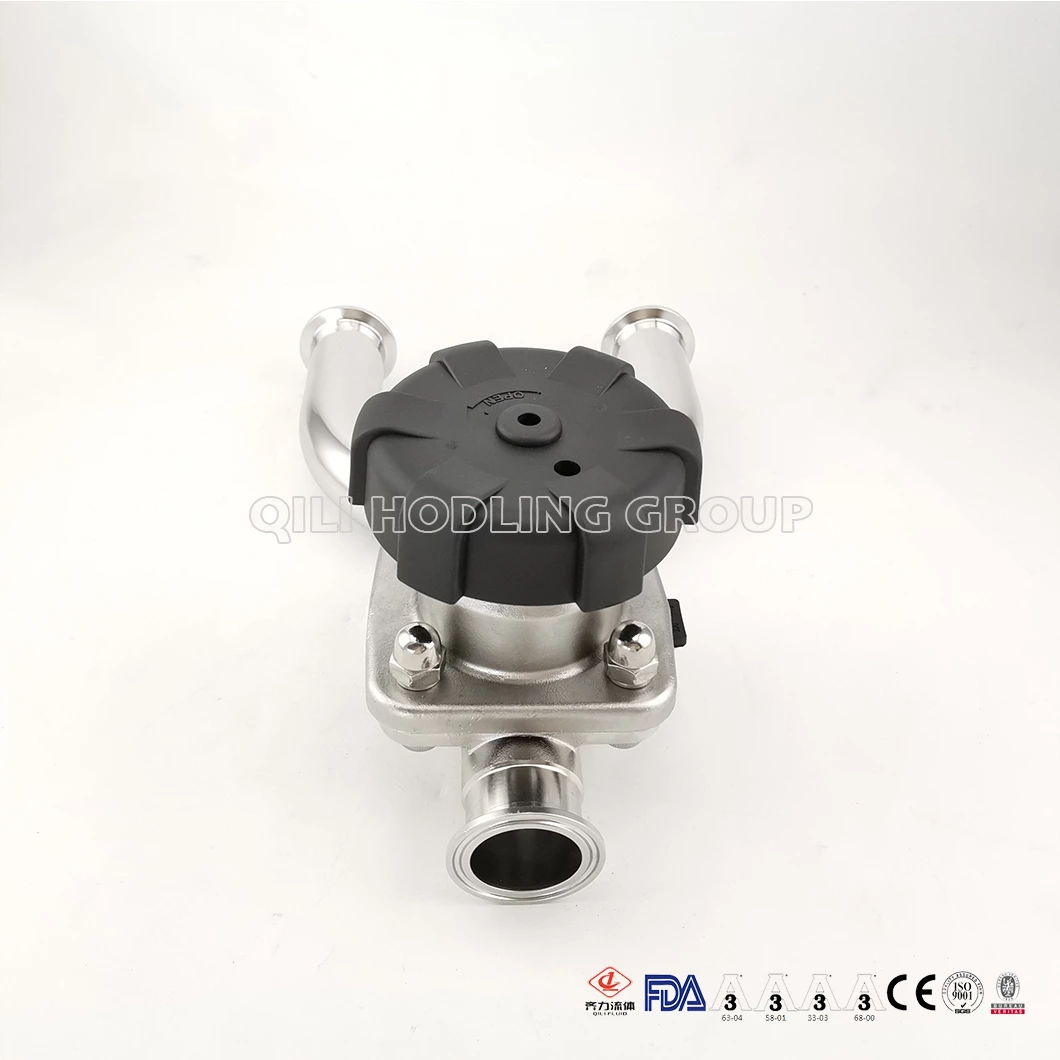

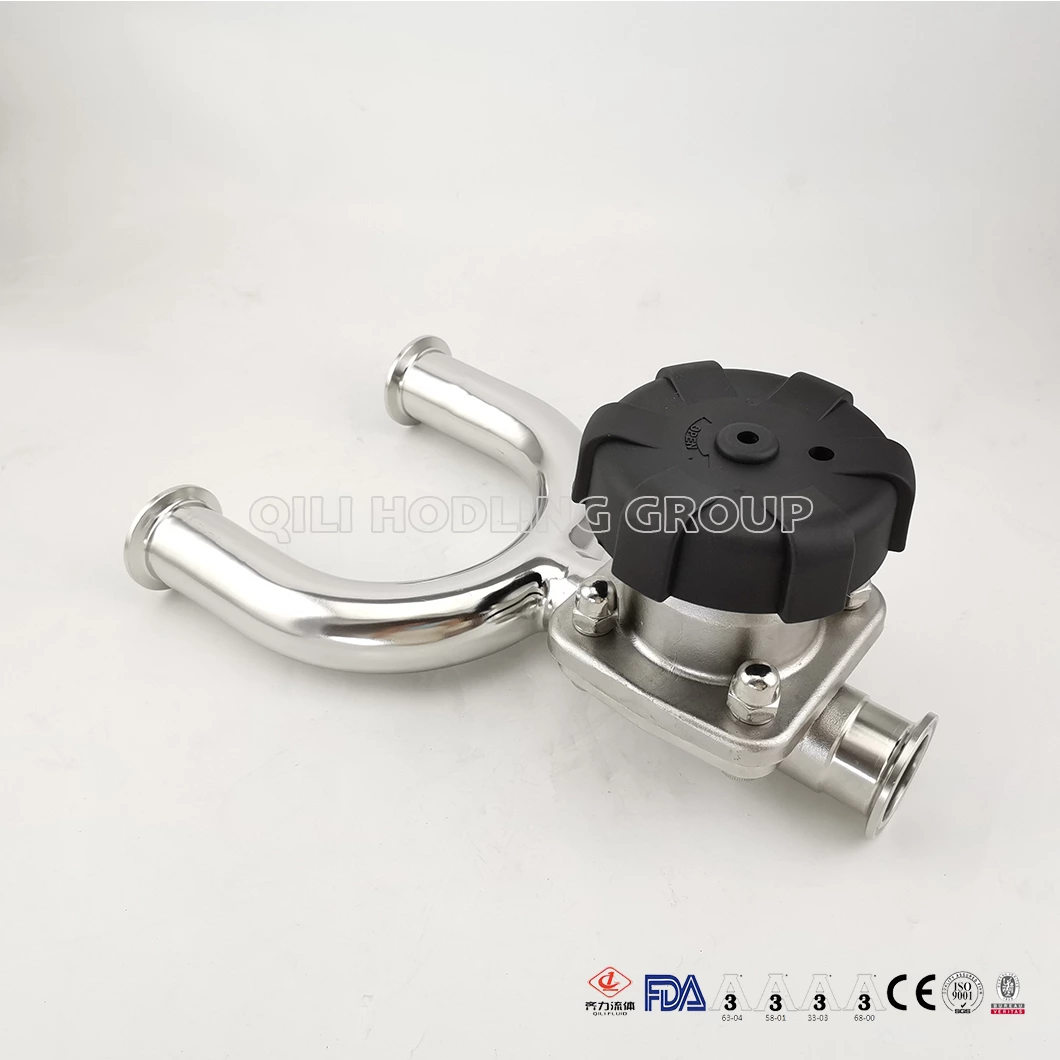

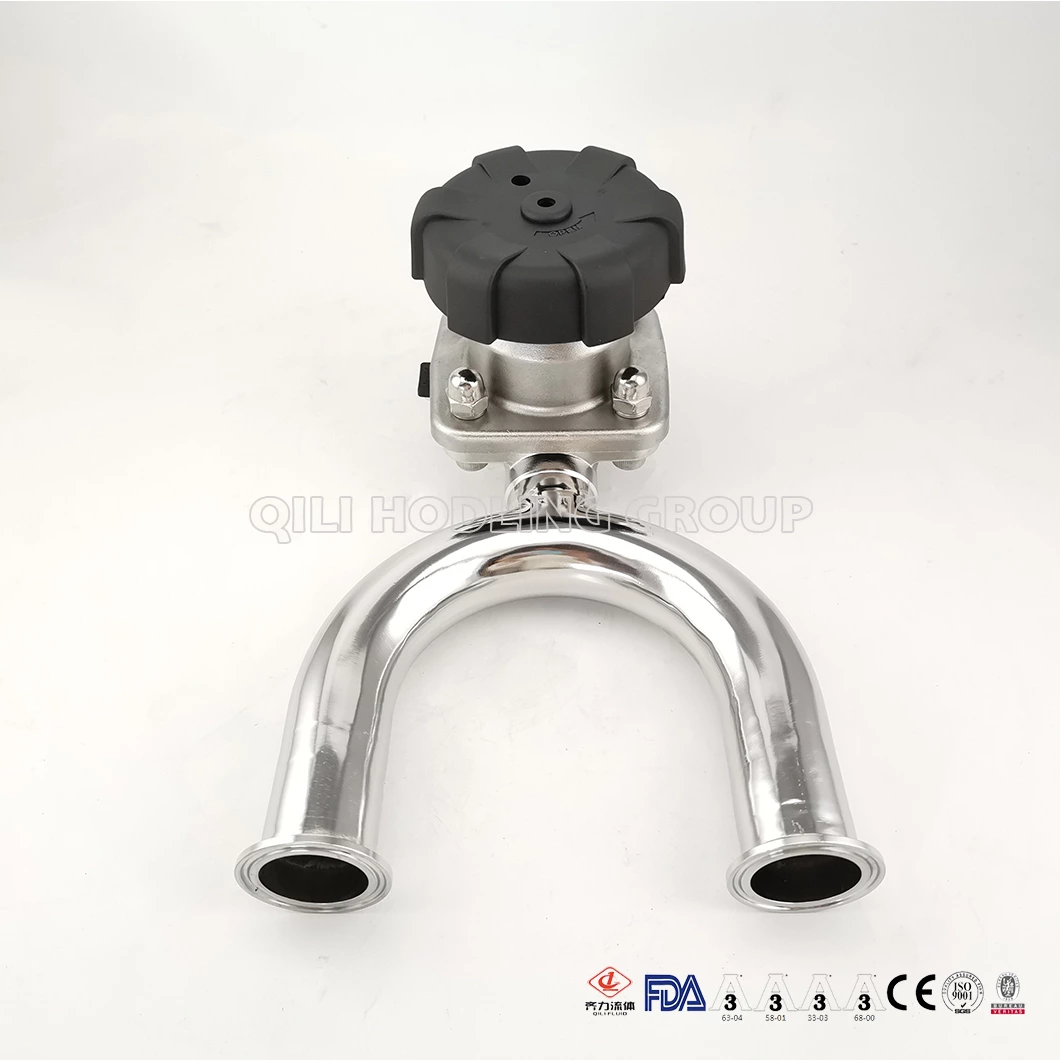

Sanitary 316L Reducing 3 Three Way U Type Hydraulic Clamped Diaphragm Valve
Sanitary 316L Reducing 3 Three Way U Type Hydraulic Clamped Diaphragm Valve Sanitary 316L Reducing 3 Three Way U Type Hydraulic Clamped Diaphragm Valve Sanitary 316L Reducing 3 Three Way U Type Hydraulic Clamped Diaphragm Valve Sanitary 316L Reducing 3 Three Way U Type Hydraulic Clamped Diaphragm Valve Sanitary 316L Reducing 3 Three Way U Type Hydraulic Clamped Diaphragm Valve Sanitary 316L Reducing 3 Three Way U Type Hydraulic Clamped Diaphragm Valve Sanitary 316L Reducing 3 Three Way U Type Hydraulic Clamped Diaphragm Valve

Details

Product Name Reducing 3 Three way U Type Hydraulic Diaphragm Valve
Material Stainless Steel 316L
Size 12.7mm-63.5mm
Surface Mirror polish, Inner Ra(0.4~0.8μm); Outer Ra(0.8~1.6μm)
Standard GJB, DIN, BPE, GB, JIS, ISO,
Connection Flange, Clamp, Weld, Thread (male or female), union or combination
Sealing Materials (standard) EPDM+PTFE, Double Layers
Sealing Materials (optional) EPDM/Silicone/FPM
Operation Manual, Pneumatic
Max Temperature 230ºC
Max Pressure 10 Bar
Available  Structure Tee, U-type, Straight, Tank Bottom, Customization
Application Dairy, Liquid Food, Beverage, Beer Industries and other
