Dn25 Pneumatic Stainless Steel Sanitary Bottom Diaphragm Valve
PRODUCT DESCRIPTION
Product Name
DN25 Pneumatic Stainless Steel Sanitary Bottom Diaphragm Valve
Material
Stainless Steel 316L
Size
DN25
Surface
Mirror polish, Inner Ra(0.4~0.8μm); Oute
- Material:
- SS304/316L
- Standard:
- DIN, SMS IDF ISO 3A BPE
- Working Temperature:
- -10 to 150℃
- Application:
- food, beverage, wine, cosmetic,etc.
- Size:
- DN15-DN80
- Type:
- diaphragm valves
- Connection Type:
- weld,clamp
- Sales Models:
- wholesale or retail
- Pressure Value:
- 0-10bar
- Seal Material:
- EPDM,PTFE
- Transport Package:
- cartons
Details
| Product Name | DN25 Pneumatic Stainless Steel Sanitary Bottom Diaphragm Valve |
| Material | Stainless Steel 316L |
| Size | DN15-DN80 |
| Surface | Mirror polish, Inner Ra(0.4~0.8μm); Outer Ra(0.8~1.6μm) |
| Standard | GJB, DIN, BPE, GB, JIS, ISO, FB, SMS |
| Connection | Flange, Clamp, Weld, Thread (male or female), union or combination |
| Sealing Materials (standard) | EPDM+PTFE, Double Layers |
| Sealing Materials (optional) | EPDM/Silicone/FPM |
| Operation | Manual, Pneumatic |
| Max Temperature | 230ºC |
| Max Pressure | 10 Bar |
| Available Structure | Tee, U-type, Straight, Tank Bottom, Customization |
| Application | Dairy, Liquid Food, Beverage, Beer Industries and other |

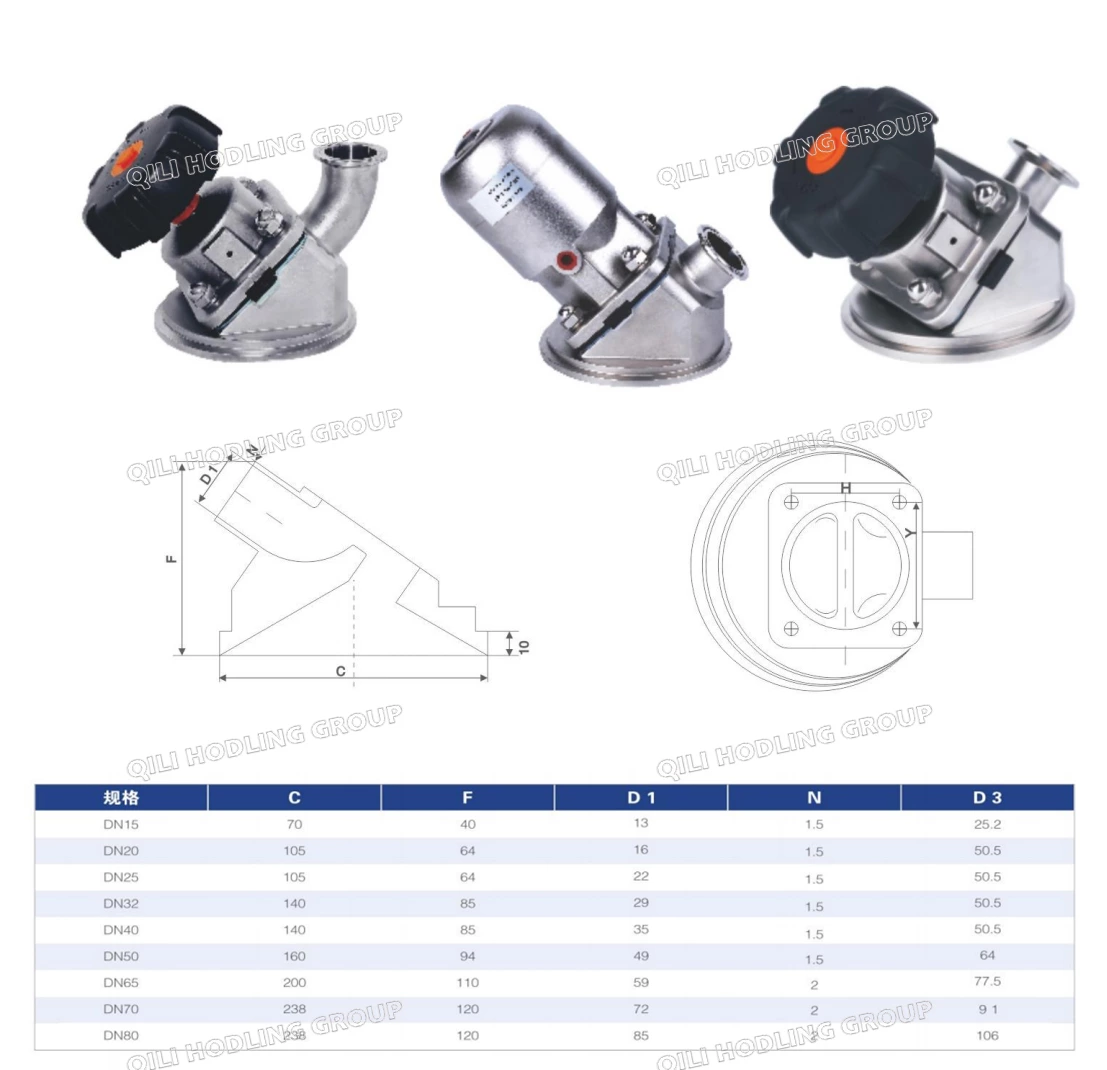

Drawings
