Cheap 3.5 Inch Stainless Steel Sanitary Diaphragm Valve
Materials of 3.5 Inch Stainless Steel Sanitary Diaphragm Valve: 316L
2. Size of DN90 3.5 Inch Stainless Steel Sanitary Diaphragm Valve: DN90
3. Standard: GJB, DIN, BPE, GB, JIS, ISO, FB
4. Certific
- Material:
- SS304/316L
- Standard:
- DIN, SMS IDF ISO 3A BPE
- Working Temperature:
- -10 to 150℃
- Application:
- food, beverage, wine, cosmetic,etc.
- Size:
- DN15-DN80
- Type:
- diaphragm valves
- Connection Type:
- weld,clamp
- Sales Models:
- wholesale or retail
- Pressure Value:
- 0-10bar
- Seal Material:
- EPDM,PTFE
- Transport Package:
- cartons
Details
| Product Name | DN90 3.5 Inch Stainless Steel Sanitary Diaphragm Valve |
| Material | Stainless Steel 316L |
| Size | DN15-DN80 |
| Surface | Mirror polish, Inner Ra(0.4~0.8μm); Outer Ra(0.8~1.6μm) |
| Standard | GJB, DIN, BPE, GB, JIS, ISO, FB, SMS |
| Connection | Flange, Clamp, Weld, Thread (male or female), union or combination |
| Sealing Materials (standard) | Silicon |
| Sealing Materials (optional) | EPDM+PTFE / EPDM / Silicone / FPM |
| Operation | Manual, Pneumatic |
| Max Temperature | 230ºC |
| Max Pressure | 10 Bar |
| Available Structure | Tee, U-type, Straight, Tank Bottom, Customization |
| Application | Dairy, Liquid Food, Beverage, Beer Industries and other |

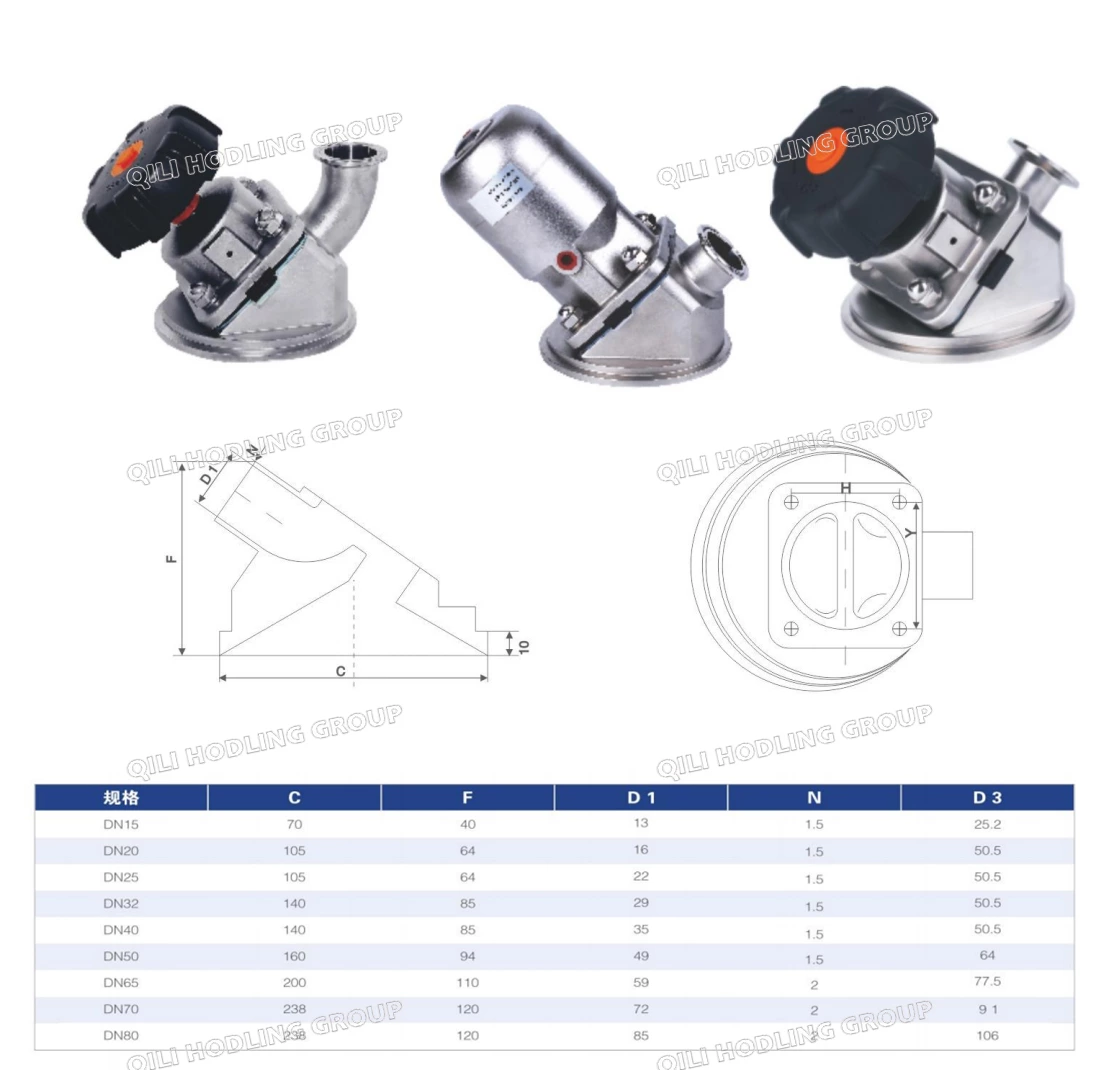

Drawings
