Products

Stainless Steel Sanitary Spray Ball For Cleaning Use

Material:
Stainless Steel 304, 316L,
Standard:
DIN/SMS/ISO/3A/IDF
Application:
Pharmacy, beer, food, petroleum, dairy beverage, cosmetics
Connection ways:
Clamp end, Weld end, Male end and Female end, flange
Size:
DN12.5-100MM and 1/2" - 4", large size can be customize
Sales Models:
wholesale
Seal Material:
EPDM, SILICON, VITON, PTFE,
Transport Package:
cartons

Details

1)Technics: Forged
2)Size range: DN12.5-100MM and 1/2" - 4", large size can be customize
3)Material: Stainless Steel 304, 316L,
4)Seal(Gasket): EPDM, SILICON, VITON, PTFE,
5)Type of ends available: Clamp end, Weld end, Male end and Female end, flange
6)Standard: DIN/SMS/ISO/3A/IDF

Application

Chemical Processing, Water & Wastewater, Landfills, Irrigation, dairy, beverage, meat processing, Mining, vacuum processing, pharmaceutical, chemical, and many other industries.
This cleaning ball is used for cleaning the tank, Requiring more detail information or catalog pls don't hesitate to contact us. For all our products, we can also produce according to ur drawing if ur Specification is out of our standard.

Drawings

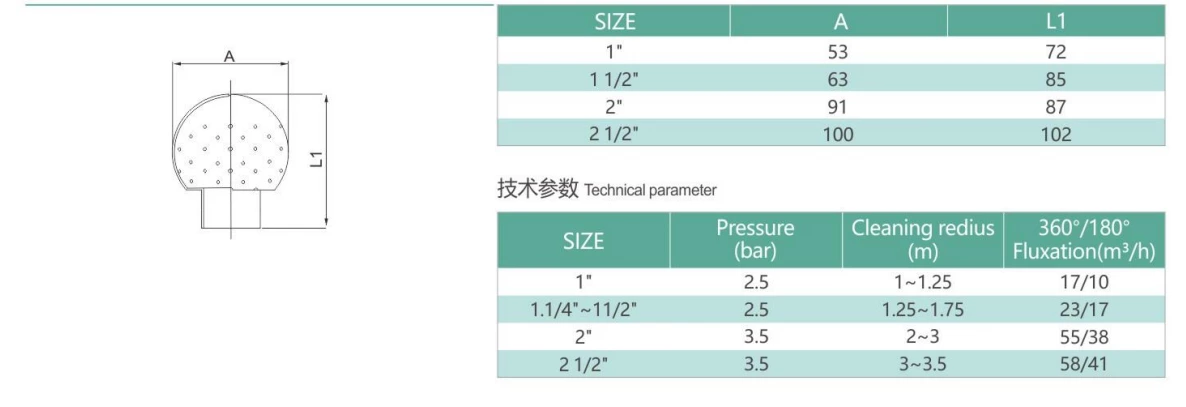

  • screw type

Stainless Steel Sanitary Spray Ball For Cleaning Use

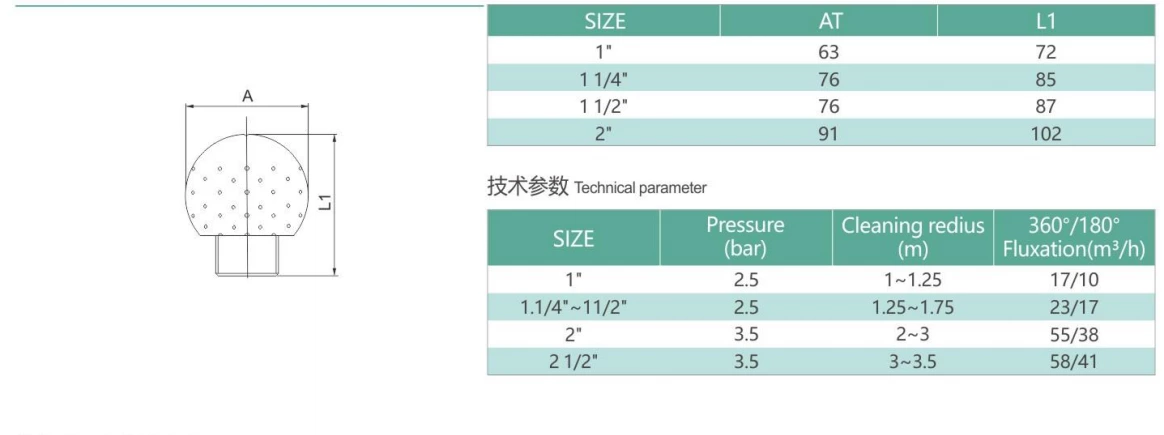

  • Clamp type

Stainless Steel Sanitary Spray Ball For Cleaning Use

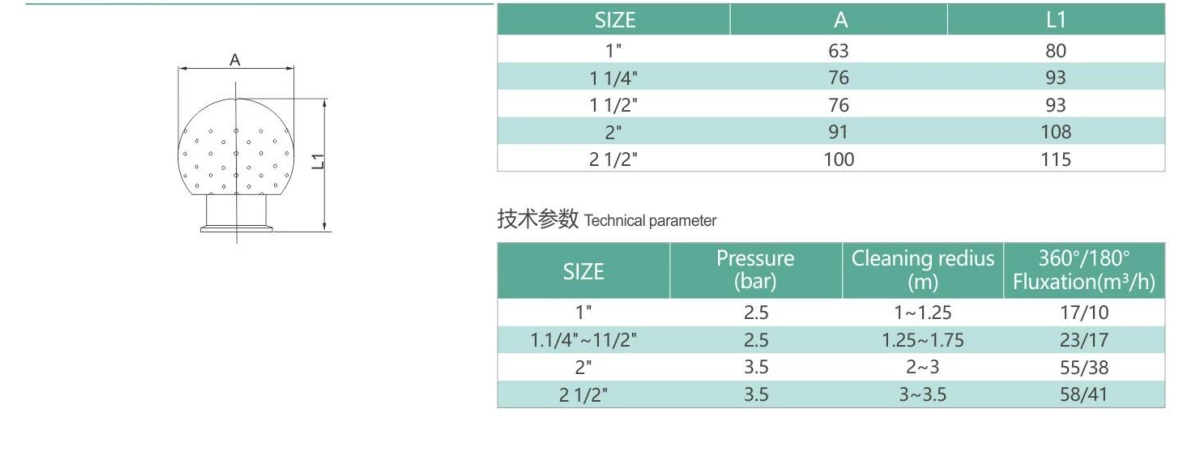

  • Welded type

Stainless Steel Sanitary Spray Ball For Cleaning Use
