Sanitary Stainless Steel 13MHP Clamp Union

Sanitary Stainless Steel 13MHP Clamp Union is featured products in Qili products. All of our sanitary valves, fittings and pumps are made from high quality forging by CNC process center, we do strict quality control since raw material testing. And our management and system are very formal. - Wenzhou Qili Fluid Equipment Co.,ltd.
Material:
SS304 ss316
Standard:
3A, DIN, ISO, BS
Working Temperature:
20-150℃
Application:
Beer, Dairy, Beverage, Pharmacy, Cosmetics
Connection ways:
clamp
Size:
1/2" -12"
Sales Models:
Wholesale and Retail
Surface Treatment:
0.4-0.6μm
Pressure Value:
10bar
Transport Package:
cartons
Sanitary Stainless Steel 13MHP Clamp Union

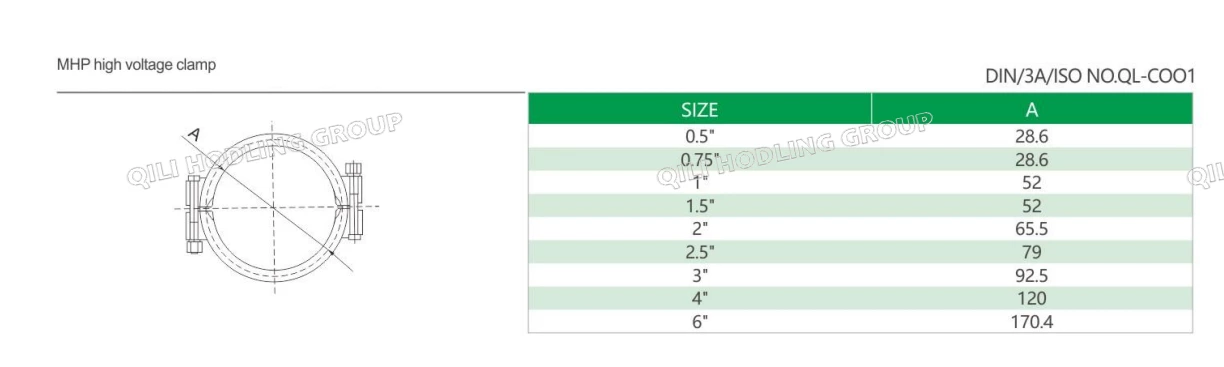

Drawings

Details

Description Sanitary Stainless Steel 13MHP Clamp Union
Part Number M13MHP
Material Stainless Steel 201,304,316L
Finishing Polished #3 #5 #7 electropolish available
Technics Tri-clamp
Size range 1/2”-12”,large size can be customize
Seal(Gasket) EPDM,SILICON,VITON,PTFE,up to customer
Type of ends available Clamp end, Weld end, Male end and Female end, Flange
Standard DIN/SMS/ISO/IDF/3A
Application The pipe holding connection in dairy products, beer, food
and beverage, industry, etc.
Packaging Carton packaging. Wooden case packaging.
