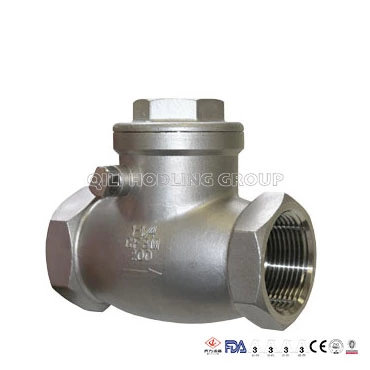

Stainless Steel Swing Female Check Valve
Stainless Steel Swing Female Check Valve is widely used in the industries of oil, chemical, medicine-made, fertilizer, electrical power, etc. Seat seal surface overlaid with wearing resistant hardened alloy to be matched with disc seal surface. - Wenzhou Qili Fluid Equipment Co.,ltd.
- Material:
- SS304,SS316L
- Standard:
- DIN, 3A, SMS, ISO/IDF, BS/RJT
- Working Temperature:
- -10 to 140℃
- Connection ways:
- Welded, clamped, threaded
- Size:
- 2"-24"
- Sales Models:
- Retail and wholesale
- Surface Treatment:
- inner( Ra ≥0.4-0.8μm），outer（0.8-1.6μm）
- Pressure Value:
- 0-10bar
- MOQ:
- 1pc
- Seal Material:
- EPDM, FPM,silicone,VMQ,
- Transport Package:
- cartons
Details
| Description | Stainless Steel Swing Female Check Valve |
| Material | Stainless Steel 304; Stainless Steel 316L (Forged, 1.4301/1.4404) |
| Body Material | Carbon Steel,Stainless Steel, Alloy Steel, Duplex Steel. |
| Design Standard | BS 1873, ASME B16.34,DIN3356 |
| Face to Face | ASME B16.10,EN 558,DIN3202 |
| Operation | Handwheel,Gear, Electric, Pnuematic,Hydraulic. |
| Max. Pressure | 10bar (140psi) DN25 ~ 100; 8bar (120psi) DN125 ~ 150 |
| Rating | ANSI 150LB-600LB |
| Port Size | 2” -- 24”, DN50-DN600 |
| Connection | Female |
| Inspection and Test | API 598,DIN3230 |
| Trim | Per API 600 |
| Specifications | Can see our products catalogues |
| Application | Food process, Milk process, Beer brewage, Bio-pharmacy, etc. |
