Sanitary Check Valve

Stainless Steel Sanitary Y-type Non Return Check Valve

Material:
SS304,SS316L
Standard:
DIN, 3A, SMS, ISO/IDF, BS/RJT
Working Temperature:
-10 to 140℃
Connection ways:
Welded, clamped, threaded
Size:
1.5-4"
Sales Models:
Retail and wholesale
Surface Treatment:
inner( Ra ≥0.4-0.8μm),outer(0.8-1.6μm)
Pressure Value:
0-10bar
MOQ:
1pc
Seal Material:
EPDM, FPM,silicone,VMQ,
Transport Package:
cartons
Contact Now Download PDF

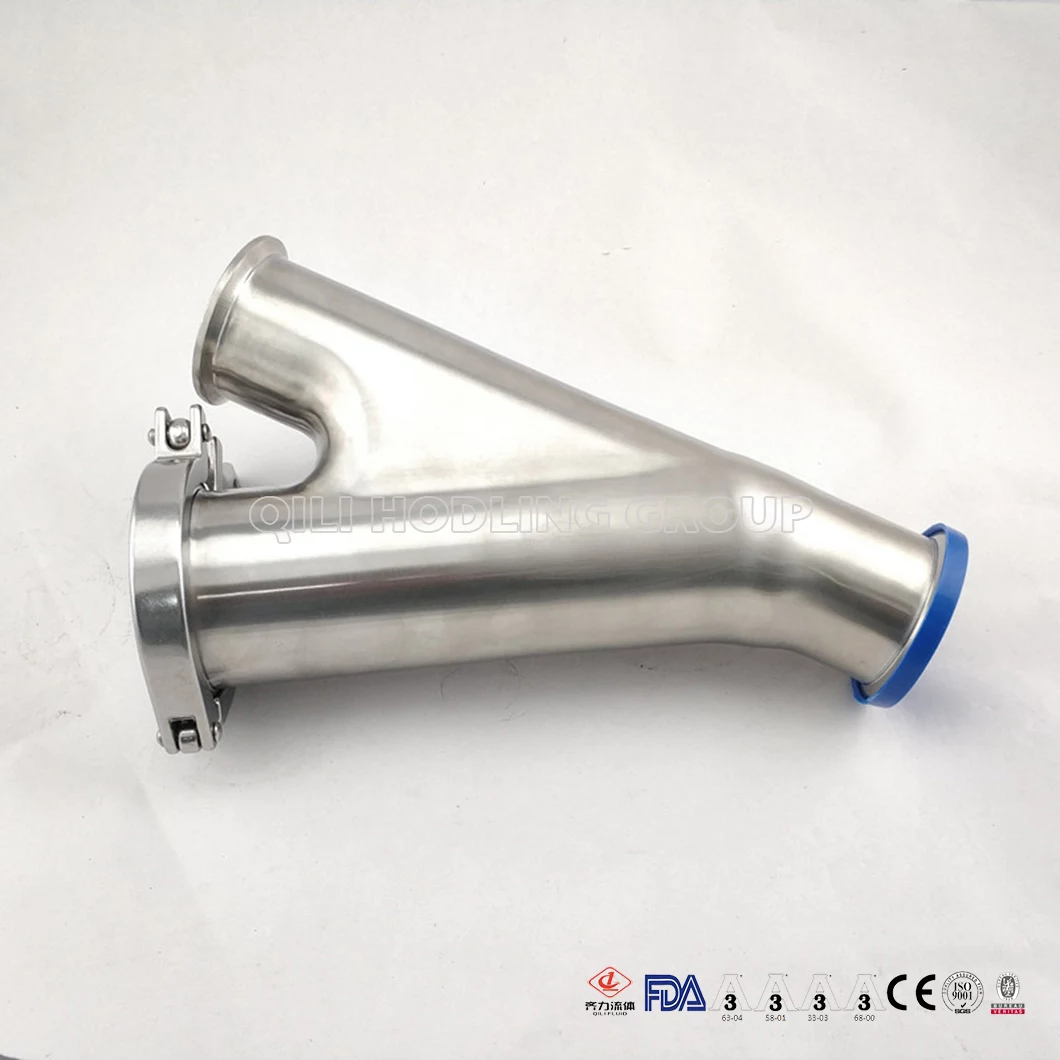

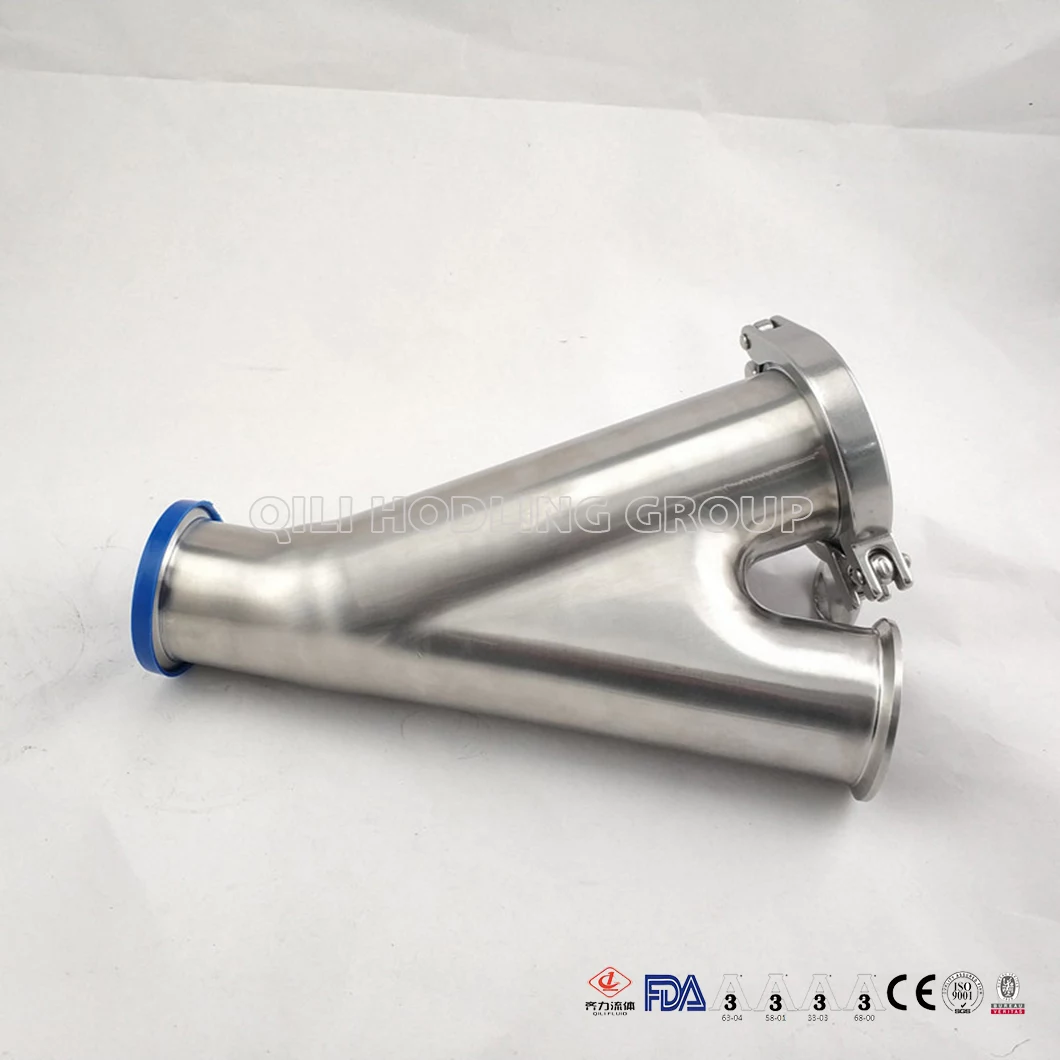

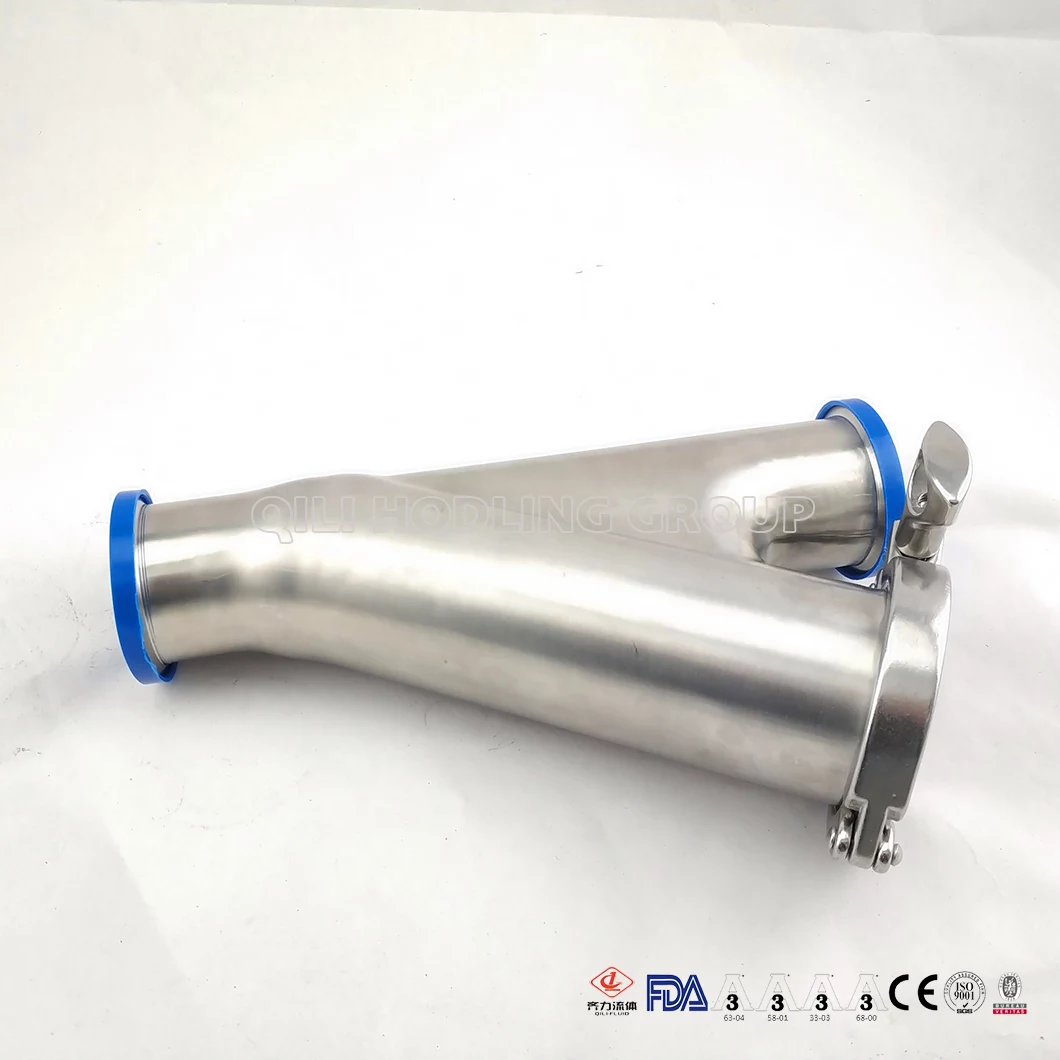

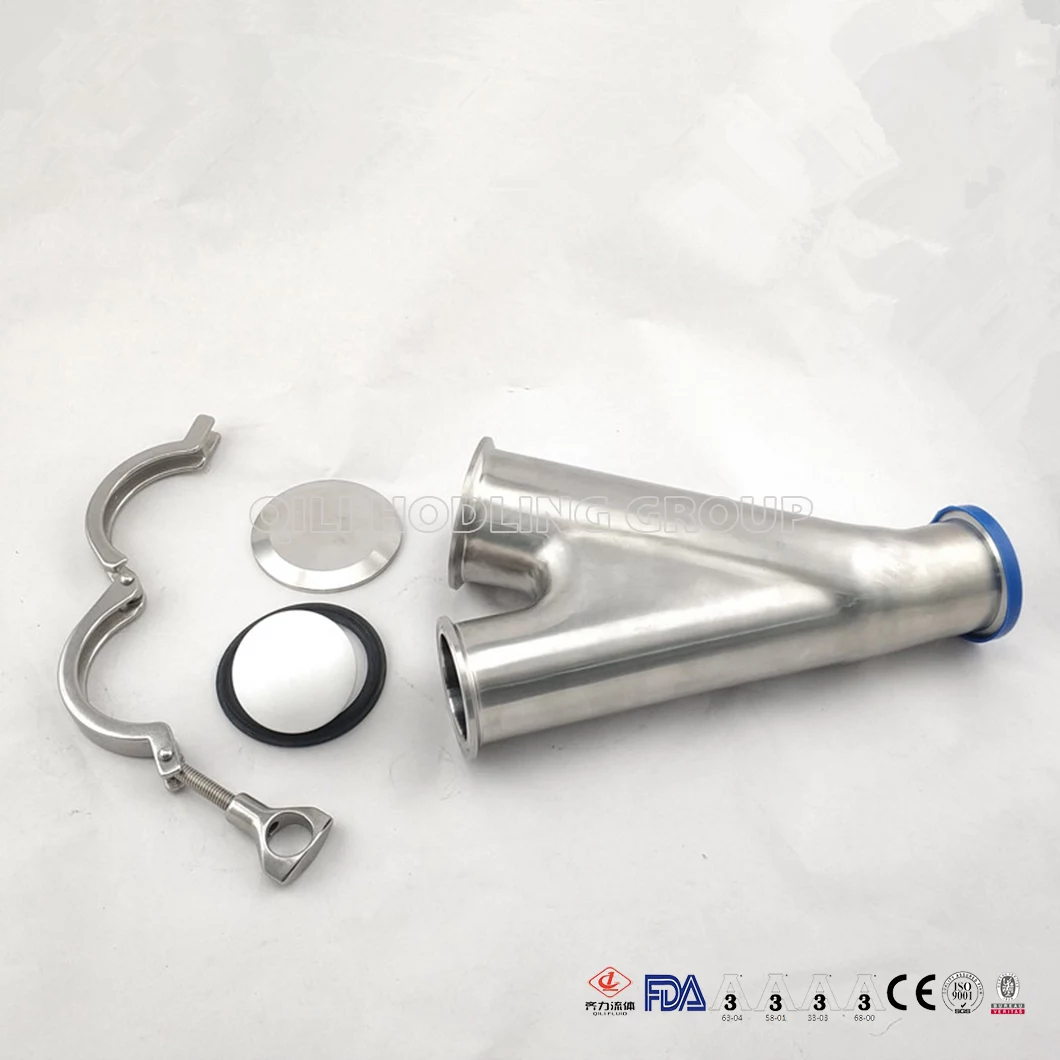

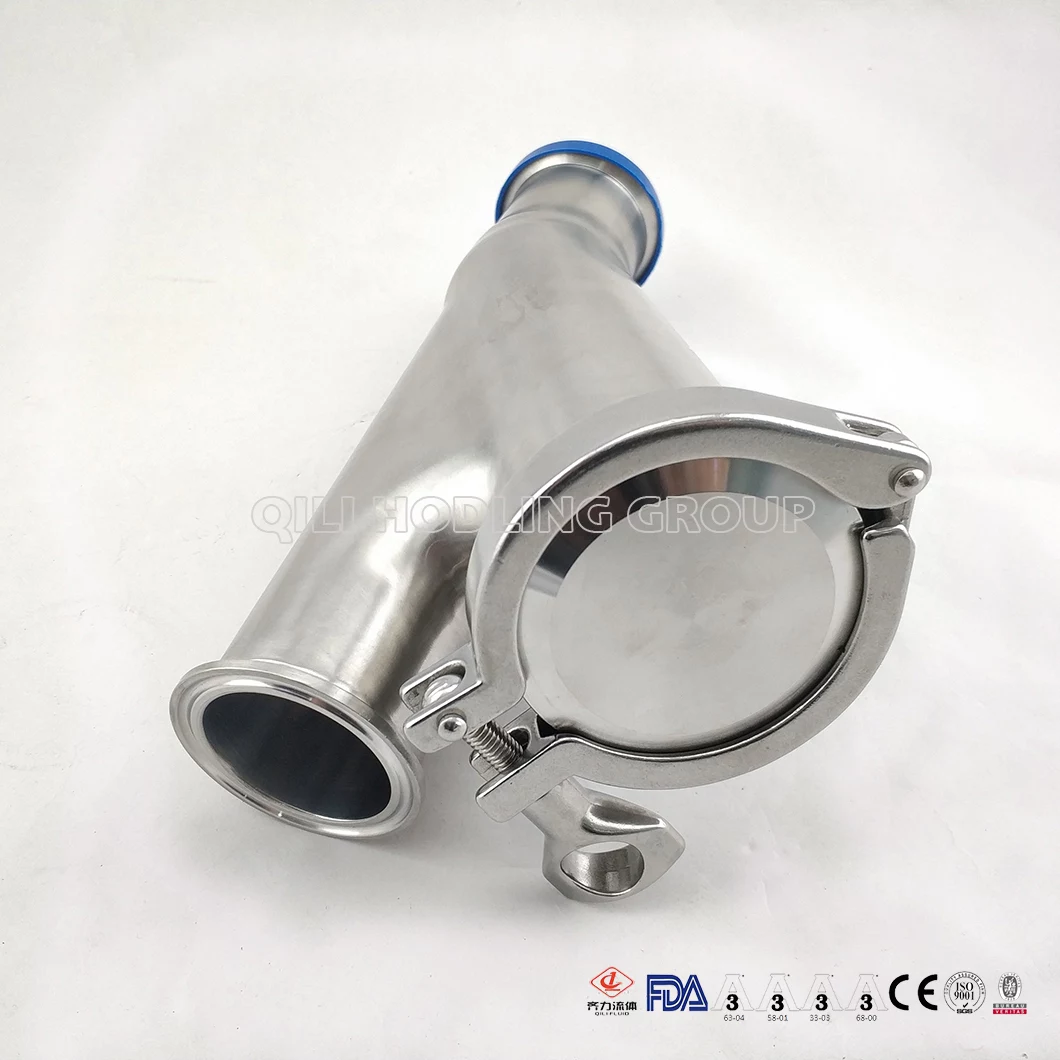

Stainless Steel Sanitary Y-type Non Return Check Valve
Stainless Steel Sanitary Y-type Non Return Check Valve Stainless Steel Sanitary Y-type Non Return Check Valve Stainless Steel Sanitary Y-type Non Return Check Valve Stainless Steel Sanitary Y-type Non Return Check Valve Stainless Steel Sanitary Y-type Non Return Check Valve Stainless Steel Sanitary Y-type Non Return Check Valve

Details

Specification
Standard SMS,DIN,3A,IDF,ISO
material SS304,SS304L,SS316,SS316L
Size 1.5-4"
Seal ring of stem EPDM. VITON OR SILICON is required
Connection ends Butt-welded,clamped,male ends,union ends
External surface Bright gloss,dull gloss
Bright gloss,dull gloss Manual
Working temperature -20Celsius degree~+135Celsius degree
Max. working pressure 10Bar

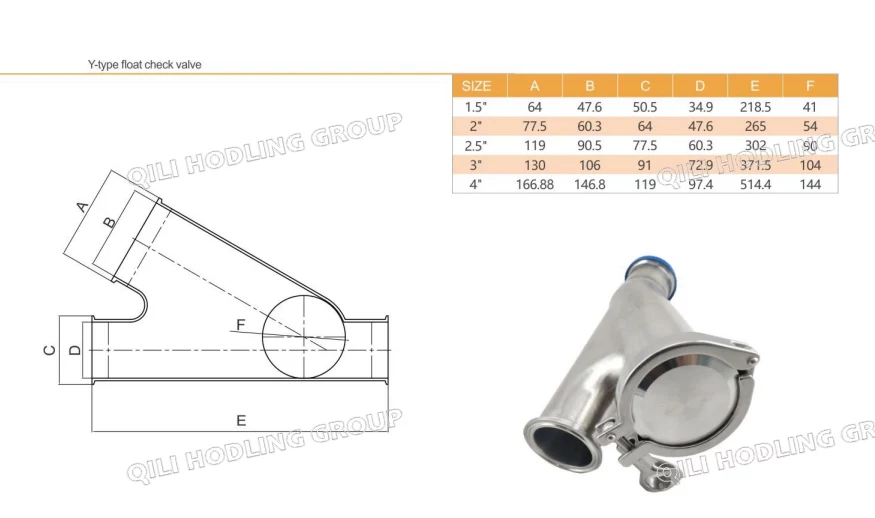

Drawings

Application

Our Check Valves are designed to prevent reverse flow.Concentric and eccentric styles as well as our tapered disk design are available for horizontal,vertical applications and are working well without leaking while getting a returnpressure.Our special designed Check valve can be using for many applications in such as food, dairy, beverage,pharmaceutical, chemical, and many other industries
