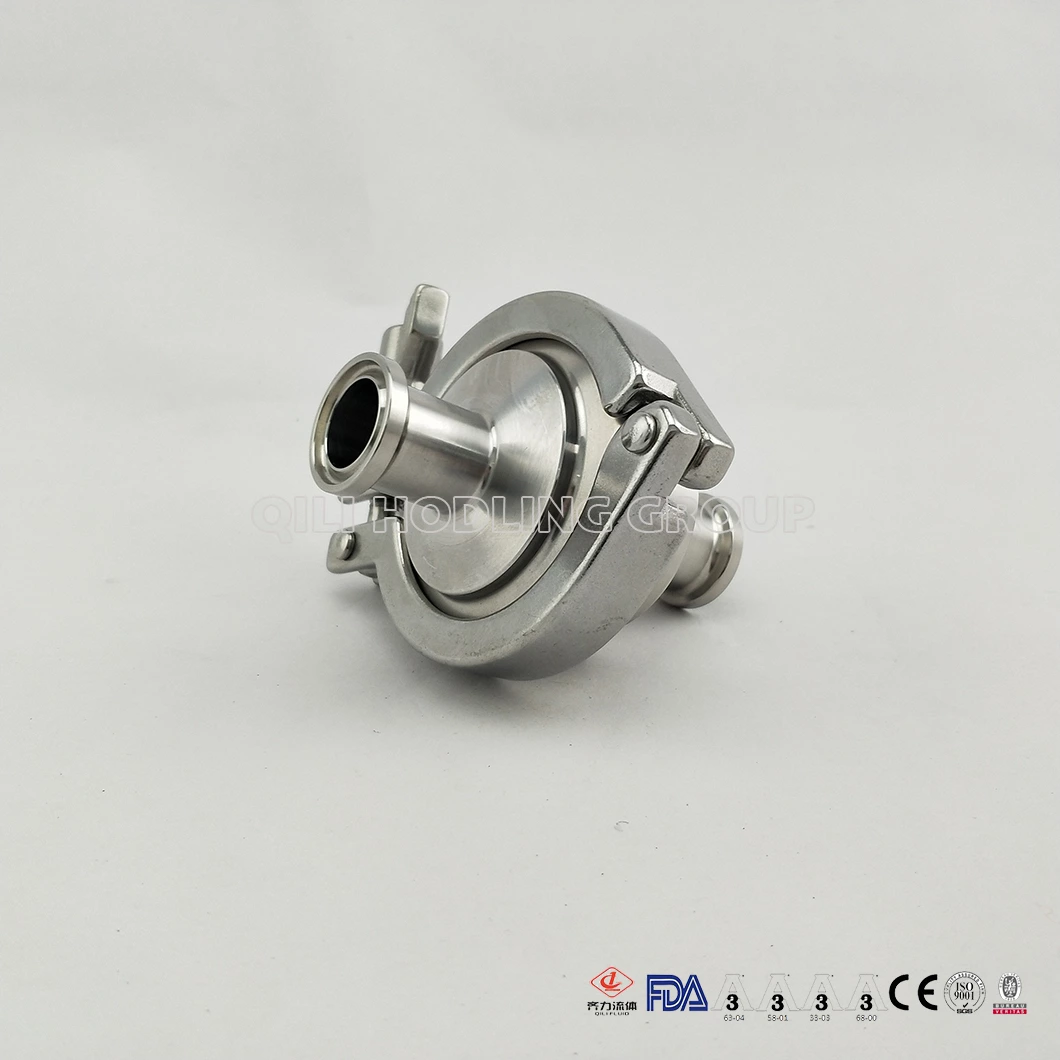

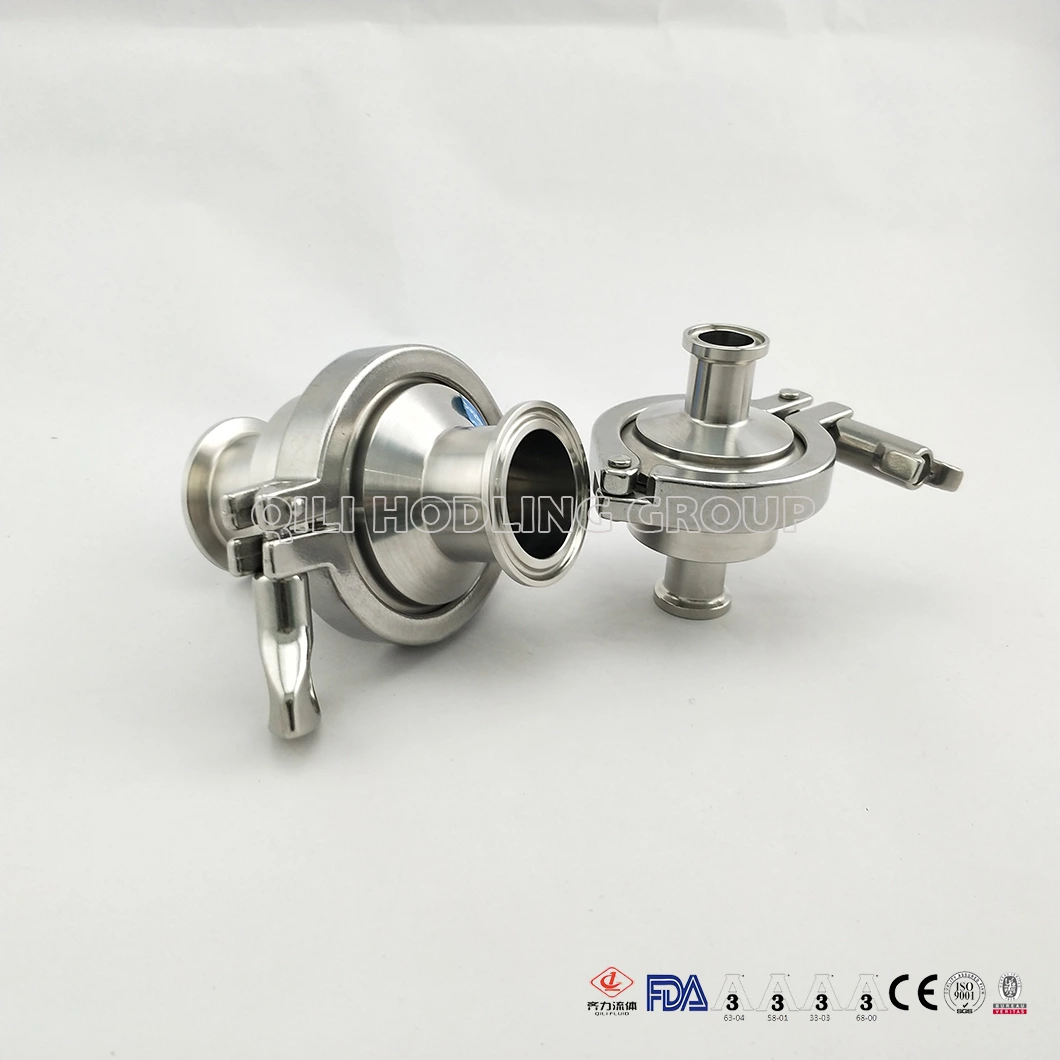

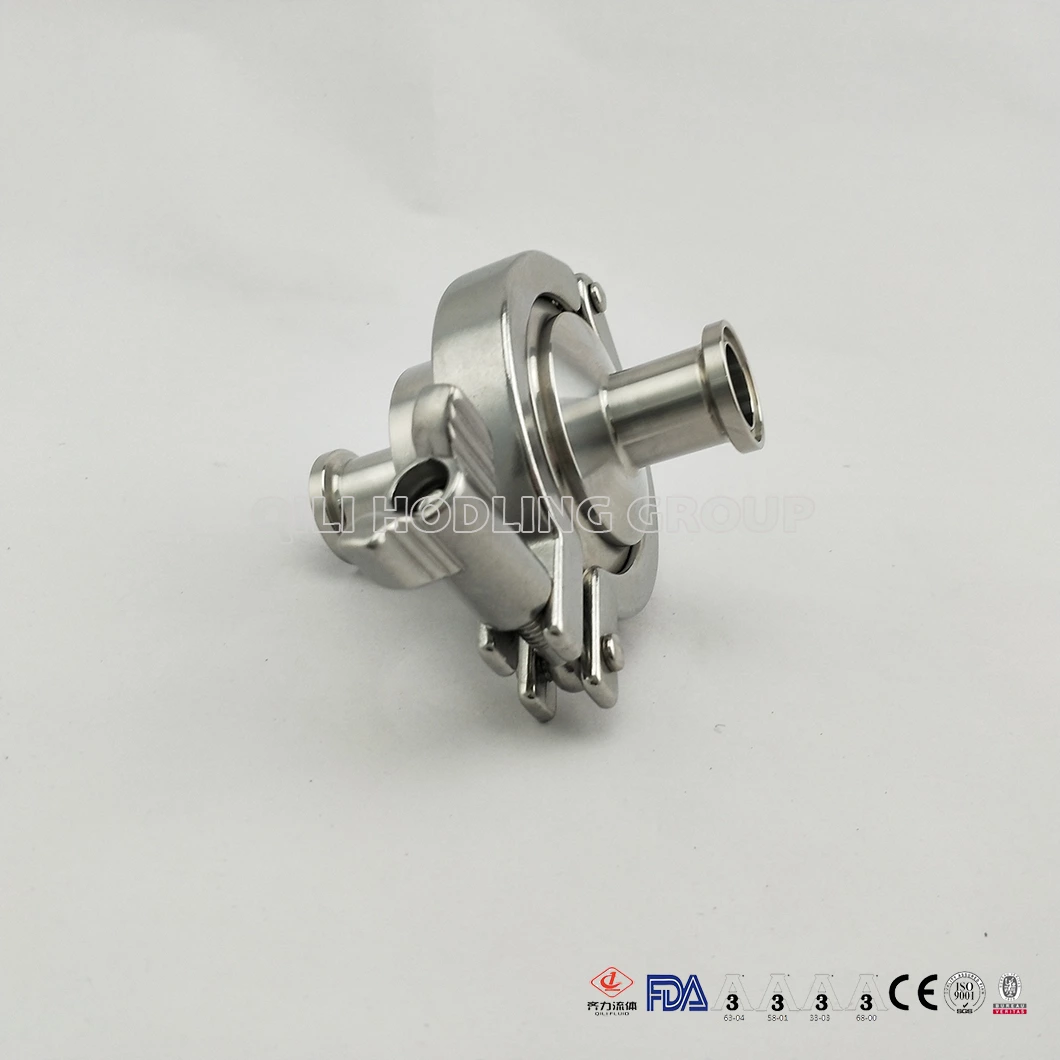

Stainless Steel Sanitary Non Return Check Valve

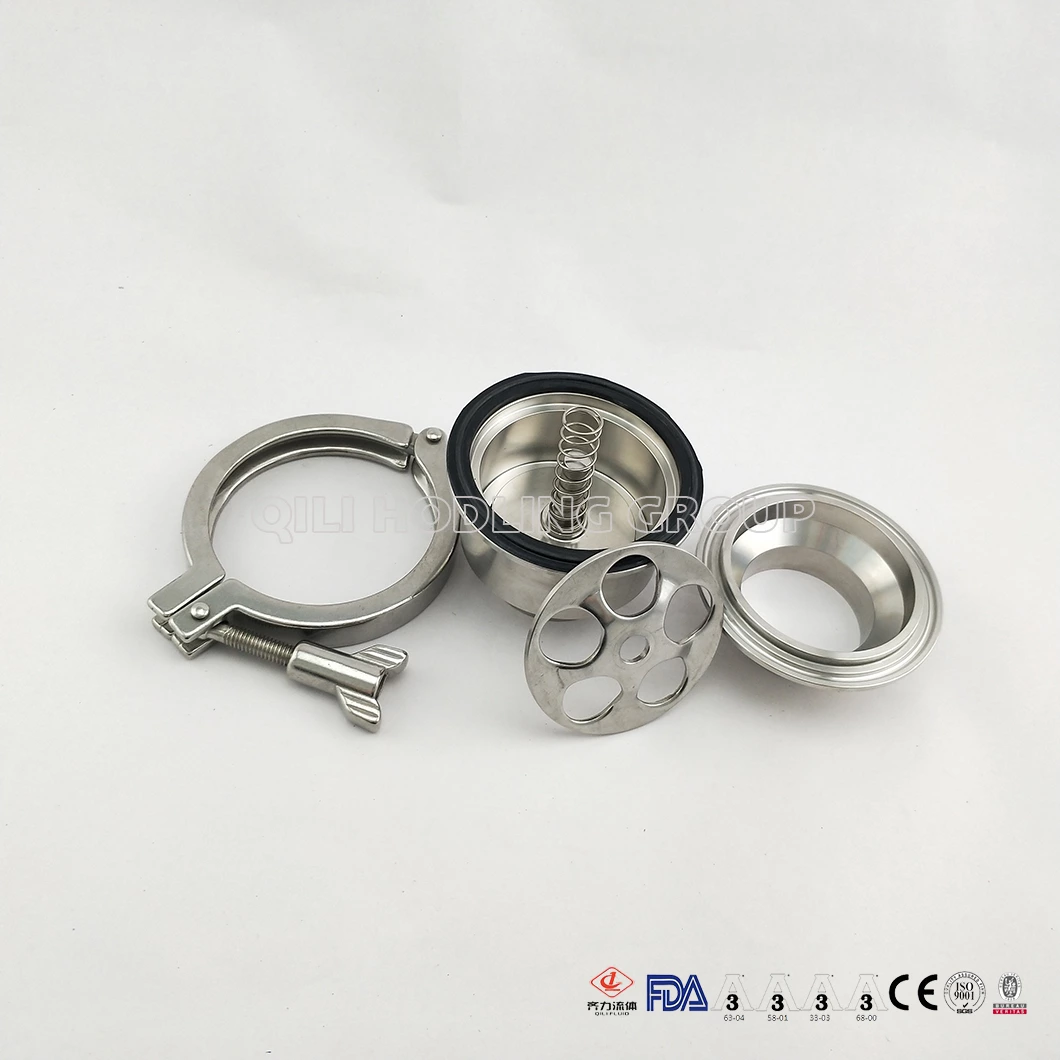

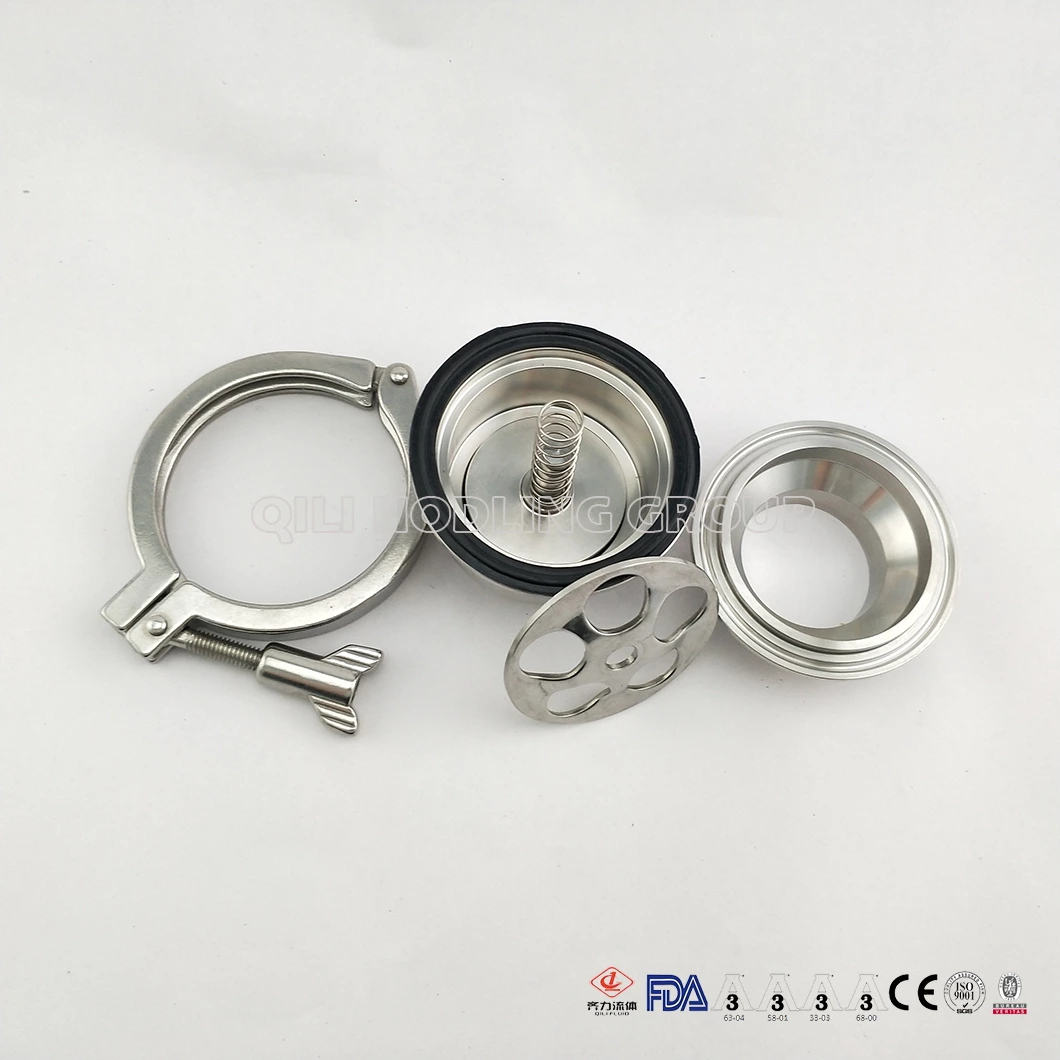

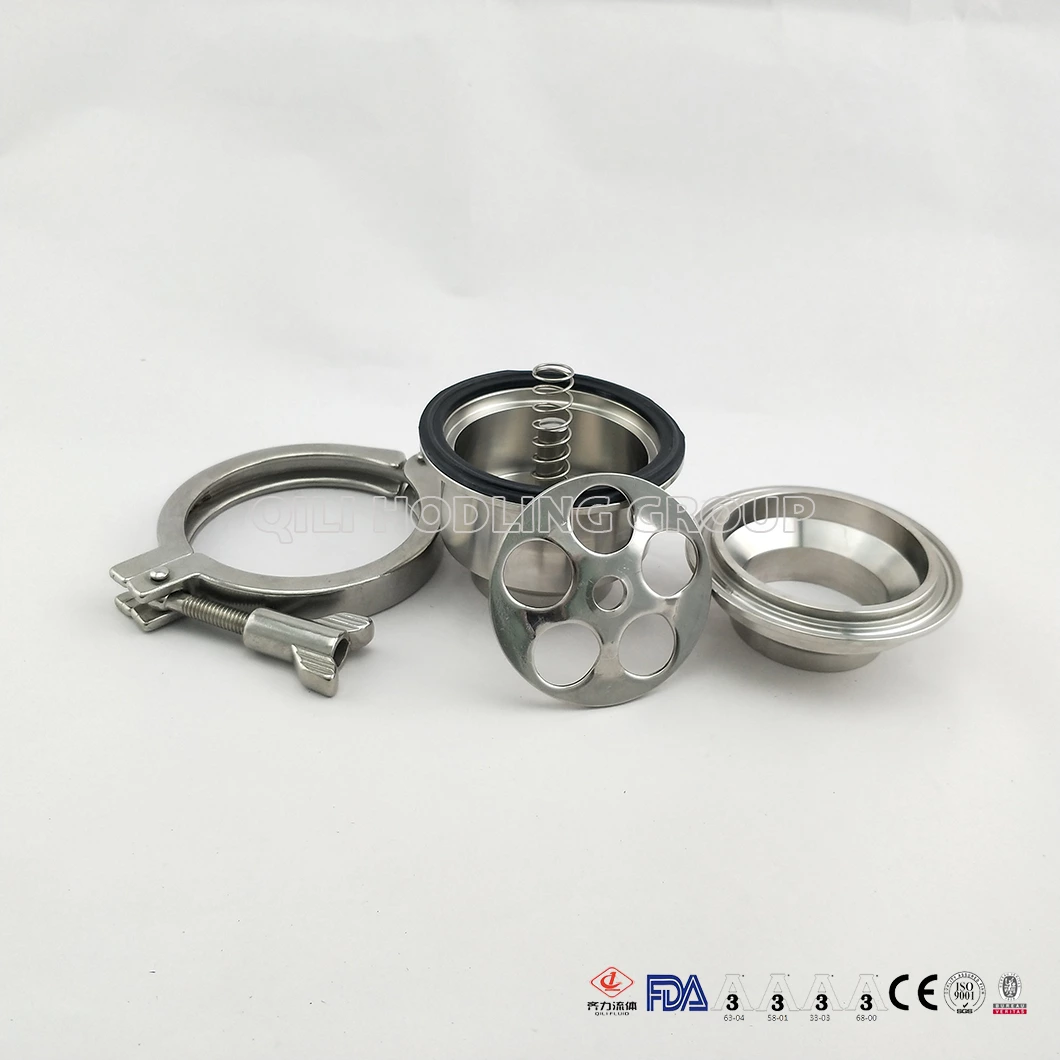

Part name:Short body,long body,SS srcew,O-ring,Seal ring,SS spring,Flow support plate and Disc
Packing&Shipping information and pictures of Sanitary Stainless Steel NRV Check Valves
Port: Shanghai Port or Ningbo Port,China
MOQ: 5Sets
Supply ability: 5,000 pieces/month
Payment terms: T/T, Paypal, L/C
Packaging: Shrink wrapped-in seaworthy wooden cased
Delivery time: depends on quantity
Shipping mode:By sea,by air,by express
- Material:
- SS304,SS316L
- Standard:
- DIN, 3A, SMS, ISO/IDF, BS/RJT
- Working Temperature:
- -10 to 140℃
- Connection ways:
- Welded, clamped, threaded
- Size:
- 1/2-4", DN25-DN100
- Sales Models:
- Retail and wholesale
- Surface Treatment:
- inner( Ra ≥0.4-0.8μm），outer（0.8-1.6μm）
- Pressure Value:
- 0-10bar
- MOQ:
- 1pc
- Seal Material:
- EPDM, FPM,silicone,VMQ,
- Transport Package:
- cartons
Details
| Standard | SMS,DIN,3A,IDF,ISO |
| SMS,DIN,3A,IDF,ISO | SS304,SS304L,SS316,SS316L |
| Size | 1/2-4",DN25-DN100 |
| Seal ring of stem | EPDM. VITON OR SILICON is required |
| Connection ends | Butt-welded,clamped,male ends,union ends |
| External surface | Bright gloss,dull gloss |
| Bright gloss,dull gloss | Manual |
| Working temperature | -20Celsius degree~+135Celsius degree |
| Max. working pressure | 10Bar |

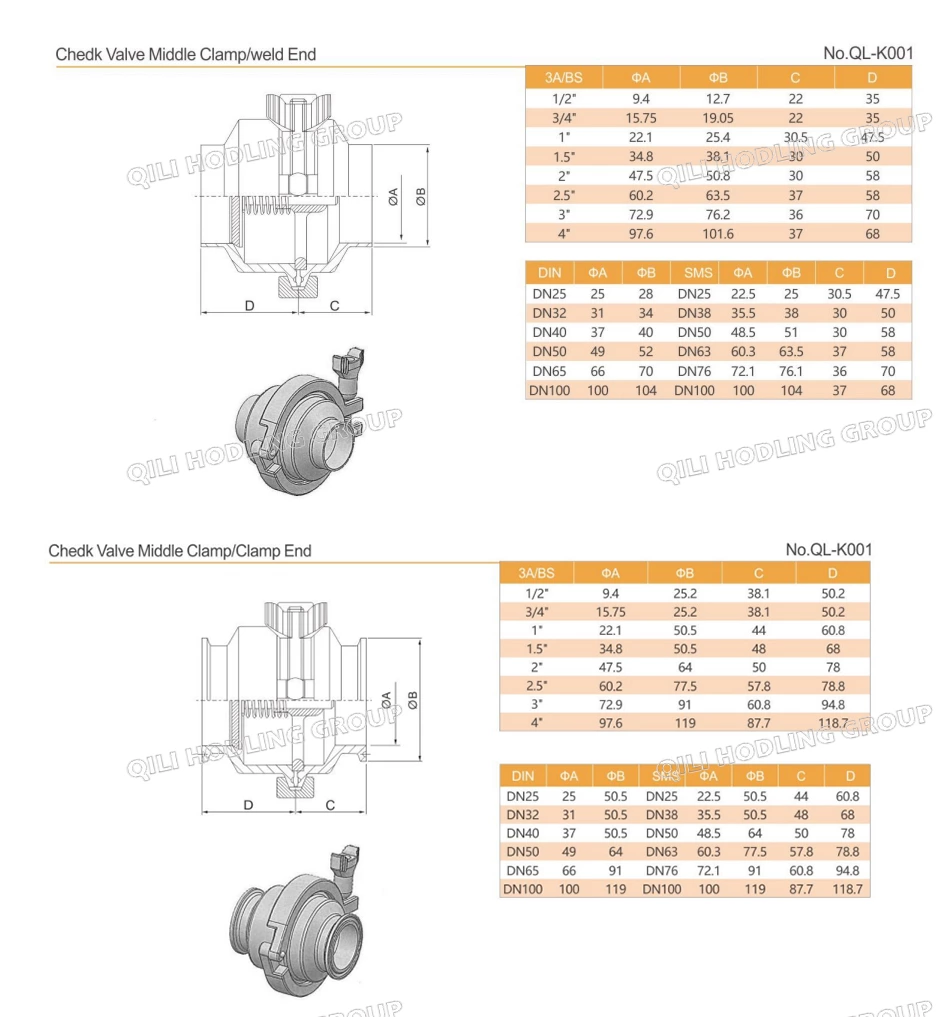

Drawings
Application
Our Check Valves are designed to prevent reverse flow.Concentric and eccentric styles as well as our tapered disk design are available for horizontal,vertical applications and are working well without leaking while getting a returnpressure.Our special designed Check valve can be using for many applications in such as food, dairy, beverage,pharmaceutical, chemical, and many other industries
