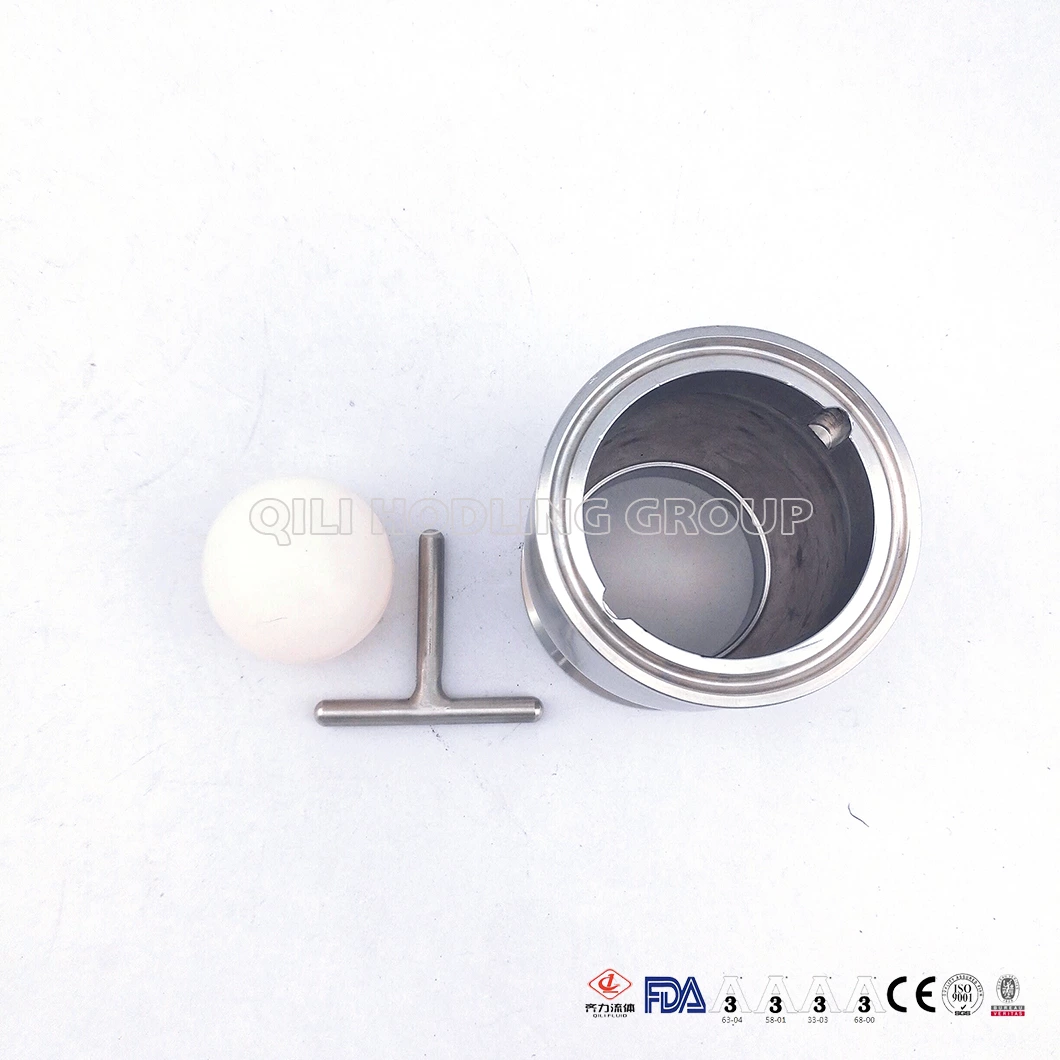

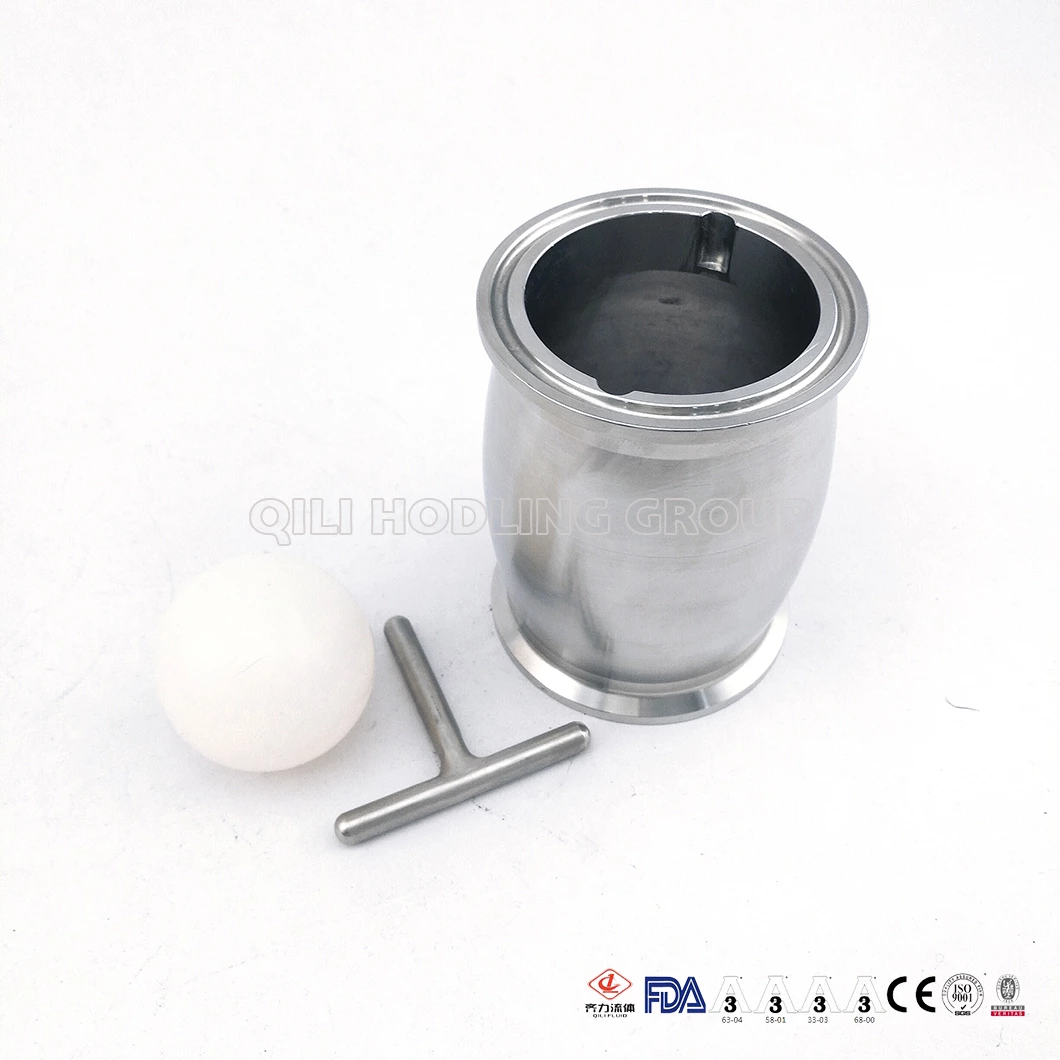

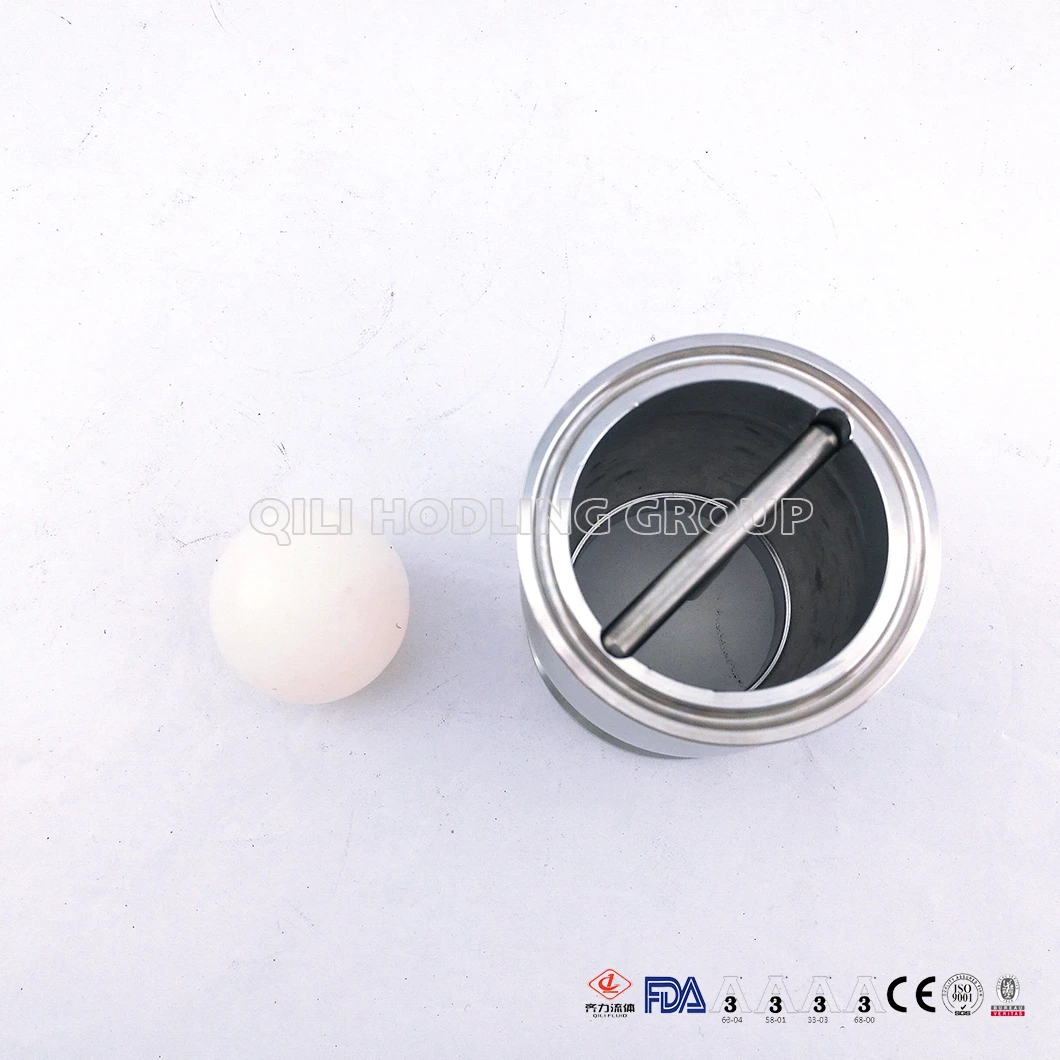

Stainless Steel Sanitary Check Valve Ball Type with Manual Drain
Our Check Valves are designed to prevent reverse flow.Concentric and eccentric styles as well as our tapered disk design are available for horizontal,vertical applications and are working well without leaking while getting a returnpressure.Our special designed Check valve can be using for many applications in such as food, dairy, beverage,pharmaceutical, chemical, and many other industries.
- Material:
- SS304,SS316L
- Standard:
- DIN, 3A, SMS, ISO/IDF, BS/RJT
- Working Temperature:
- -10 to 140℃
- Connection ways:
- Welded, clamped, threaded
- Size:
- 2"
- Sales Models:
- Retail and wholesale
- Surface Treatment:
- inner( Ra ≥0.4-0.8μm），outer（0.8-1.6μm）
- Pressure Value:
- 0-10bar
- MOQ:
- 1pc
- Seal Material:
- EPDM, FPM,silicone,VMQ,
- Transport Package:
- cartons
Details
| Connection end | Weld, tri-clamped, male thread or reducer |
| Standard | DIN, SMS, 3A |
| Material | SS304, SS316L |
| Inside surface finish | Ra0.4 |
| Size | 2" |
| Application | Food, beverage, dairy, pharmacy, chemical or any food processing industries |

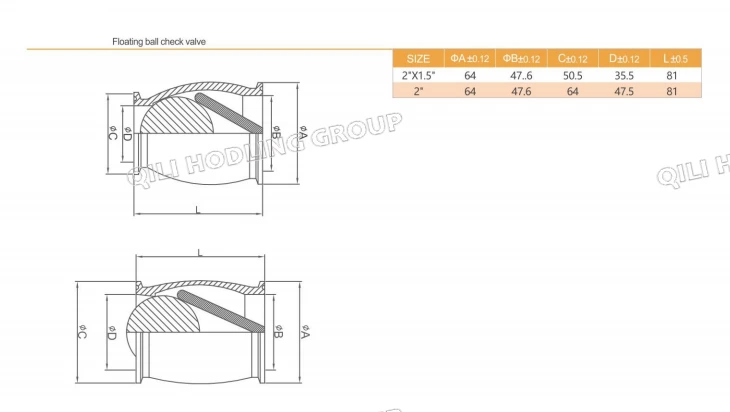

Drawings
More information
- Valve body is made from forging or round steel .
- Valve body type: clamped or nut type
- Materail of ball : EPDM, silicone or PTEF
- Max. Pressure: 10BAR
- Min. Pressure:0.2BAR
- Compact design, easy maintenance and high torque
