Stainless Steel Air Blow Check Valve

Stainless Steel Sanitary Non Return Clamped Check Valve is a type of valve which open or close rely on the medium flow itself. The check valve disc will open when the pressure of stem bottom exceed the stem above. The check valve disc will close when the two pressure are equaled. So that the flow goes one way in the pipeline, and prevent the fluid flowing back, avoid the accidents.Various standards of valves can be provided to clients: DIN, 3A, SMS, ISO/IDF, BS/RJT, ASME/BPE etc.
Material:
SS304,SS316L
Standard:
DIN, 3A, SMS, ISO/IDF, BS/RJT
Working Temperature:
-10 to 140℃
Connection ways:
Welded, clamped, threaded
Size:
DN15-DN100, 1/2"-4"
Sales Models:
Retail and wholesale
Surface Treatment:
inner( Ra ≥0.4-0.8μm),outer(0.8-1.6μm)
Pressure Value:
0-10bar
MOQ:
1pcs
Seal Material:
EPDM, FPM,silicone,VMQ,
Transport Package:
cartons

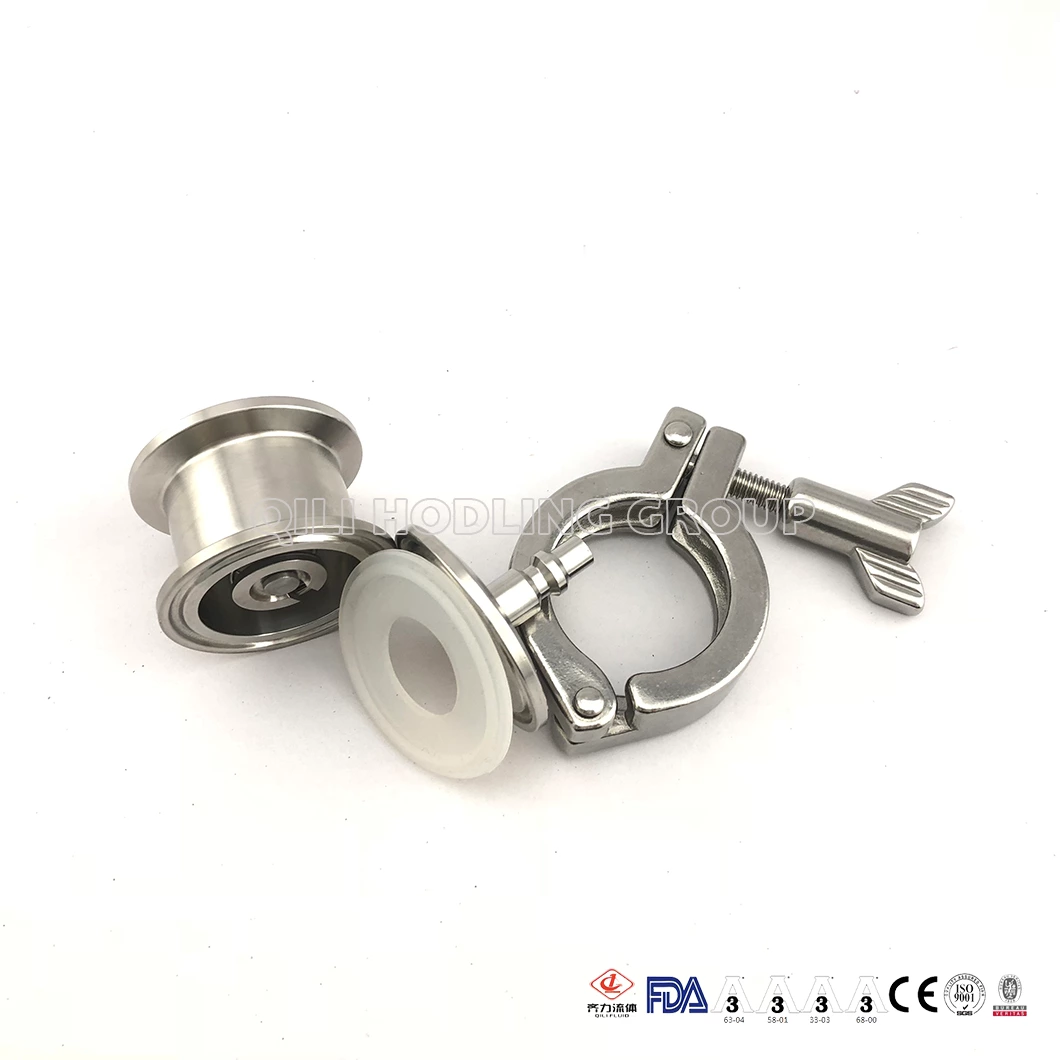

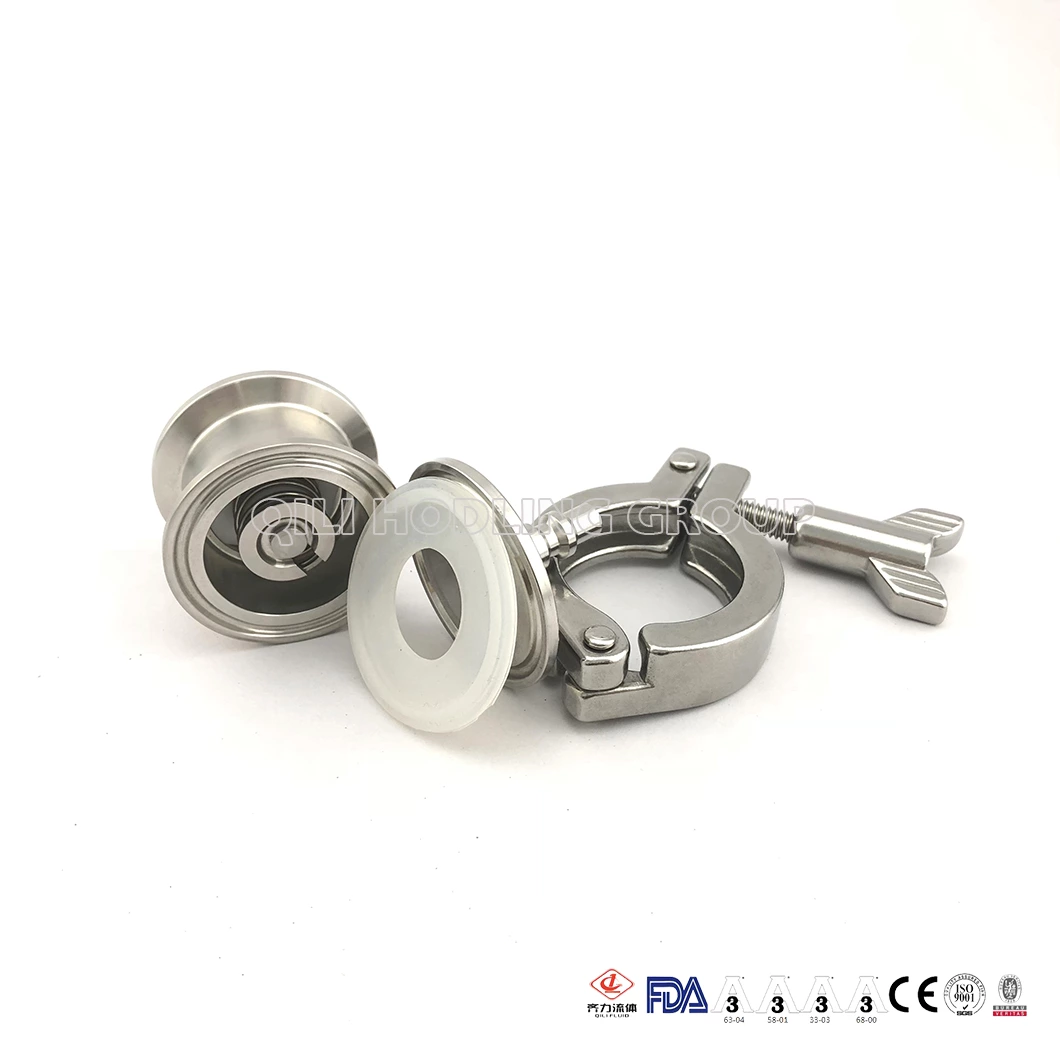

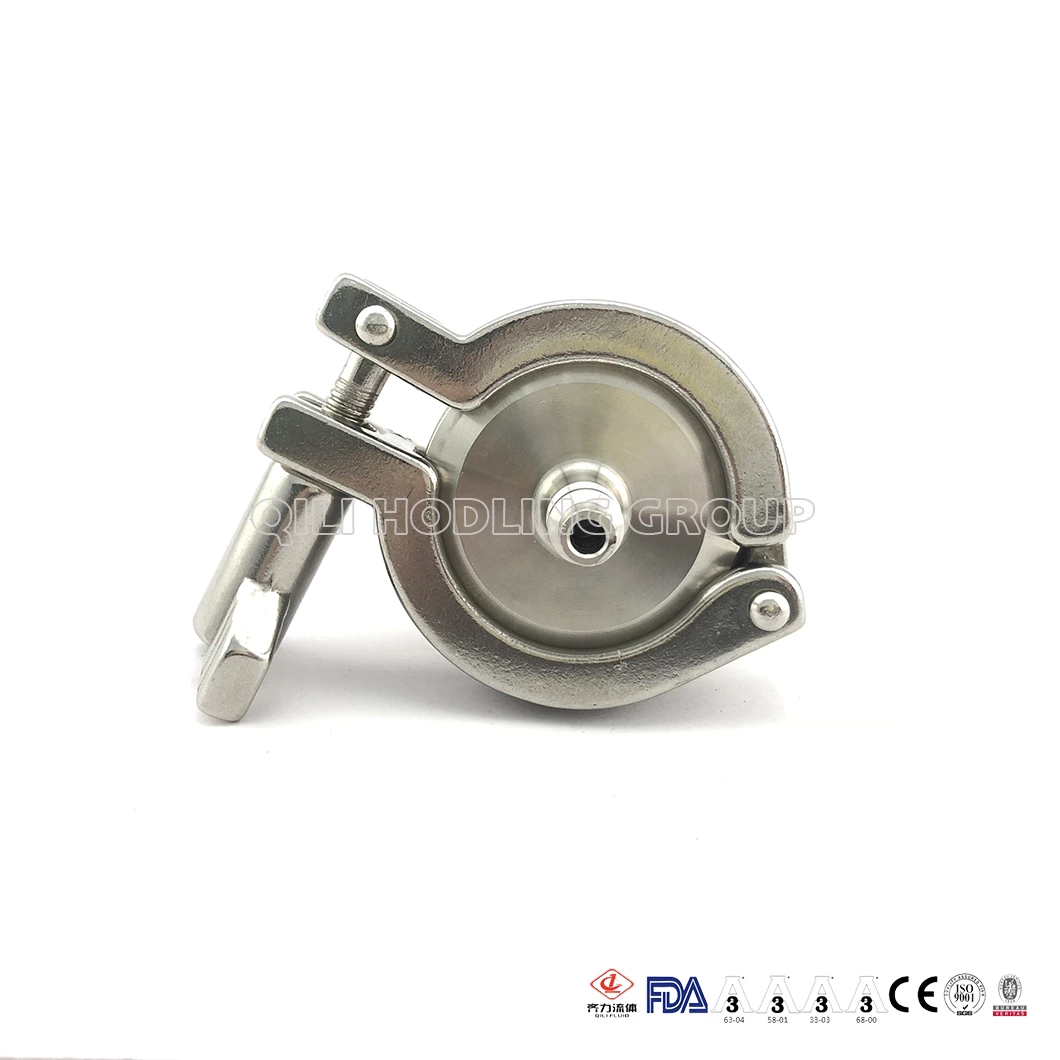

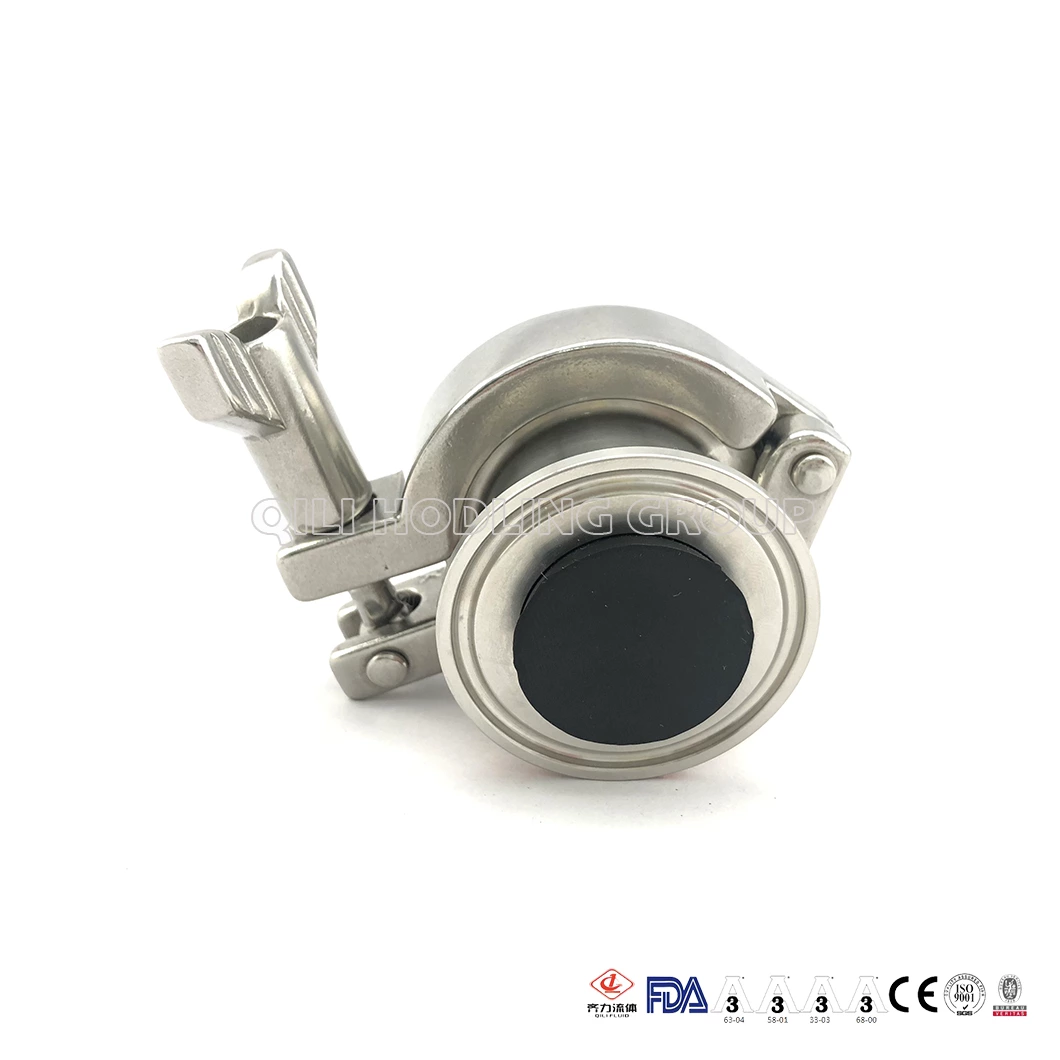

Stainless Steel Air Blow Check Valve
Stainless Steel Air Blow Check Valve Stainless Steel Air Blow Check Valve Stainless Steel Air Blow Check Valve Stainless Steel Air Blow Check Valve Stainless Steel Air Blow Check Valve

Details

  • Standard:SMS,DIN,3A,IDFISO
  • Material:SS304,SS304L,SS316,SS316L
  • Size:3/4"-6",DN19-DN150.Can be customized
  • Seal ring of stem:EPDM. VITON OR SILICON is required
  • Connection ends:Butt-welded,clamped,male ends,union ends
  • External surface:Bright gloss,dull gloss,Bright gloss,dull gloss
  • Working temperature:-20Celsius degree -- +135Celsius degree
  • Max. working pressure:10Bar

More information

Our Non Return Clamped Check Valves are designed to prevent reverse flow.Concentric and eccentric styles as well as our tapered disk design are available for horizontal,vertical applications and are working well without leaking while getting a return pressure.Our special designed Check valve can be used for many applications in such as food, dairy, beverage,pharmaceutical, chemical, and many other industries.

Stainless Steel Sanitary Non Return Clamped Check Valve is a type of valve which open or close rely on the medium flow itself. The check valve disc will open when the pressure of stem bottom exceed the stem above. The check valve disc will close when the two pressure are equaled. So that the flow goes one way in the pipeline, and prevent the fluid flowing back, avoid the accidents.Various standards of valves can be provided to clients: DIN, 3A, SMS, ISO/IDF, BS/RJT, ASME/BPE etc.
