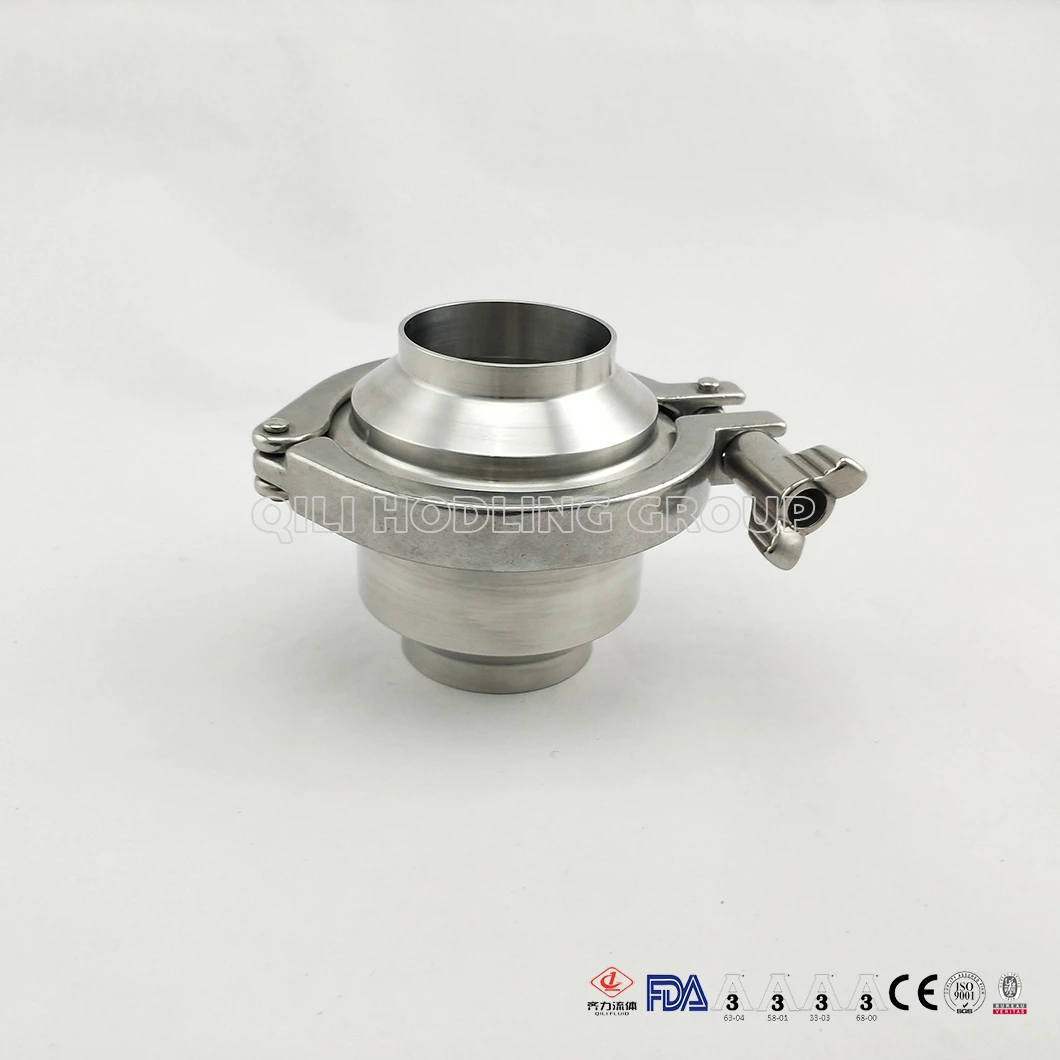

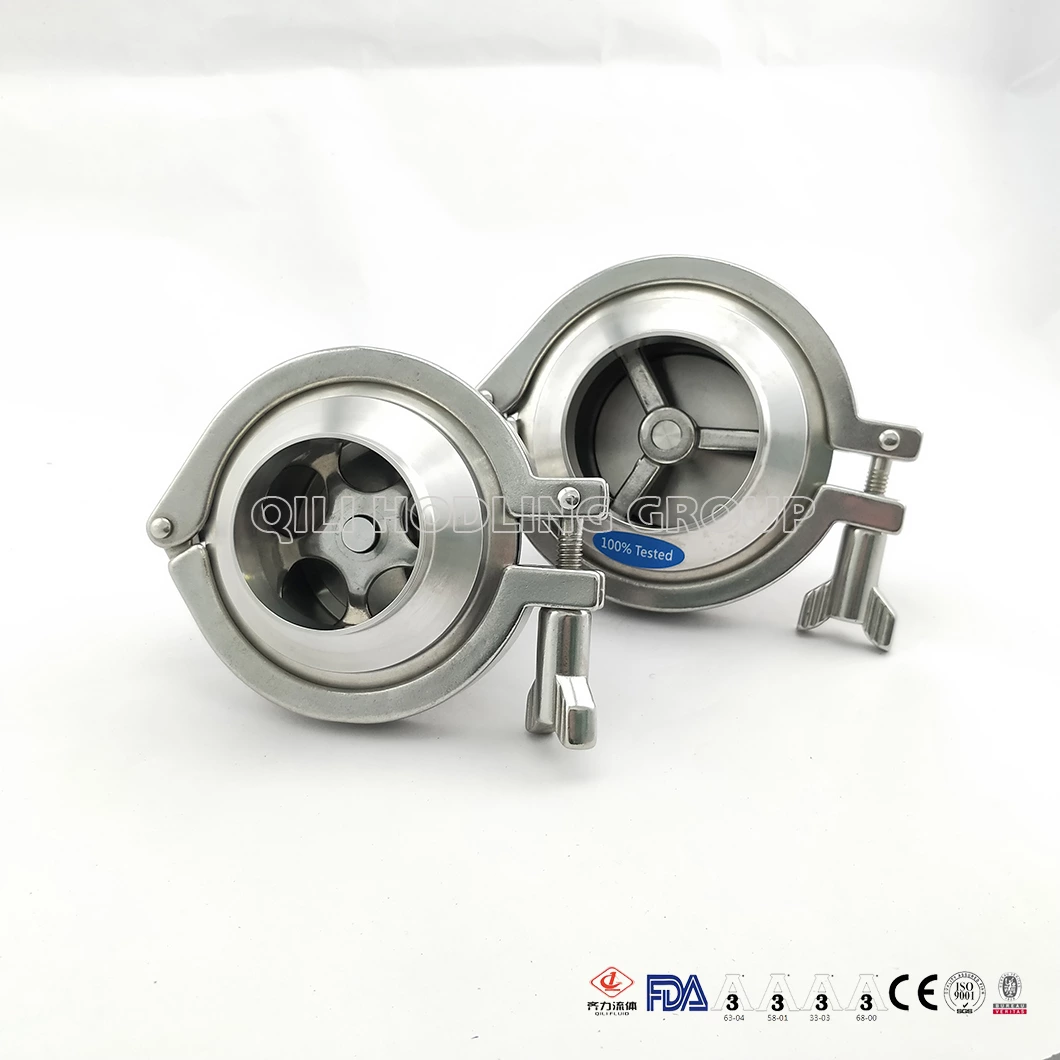

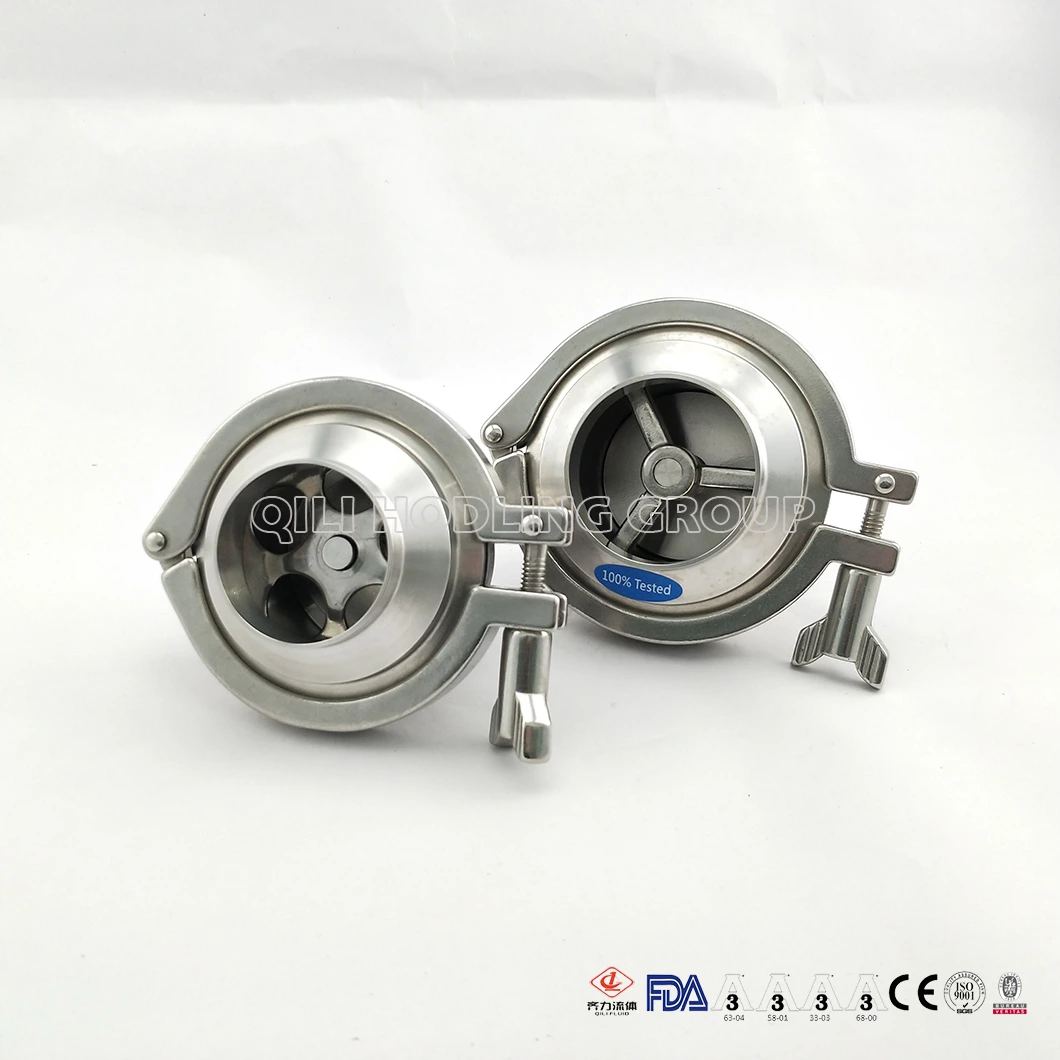

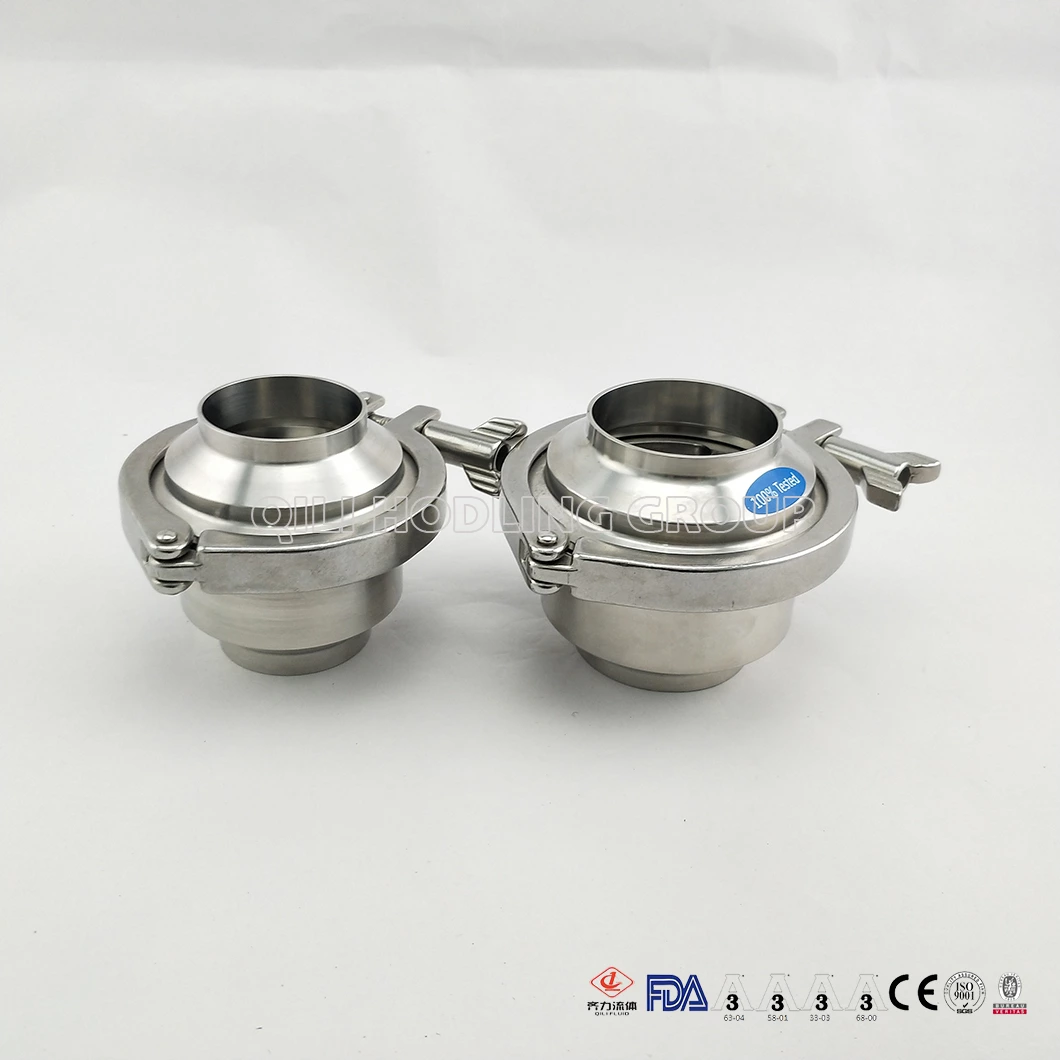

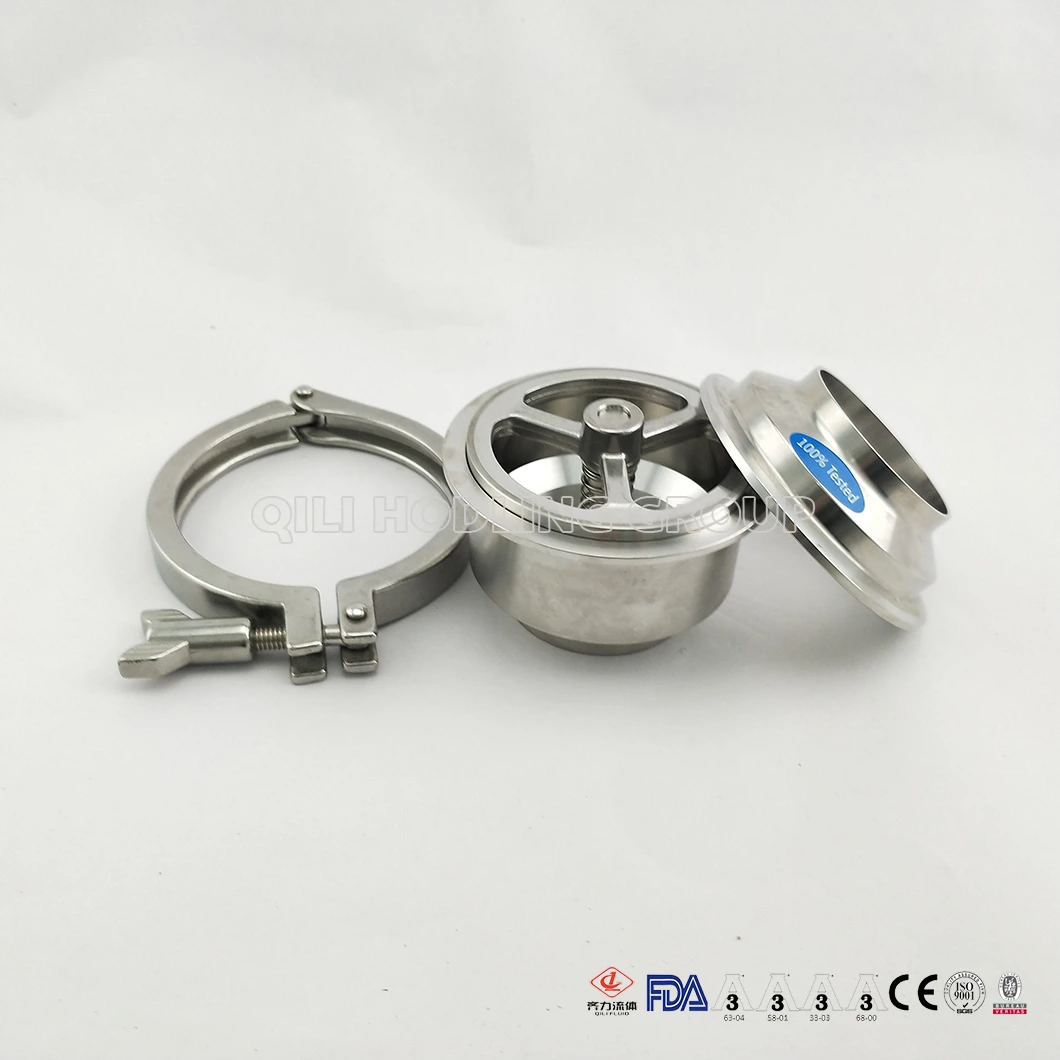

SS 304 Sanitary Stainless Steel Double Weld Non Return
SS 304 Sanitary Double Weld Non Return, can be used on dairy products, beer, food, beverage, pharmacy, and bioengineering industry, etc. - Wenzhou Qili Fluid Equipment Co.,ltd.
- Material:
- SS304,SS316L
- Standard:
- DIN, 3A, SMS, ISO/IDF, BS/RJT
- Working Temperature:
- -10 to 140℃
- Connection ways:
- Welded, clamped, threaded
- Size:
- DN25-DN100,1/2-4"
- Sales Models:
- Retail and wholesale
- Surface Treatment:
- inner( Ra ≥0.4-0.8μm），outer（0.8-1.6μm）
- Pressure Value:
- 0-10bar
- MOQ:
- 1pc
- Seal Material:
- EPDM, FPM,silicone,VMQ,
- Transport Package:
- cartons
Details
| Description | SS 304 Sanitary Double Weld Non Return |
| Material | Stainless Steel 304; Stainless Steel 316L (Forged, 1.4301/1.4404) |
| Structure | Swing |
| Function | Ddcv Double Lobe |
| Temperature | -20°C to 135°C |
| Pressure | 10 Bar |
| Size | 1/2-4“,dn25-dn100 |
| Connection | Butt-welded, clamped, male ends,union ends. |
| Standard | 3A , SMS , ISO, DIN, IDF. |
| Features | 100% hydraulic tested / 100% inspected |
| External surface | Bright gloss, dull gloss. |
| Application | Food process, Milk process, Beer brewage, Bio-pharmacy, etc. |
| Packaging | Carton packaging. Wooden case packaging. |
Drawings
