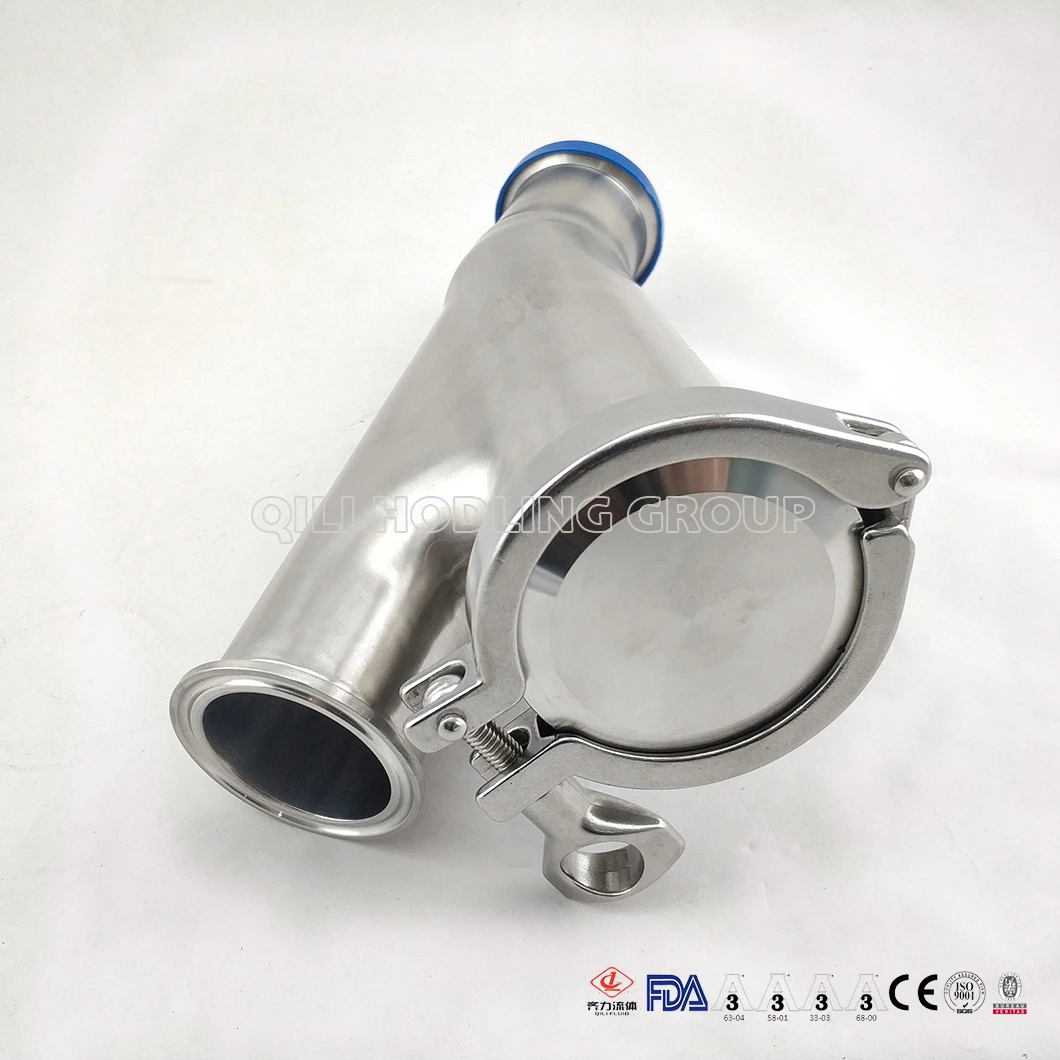

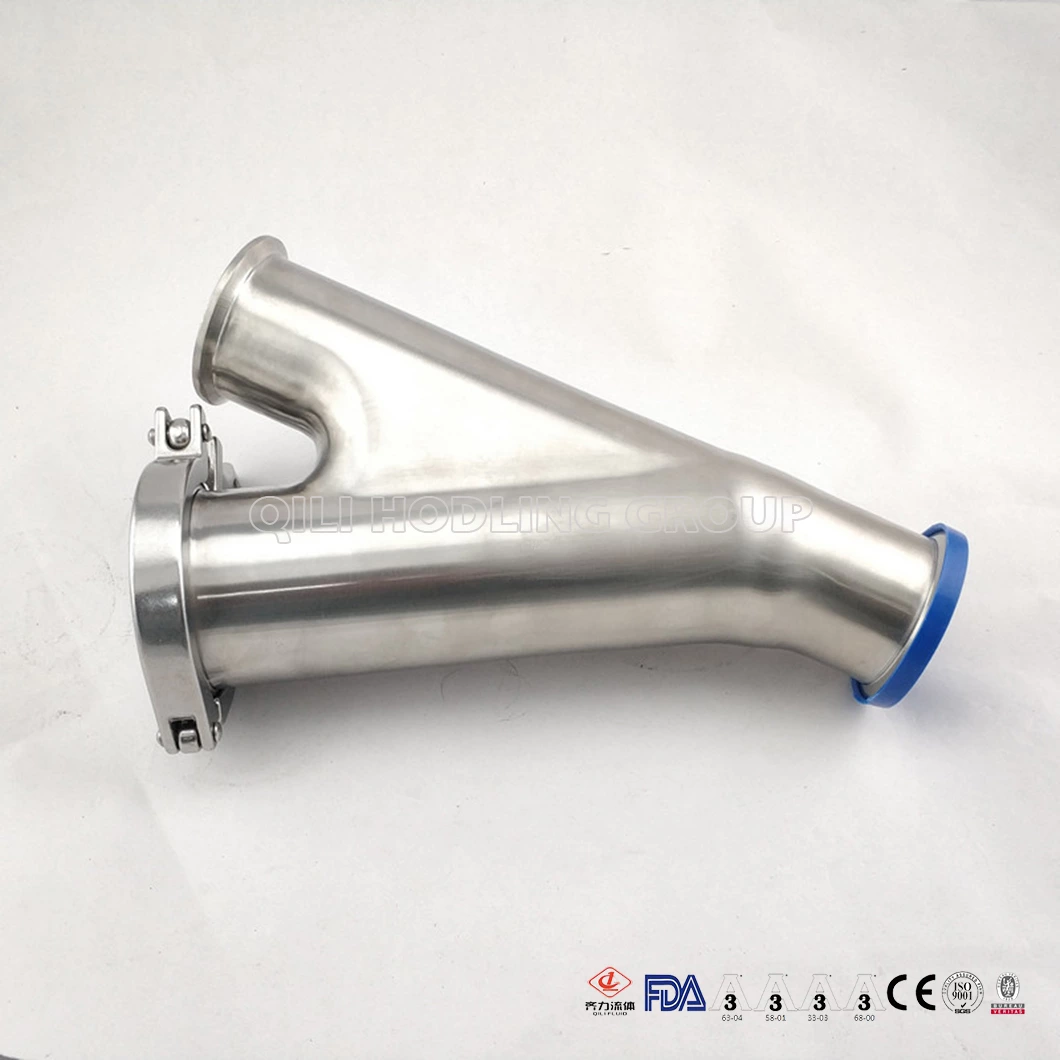

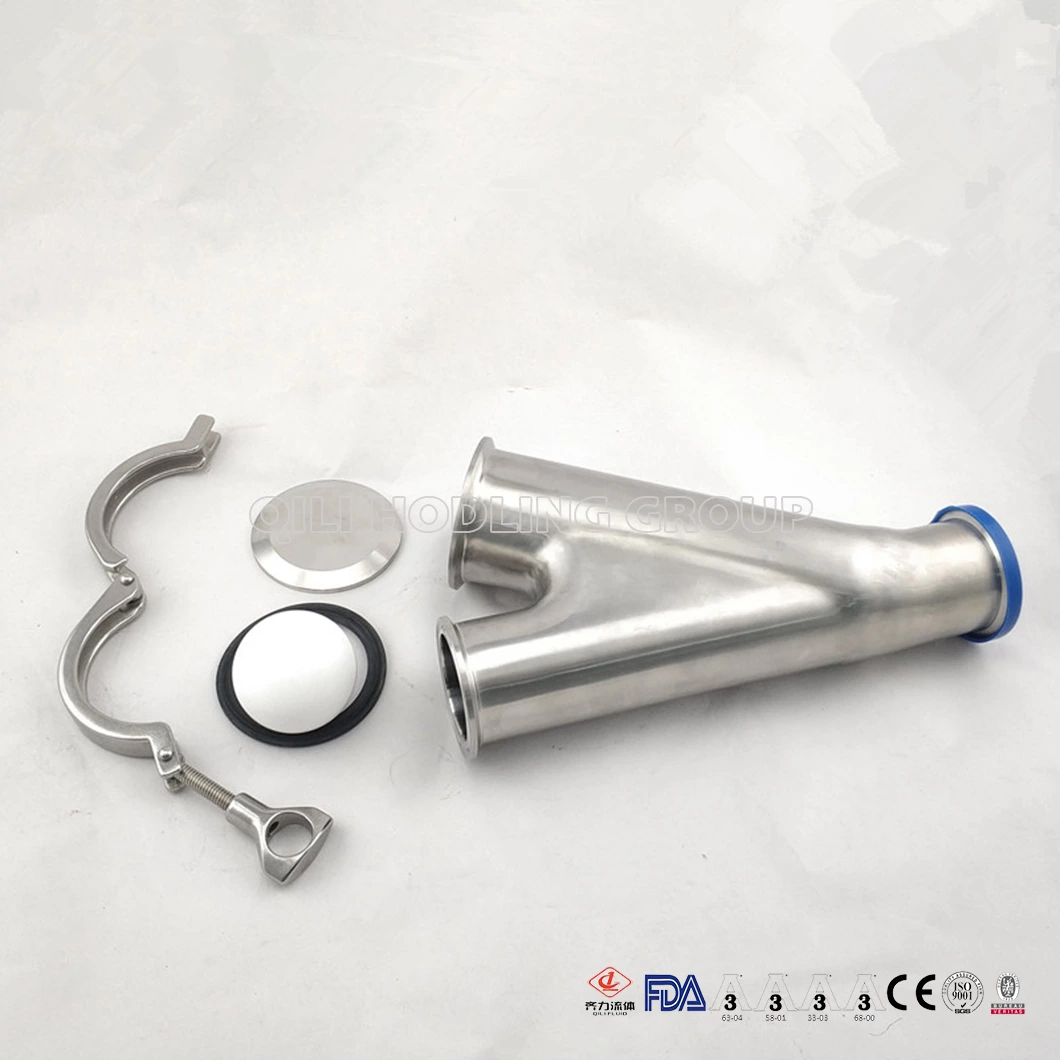

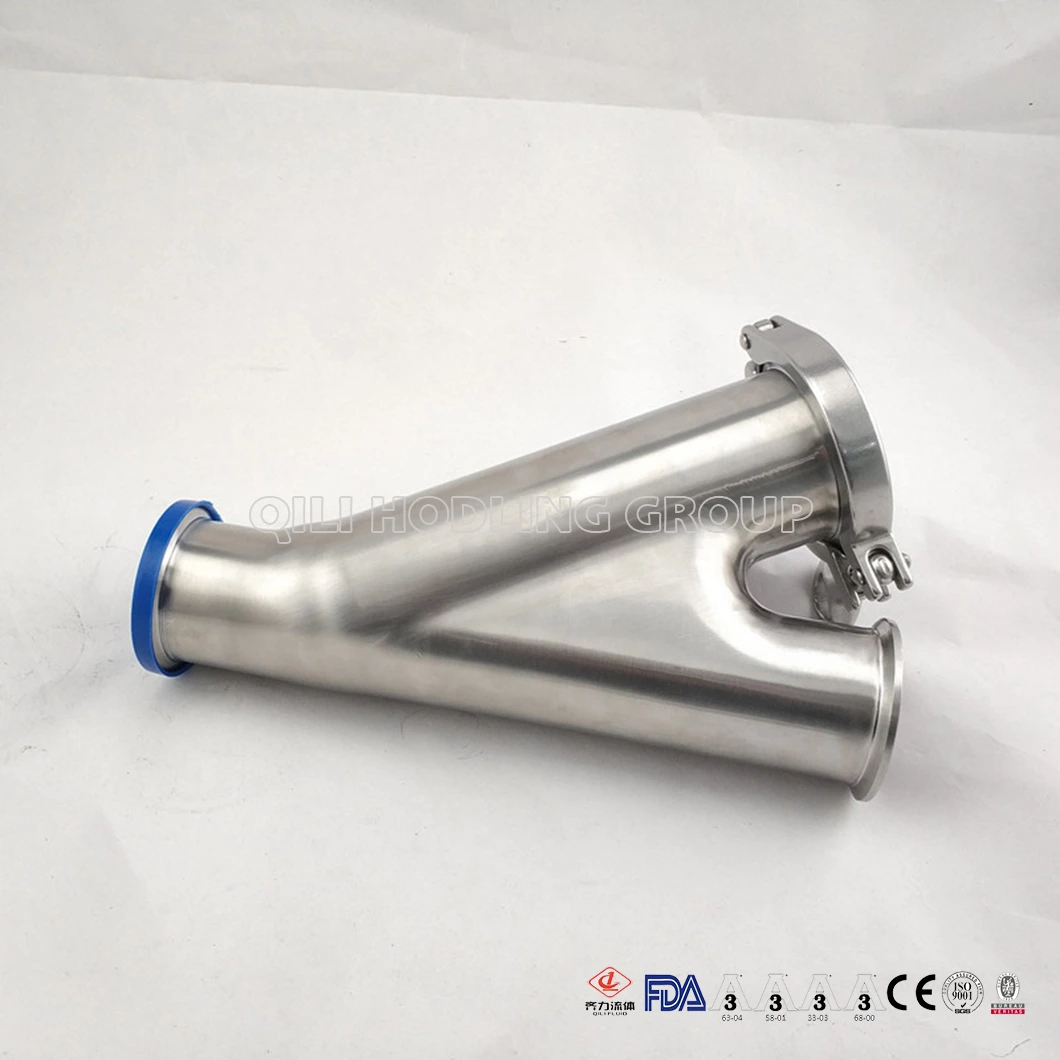

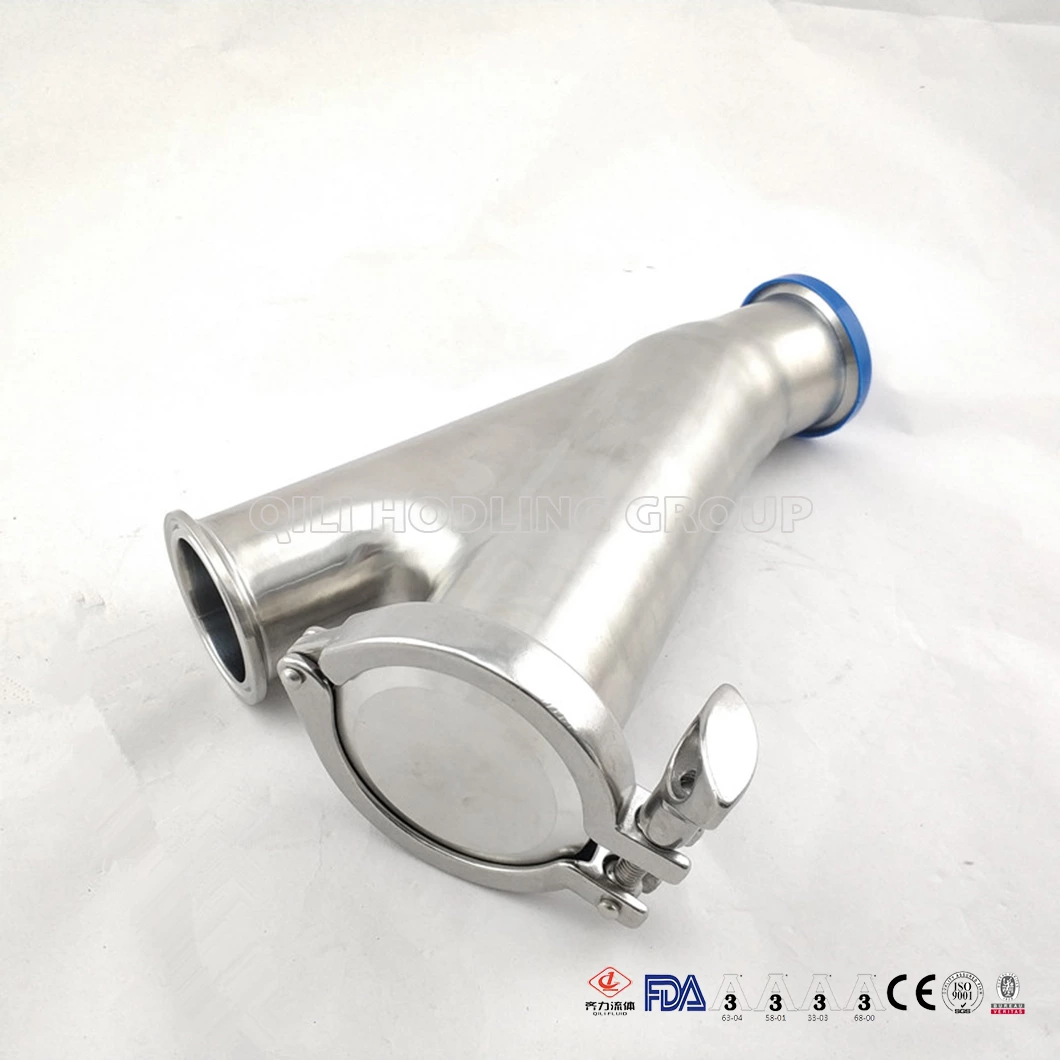

Sanitary Stainless Steel Y Ball Check Valve
Sanitary Stainless Steel Y Ball Check Valve is featured products in Qili products. All of our sanitary valves and fittings are made from high quality forging by CNC process center, we do strict quality control since raw material testing. - Wenzhou Qili Fluid Equipment Co.,ltd.
- Material:
- SS304,SS316L
- Standard:
- DIN, 3A, SMS, ISO/IDF, BS/RJT
- Working Temperature:
- -10 to 140℃
- Connection ways:
- Welded, clamped, threaded
- Size:
- 1.5"-4"
- Sales Models:
- Retail and wholesale
- Surface Treatment:
- inner( Ra ≥0.4-0.8μm），outer（0.8-1.6μm）
- Pressure Value:
- 0-10bar
- MOQ:
- 1pcs
- Seal Material:
- EPDM, FPM,silicone,VMQ,
- Transport Package:
- cartons
Details
| Description | Sanitary Stainless Steel Y Ball Check Valve |
| Body Material | Stainless Steel 304; Stainless Steel 316L (Forged, 1.4301/1.4404) |
| Actuator Material | Stainless Steel 304 |
| Seal Material | EPDM, VMQ(Silicone), NBR(Nitrile), VITON, all meet FDA standard |
| Temperature Range | 15°F to 200°F(-9.4°C to 93°C) EPDM |
| Max. Pressure | 10bar (140psi) DN25 ~ 100; 8bar (120psi) DN125 ~ 150 |
| Finishing | Ra 16 ~ 32µin (0.4 ~ 0.8µm) electropolish available |
| Port Size | 1.5” -- 4” DN25-DN100 |
| Connection | Tri-clamp ferrule; Threaded; Welded |
| Connection Standard | 3A , SMS , ASME BPE, ISO, DIN, BS |
| Features | 100% hydraulic tested / 100% inspected |
| Specifications | Can see our products catalogues |
| Application | Food process, Milk process, Beer brewage, Bio-pharmacy, etc. |
| Packaging | Cloth bag each piece. Little carton packaging each 1or2 pieces. Carton packaging. Wooden case packaging. |
Drawings
