Sanitary Stainless Steel Threaded Check Valve
Sanitary Stainless Steel Threaded Check Valve, can be used on Dairy, Beverage, Food, Beer, Pharmacy, Biotechnology, Cosmetic etc. Our products adopt production craft and technology from EU, and meanwhile import foreign advanced numerically controlled machine tools and other process/inspection units.- Wenzhou Qili Fluid Equipment Co.,ltd.
- Material:
- SS304,SS316L
- Standard:
- DIN, 3A, SMS, ISO/IDF, BS/RJT
- Working Temperature:
- -10 to 140℃
- Connection ways:
- Welded, clamped, threaded
- Size:
- DN15-DN100
- Sales Models:
- Retail and wholesale
- Surface Treatment:
- inner( Ra ≥0.4-0.8μm），outer（0.8-1.6μm）
- Pressure Value:
- 0-10bar
- MOQ:
- 1pcs
- Seal Material:
- EPDM, FPM,silicone,VMQ,
- Transport Package:
- cartons

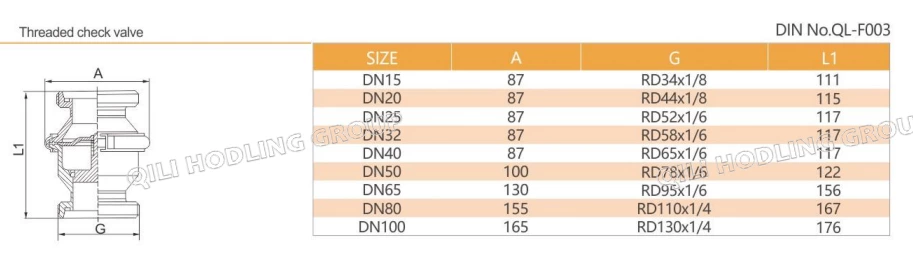

Drawings
Details
| Description | Sanitary Stainless Steel Threaded Check Valve |
| Body Material | Stainless Steel 304; Stainless Steel 316L (Forged, 1.4301/1.4404) |
| Actuator Material | Stainless Steel 304 |
| Seal Material | EPDM, VMQ(Silicone), NBR(Nitrile), VITON, all meet FDA standard |
| Temperature Range | 15°F to 200°F(-9.4°C to 93°C) EPDM |
| Max. Pressure | 10bar (140psi) DN25 ~ 100; 8bar (120psi) DN125 ~ 150 |
| Finishing | Ra 16 ~ 32µin (0.4 ~ 0.8µm) electropolish available |
| Port Size | DN25-DN100,1-4" |
| Connection | Tri-clamp ferrule; Threaded; Welded |
| Connection Standard | 3A , SMS , ASME BPE, ISO, DIN, BS |
| Features | 100% hydraulic tested / 100% inspected |
| Specifications | Can see our products catalogues |
| Application | Food process, Milk process, Beer brewage, Bio-pharmacy, etc. |
| Packaging | Carton packaging. Wooden case packaging. |
