New Item Factory Sanitary 304/316L Check Valve Middle Flange/Clamp End High Quality

Sanitary Check Valve 1) Specification: DN15-DN100, 1/2"-4" 2) Standard: ISO, IDF, DIN, 3A 3) Material: : SUS304, SUS316L 4) Connection: Welded, clamped, threaded 5) Sealing Ring Material: EPDM, F
Material:
SS304,SS316L
Standard:
DIN, 3A, SMS, ISO/IDF, BS/RJT
Working Temperature:
-10 to 140℃
Connection ways:
Welded, clamped, threaded
Size:
DN15-DN100, 1/2"-4"
Sales Models:
Retail and wholesale
Surface Treatment:
inner( Ra ≥0.4-0.8μm),outer(0.8-1.6μm)
Pressure Value:
0-10bar
MOQ:
1pcs
Seal Material:
EPDM, FPM,silicone,VMQ,
Transport Package:
cartons
New Item Factory Sanitary 304/316L Check Valve Middle Flange/Clamp End High Quality
New Item Factory Sanitary 304/316L Check Valve Middle Flange/Clamp End High Quality New Item Factory Sanitary 304/316L Check Valve Middle Flange/Clamp End High Quality New Item Factory Sanitary 304/316L Check Valve Middle Flange/Clamp End High Quality New Item Factory Sanitary 304/316L Check Valve Middle Flange/Clamp End High Quality New Item Factory Sanitary 304/316L Check Valve Middle Flange/Clamp End High Quality New Item Factory Sanitary 304/316L Check Valve Middle Flange/Clamp End High Quality

Details

  • Specification: DN15-DN100, 1/2"-4"
  • Standard: ISO, IDF, DIN, 3A
  • Material: : SUS304, SUS316L
  • Connection: Welded, clamped, threaded
  • Sealing Ring Material: EPDM, FPM, SI

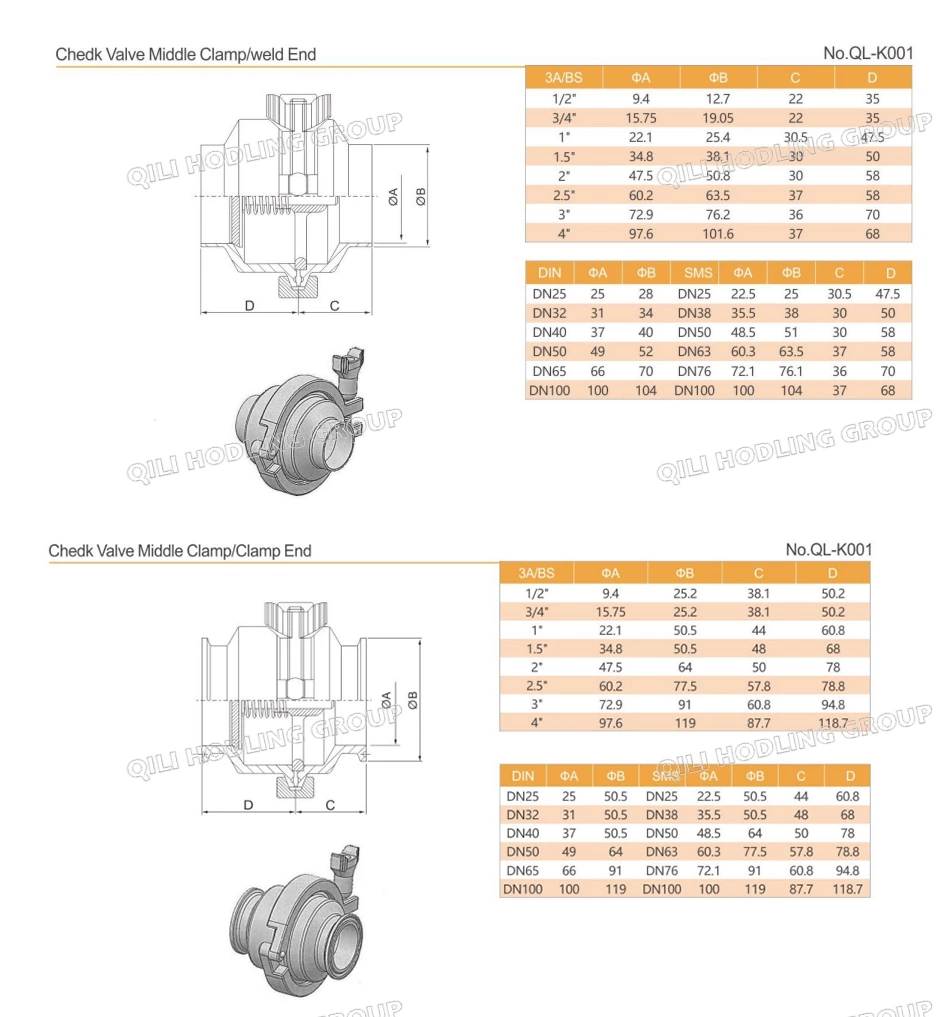

Drawings

Application

Dairy products, beer, food, beverage, pharmacy, and bioengineering industry, etc.
Our products adopt production craft and technology from EU, and meanwhile import foreign advanced numerically controlled machine tools and other process/inspection units. Our company specializes in producing sanitary stainless steel fluid equipment, valves and pipeline connection units. All the products are strictly manufactured according to different smoothness, material and sector's standards (such as ISO, DIN, IDF, SMS and 3A) etc. Under the efforts of all scientific research personnel. We are keeping on developing new products. Our products are widely used in the fields of food, pharmaceuticals, dairy, beer, beverage and chemical industry, all the technical aspects have reached the international leading levels and are in conformance with GMP requirements. Large quantities of the products are exported to USA, Europe, Middle East, Southeast of Asian and other countries all over the world.





















FileName Summary Size Create Date Down
3A certification of check valves 0.2 MB 2022/04/29
