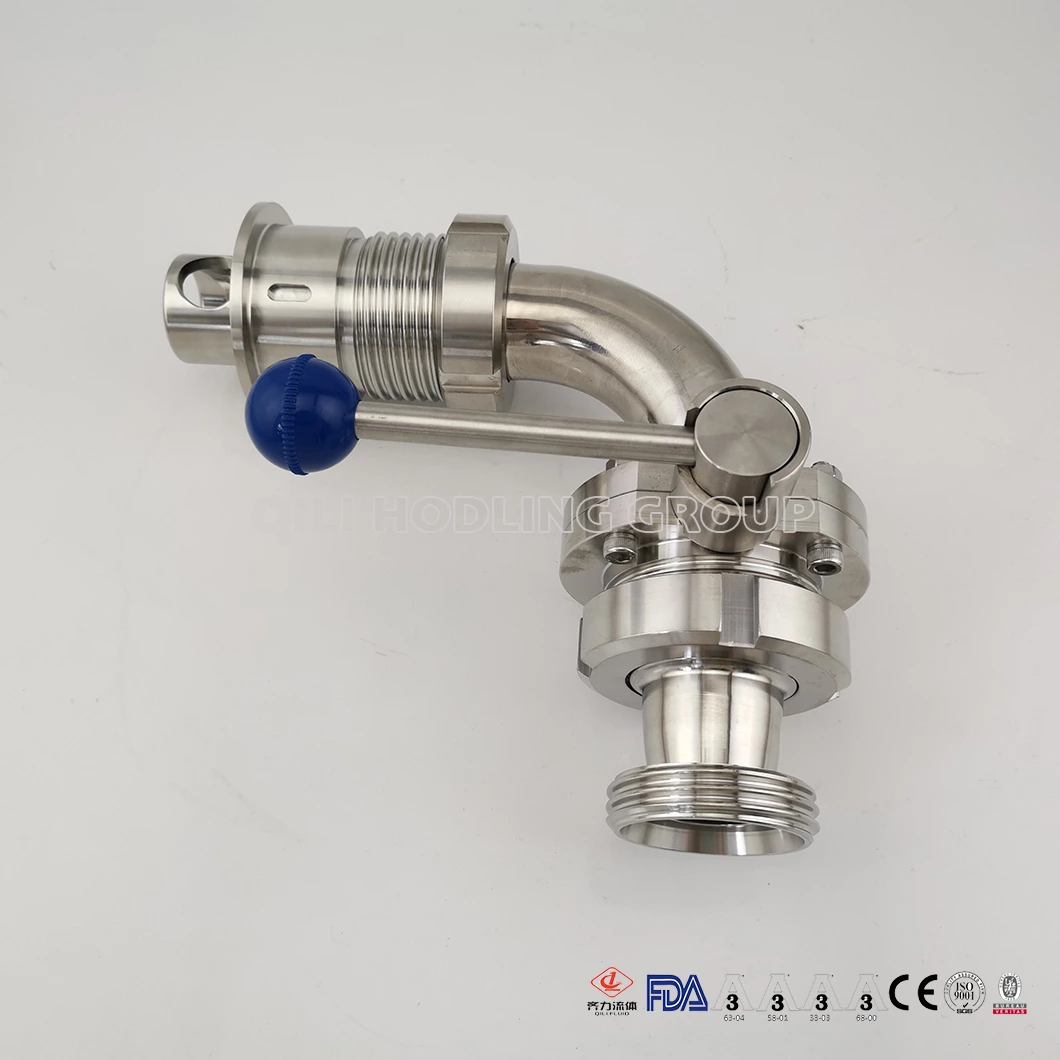

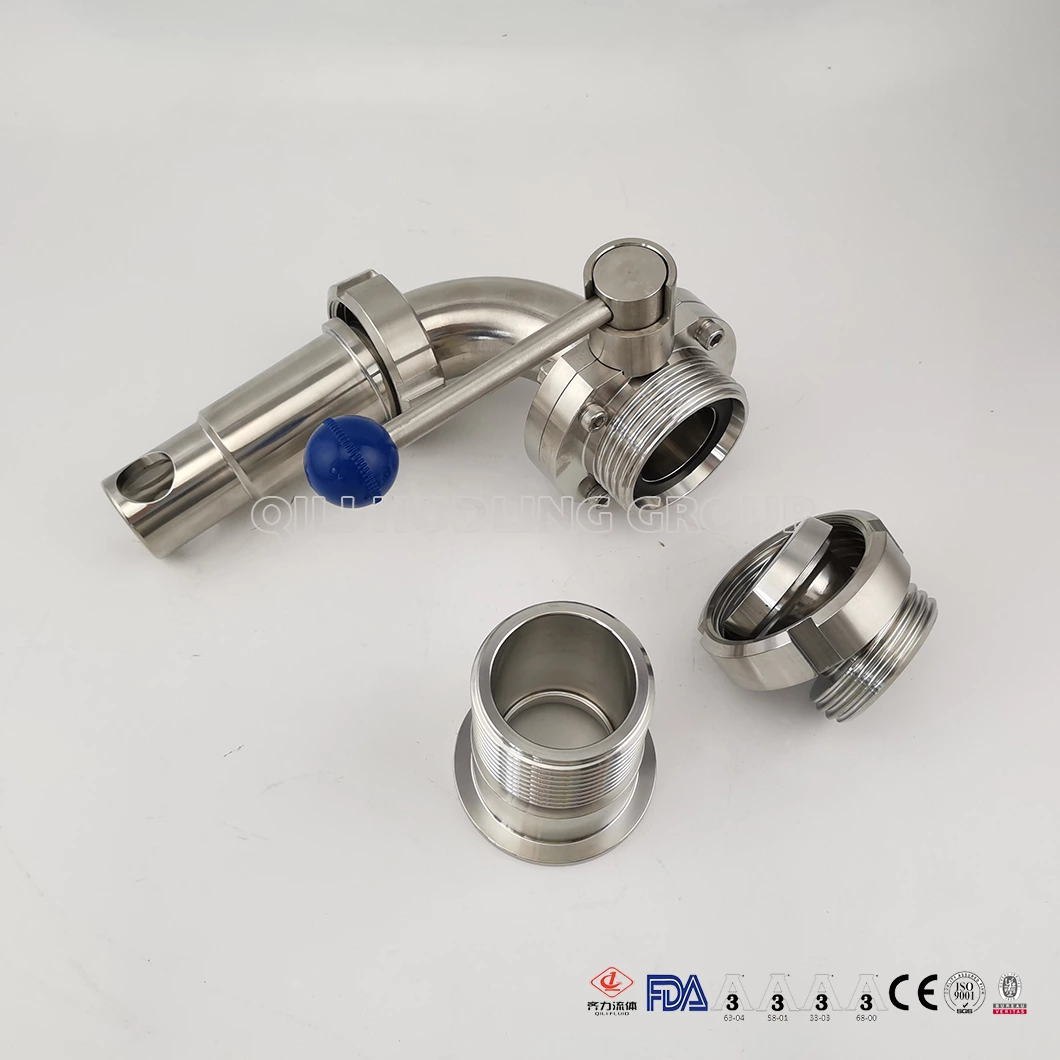

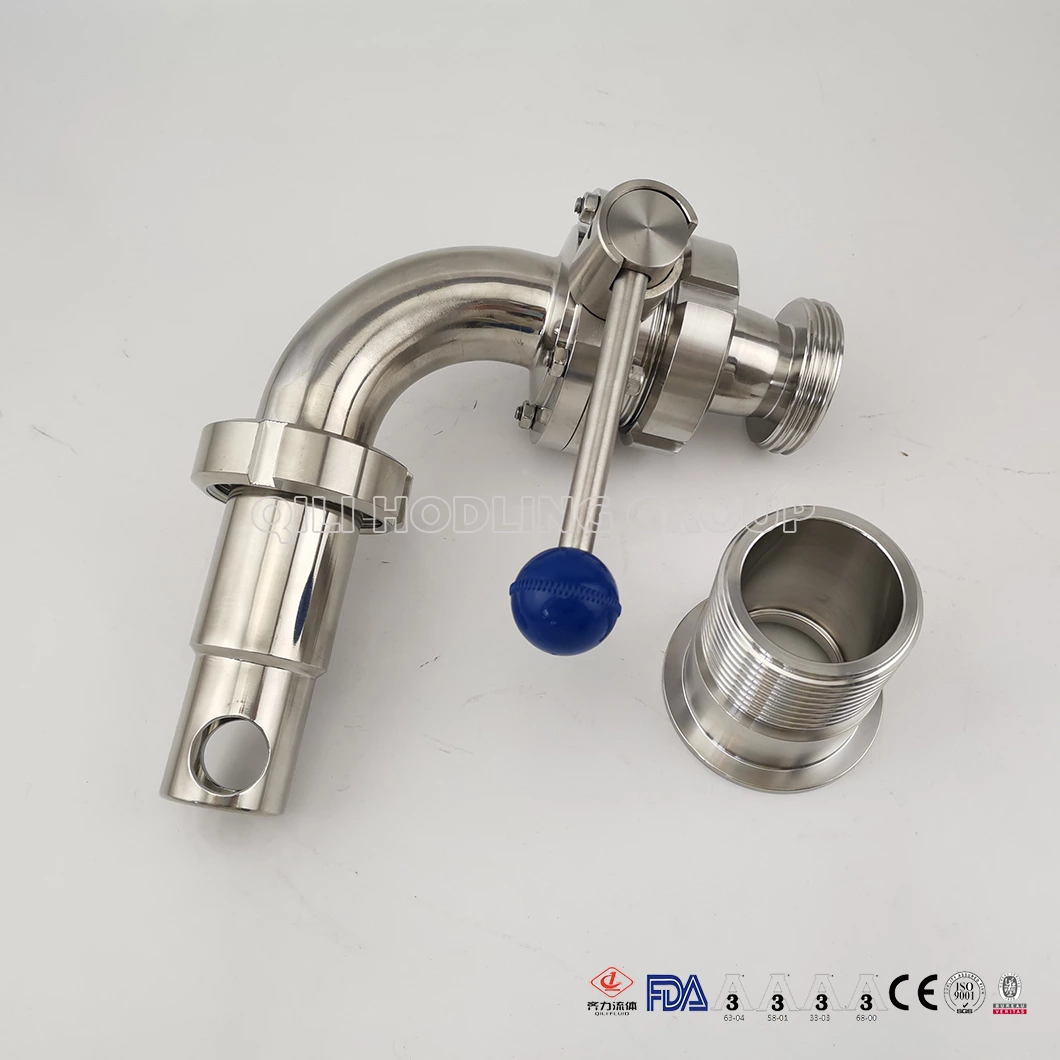

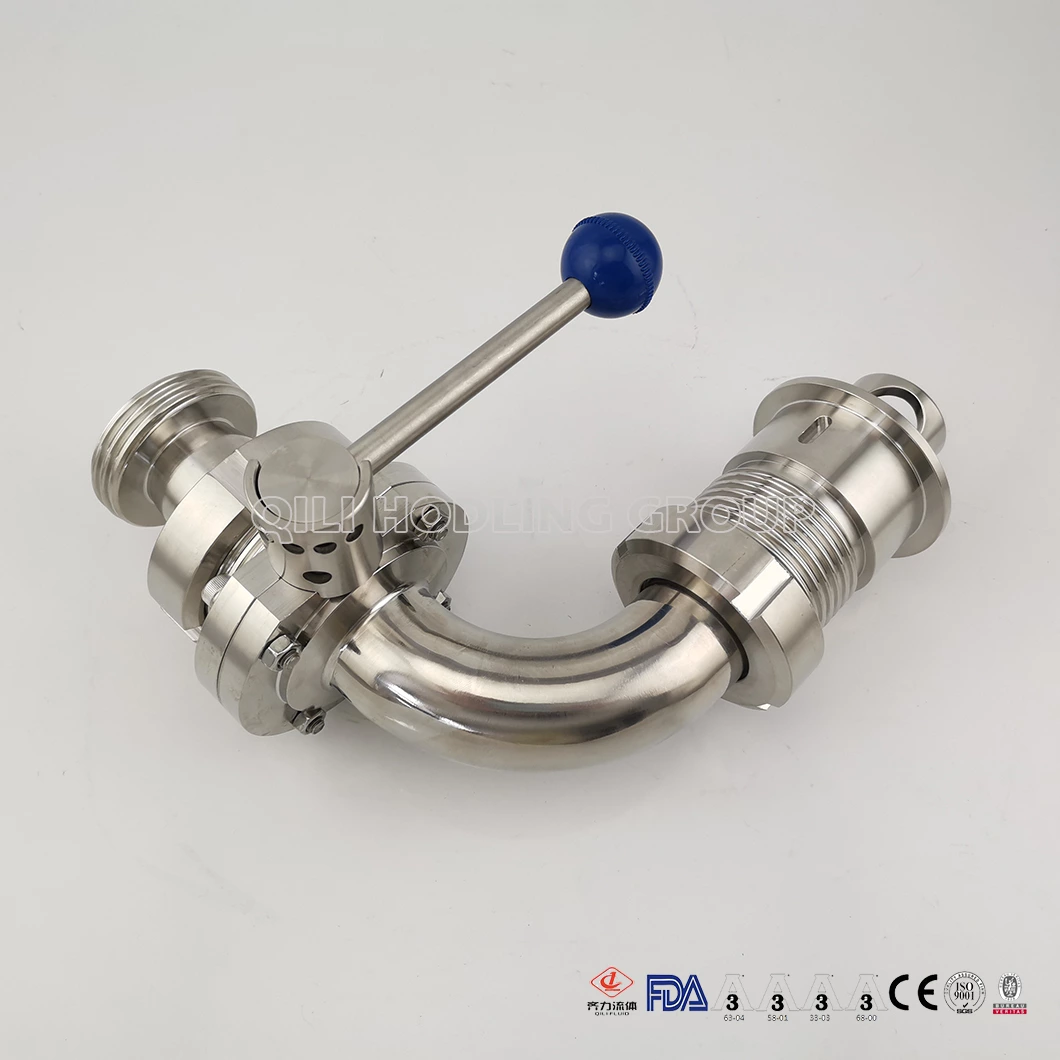

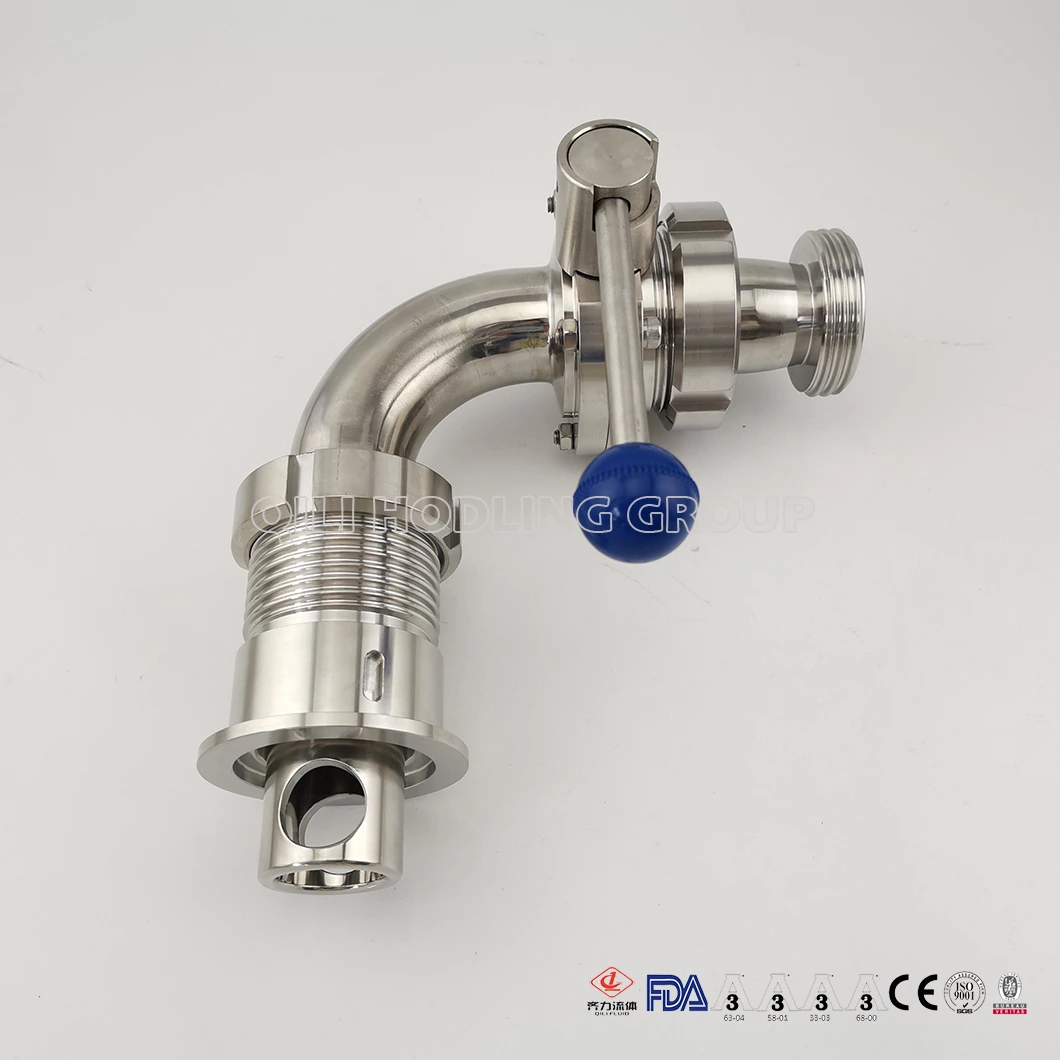

Stainless Steel Pull Handle Sanitary Butterfly Valves One Side Thread
This butterfly valve assembly is customized with a welded elbow on one side and a thread end with the NUT on the other.We maintain the advantage of butterfly valves and use FDA approved gasket for safe use in the sanitary grade
- Material:
- SS304,SS316L
- Standard:
- SMS/3A, ISO/IDF,DIN,BS,RJT,ASME/BPE
- Working Temperature:
- VMQ（-50 to 180℃） EPDM（-20 to 135℃） FPM（-30 to 230℃）
- Application:
- Beer, Dairy, Beverage, Pharmacy, Cosmetics,
- Connection ways:
- Weld, flange, thread/union, clamped
- Size:
- DN15-150 and 1"-6"
- Color:
- Blue , black
- Sales Models:
- Wholesale and Retail
- Valve Seal:
- Silicone
- Surface Treatment:
- inner（0.4-0.8µm） outer（0.8-1.6µm）
- Pressure Value:
- 0-10bar
- MOQ:
- 1pcs
- Seal Material:
- VMQ, EPDM，CMQ,FPM,silicone
- Transport Package:
- cartons
Details
- Name:Stainless Steel Pull Handle Sanitary Butterfly Valves One Side Thread Ends And One Side Thread Ends with Nut
- Size:Dn15-DN200 and 1"-8"
- Connection way:Tri clamp,weld,male, flange
- Work Pressure:Mid-Pressure (2.5mpa< Pn <6.4mpa)
- Working Temperature:-20 ~ 135° C
- Material of Seal: FDA EPDM,FDA NBR,FDA SILICONE can as your request
- Medium:Beer, Dairy, Beverage, Pharmacy, Cosmetics
- All butterfly valve products are made by ourself and certified to ISO9001:2008 standards.
