Stainless Steel Pneumatically Actuated B5102 Series Butterfly Valve

Our butterfly valve with forged body, specially designed for using on food, beverage, dairy, brewing, pharmaceutical industries, etc. It is excellent for flow control as well as for open/close duties.
Material:
SS304,SS316L
Standard:
SMS/3A, ISO/IDF,DIN,BS,RJT,ASME/BPE
Working Temperature:
VMQ(-50 to 180℃) EPDM(-20 to 135℃) FPM(-30 to 230℃)
Application:
Beer, Dairy, Beverage, Pharmacy, Cosmetics,
Connection ways:
Weld, flange, thread/union, clamped
Size:
1/2"-6"
Color:
Blue , black
Sales Models:
Wholesale and Retail
Surface Treatment:
inner(0.4-0.8µm) outer(0.8-1.6µm)
Pressure Value:
0-10bar
MOQ:
1pcs
Seal Material:
VMQ, EPDM,CMQ,FPM
Transport Package:
cartons

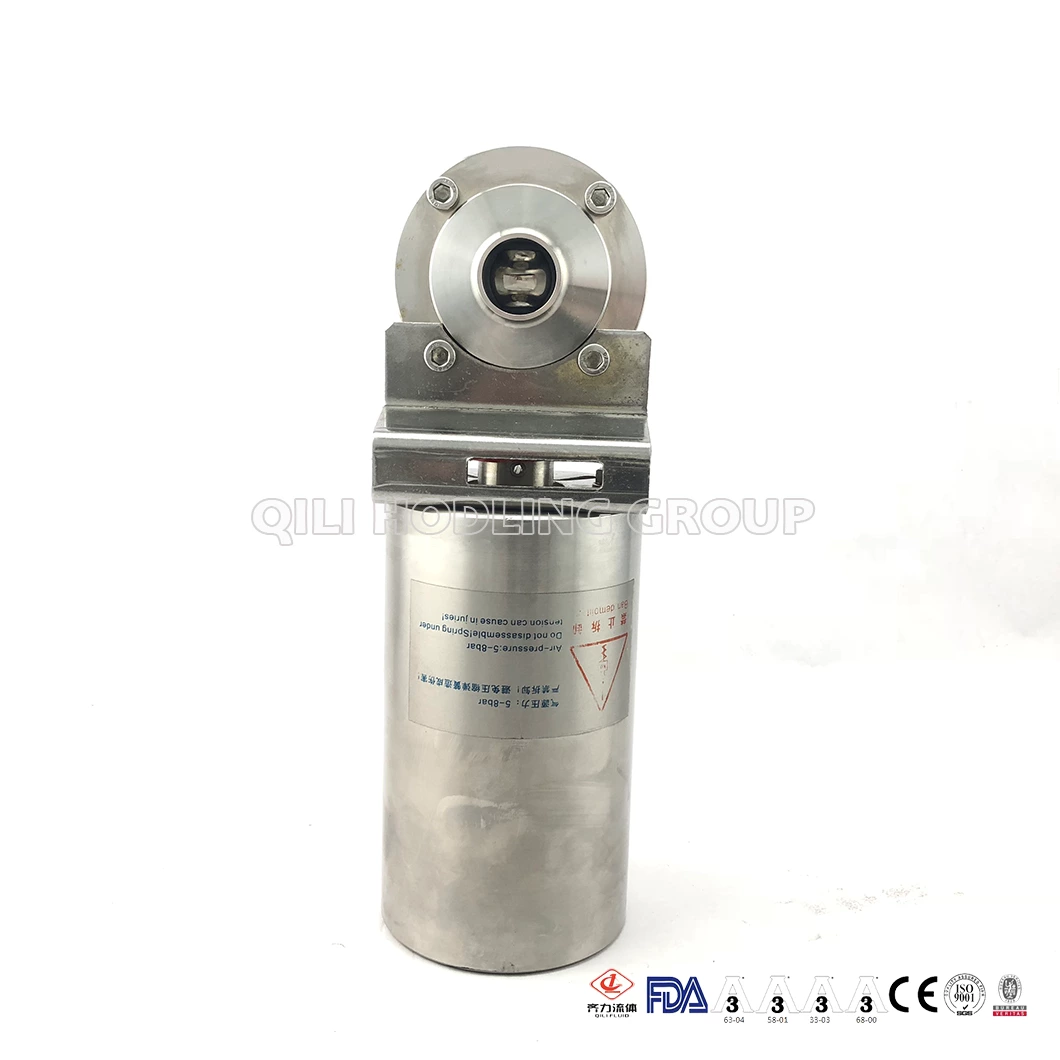

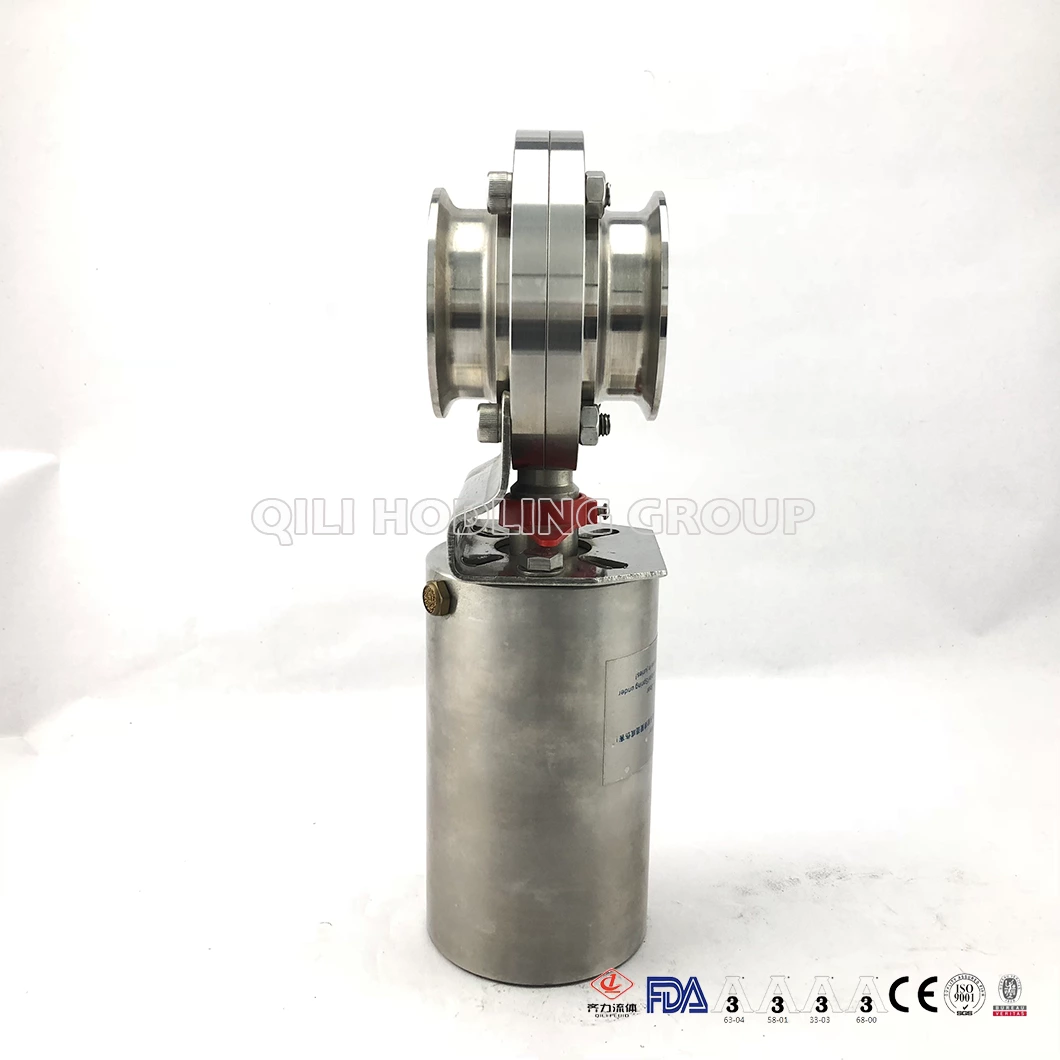

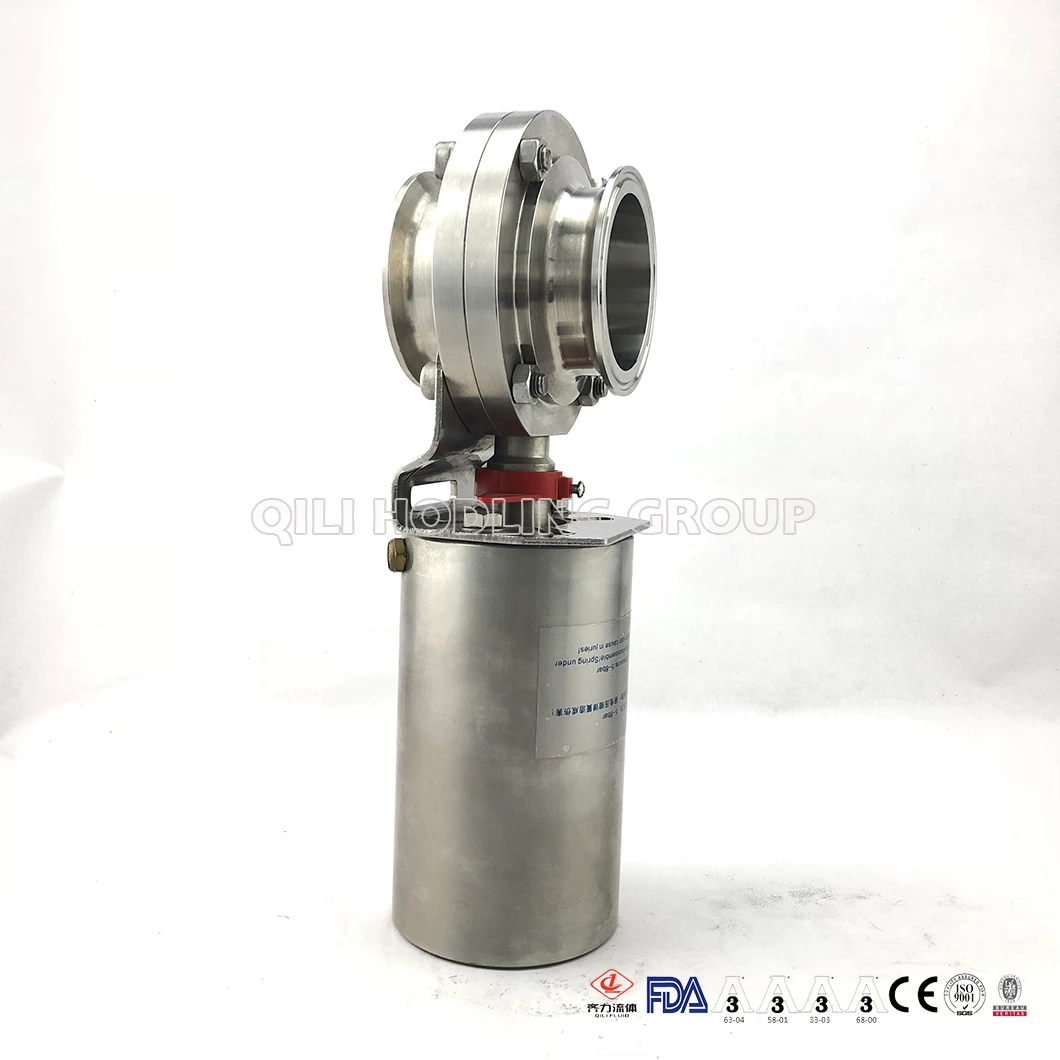

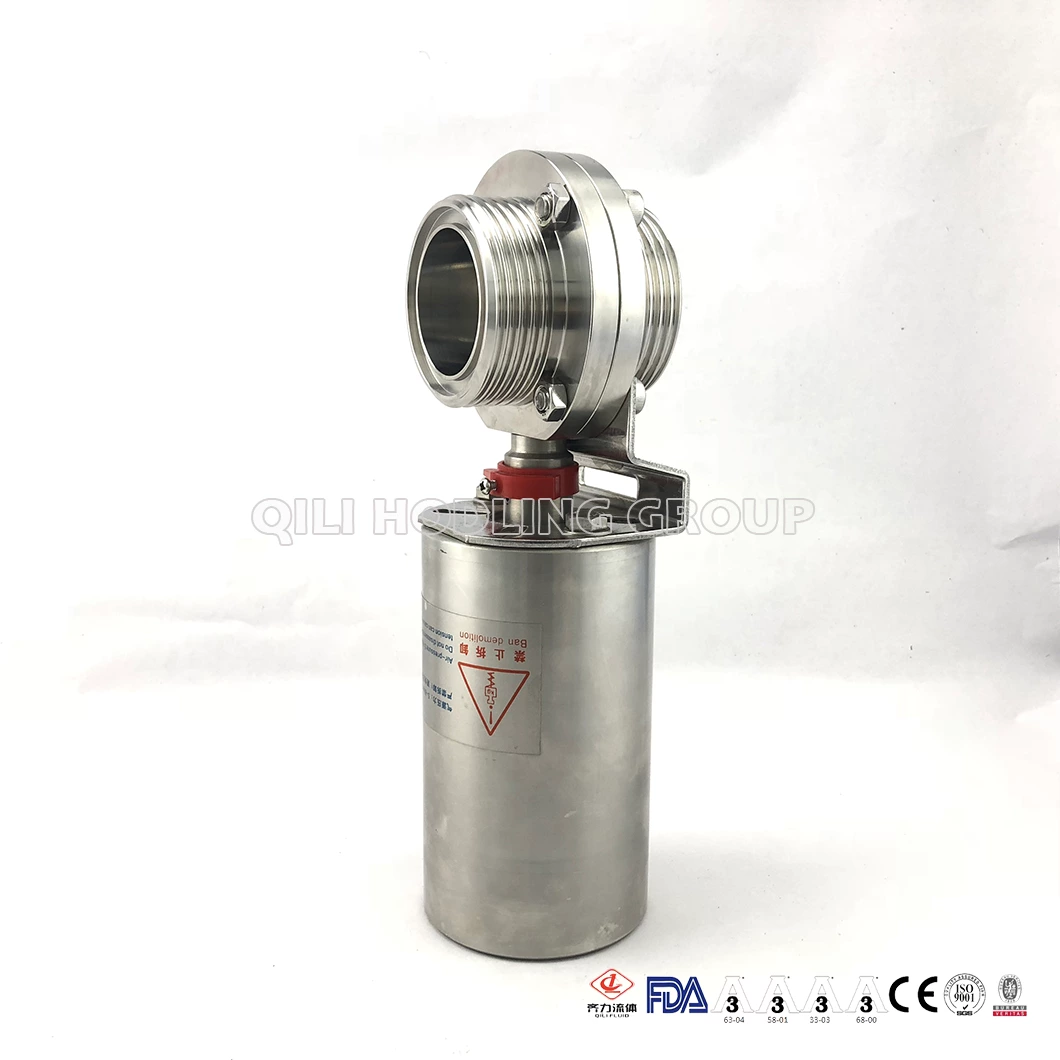

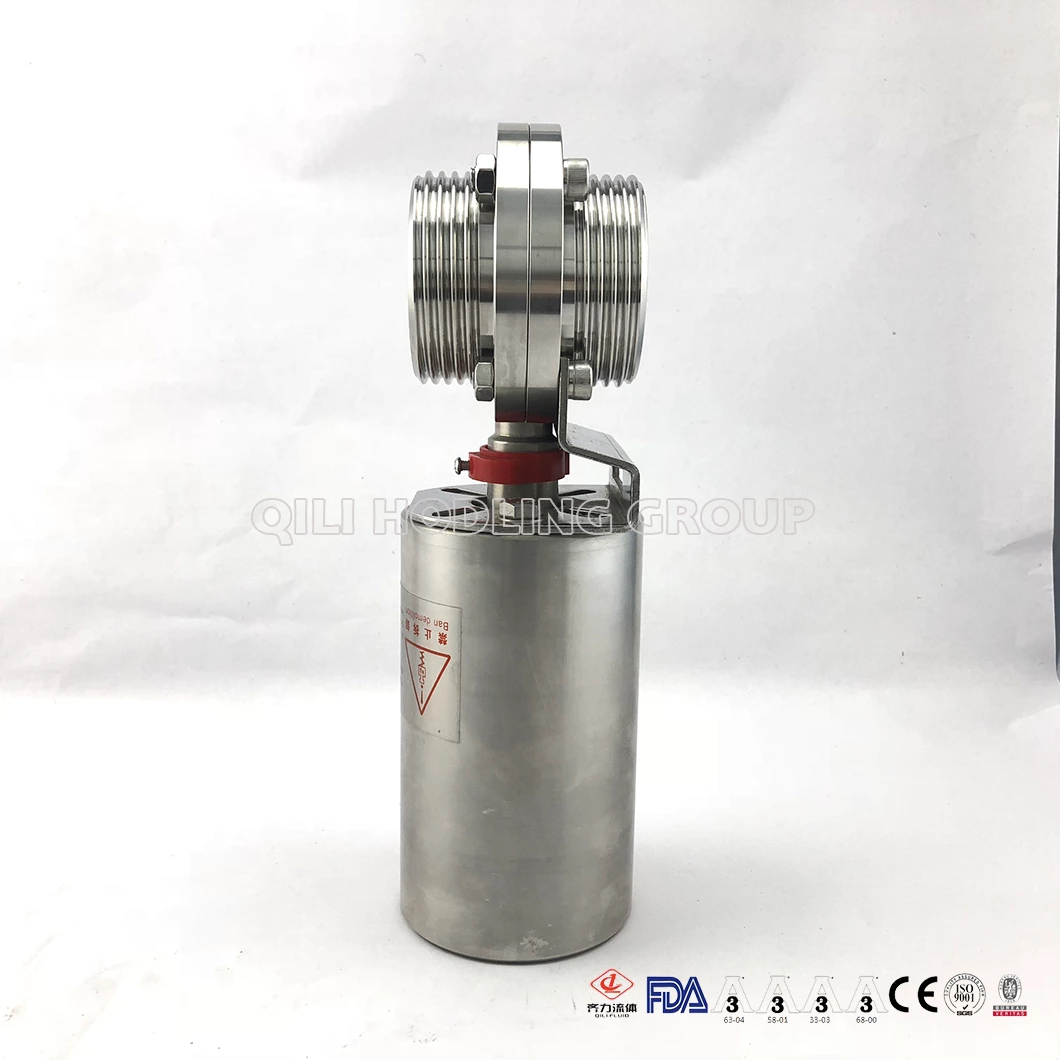

Stainless Steel Pneumatically Actuated B5102 Series Butterfly Valve
Stainless Steel Pneumatically Actuated B5102 Series Butterfly Valve Stainless Steel Pneumatically Actuated B5102 Series Butterfly Valve Stainless Steel Pneumatically Actuated B5102 Series Butterfly Valve Stainless Steel Pneumatically Actuated B5102 Series Butterfly Valve Stainless Steel Pneumatically Actuated B5102 Series Butterfly Valve Stainless Steel Pneumatically Actuated B5102 Series Butterfly Valve

Details

Description Stainless Steel Pneumatically Actuated B5102 Series Butterfly Valve
Body Material Stainless Steel 304; Stainless Steel 316L (Forged, 1.4301/1.4404)
Actuator Material Stainless Steel 304
Seal Material EPDM, VMQ(Silicone), NBR(Nitrile), VITON, all meet FDA standard
Temperature Range 15°F to 200°F(-9.4°C to 93°C) EPDM
Max. Pressure 10bar (140psi) DN25 ~ 100; 8bar (120psi) DN125 ~ 150
Finishing Ra 16 ~ 32µin (0.4 ~ 0.8µm) electropolish available
Port Size 1/2"-6"
Connection Tri-clamp ferrule
Connection Standard 3A , SMS , ASME BPE, ISO, DIN, BS
Features 100% hydraulic tested / 100% inspected
Specifications Can see our products catalogues
Application Food process, Milk process, Beer brewage, Bio-pharmacy, etc.
Packaging Cloth bag each piece. Little carton packaging each 1or2 pieces. Carton packaging.
Wooden case packaging.
