Stainless Steel 304 316L Sanitary Clamp Butterfly Valve with Pull Handle

QIlI devotes to manufacture and supply butterfly valves with different connection form, such as threaded ends, clamped ends, welded ends, flange ends, male ends, female ends, and liner ends. These butterfly valves can service the Bakery, Beverage, Cosmetic, Dairy, Food and Pharmaceutical Industries. The standards of our products include 3A, DIN, SMS, RJT, IDF, DS etc. At the same time we can also make various of non-standard sanitary valves for guests.
Material:
SS304,SS316L
Standard:
SMS/3A, ISO/IDF,DIN,BS,RJT,ASME/BPE
Working Temperature:
VMQ(-50 to 180℃) EPDM(-20 to 135℃) FPM(-30 to 230℃)
Application:
Beer, Dairy, Beverage, Pharmacy, Cosmetics,
Connection ways:
Weld, flange, thread/union, clamped
Size:
1/2"-6"
Color:
Blue , black
Sales Models:
Wholesale and Retail
Surface Treatment:
inner(0.4-0.8µm) outer(0.8-1.6µm)
Pressure Value:
0-10bar
MOQ:
1pcs
Seal Material:
VMQ, EPDM,CMQ,FPM
Transport Package:
cartons

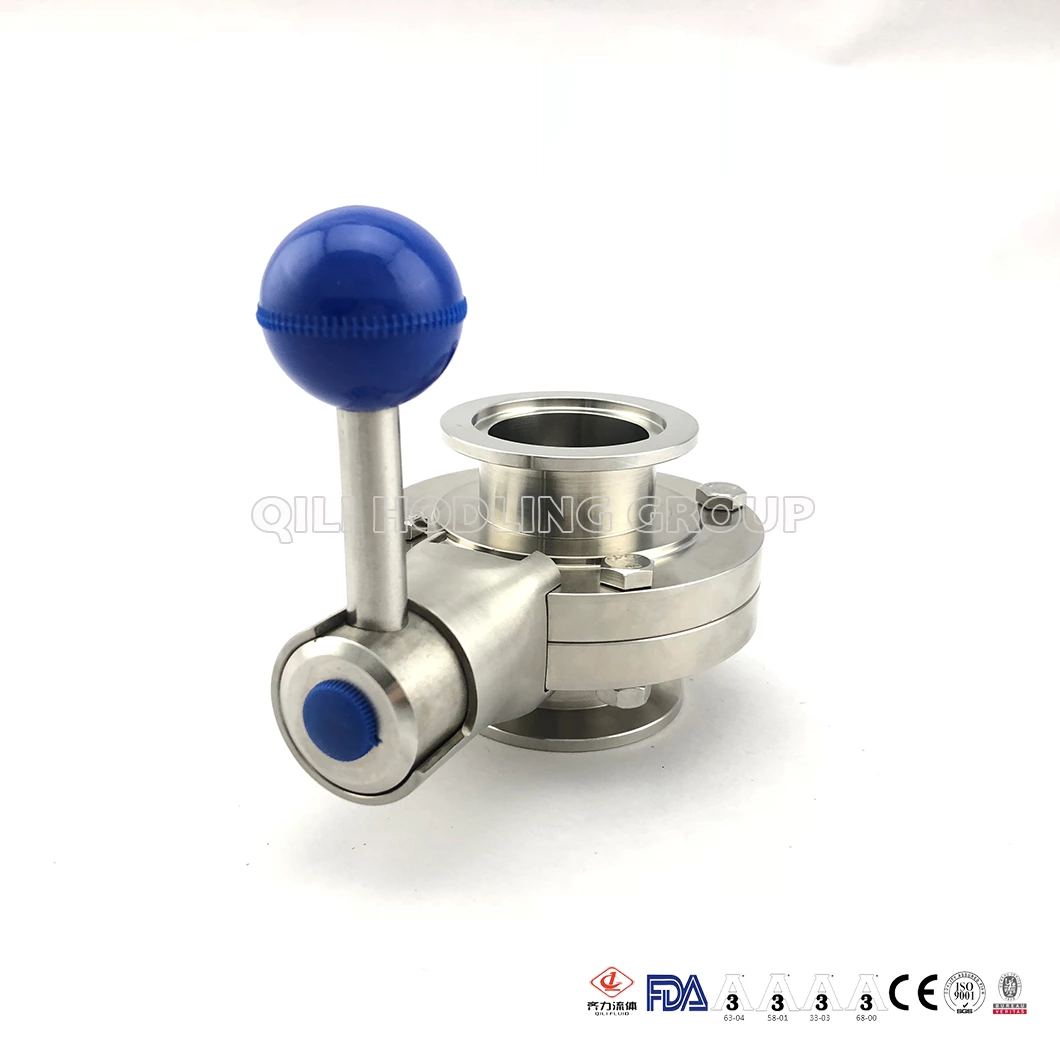

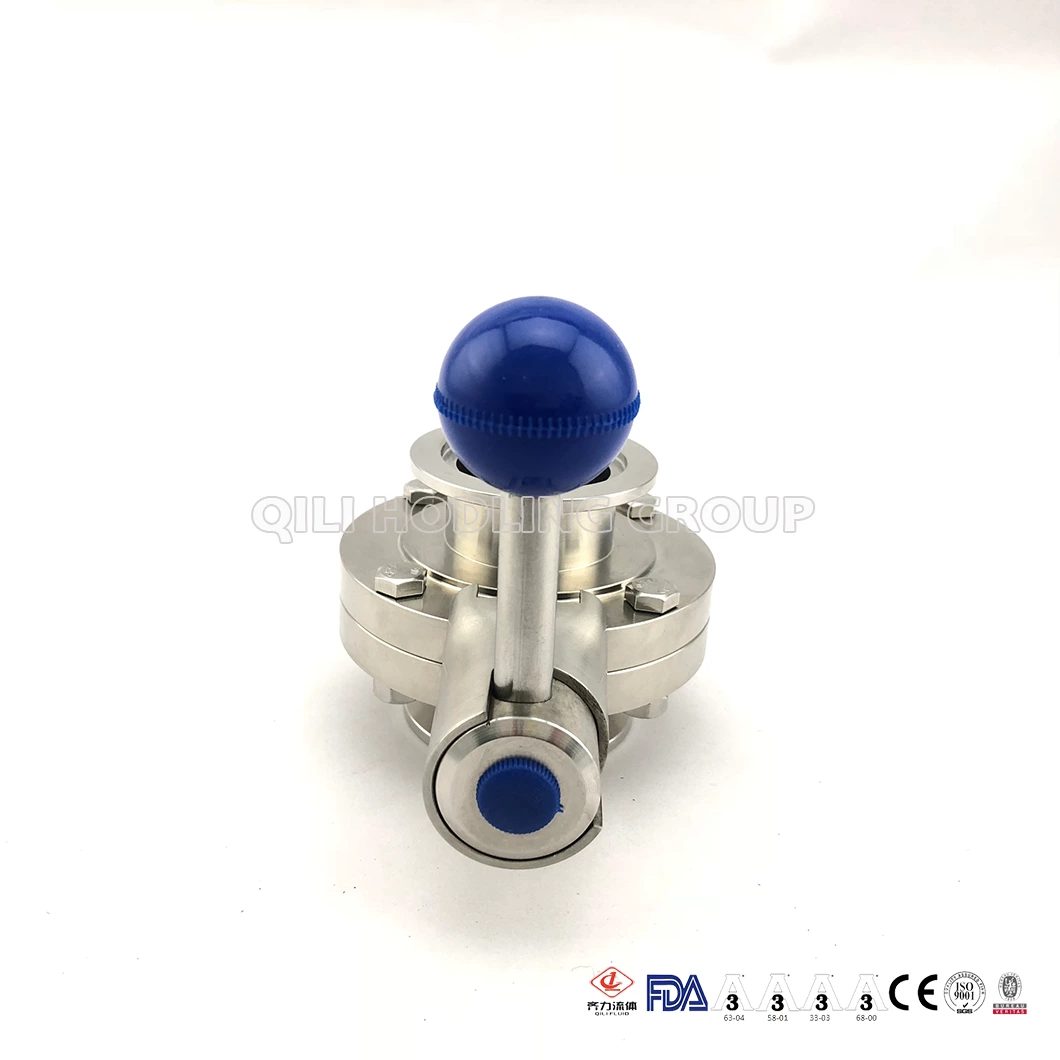

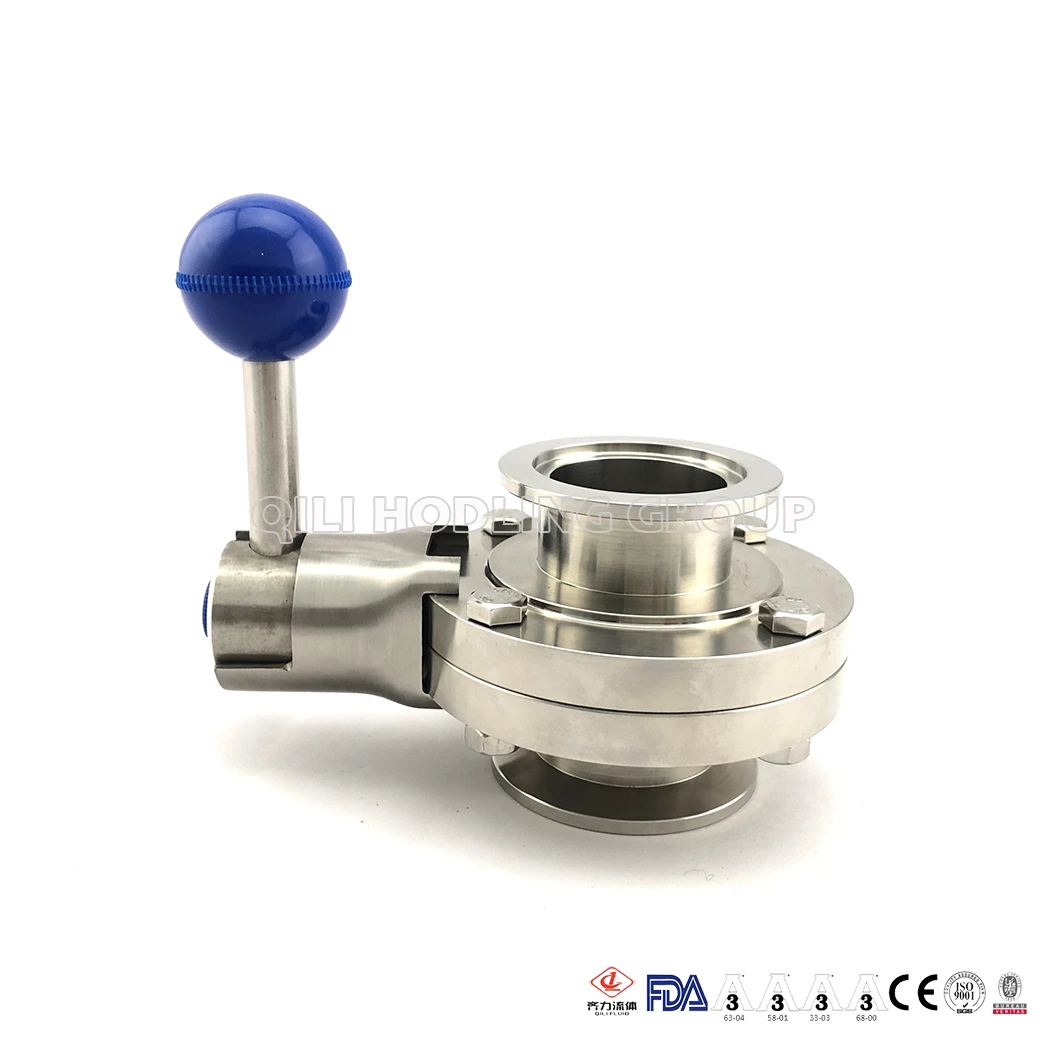

Stainless Steel 304 316L Sanitary Clamp Butterfly Valve with Pull Handle
Stainless Steel 304 316L Sanitary Clamp Butterfly Valve with Pull Handle Stainless Steel 304 316L Sanitary Clamp Butterfly Valve with Pull Handle Stainless Steel 304 316L Sanitary Clamp Butterfly Valve with Pull Handle Stainless Steel 304 316L Sanitary Clamp Butterfly Valve with Pull Handle Stainless Steel 304 316L Sanitary Clamp Butterfly Valve with Pull Handle Stainless Steel 304 316L Sanitary Clamp Butterfly Valve with Pull Handle

Details

Description Butterfly Valve with Pull Handle Clamp End
Body Material Stainless Steel 304; Stainless Steel 316L (Forged, 1.4301/1.4404)
Actuator Material Stainless Steel 304
Seal Material EPDM, VMQ(Silicone), NBR(Nitrile), VITON, all meet FDA standard
Temperature Range 15°F to 200°F(-9.4°C to 93°C) EPDM
Max. Pressure 10bar (140psi) DN25 ~ 100; 8bar (120psi) DN125 ~ 150
Finishing Ra 16 ~ 32µin (0.4 ~ 0.8µm) electropolish available
Port Size 1/2” -6”
Connection Tri-clamp ferrule; Threaded; Welded
Connection Standard 3A , SMS , ASME BPE, ISO, DIN, BS
Features 100% hydraulic tested / 100% inspected
Specifications Can see our products catalogues
Application Food process, Milk process, Beer brewage, Bio-pharmacy, etc.
Packaging Carton packaging. Wooden case packaging.
