Sanitary Butterfly Valve

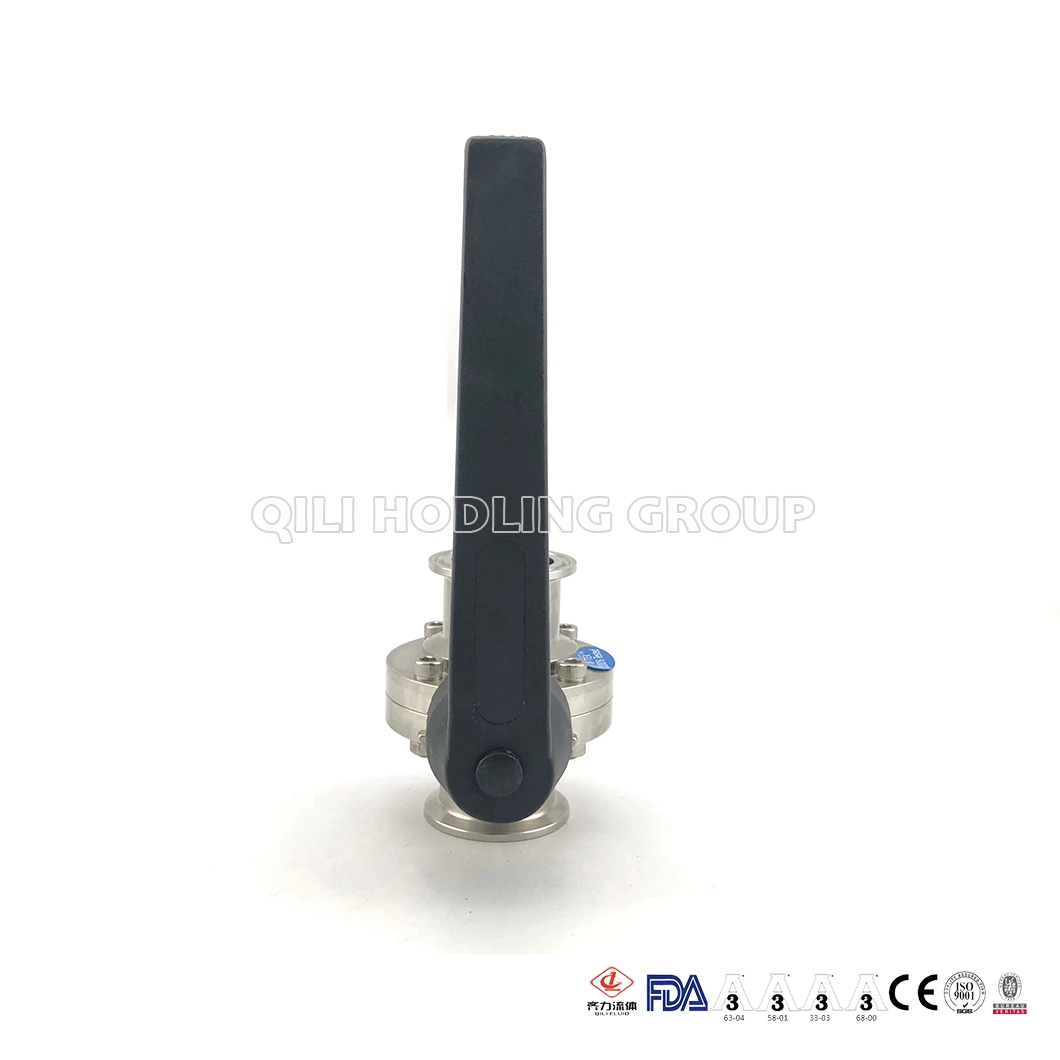

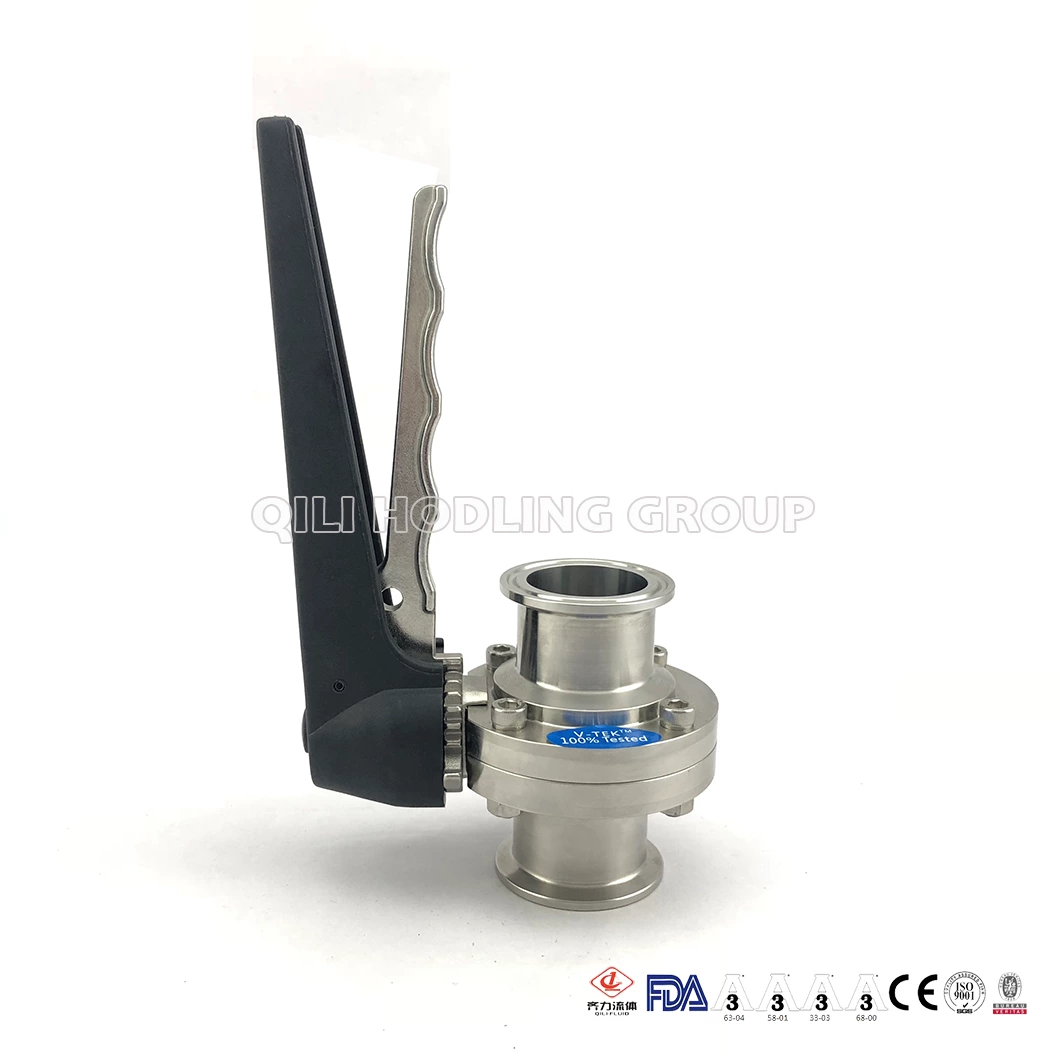

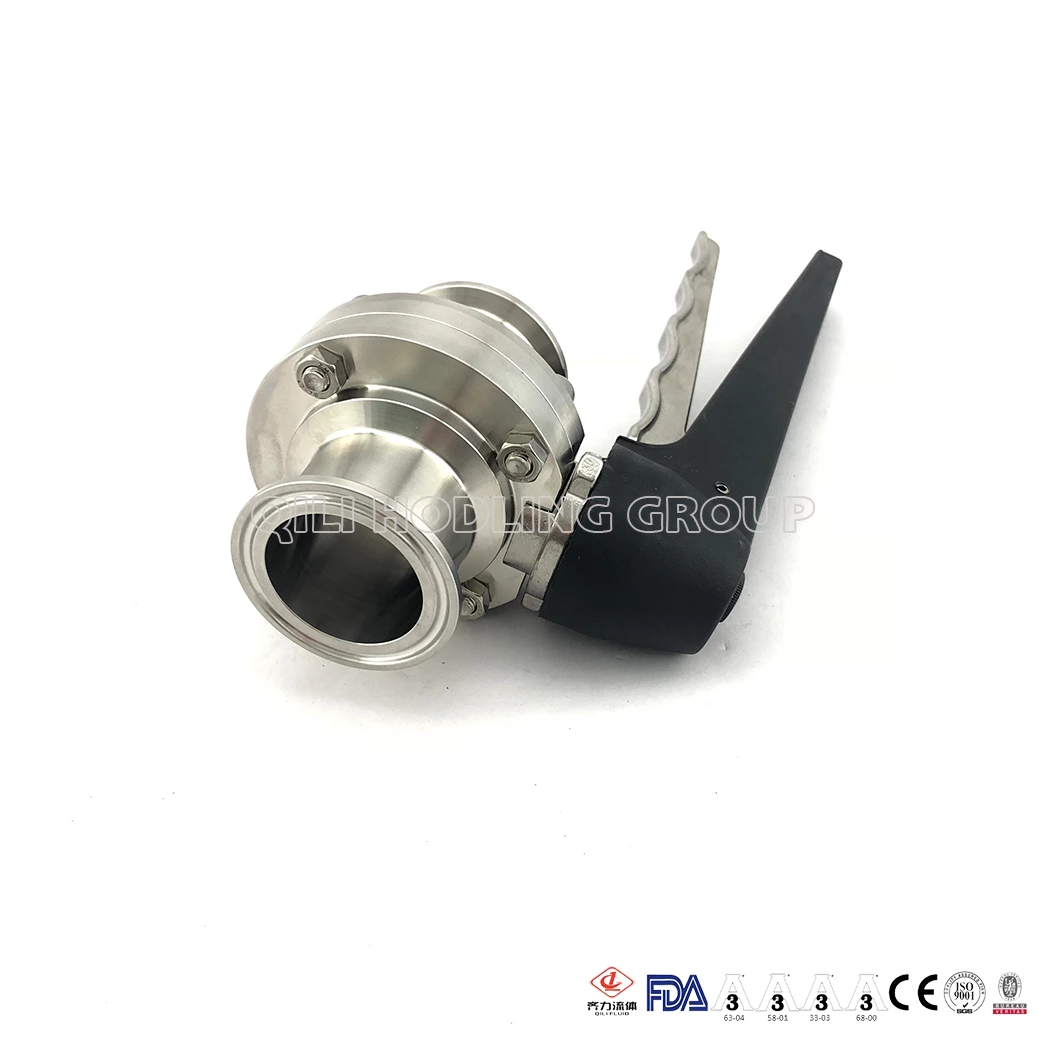

SS304/316L Stainless Steel Sanitary Thread Butterfly Valve with Plactic Handle

Material:
SS304,SS316L
Standard:
SMS/3A, ISO/IDF,DIN,BS,RJT,ASME/BPE
Working Temperature:
VMQ(-50 to 180℃) EPDM(-20 to 135℃) FPM(-30 to 230℃)
Application:
Beer, Dairy, Beverage, Pharmacy, Cosmetics,
Connection ways:
Weld, flange, thread/union, clamped
Size:
1/2"-6"
Color:
Blue , black
Sales Models:
Wholesale and Retail
Surface Treatment:
inner(0.4-0.8µm) outer(0.8-1.6µm)
Pressure Value:
0-10bar
MOQ:
1pcs
Seal Material:
VMQ, EPDM,CMQ,FPM,silicone
Transport Package:
cartons
Contact Now
SS304/316L Stainless Steel Sanitary Thread Butterfly Valve with Plactic Handle
SS304/316L Stainless Steel Sanitary Thread Butterfly Valve with Plactic Handle SS304/316L Stainless Steel Sanitary Thread Butterfly Valve with Plactic Handle SS304/316L Stainless Steel Sanitary Thread Butterfly Valve with Plactic Handle SS304/316L Stainless Steel Sanitary Thread Butterfly Valve with Plactic Handle

Drawings

Details

 Product Name:  Sanitary Butterfly Valve
 Material:  SS304 or SS316L
 Standard:  3A, SMS, DIN, RJT, IDF
 Size:  1/2"-8" or DN15-DN200
 Connection Way:  Weld, Clamp, Male, Female, Flange, or Combinations
 Operated:  Manual, Pneumatic, Electric
 Manual Handle:  Pull Handle (2-4 Positions), Plastic Trigger Handle (13 Positions),
 Stainless Steel Trigger Handle (13 Positions)
 Seal Material:  Silicone, EPDM, Viton, NBR
 Surface Finishing:  Ra≤0.8
 Working Temperature:  -10 degree to +120 degree (EPDM)
 Working Pressure:  0.2-10 Bar (DN25-DN100), 0.2-8 Bar (DN125-DN150)
