Sanitary Thread Butterfly Valve

QIlI devotes to manufacture and supply butterfly valves with different connection form,such as threaded ends, clamped ends,welded ends,flange ends, male ends, female ends,and liner ends.At the same time we can also make various of non-standard sanitary valves for guests.
Material:
SS304,SS316L
Standard:
SMS/3A, ISO/IDF,DIN,BS,RJT,ASME/BPE
Working Temperature:
VMQ(-50 to 180℃) EPDM(-20 to 135℃) FPM(-30 to 230℃)
Application:
Beer, Dairy, Beverage, Pharmacy, Cosmetics
Connection ways:
Weld, flange, thread/union, clamped
Size:
DN15-150 and 1"-6"
Color:
Blue , black
Sales Models:
wholesale or retail
Surface Treatment:
inner(0.4-0.8µm) outer(0.8-1.6µm)
Pressure Value:
0-10bar
MOQ:
1pcs
Seal Material:
VMQ, EPDM,CMQ,FPM
Transport Package:
cartons

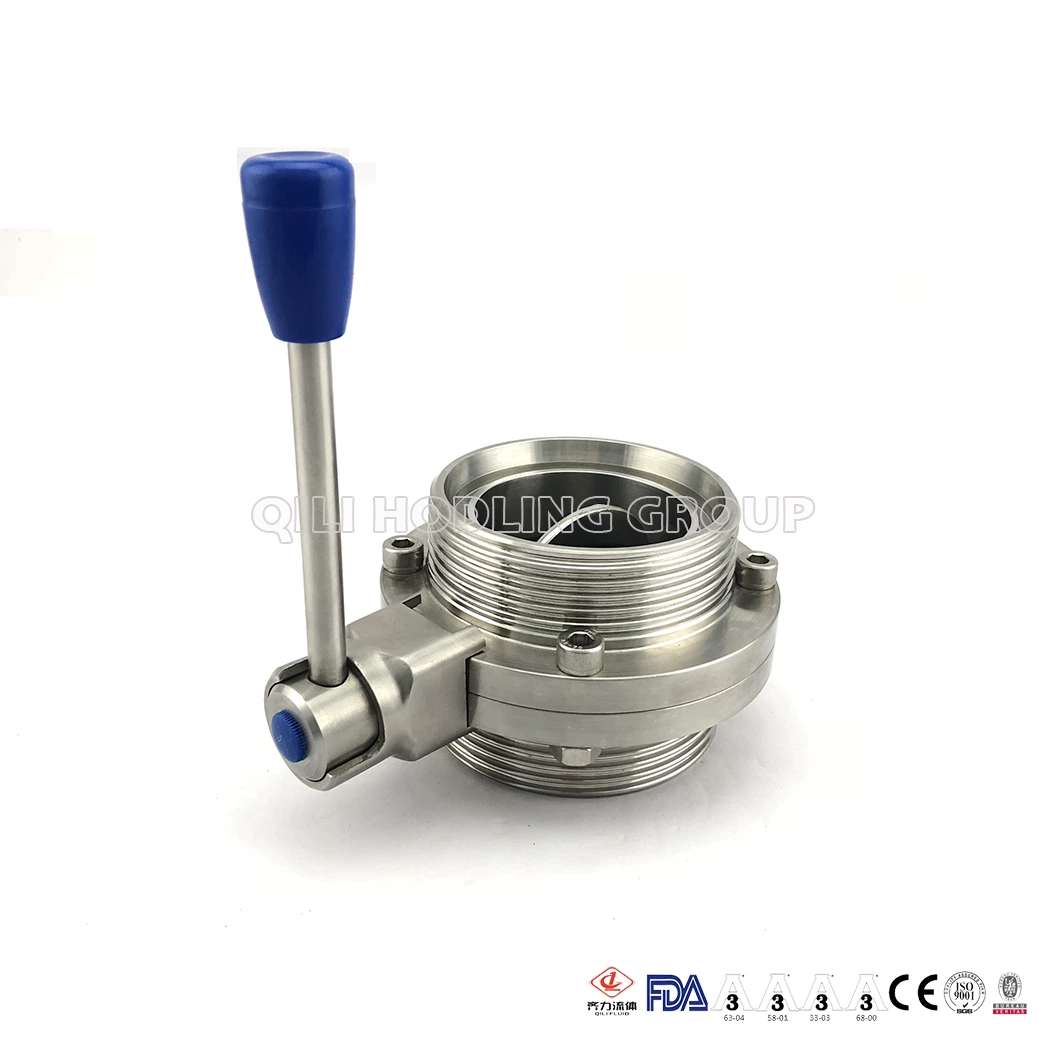

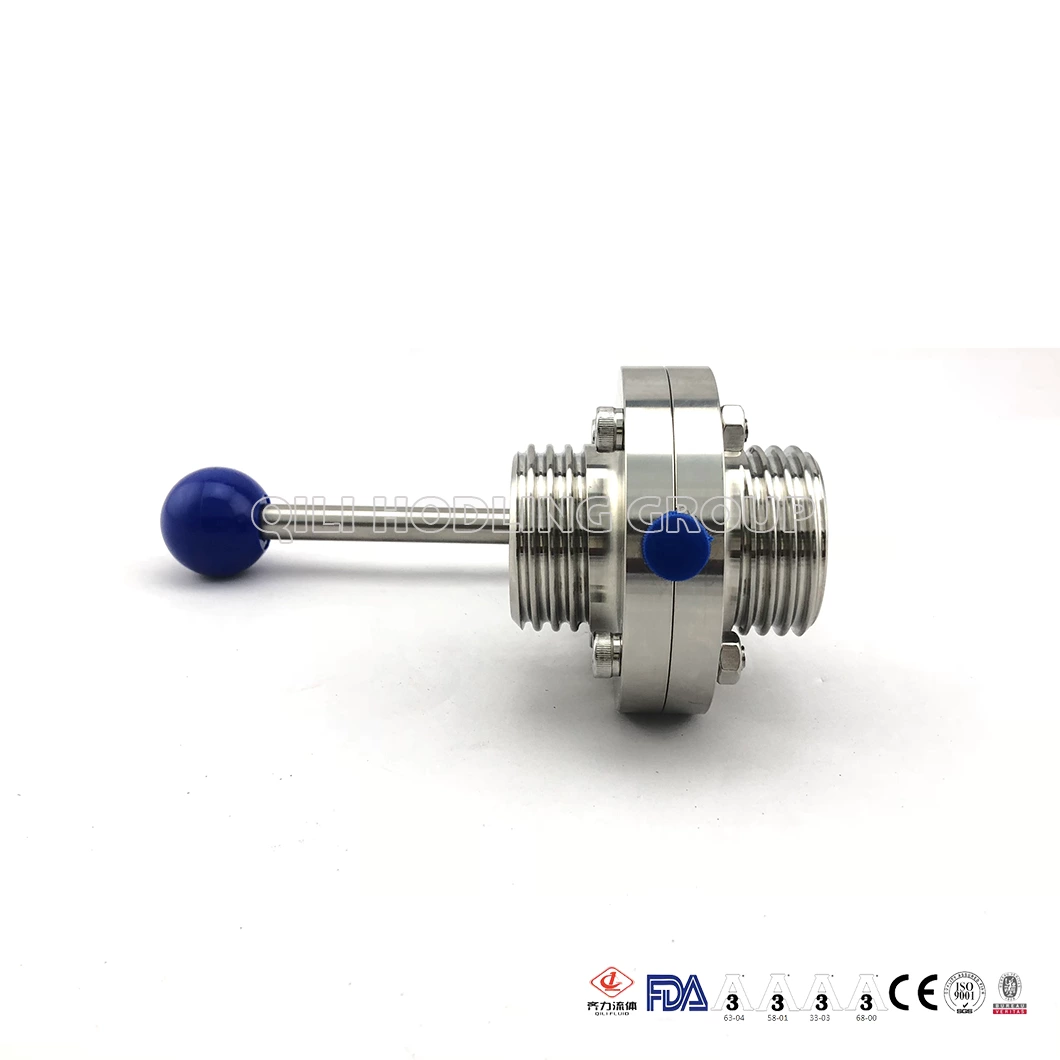

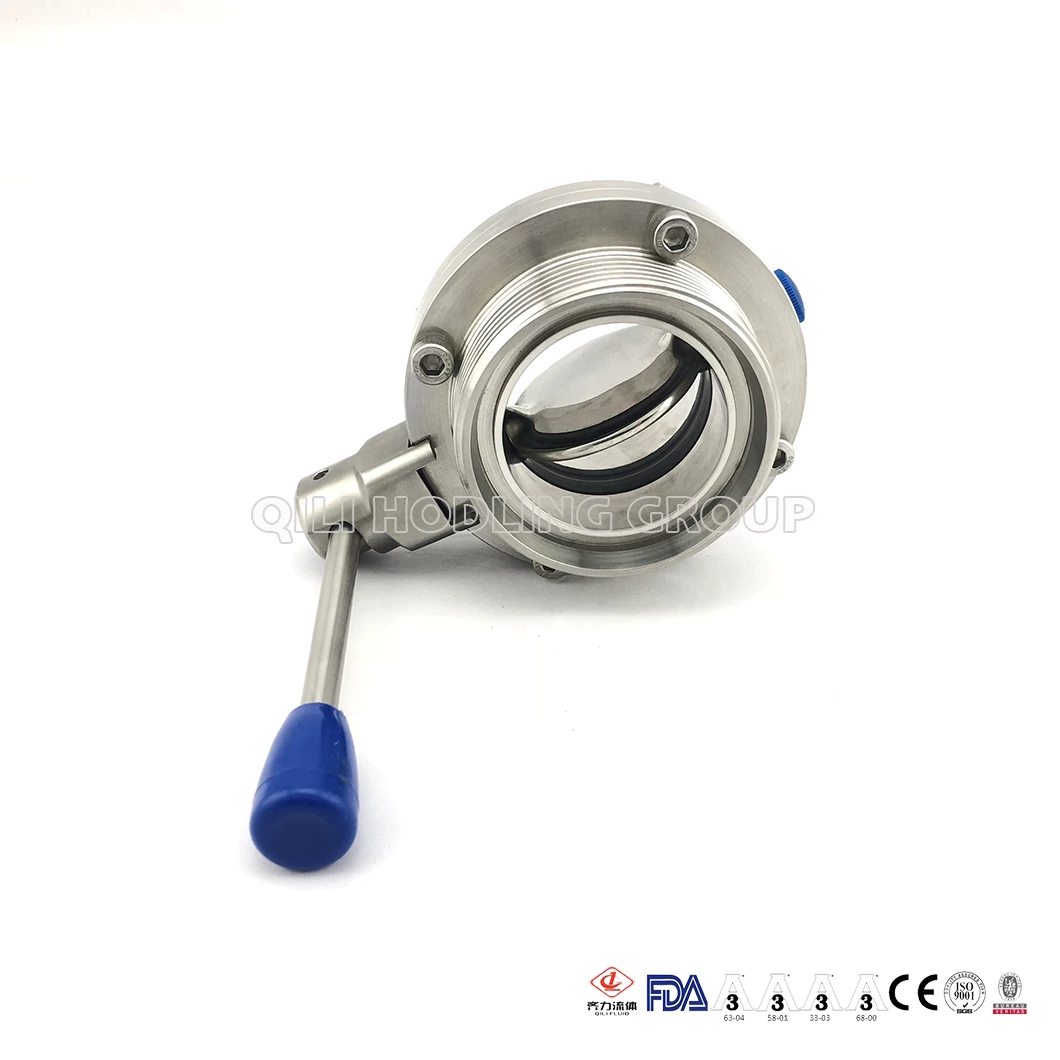

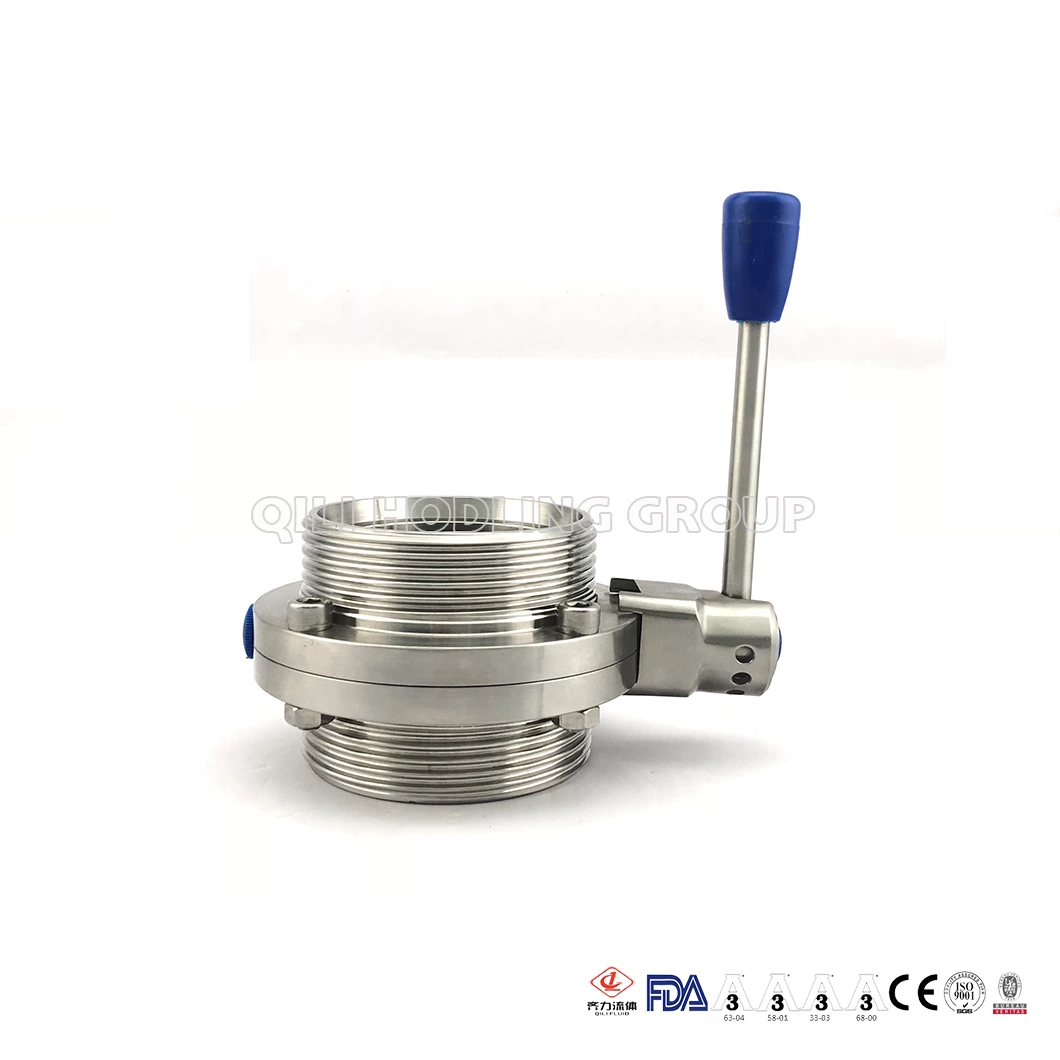

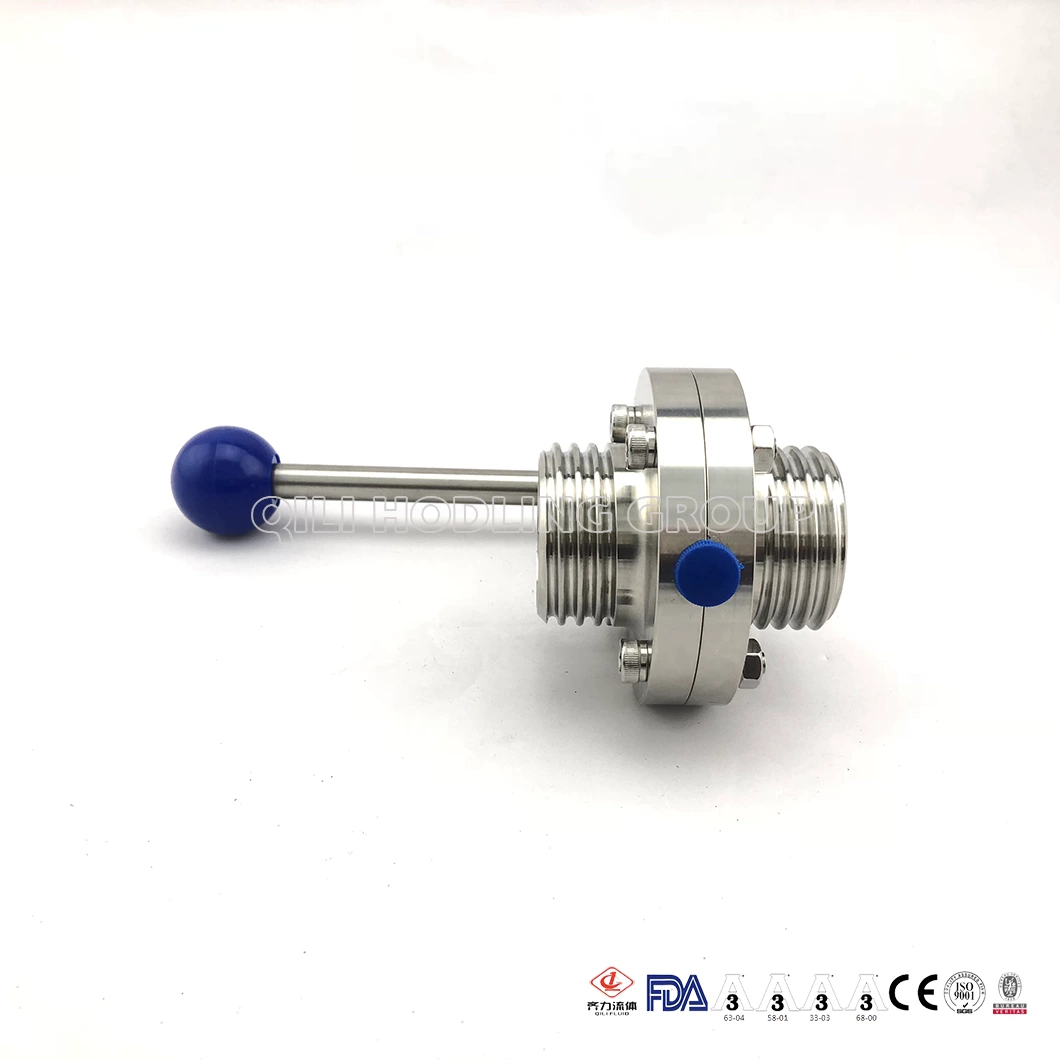

Sanitary Thread Butterfly Valve
Sanitary Thread Butterfly Valve Sanitary Thread Butterfly Valve Sanitary Thread Butterfly Valve Sanitary Thread Butterfly Valve Sanitary Thread Butterfly Valve Sanitary Thread Butterfly Valve

Details

  • Material:forged, 304 or 316L
  • Size: DN10-DN150
  • Seal Material: Silicone for Germany imports
  • Handle Name:Round Pull Handle
  • Body Material:Forged 304(1.4301) or 316L(1.4404) By CNC machine
  • Disk Material:Forged 304(1.4301) or 316L(1.4404) By CNC machine
  • Handle Material:304(1.4301)
  • Seal Material:Silicone, EPDM,Viton and NBR is available.
  • Standard: Silicone for Germany imports
  • End Standed:DIN,SMA,3A,BS,IDF,RJT etc.
  • End Size:DN10-DN150 or 1/2"-6"
  • Working pressure:-0.9 to 20 Bar for forged body
  • Working temperature:-10 oC up to 150 oC.
