Sanitary Stainless Steel Three Piece Butt Welded Butterfly Valve
QILI is your source for a SS304 and SS316L Clamp Four Position Butterfly Valve to service the Bakery, Beverage, Cosmetic, Dairy, Food and Pharmaceutical Industries.

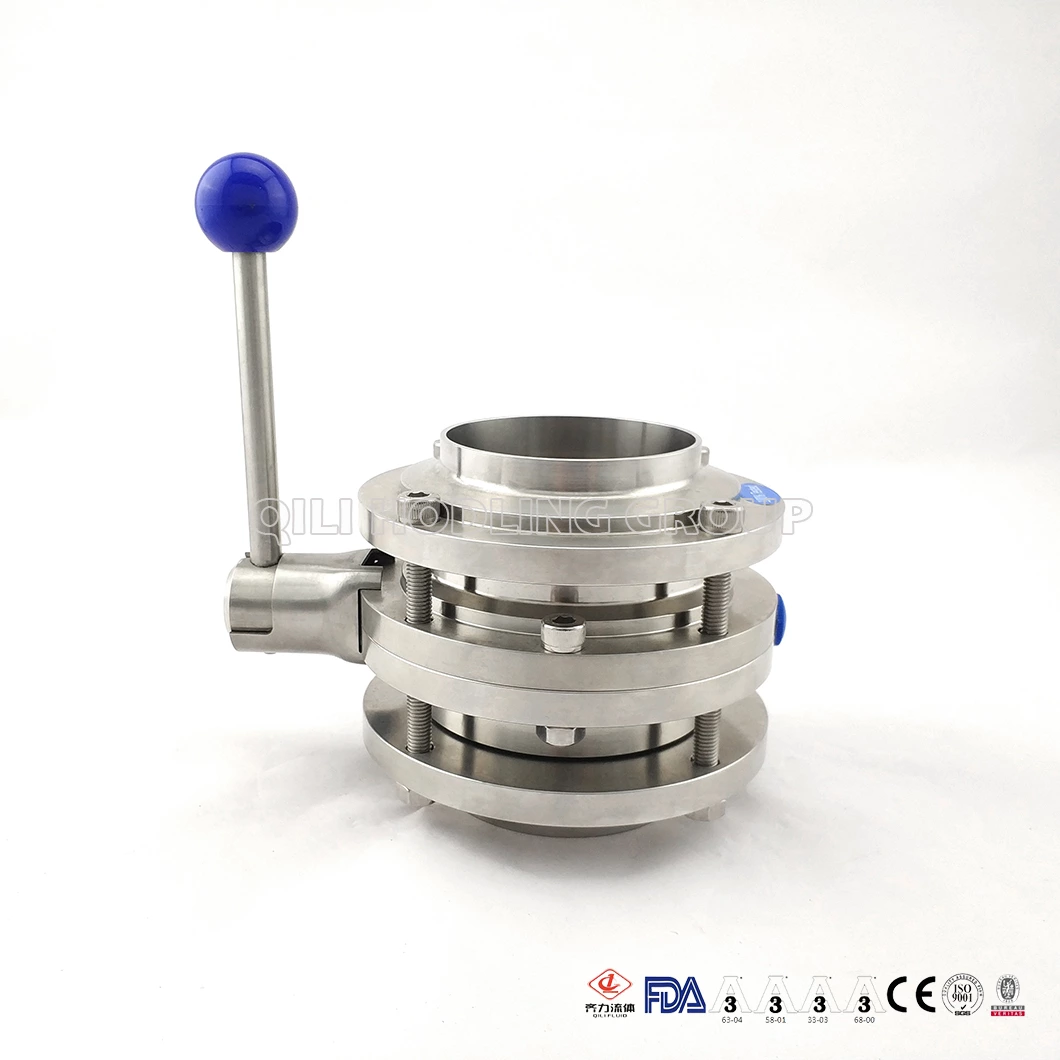

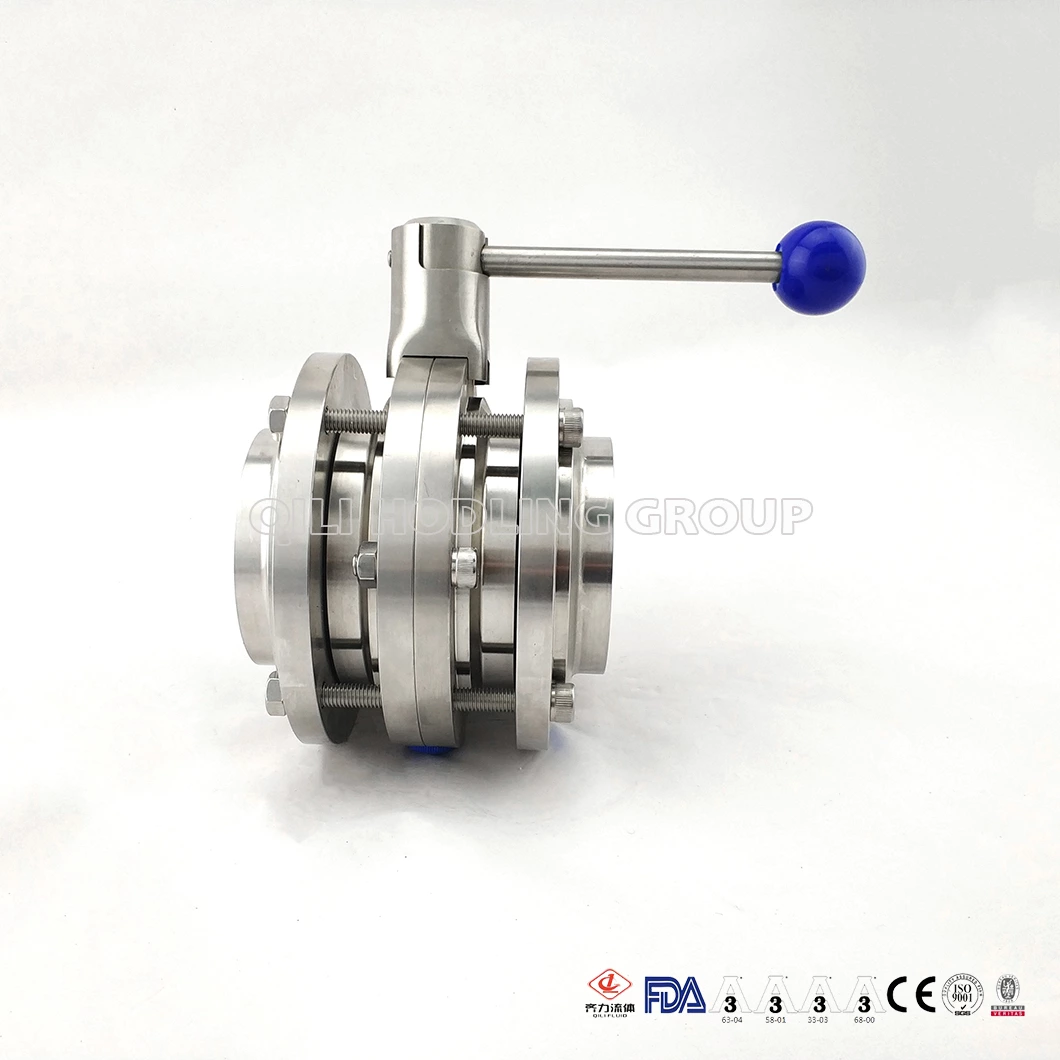

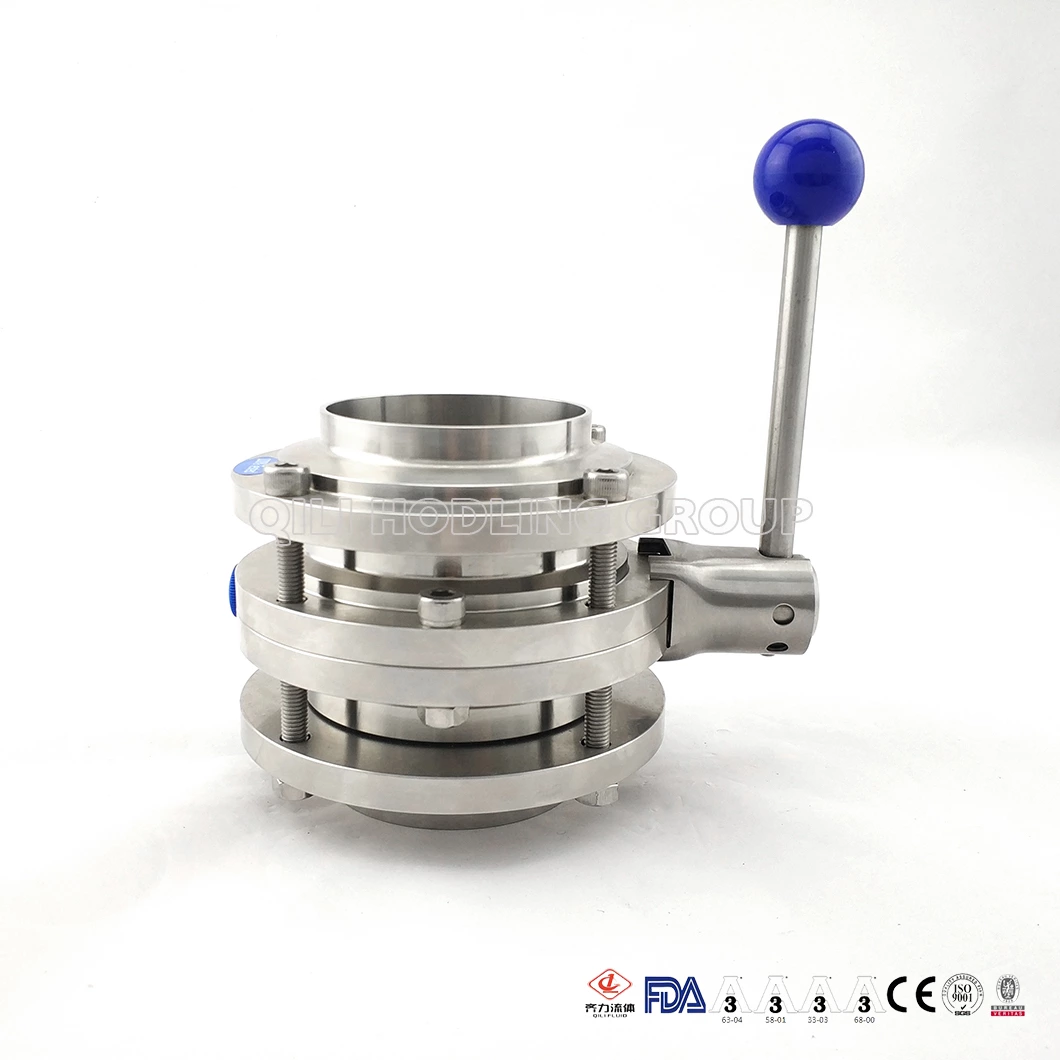

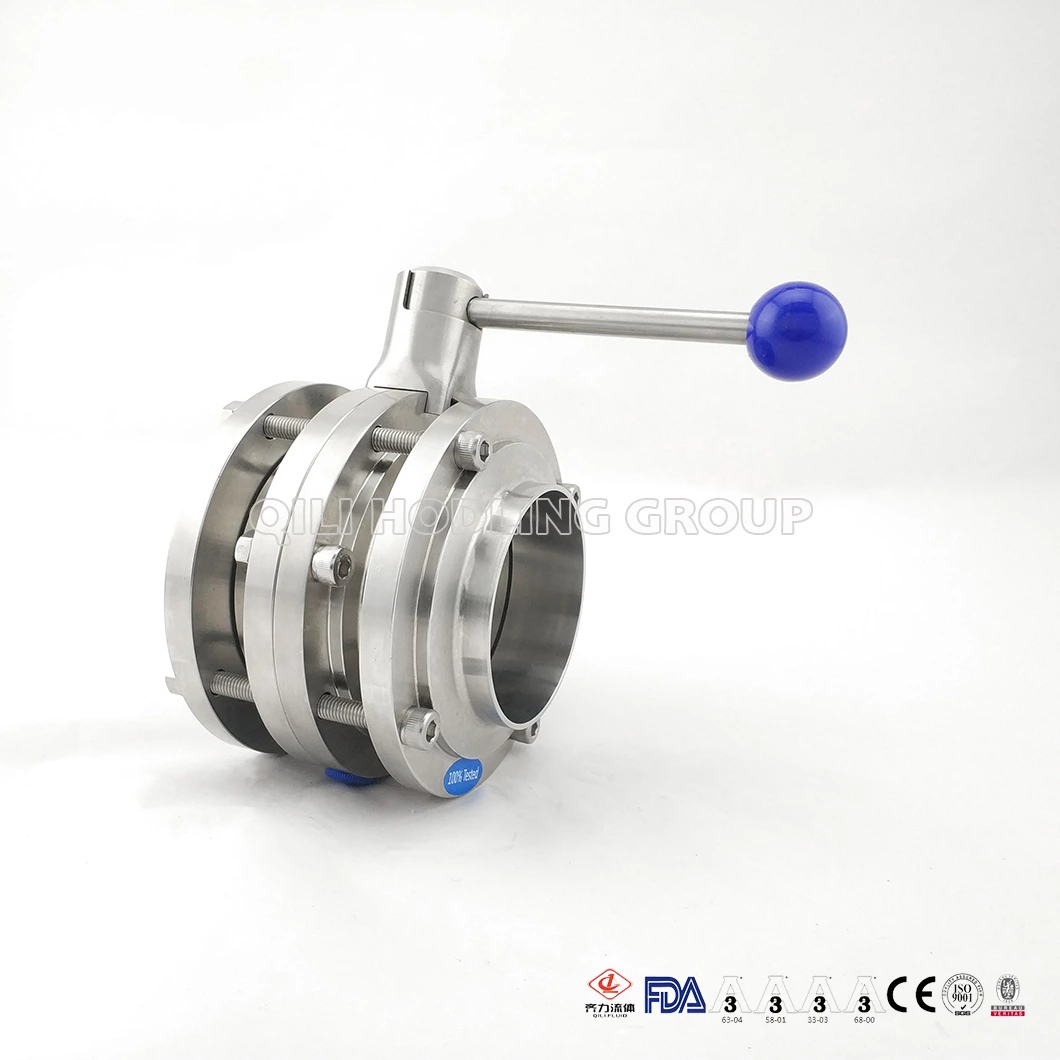

As you examine this valve with the pictures provided, look at the following features:
Our sizes ( 1" -- 6" ) valve is designed with (4) four positions so you can slowly open the valve and create less stress on the valve seat versus the open and close style of valve. Upon opening the valve, you have the option of two other positions for more or less flow depending on your needs. Since the valve comes standard with a clamp end, it is easy to assemble and disassemble when cleaning or working in a tight space.
- Material:
- SS304,SS316L
- Standard:
- SMS/3A, ISO/IDF,DIN,BS,RJT,ASME/BPE
- Working Temperature:
- VMQ（-50 to 180℃） EPDM（-20 to 135℃） FPM（-30 to 230℃）
- Application:
- Beer, Dairy, Beverage, Pharmacy, Cosmetics,
- Connection ways:
- thread
- Size:
- DN25-DN100
- Color:
- Blue , black
- Sales Models:
- Wholesale and Retail
- Surface Treatment:
- inner（0.4-0.8µm） outer（0.8-1.6µm）
- Pressure Value:
- 0-10bar
- MOQ:
- 1pcs
- Seal Material:
- VMQ, EPDM，CMQ,FPM,silicone
- Transport Package:
- cartons
Drawings
Details
| Body Material | Stainless Steel 304; Stainless Steel 316L (Forged, 1.4301/1.4404) |
| Actuator Material | Stainless Steel 304 |
| Seal Material | EPDM, VMQ(Silicone), NBR(Nitrile), VITON, all meet FDA standard |
| Temperature Range | 15°F to 200°F(-9.4°C to 93°C) EPDM |
| Max. Pressure | 10bar (140psi) DN25 ~ 100; 8bar (120psi) DN125 ~ 150 |
| Finishing | Ra 16 ~ 32µin (0.4 ~ 0.8µm) electropolish available |
| Port Size | DN25-DN100 |
| Connection | Tri-clamp ferrule; Threaded; Welded |
| Connection Standard | 3A , SMS , ASME BPE, ISO, DIN, BS |
| Specifications | Can see our products catalogues |
| Application | Food process, Milk process, Beer brewage, Bio-pharmacy, etc. |
| Packaging | Carton packaging. Wooden case packaging. |
