Sanitary Stainless Steel Tee Type Three Way Butterfly Valve with Handle Connect

Model:
QL-BV08
Contact Now
Sanitary Stainless Steel Tee Type Three Way Butterfly Valve with Handle Connect
Sanitary
Stainless Steel
Tee Type Three Way
Butterfly Valve

Sanitary Stainless Steel Tee Type Three Way Butterfly Valve with Handle Connect

QILI is your source for a SS304 and SS316L Clamp/Thread/Weld Four Position Butterfly Valve to service the Bakery, Beverage, Cosmetic, Dairy, Food and Pharmaceutical Industries.

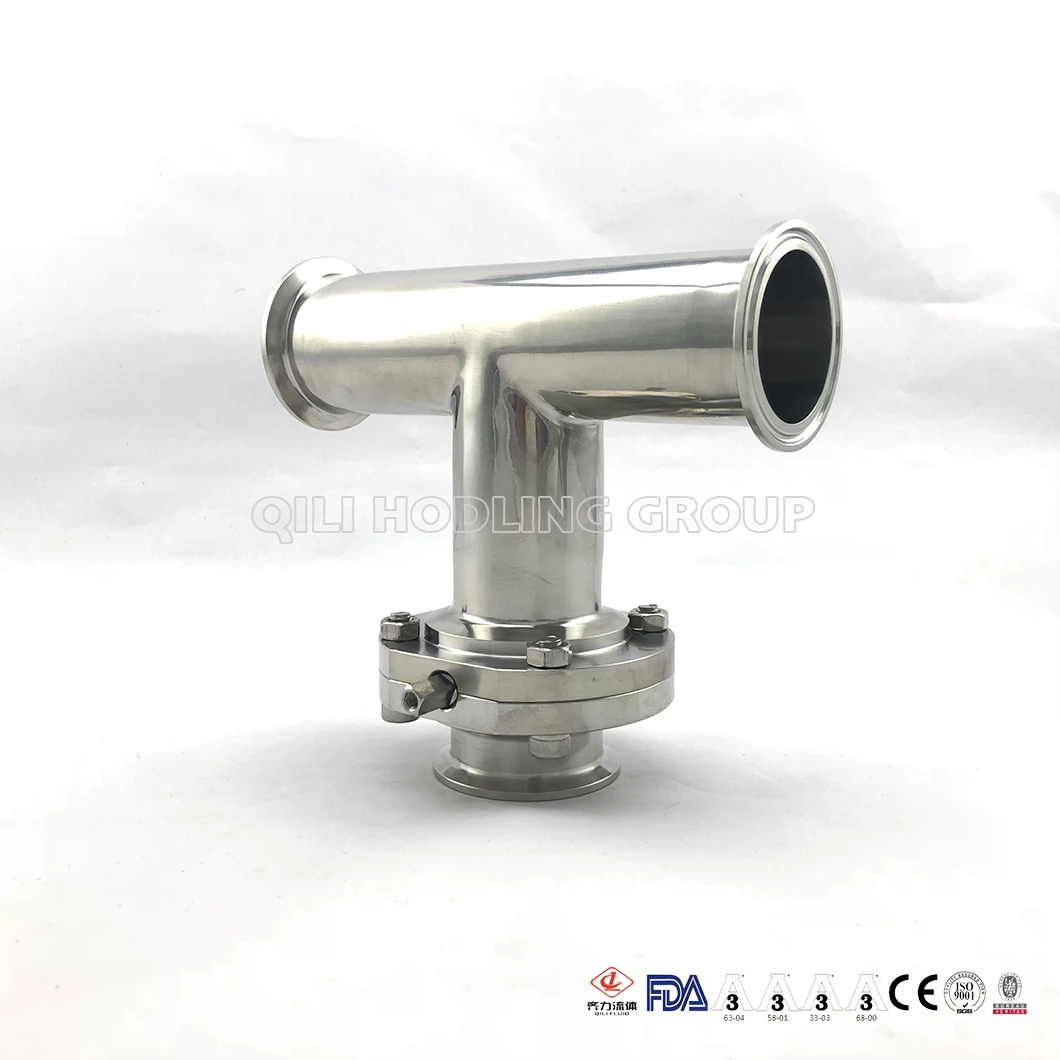

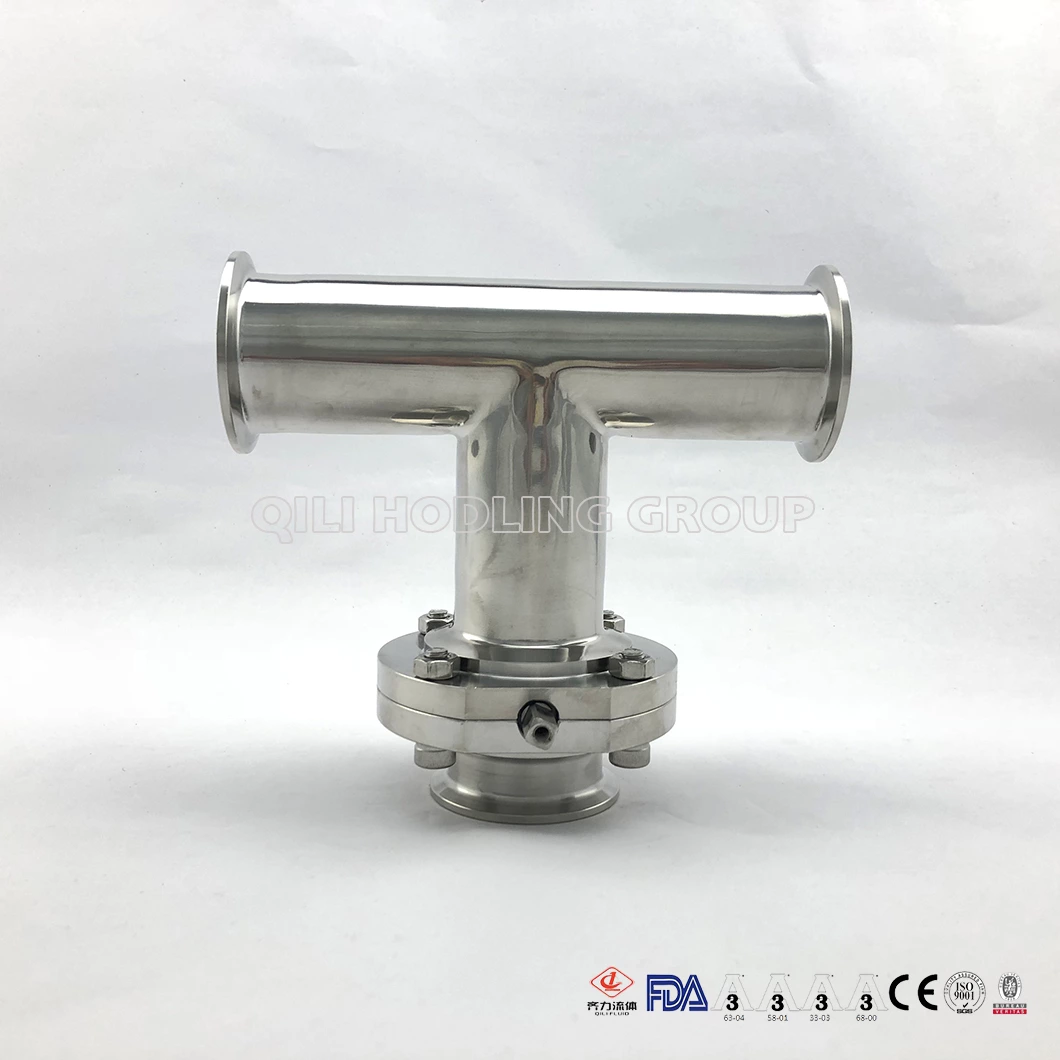

As you examine this valve with the pictures provided, look at the following features:

Our sizes ( 1" -- 6" ) valve is designed with (4) four positions so you can slowly open the valve and create less stress on the valve seat versus the open and close style of valve. Upon opening the valve, you have the option of two other positions for more or less flow depending on your needs. Since the valve comes standard with a clamp endClamp/Thread end/Weld end , it is easy to assemble and disassemble when cleaning or working in a tight space.

We have provide a Black or blue Ball attached to the pull handle and interchangeability of the Handle to either side when placed in an area where a wall could be a problem and you can not open and close the valve.

QILI's  Four Position Butterfly Valve is 100 percent Hydraulic Pressure Tested and 100 percent inspected, no special tools needed in the field to work on the valve, Silicone seats are standard. Check out the line space of each size of the valve and you will see that it matches with a few of the major competitors.

As for the finish and all wetted surface, the sanitary finish is to a 25 Ra or better. We have each valve capped and bagged so you have no dings on the ends as well as permanently etching the size, alloy and heat number for full trace ability.

Sanitary stainless steel butterfly valve

  1. Material: SS304, SS304L, SS316L
  2. Seal: Silicon, EPDM FPM
  3. Working temperature: -20 ~ 135° C
  4. Connection: Weled, quick-installed, thread, flange
  5. SIZE: DN15-150 and 1"-6"
  6. Standards: DIN, SMS, 3A, ISO
  7. Medium: Beer, Dairy, Beverage, Pharmacy, Cosmetics,
  8. Packing: Standard export packing
