Sanitary Butterfly Valve

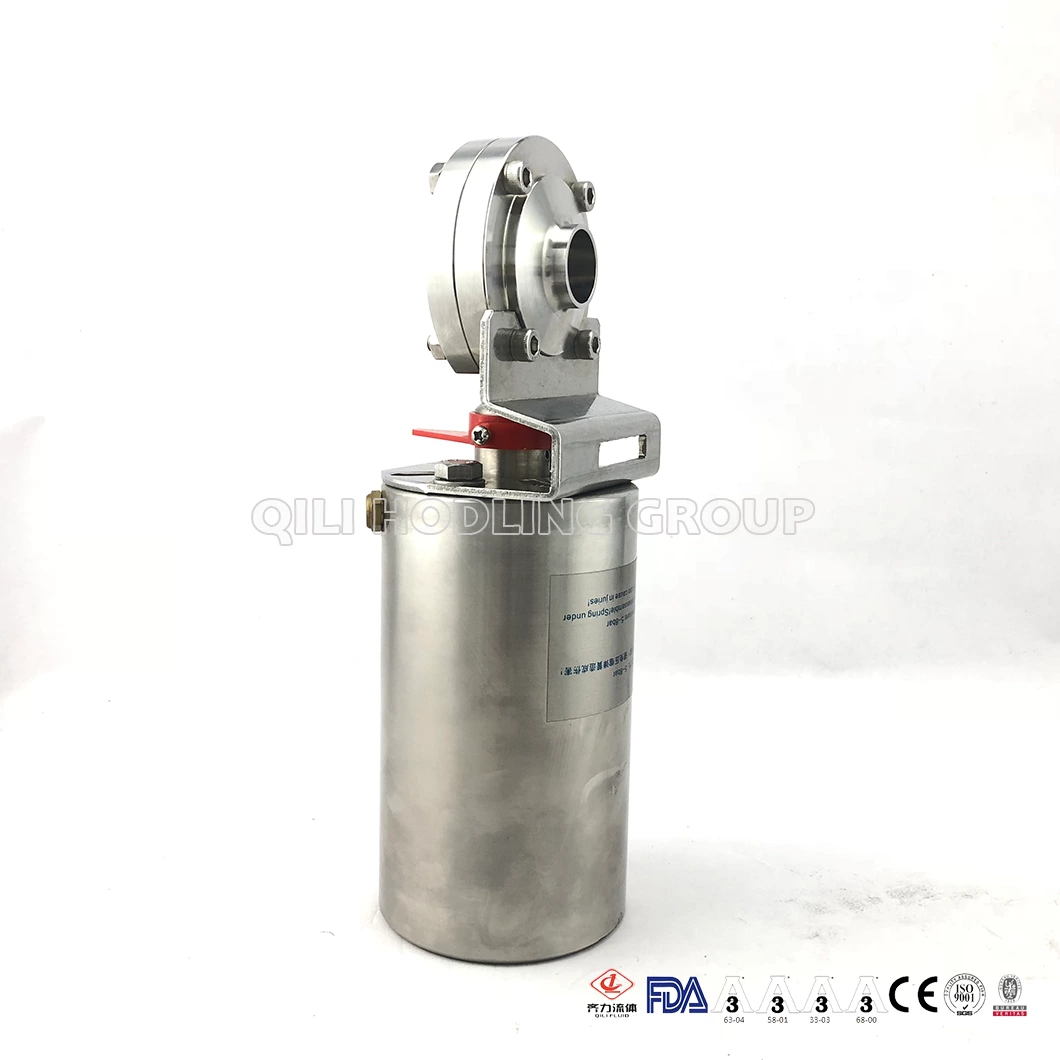

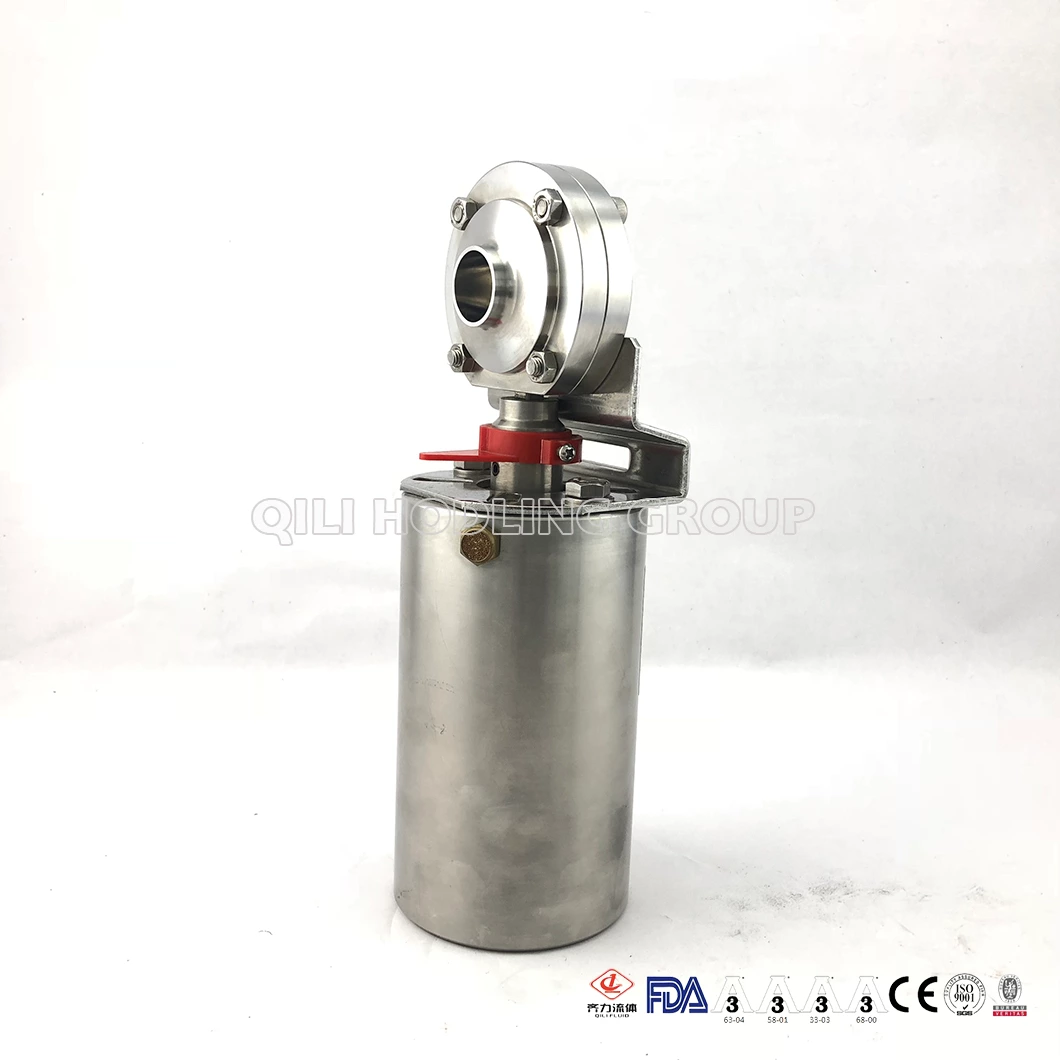

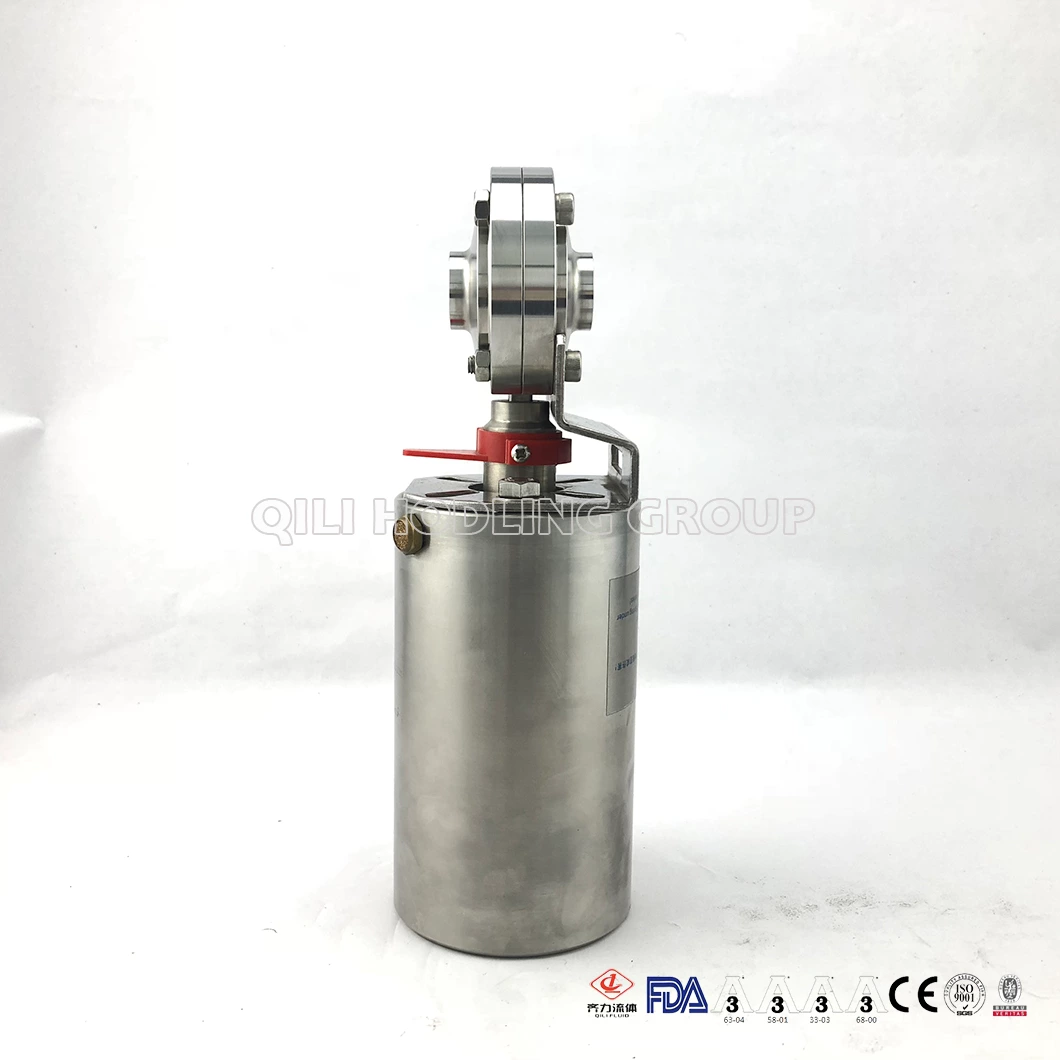

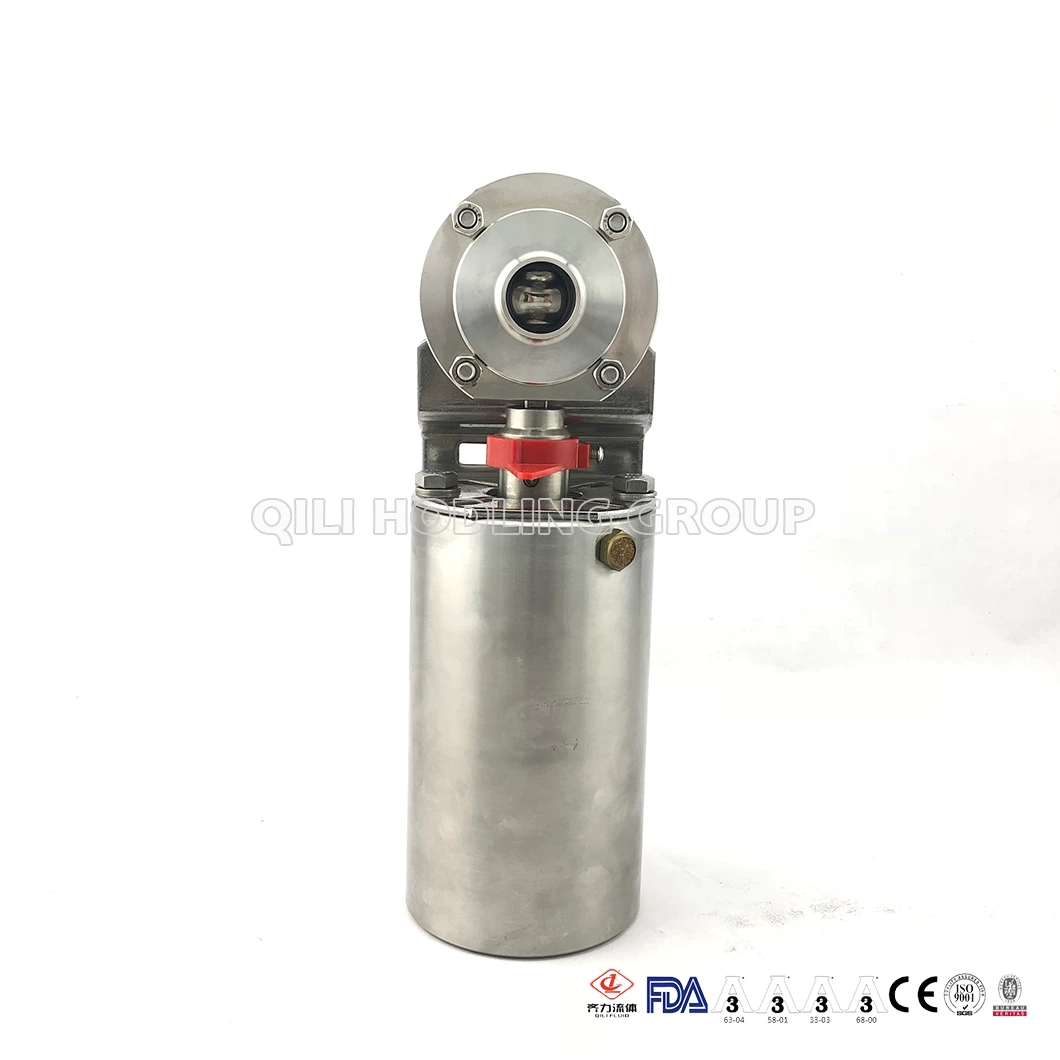

Sanitary Stainless Steel Clamped Pneumatic Butterfly Valve

Material:
SS304,SS316L
Standard:
SMS/3A, ISO/IDF,DIN,BS,RJT,ASME/BPE
Working Temperature:
VMQ(-50 to 180℃) EPDM(-20 to 135℃) FPM(-30 to 230℃)
Application:
Beer, Dairy, Beverage, Pharmacy, Cosmetics,
Connection ways:
Weld, flange, thread/union, clamped
Size:
1/2"-6"
Color:
Blue , black
Sales Models:
Wholesale and Retail
Surface Treatment:
inner(0.4-0.8µm) outer(0.8-1.6µm)
Pressure Value:
0-10bar
MOQ:
1pcs
Seal Material:
VMQ, EPDM,CMQ,FPM,silicone
Transport Package:
cartons
Contact Now
Sanitary Stainless Steel Clamped Pneumatic Butterfly Valve
Sanitary Stainless Steel Clamped Pneumatic Butterfly Valve Sanitary Stainless Steel Clamped Pneumatic Butterfly Valve Sanitary Stainless Steel Clamped Pneumatic Butterfly Valve Sanitary Stainless Steel Clamped Pneumatic Butterfly Valve Sanitary Stainless Steel Clamped Pneumatic Butterfly Valve

Drawings

Details

 Product Name:  Sanitary Stainless Steel Butterfly Valve
 Material:  SS304 or SS316L
 Standard:  3A, SMS, DIN, RJT, IDF
 Size:  1/2"-6" or DN15-DN150
 Connection Way:  Weld, Clamp, Thread (male/female) , KF
 Operated:  Manual, Pneumatic, Electric
 Manual Handle:  Pull Handle (2-4 Positions), Plastic Trigger Handle (13 Positions),
 Stainless Steel Trigger Handle (13 Positions)
 Seal Material:  Silicone, EPDM, Viton, NBR
 Surface Finishing:  Ra≤0.8
 Working Temperature:  -10 degree to +120 degree (EPDM)
 Working Pressure:  0.2-10 Bar (DN25-DN100), 0.2-8 Bar (DN125-DN150)
Application scope:  Dairy,food, beverage, pharmacy, cosmetic, Chemical, etc
