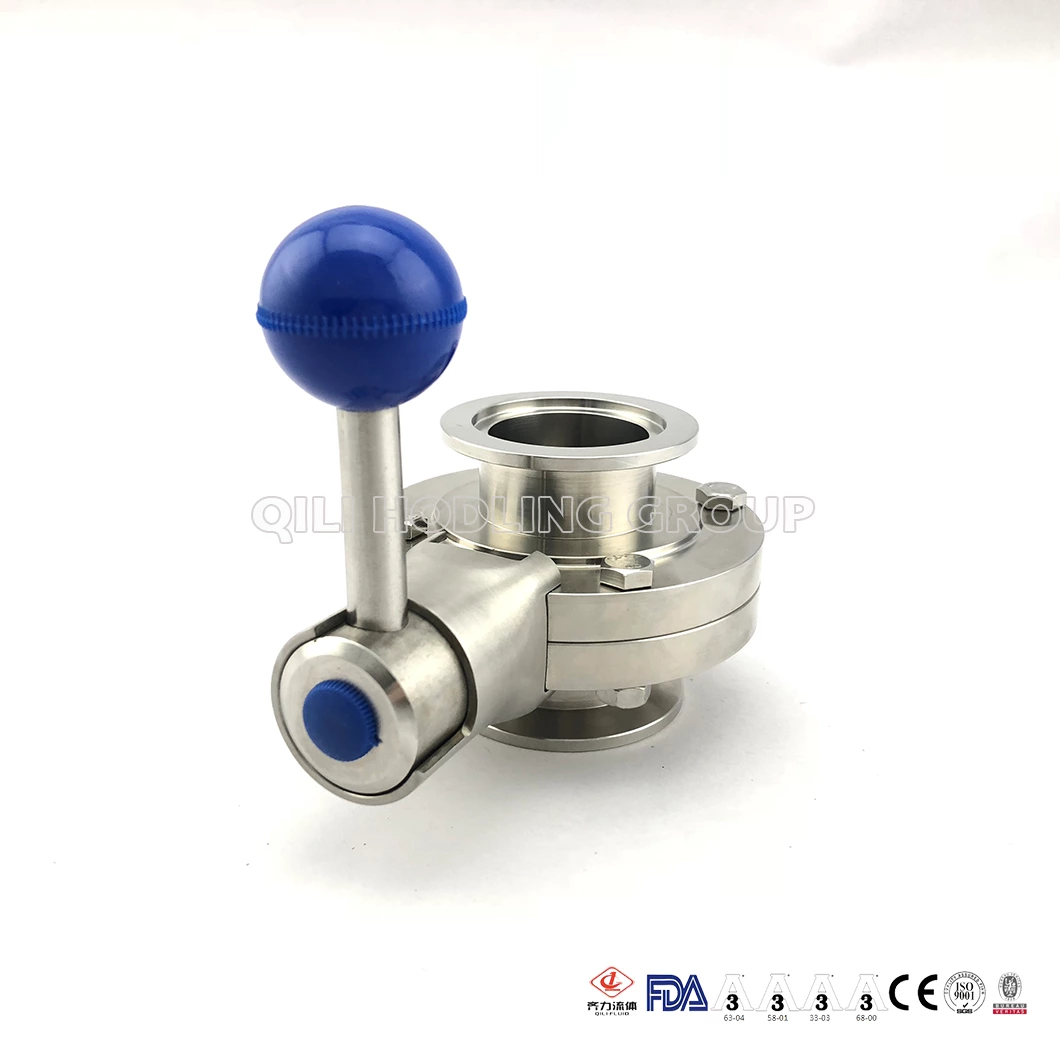

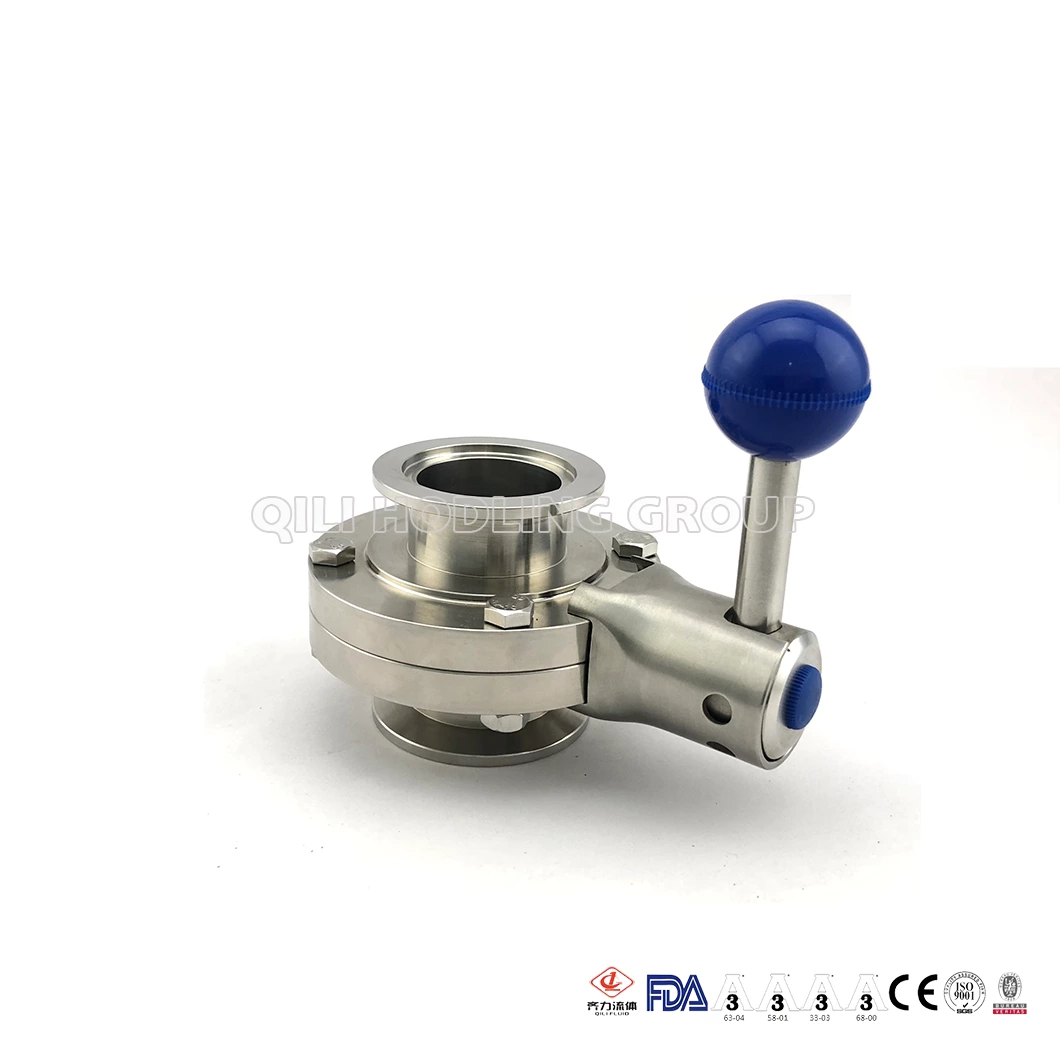

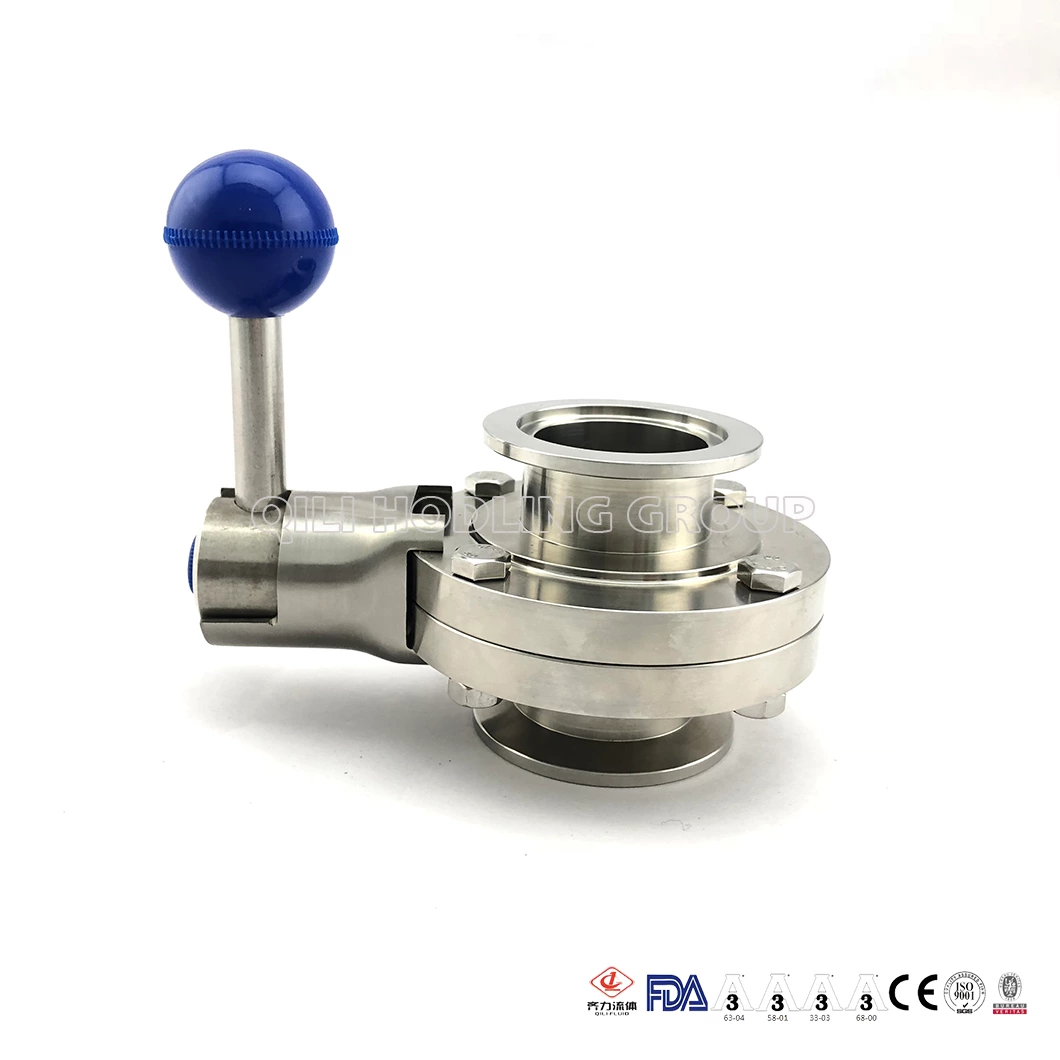

Sanitary Stainless Steel Clamped Butterfly Valve Food Grade SS304 SS316L

Material: SS304, 316L Handle color: Blue , black Type: Wave, straight Connection type: Weld, flange, thread, clamped Sales Models: Wholesale and Retail MOQ: 1pcs
Material:
SS304,SS316L
Standard:
SMS/3A, ISO/IDF,DIN,BS,RJT,ASME/BPE
Working Temperature:
VMQ(-50 to 180℃) EPDM(-20 to 135℃) FPM(-30 to 230℃)
Application:
Beer, Dairy, Beverage, Pharmacy, Cosmetics,
Connection ways:
Weld, flange, thread/union, clamped
Size:
1/2"-6"
Color:
Blue , black
Sales Models:
Wholesale and Retail
Surface Treatment:
inner(0.4-0.8µm) outer(0.8-1.6µm)
Pressure Value:
0-10bar
MOQ:
1pcs
Seal Material:
VMQ, EPDM,CMQ,FPM,silicone
Transport Package:
cartons
Sanitary Stainless Steel Clamped Butterfly Valve Food Grade SS304 SS316L
Sanitary Stainless Steel Clamped Butterfly Valve Food Grade SS304 SS316L Sanitary Stainless Steel Clamped Butterfly Valve Food Grade SS304 SS316L Sanitary Stainless Steel Clamped Butterfly Valve Food Grade SS304 SS316L Sanitary Stainless Steel Clamped Butterfly Valve Food Grade SS304 SS316L Sanitary Stainless Steel Clamped Butterfly Valve Food Grade SS304 SS316L

Details

 Product Name:  Sanitary Butterfly Valve
 Material:  SS304 or SS316L
 Standard:  3A, SMS, DIN, RJT, IDF
 Size:  1/2"-6"
 Connection Way:  Weld, Clamp, Male, Female, Flange, or Combinations
 Operated:  Manual, Pneumatic, Electric
 Manual Handle:  Pull Handle (2-4 Positions), Plastic Trigger Handle (13 Positions),
 Stainless Steel Trigger Handle (13 Positions)
 Seal Material:  Silicone, EPDM, Viton, NBR
 Surface Finishing:  Ra≤0.8
 Working Temperature:  -10 degree to +120 degree (EPDM)
 Working Pressure:  0.2-10 Bar (DN25-DN100), 0.2-8 Bar (DN125-DN150)



Drawings
