Sanitary Stainless Steel Butterfly Valves Tri Clamp

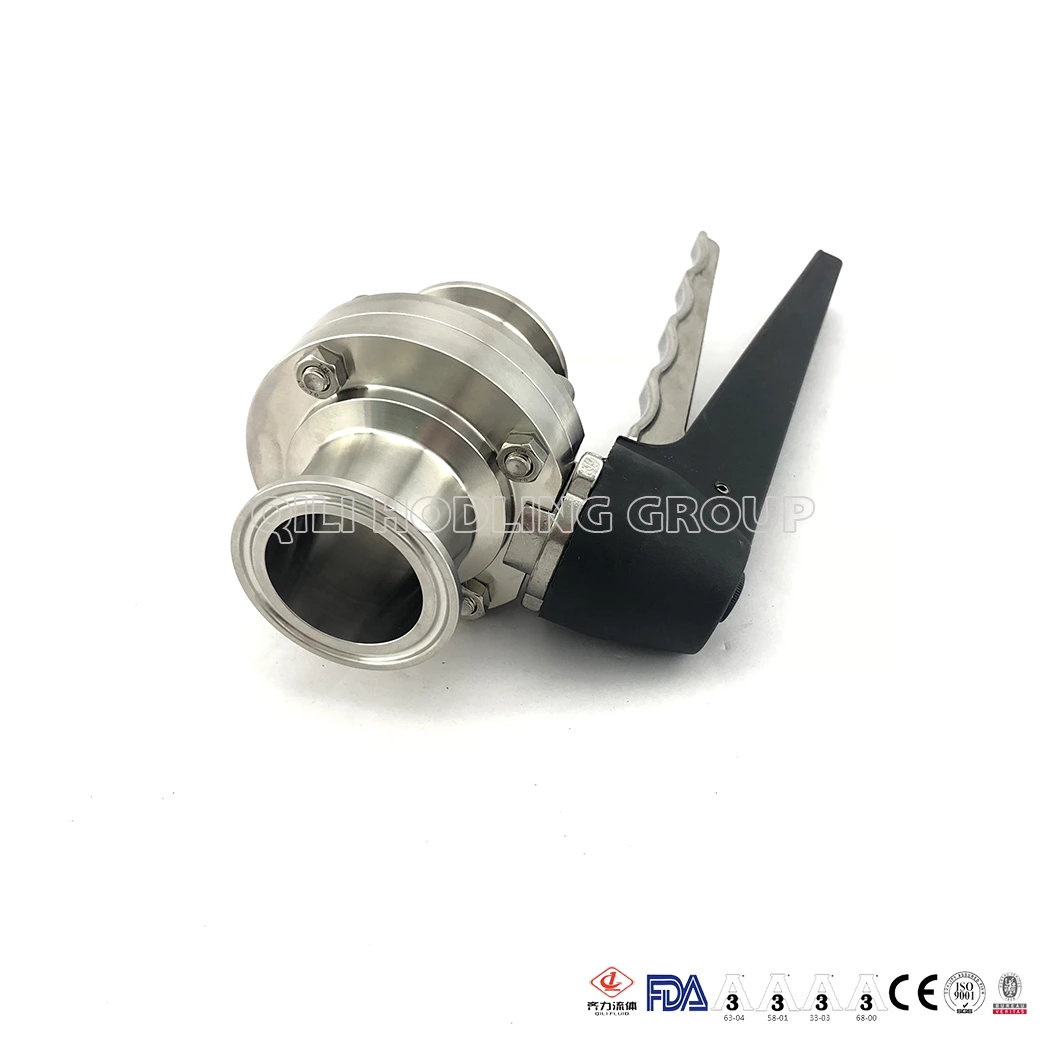

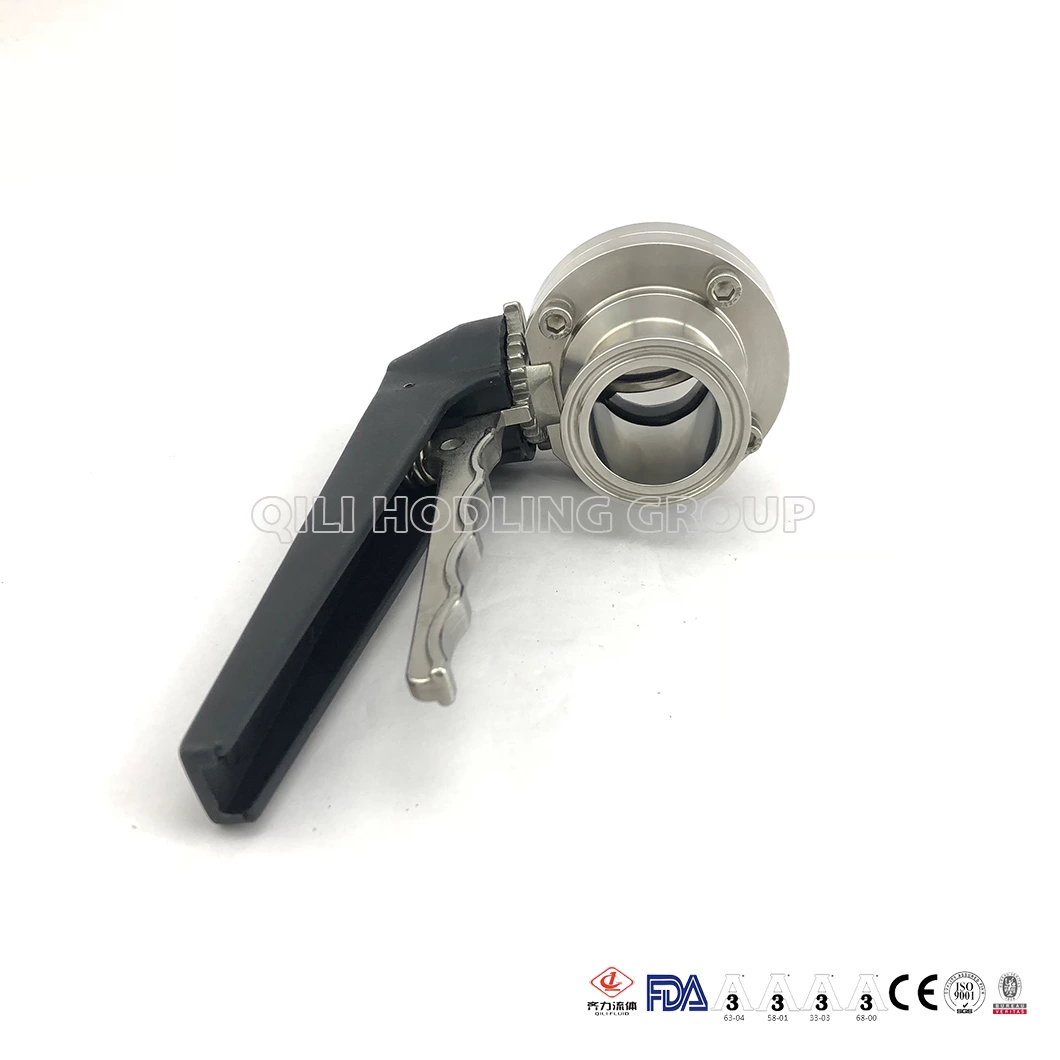

This sanitary butterfly valve has a Squeeze-trigger lock on it and can be locked in 13 different positions. The handle is simply squeezed to rotate the valve gate and can be rotated 180° so it can be closed on either side. Butterfly valves can be cleaned in place as there are no pockets for nasties to hide. They are also lighter and more compact that Tri Clover Compatible ball valves. Made of 304 stainless steel. Since butterfly valves tend to be more of an on-off, ball valves tend to do a better job at controlling flow rates than Tri Clover Compatible butterfly valves. We usually recommend butterfly valves at vessel outlets and on fermenters and Tri Clover Compatible ball valves on pump outlets and vessle returns like mash tun sparge and vorlauf returns.Tc Sanitary Butterfly Valve Sanitary, find complete details about Tc Sanitary Butterfly Valve Sanitary, sanitary stainless steel, tri clamped, butterfly valve - Wenzhou Qili Fluid Equipment Co.,ltd.
- Material:
- SS304,SS316L
- Standard:
- SMS/3A, ISO/IDF,DIN,BS,RJT,ASME/BPE
- Working Temperature:
- VMQ（-50 to 180℃） EPDM（-20 to 135℃） FPM（-30 to 230℃）
- Application:
- Beer, Dairy, Beverage, Pharmacy, Cosmetics,
- Connection ways:
- Weld, flange, thread/union, clamped
- Size:
- 1/2"-6"
- Color:
- Blue , black
- Sales Models:
- Wholesale and Retail
- Surface Treatment:
- inner（0.4-0.8µm） outer（0.8-1.6µm）
- Pressure Value:
- 0-10bar
- MOQ:
- 1pcs
- Seal Material:
- VMQ, EPDM，CMQ,FPM
- Transport Package:
- cartons
Drawings
Details
| Description | Sanitary Stainless Steel Butterfly Valves Tri Clamp |
| Body Material | Stainless Steel 304; Stainless Steel 316L (Forged, 1.4301/1.4404) |
| Actuator Material | Stainless Steel 304 |
| Seal Material | EPDM, VMQ(Silicone), NBR(Nitrile), VITON, all meet FDA standard |
| Temperature Range | 15°F to 200°F(-9.4°C to 93°C) EPDM |
| Max. Pressure | 10bar (140psi) DN25 ~ 100; 8bar (120psi) DN125 ~ 150 |
| Finishing | Ra 16 ~ 32µin (0.4 ~ 0.8µm) electropolish available |
| Port Size | 1/2” -6” |
| Connection | Tri-clamp ferrule; Threaded; Welded |
| Connection Standard | 3A , SMS , ASME BPE, ISO, DIN, BS |
| Features | 100% hydraulic tested / 100% inspected |
| Specifications | Can see our products catalogues |
| Application | Food process, Milk process, Beer brewage, Bio-pharmacy, etc. |
| Packaging | Carton packaging. Wooden case packaging. |
| Shipment | Air shipment, Ocean shipment, DHL/UPS available. Up to requirement. |
| Payment | T/T, L/C, West Union, Paypal |
